JH-100G-QSFP28-A2-AOC

型号：100G QSFP28 to 2xQSFP28 AOC 1M

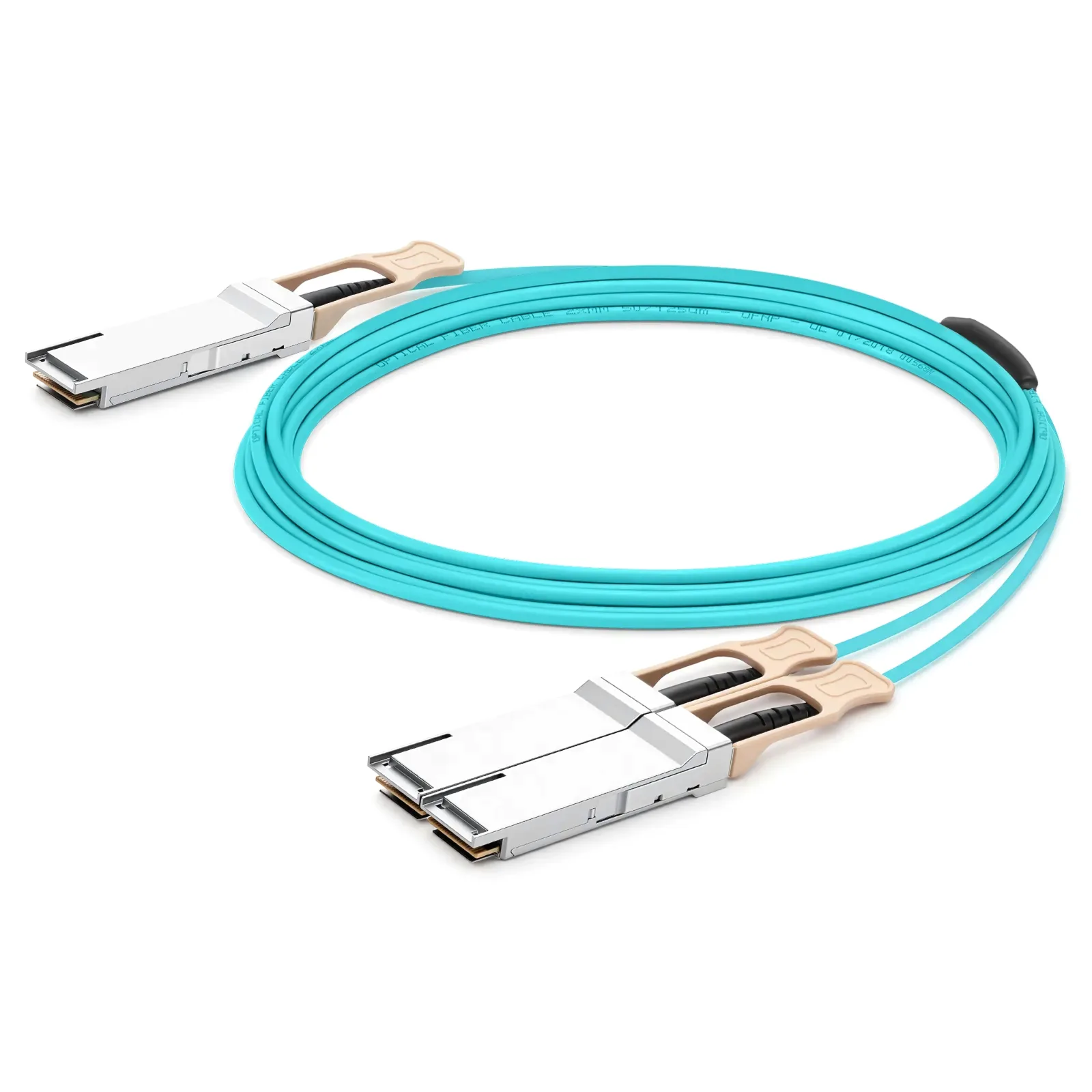

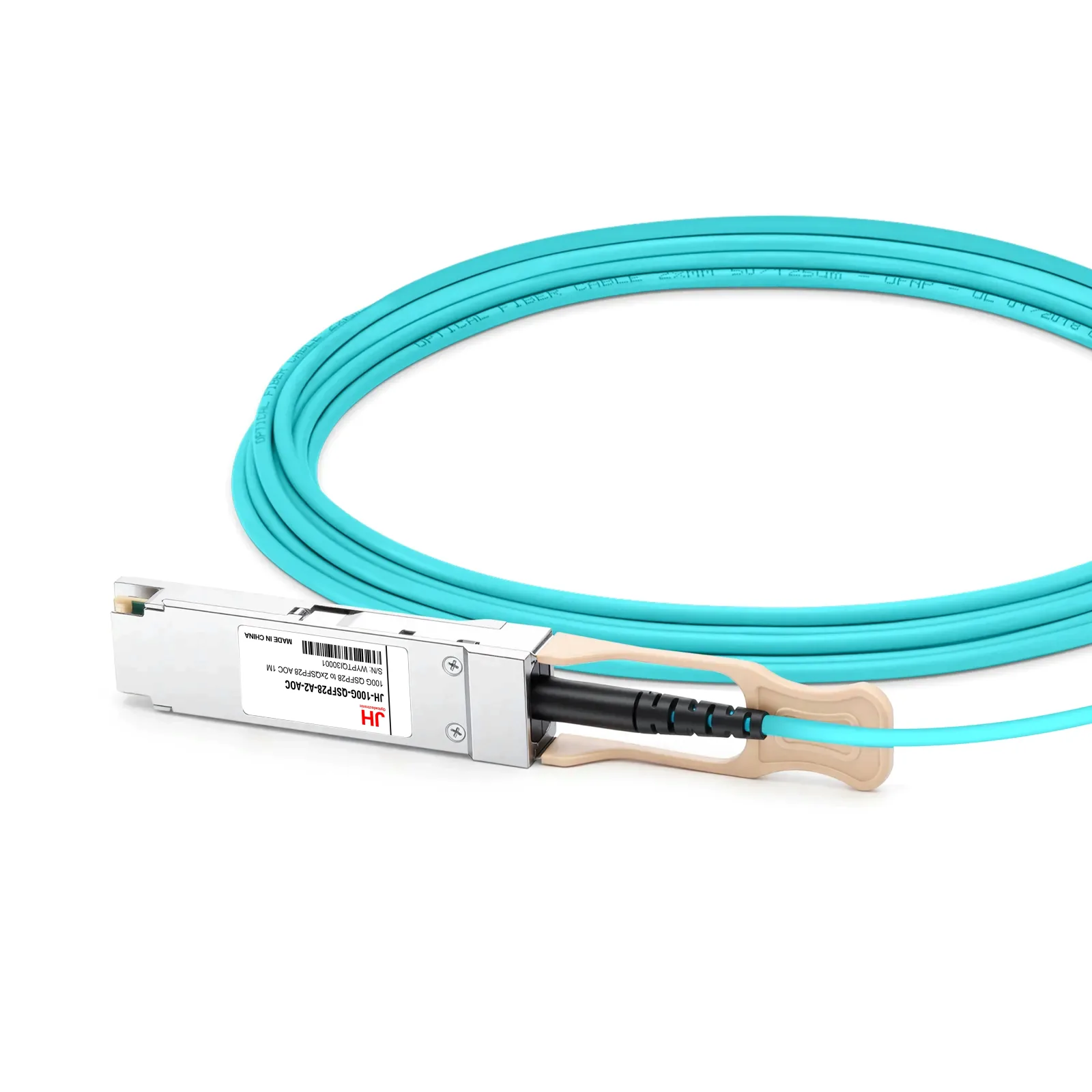

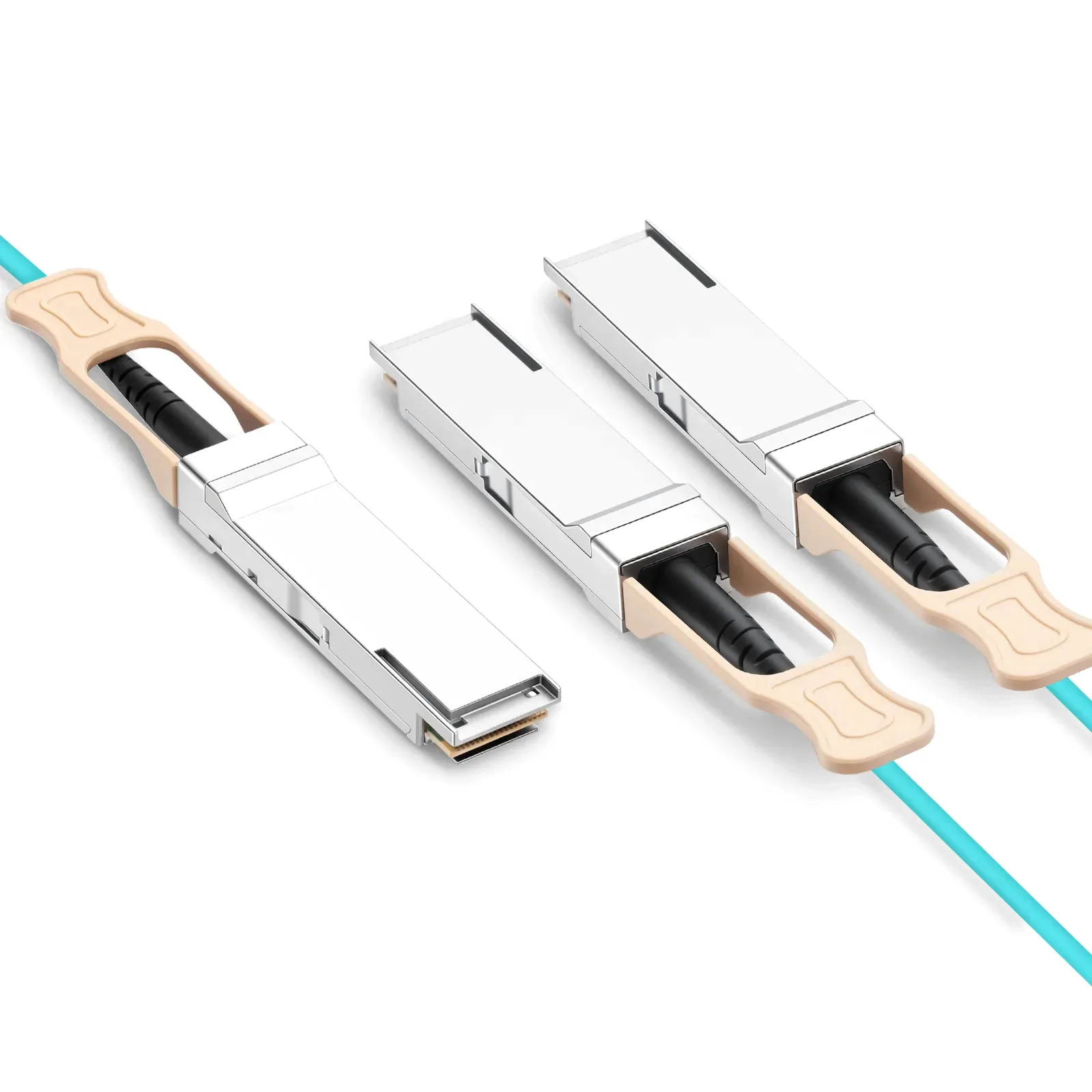

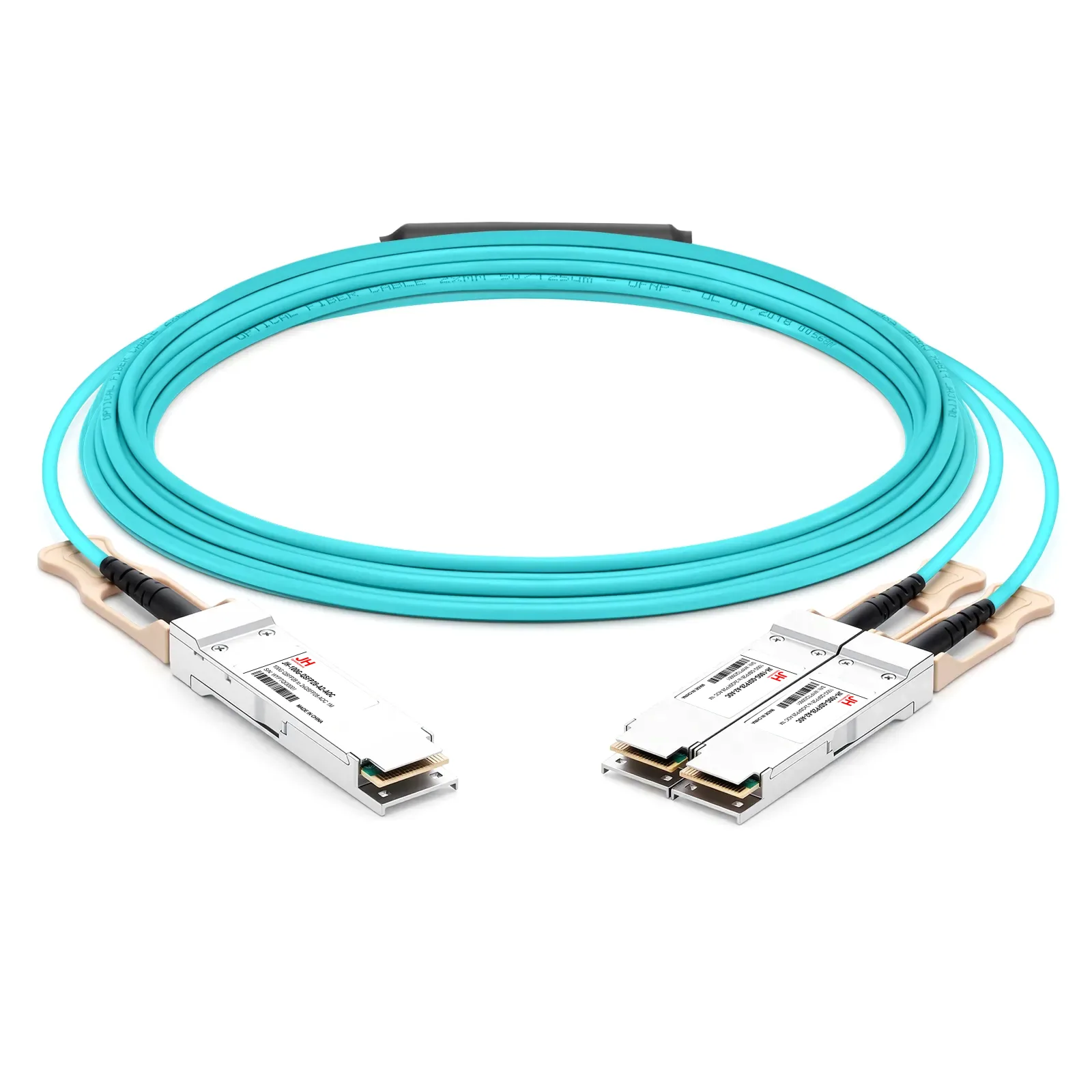

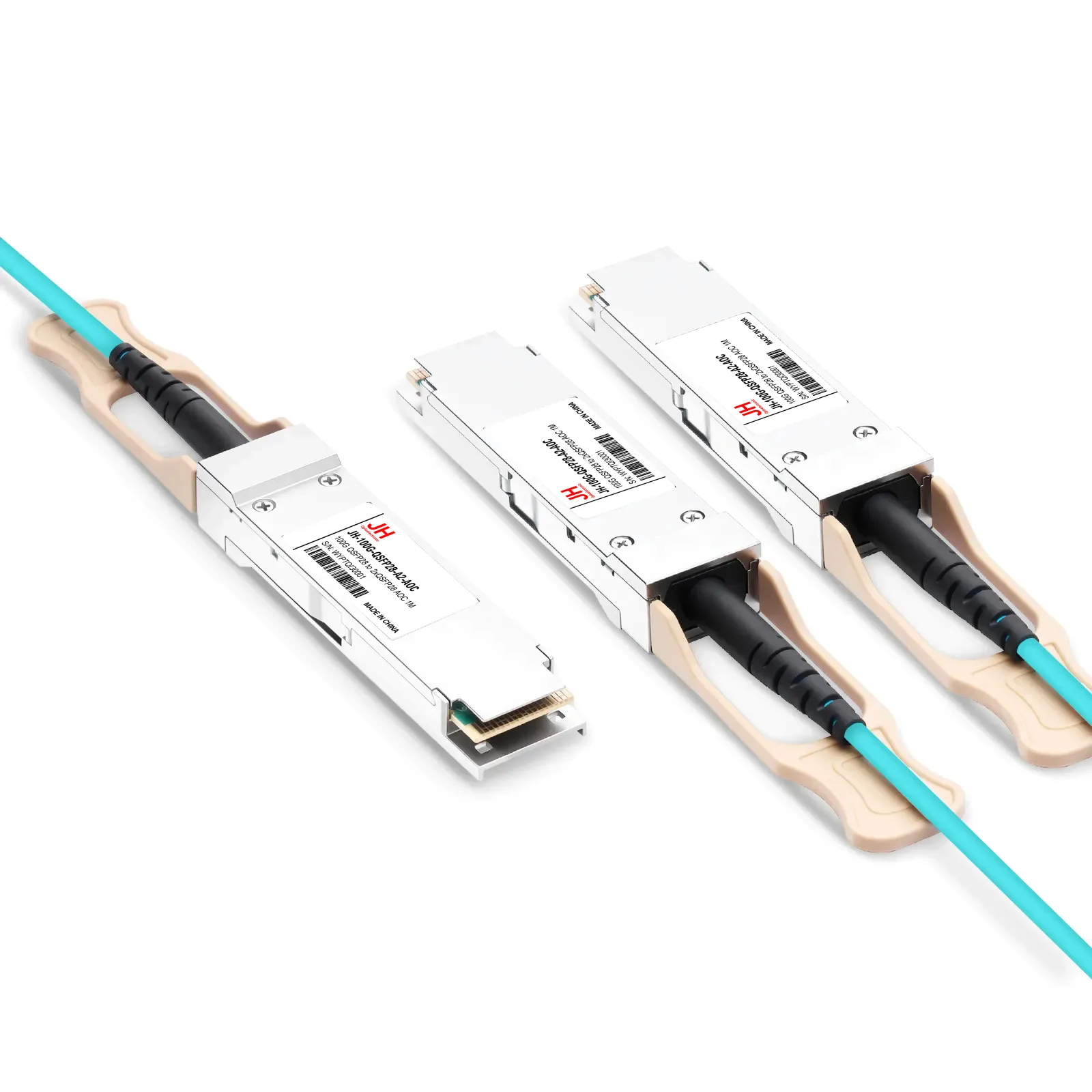

JH-100G-QSFP28-A2-AOC 100G QSFP28 to 2x 50G QSFP28 Active Optical Breakout Cable is designed for 100G-to-2x 50G Ethernet breakout applications. It is compliant with Hot Pluggable QSFP28 MSA, SFF-8636 and SFF-8665 Standards. The main use of the cable is linking one 100G QSFP28 port to two 50G QSFP28 ports for short-reach breakout connections. Featured with low latency, low power consumption, and high reliability, it is suitable for short-distance connections within racks and across adjacent racks in data centers, HPC, and switch/router/server/storage deployments.

联系我们

产品特性

Hot-pluggable QSFP28 to 2xQSFP28 Active Optical Cable assembly
Supports 100Gbps data rate, compliant with QSFP28 MSA, SFF-8636 and SFF-8665 standards
Maximum power consumption < 2W per end
Commercial operating temperature range: 0~70
Single +3.3V power supply
Built-in DDM/DOM digital diagnostic monitoring, supports real-time performance monitoring
Class 1 laser safety certified, compliant with EN 60825-1 standard
Compliant with RoHS 2.0 environmental protection standard, lead-free design
Data Center 100G-to-2x50G Breakout, High-Density Interconnect

规格参数

Data Rate	100G
Distance	1-70M
Wavelength	850nm
Form Factor	QSFP28 to 2xQSFP28
Connector	AOC
Case Temperature	0~70
Voltage Supply	3.3V
Transmitter	VCSEL
Receiver	PIN
TX Power	-8.4~2.4
Receiver Sensitivity	-10.3
Power consumption（Max）	2W
