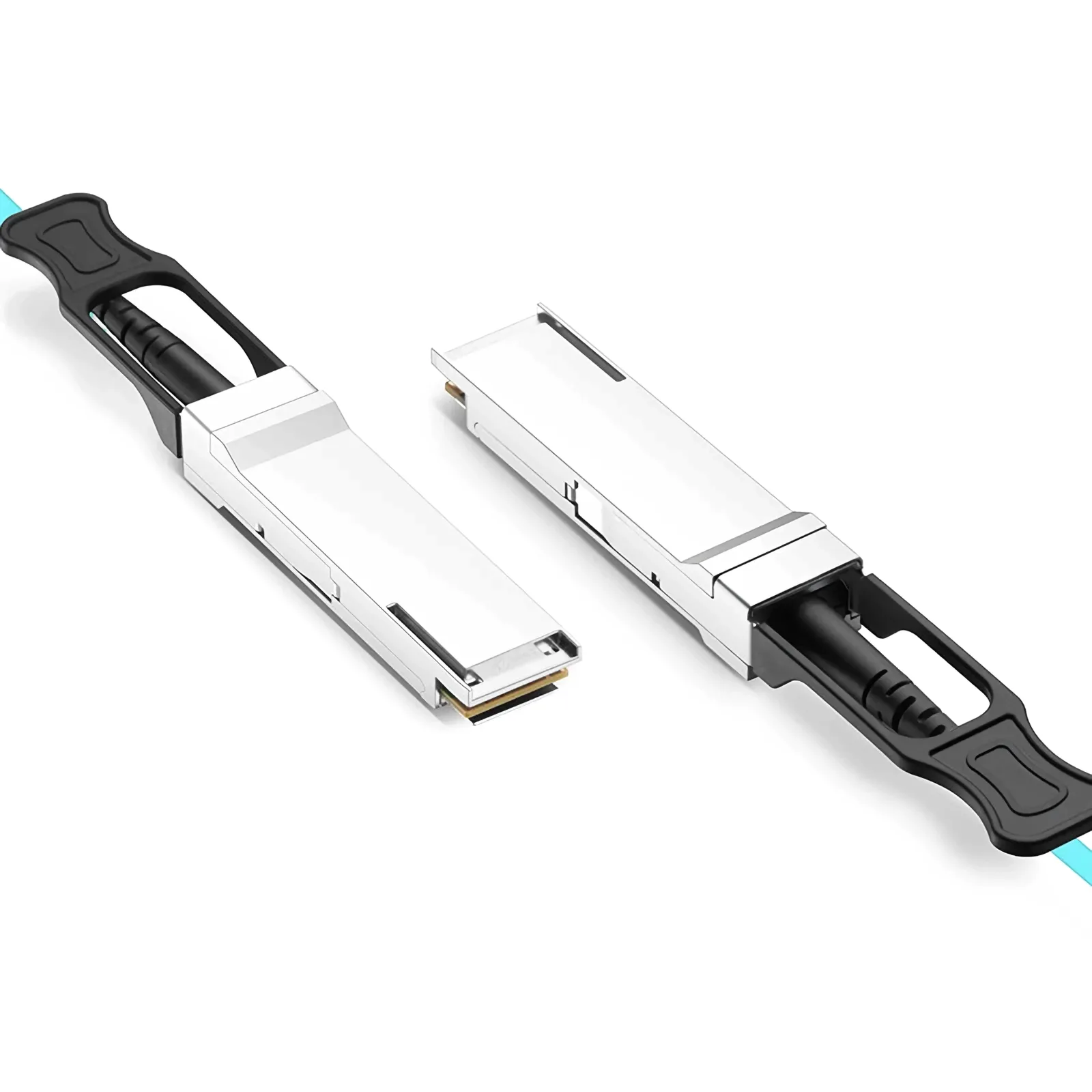

JH-100G-QSFP28-A1-AOC

型号：100G QSFP28 to QSFP28 AOC 1M

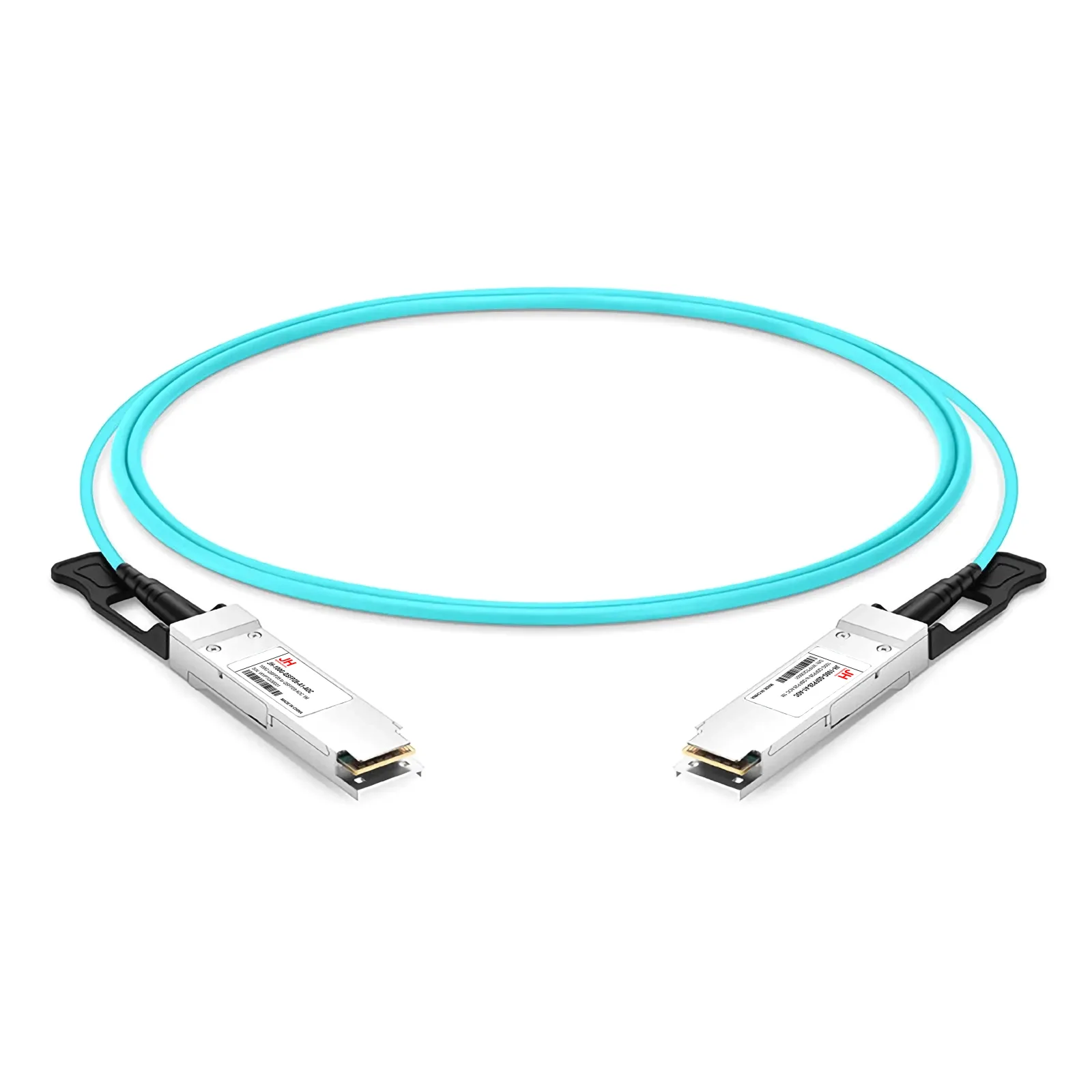

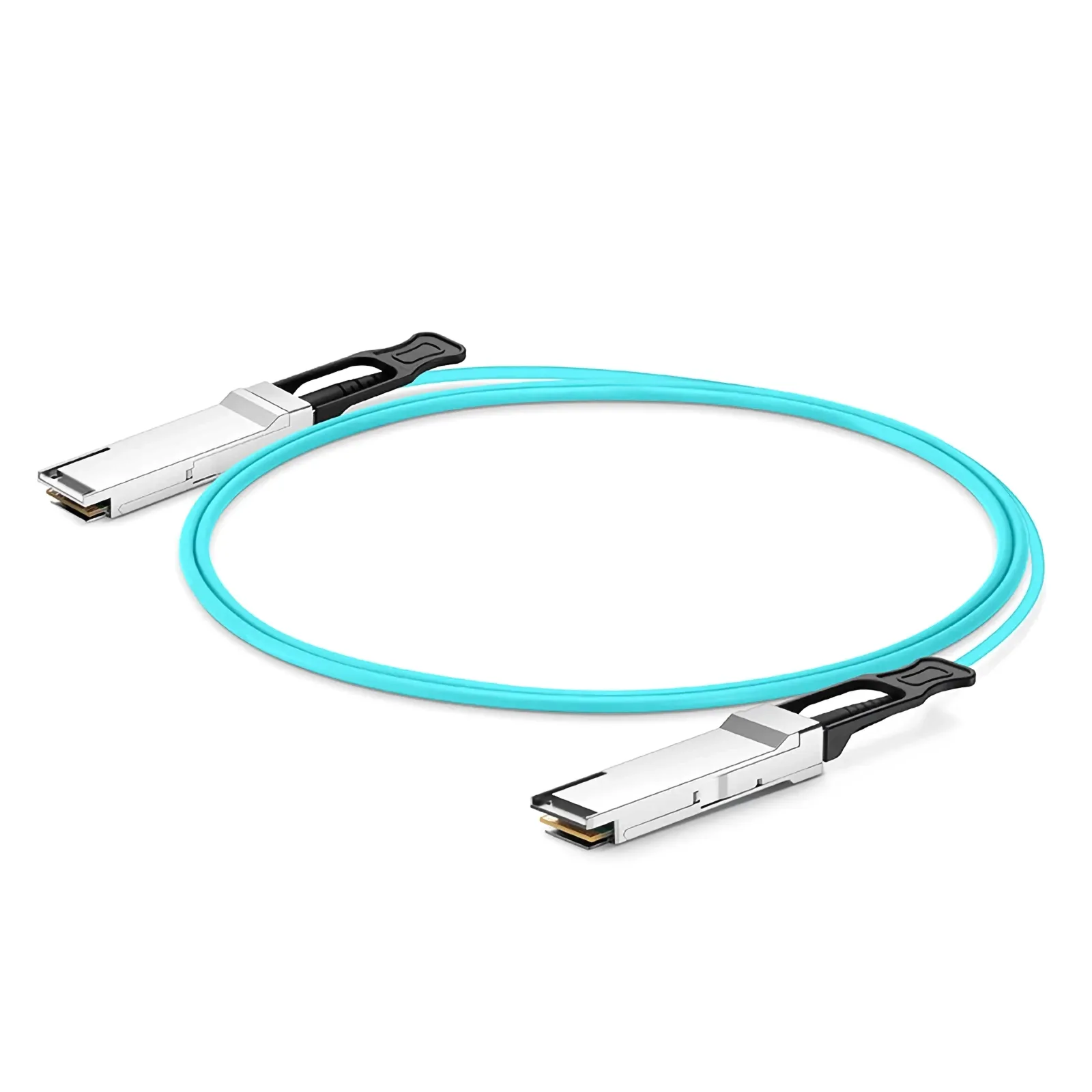

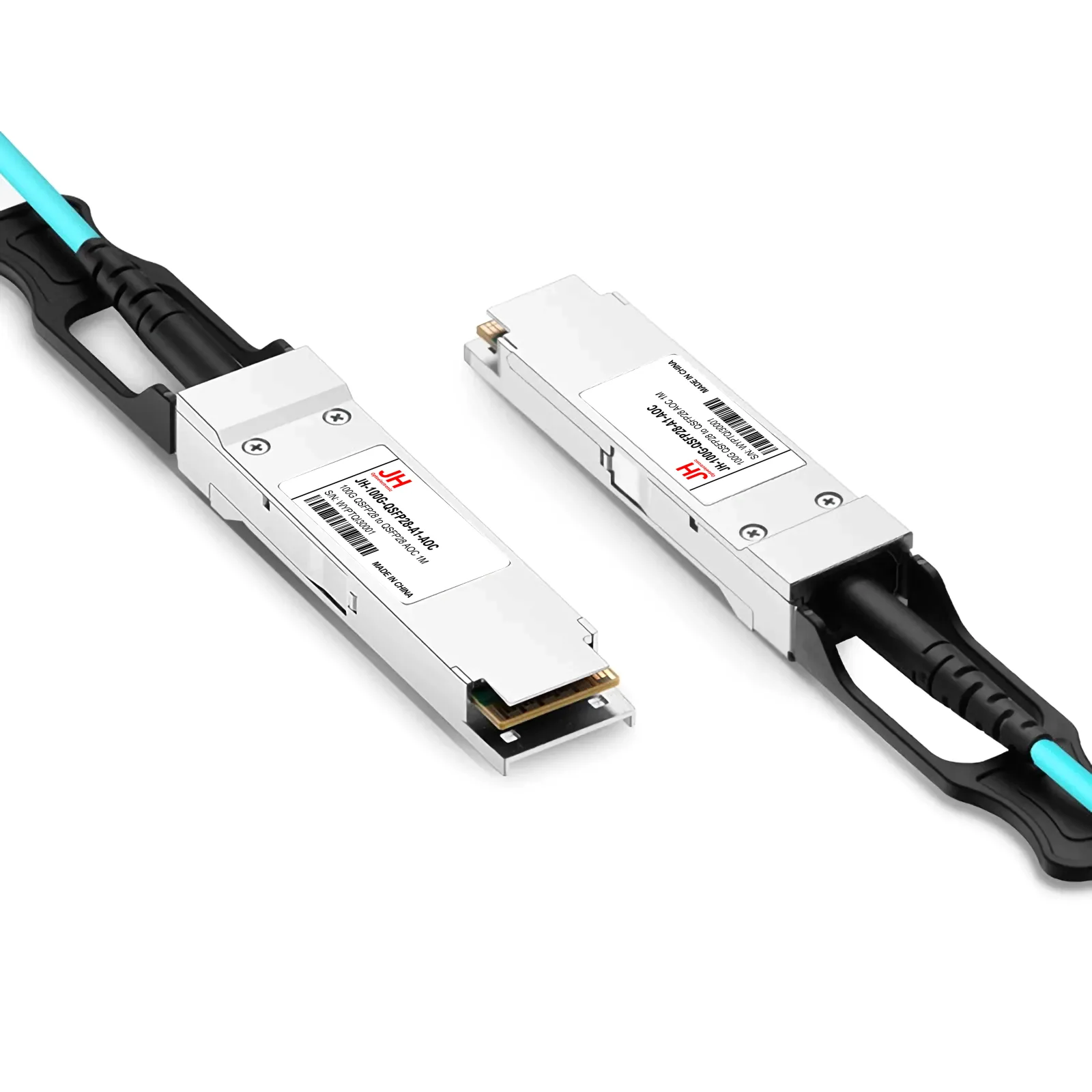

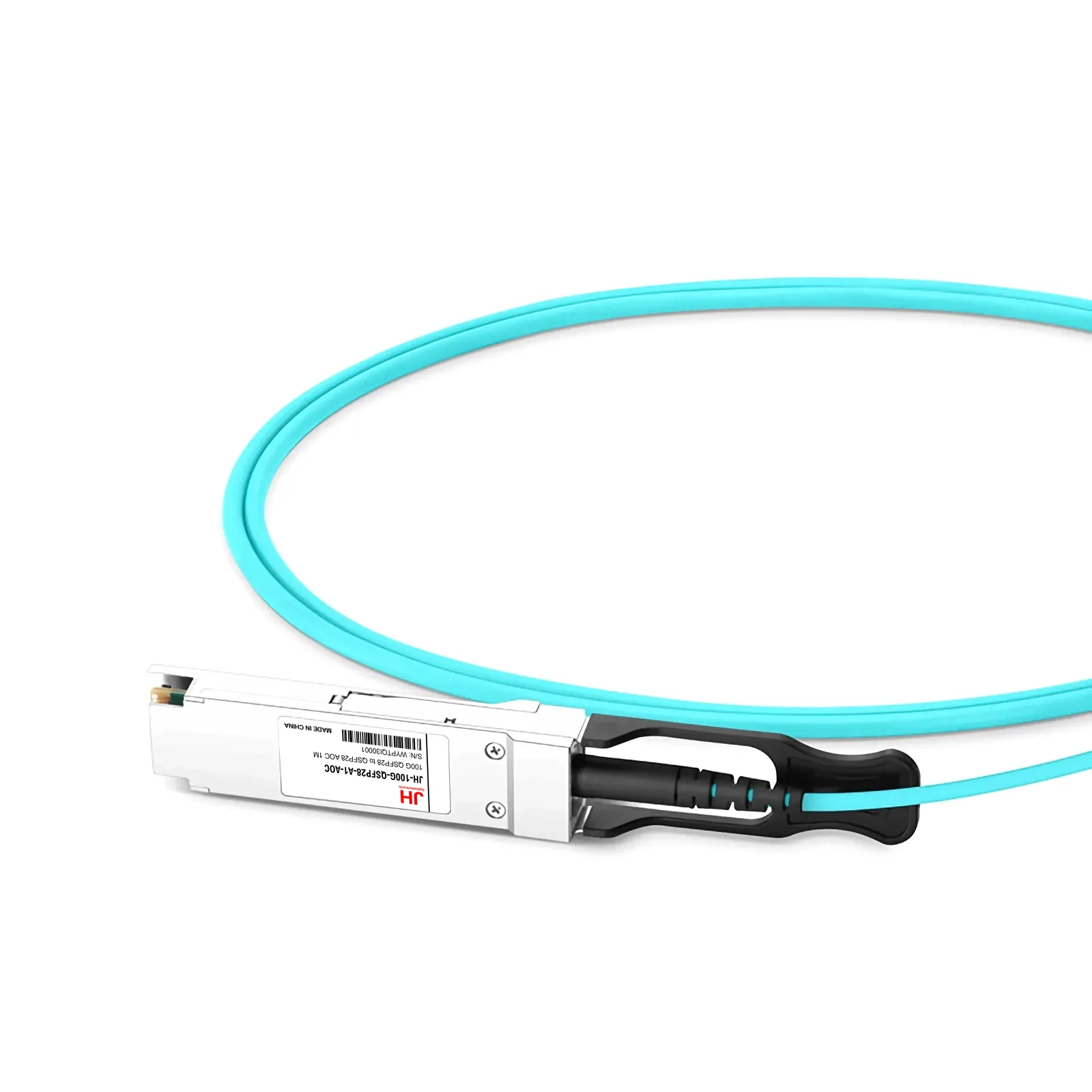

JH-100G-QSFP28-A1-AOC QSFP28 Active Optical Cables are fiber assemblies with QSFP28 connectors designed for direct-attach connections over Multi-Mode Fiber (MMF). These AOCs comply with hot-pluggable QSFP28 MSA and RoHS-6 standards, ensuring compatibility and adherence to environmental regulations. By offering a cost-efficient alternative to discrete optical transceivers and patch cables, these AOCs are ideal for establishing 100Gbps connections within racks and adjacent racks. Active optical cables provide a lightweight and slim alternative to copper cables, simplifying cable management.

联系我们

产品特性

Hot-pluggable QSFP28 to QSFP28 Active Optical Cable assembly
Supports 100Gbps data rate, compliant with SFF-8665 and SFF-8636 standards
Maximum power consumption < 2W per end
Commercial operating temperature range: 0~70
Single +3.3V power supply
Built-in DDM/DOM digital diagnostic monitoring, supports real-time link performance monitoring
Class 1 laser safety certified, compliant with EN 60825-1 standard
Compliant with RoHS 2.0 environmental protection standard, lead-free design
Data Center 100G Interconnect, High-Density, Lightweight and EMI Immune

规格参数

Data Rate	100G
Distance	1-70M
Wavelength	850nm
Form Factor	QSFP28 to QSFP28
Connector	AOC
Case Temperature	0~70
Voltage Supply	3.3V
Transmitter	VCSEL
Receiver	PIN
TX Power	-8.4~2.4
Receiver Sensitivity	-10.3
Power consumption（Max）	2W
