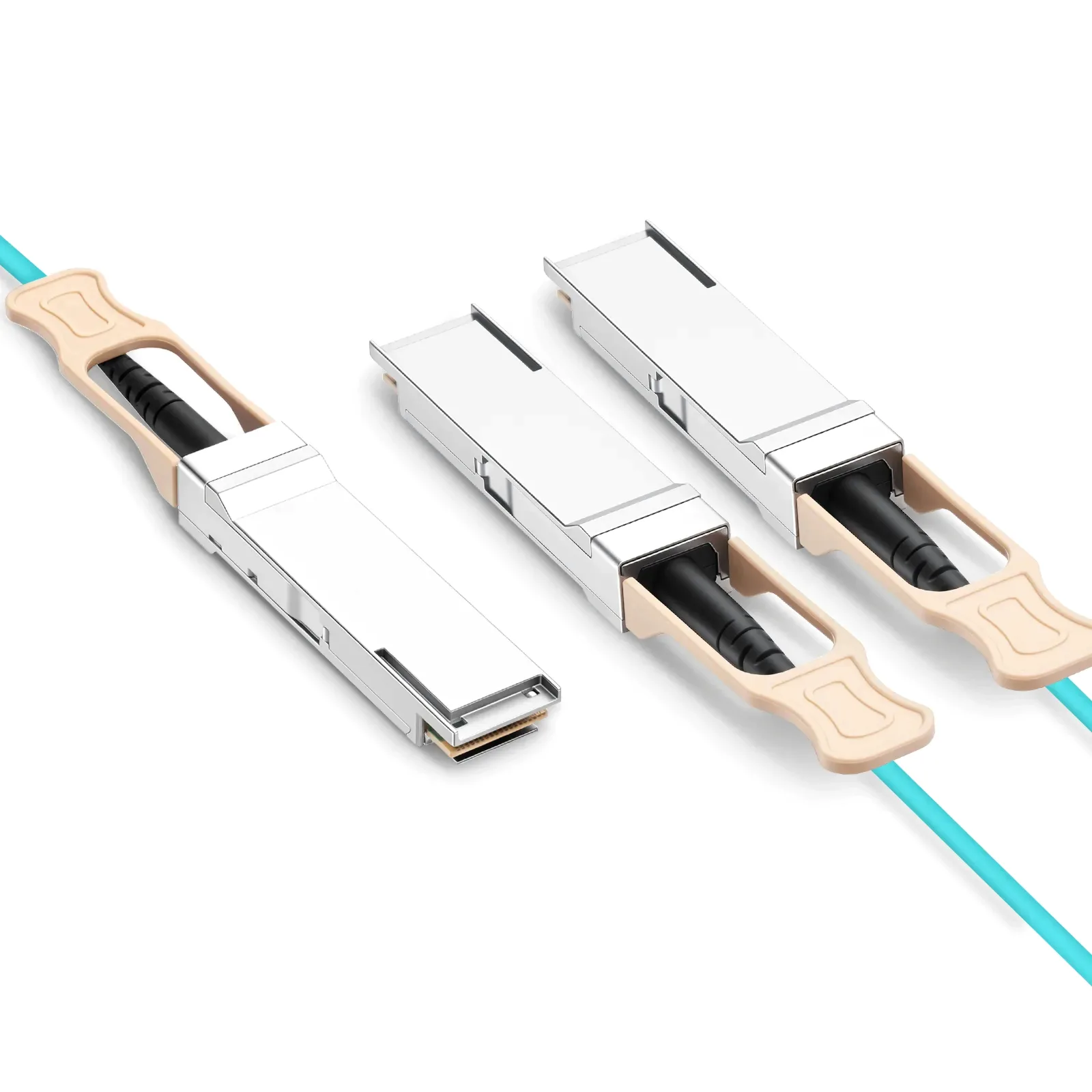

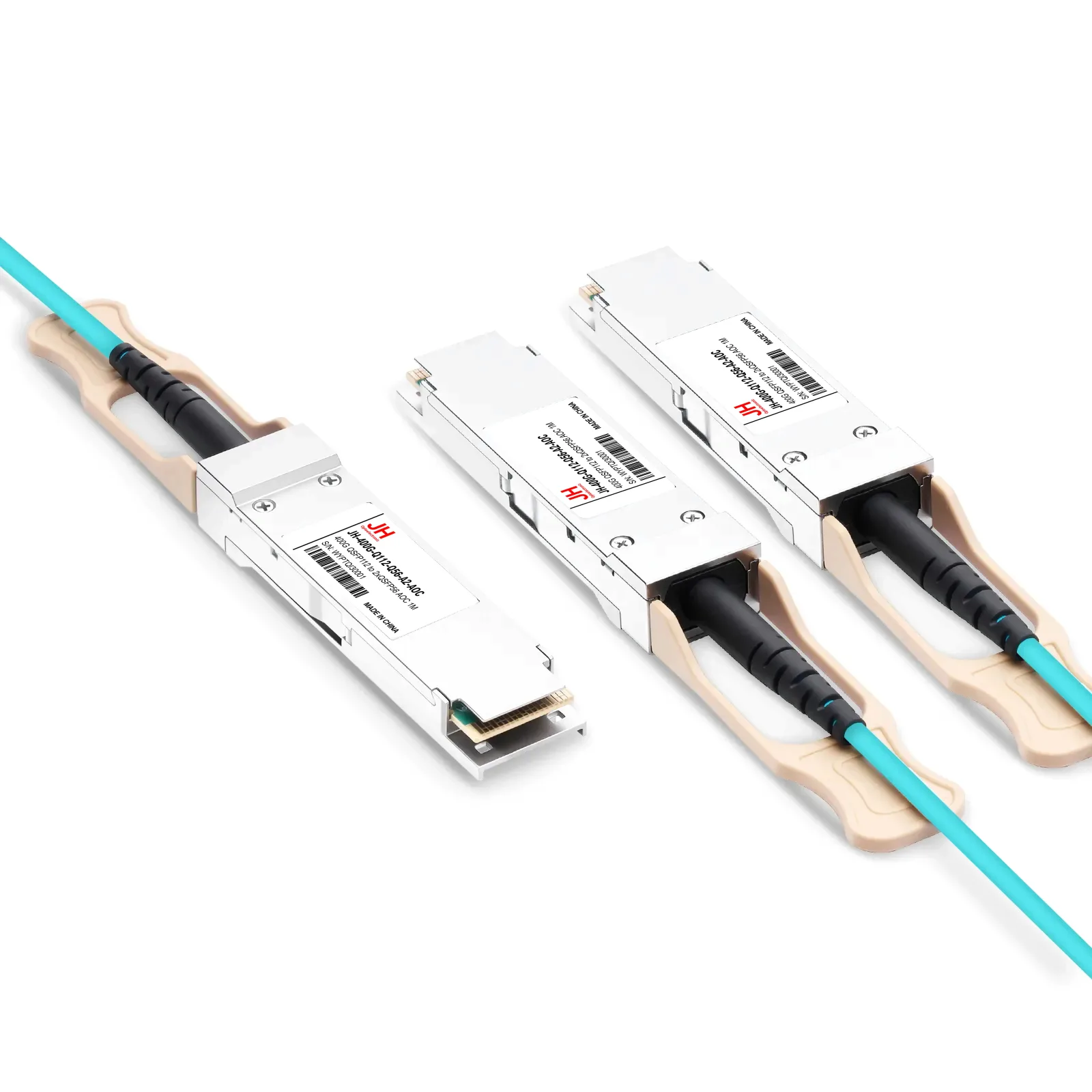

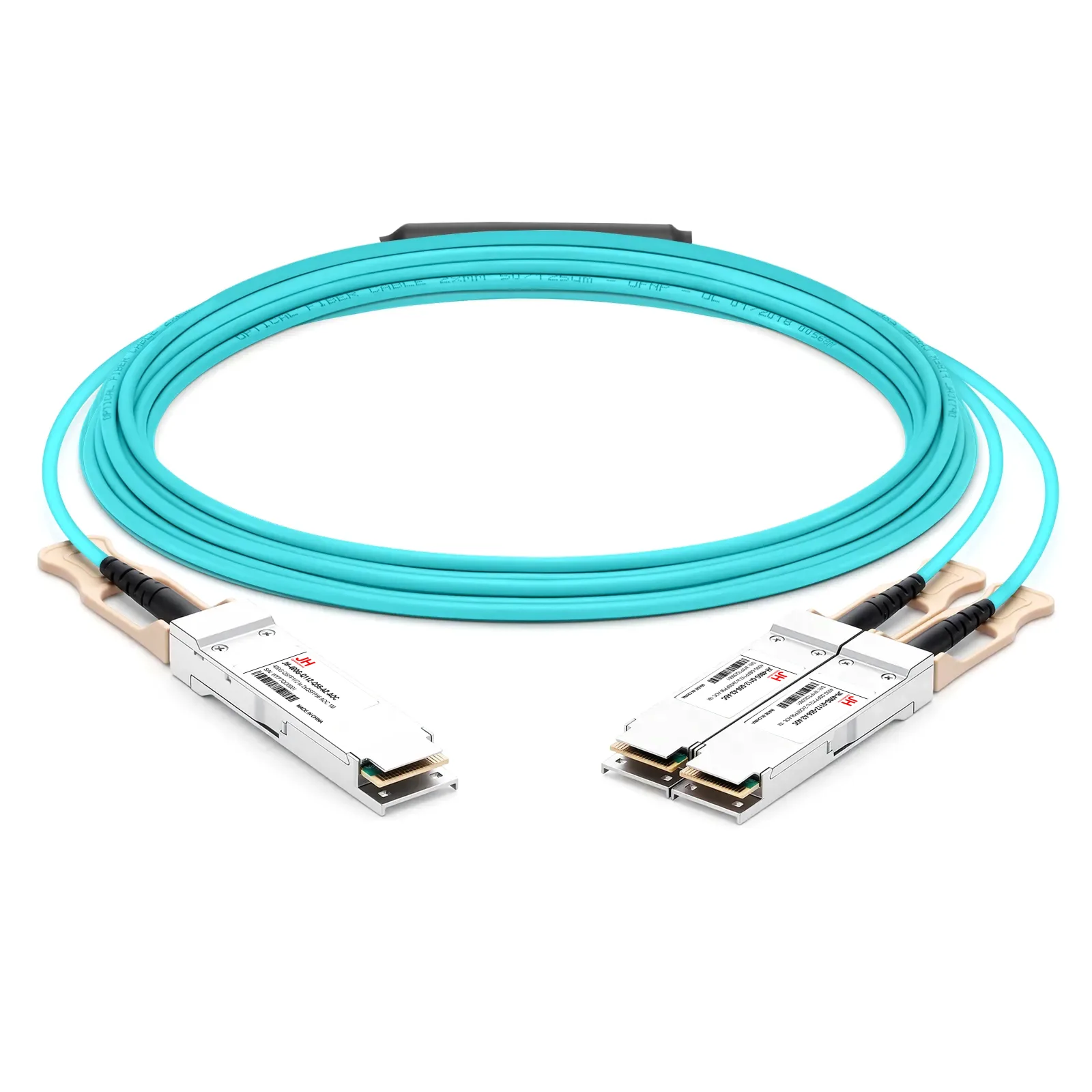

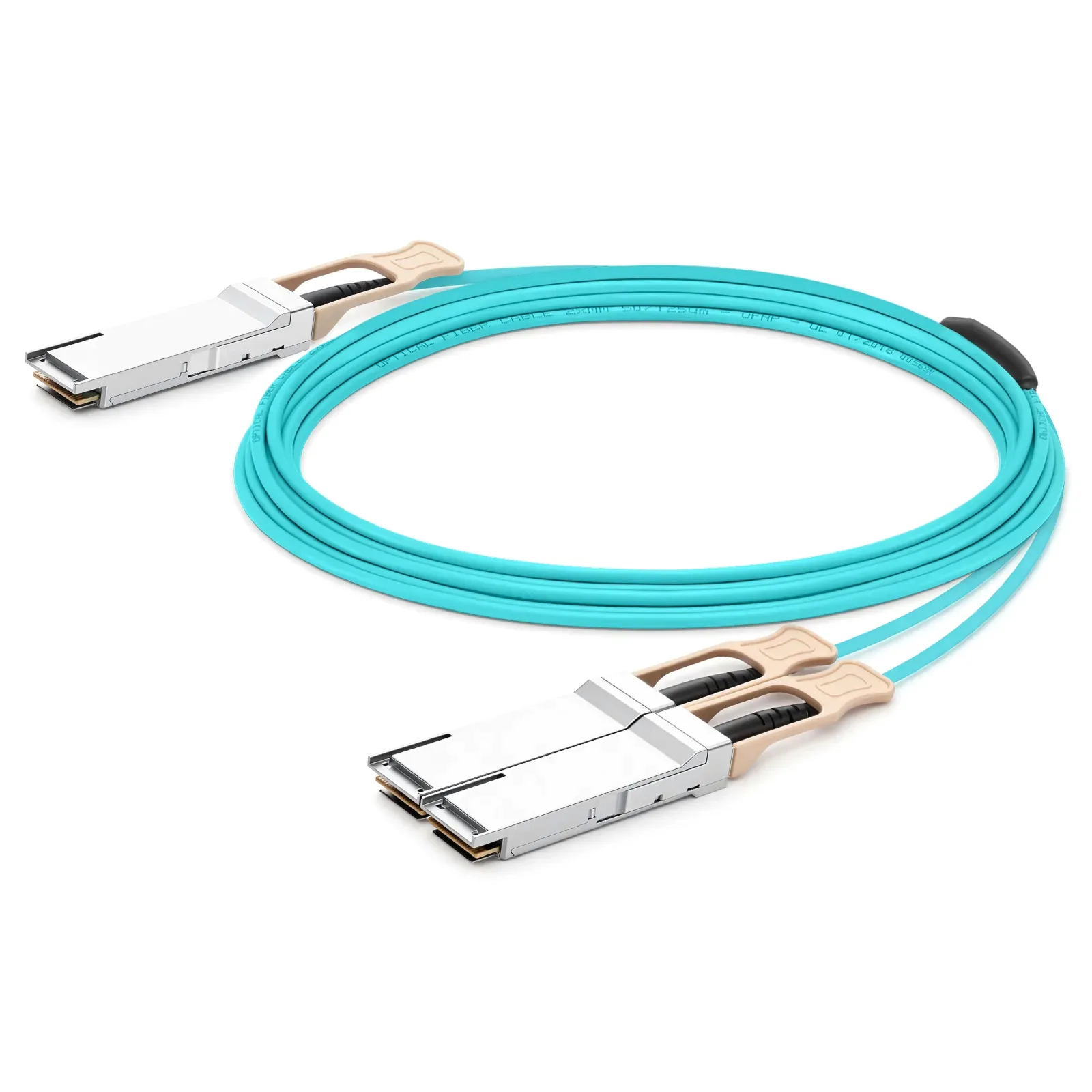

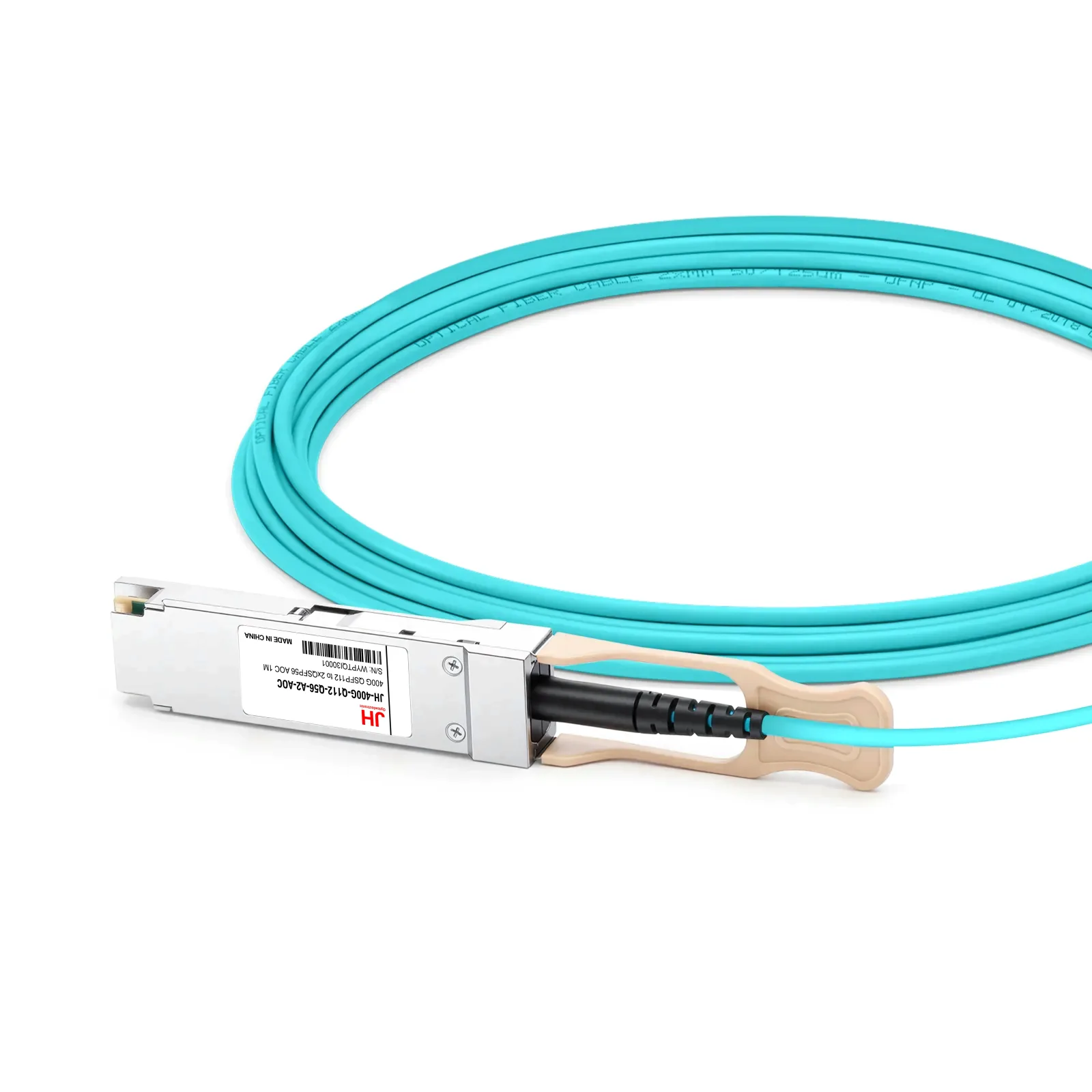

JH-400G-Q112-Q56-A2-AOC

型号：400G QSFP112 to 2xQSFP56 AOC 1M

JH-400G-Q112-Q56-A2-AOC 400G OSFP to 2 x 200G QSFP56 AOC. It integrates 8 data lanes in each direction at QSFP112 end and 4 data lanes in each direction at QSFP end. Each lane can operate at 53.125Gbps up to 70 m using OM3 fiber with FEC. These modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm.

联系我们

产品特性

Hot-pluggable QSFP112 to 2xQSFP56 Active Optical Cable assembly
Supports 400Gbps data rate, compliant with QSFP112 MSA and CMIS 5.0 standards
Maximum power consumption < 8W per end
Commercial operating temperature range: 0~70
Single +3.3V power supply
Built-in DDM/DOM digital diagnostic monitoring, supports real-time link performance monitoring
Class 1 laser safety certified, compliant with EN 60825-1 standard
Compliant with RoHS 2.0 environmental protection standard, lead-free design
Data Center 400G Interconnect, High-Density, Lightweight and EMI Immune

规格参数

Data Rate	400G
Distance	1-70M
Wavelength	850nm
Form Factor	QSFP112 to 2xQSFP56
Connector	AOC
Case Temperature	0~70
Voltage Supply	3.3V
Transmitter	VCSEL
Receiver	PIN
TX Power	-4.6~5.5
Receiver Sensitivity	-6.3
Power consumption（Max）	8W
