JH-400G-QSFP112-A2-AOC

型号：400G QSFP112 to 2xQSFP112 AOC 1M

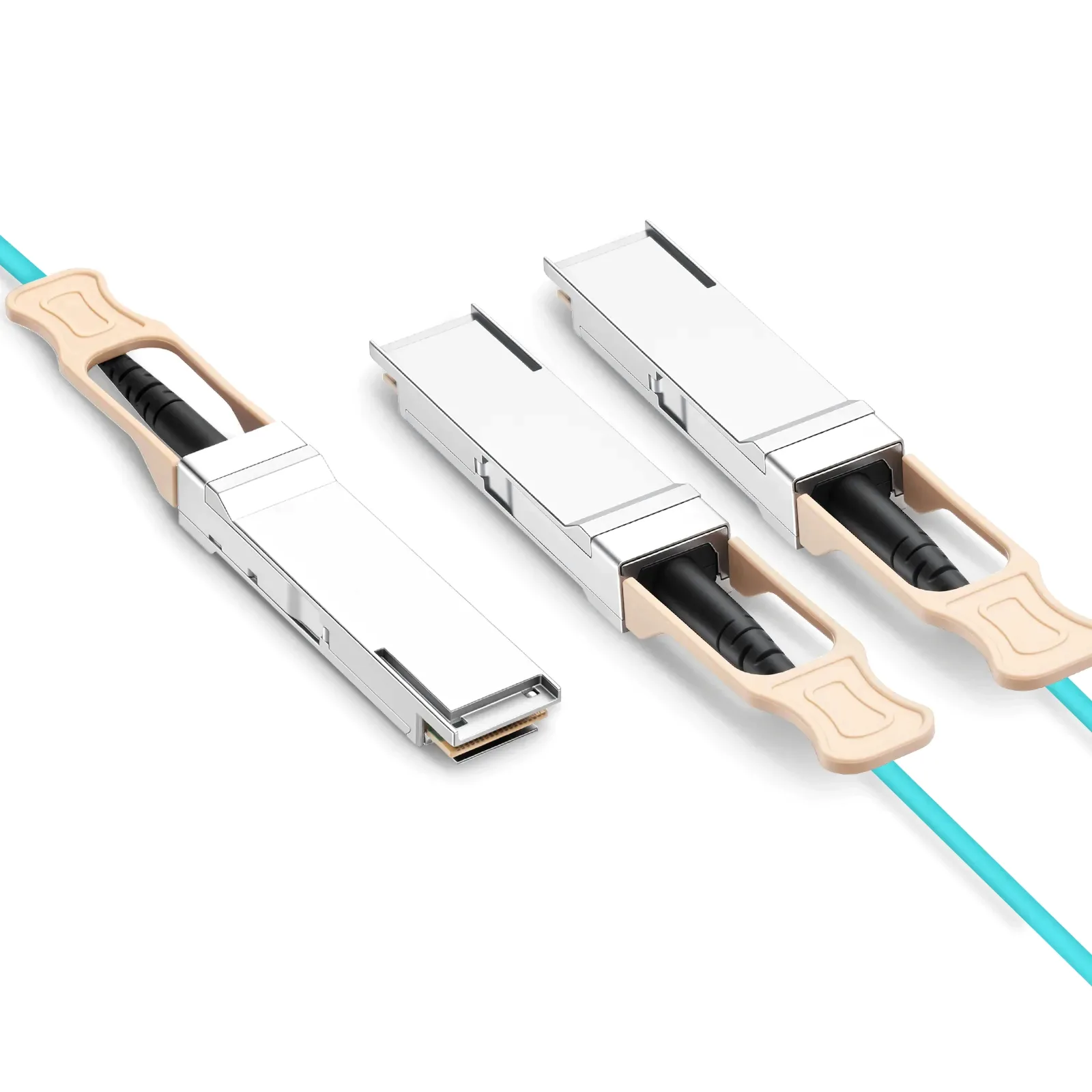

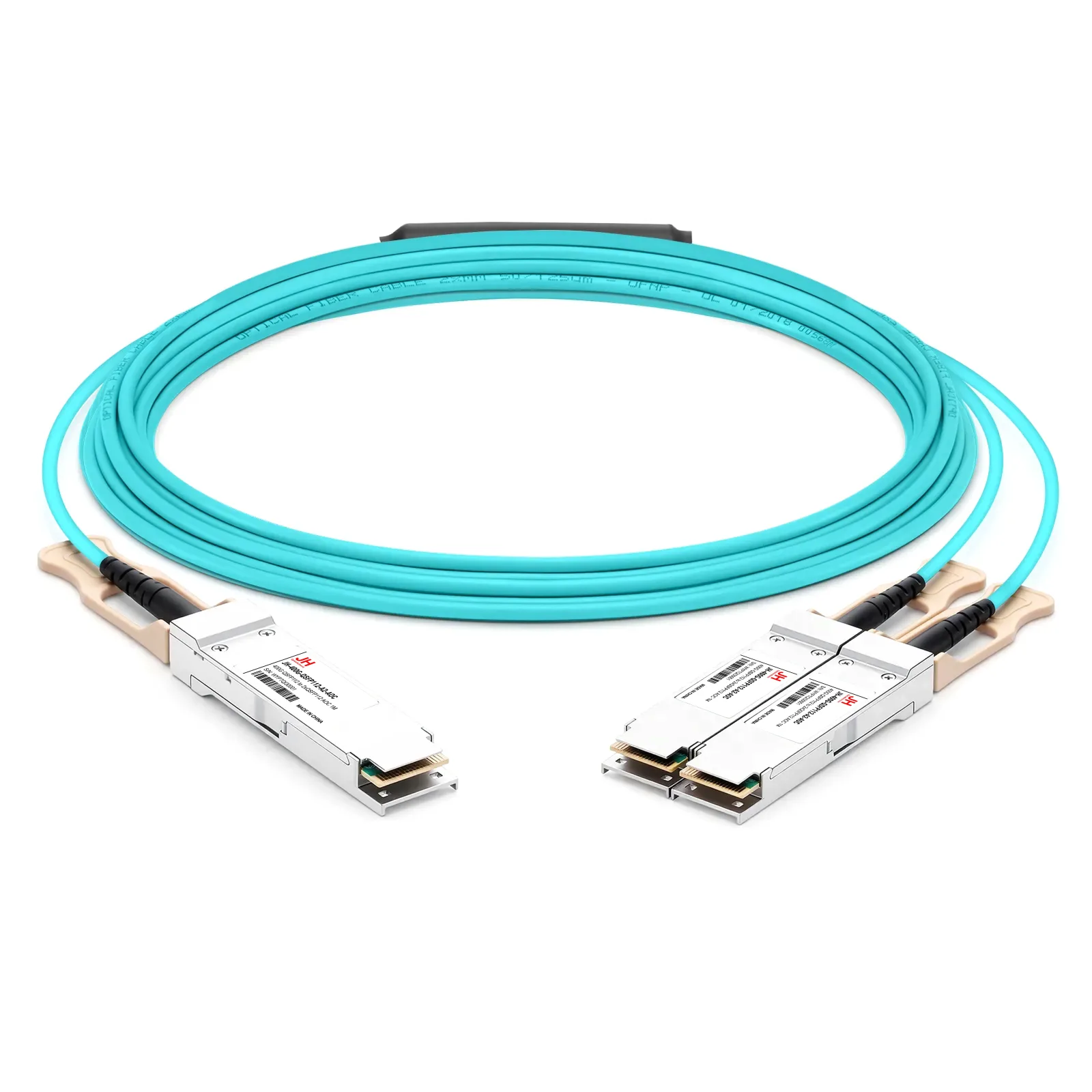

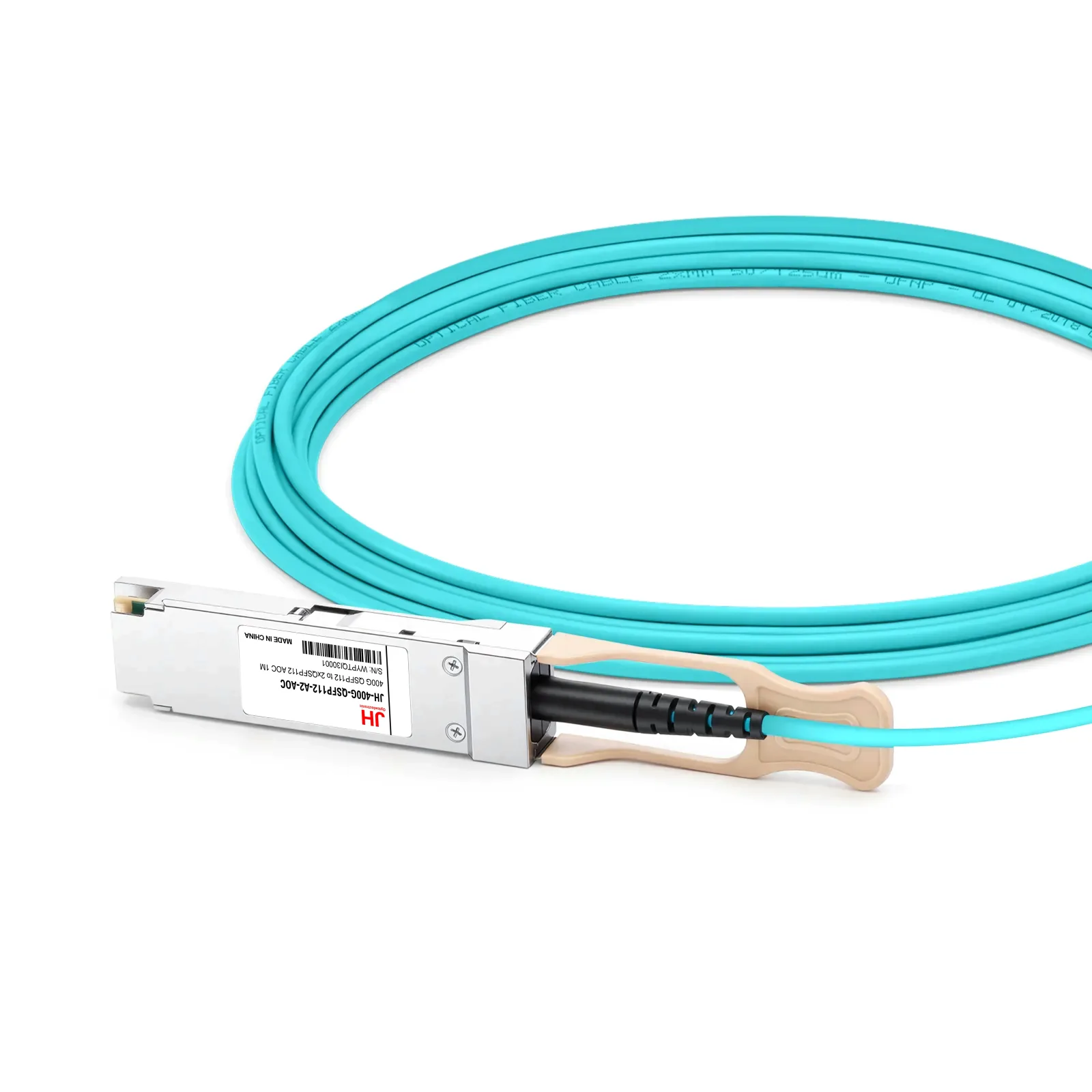

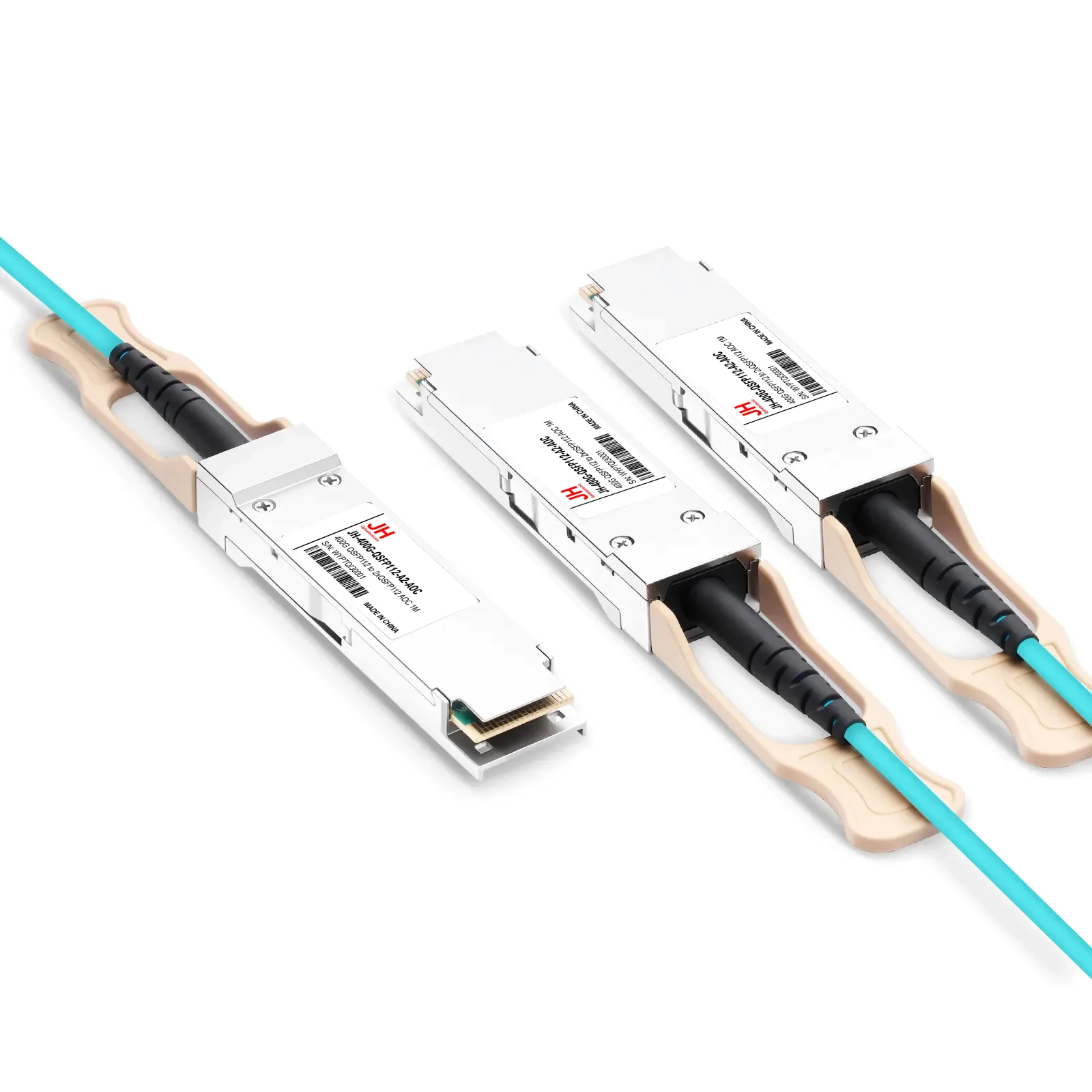

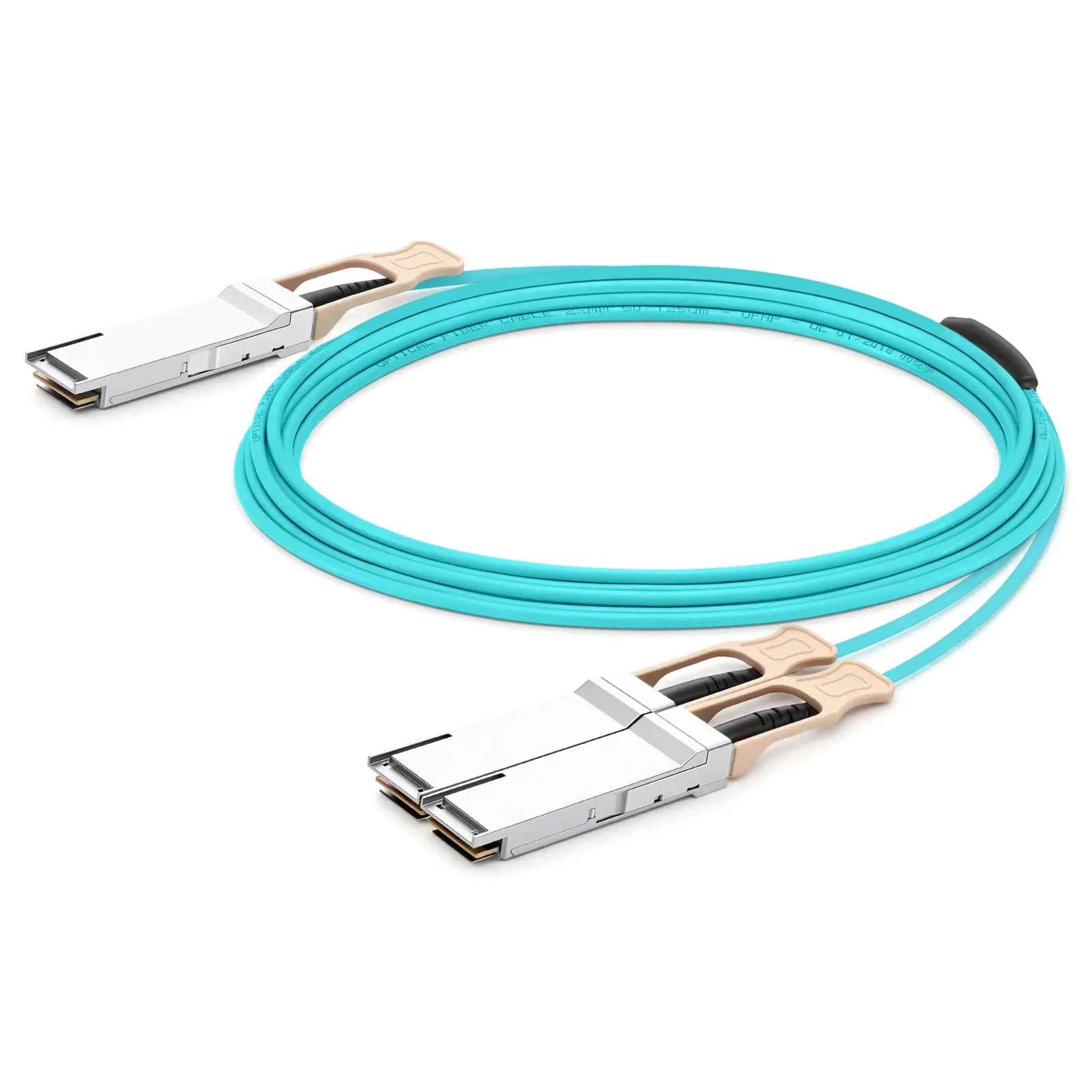

JH-400G-QSFP112-A2-AOC 400G QSFP112 to 2 x 200G QSFP112 AOC is a high performances module for short-range multi-lane data communication and interconnect applications. It integrates four data lanes in each direction with 4x53.125GBd. Each lane can operate at 106.25Gbps up to 30m using OM3 fiber. These modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm.

联系我们

产品特性

Hot-pluggable QSFP112 to 2xQSFP112 Active Optical Cable assembly
Supports 400Gbps data rate, compliant with QSFP112 MSA and CMIS 5.0 standards
Maximum power consumption < 8W per end
Commercial operating temperature range: 0~70
Single +3.3V power supply
Built-in DDM/DOM digital diagnostic monitoring, supports real-time link performance monitoring
Class 1 laser safety certified, compliant with EN 60825-1 standard
Compliant with RoHS 2.0 environmental protection standard, lead-free design
Data Center 400G Interconnect, High-Density, Lightweight and EMI Immune

规格参数

Data Rate	400G
Distance	1-70M
Wavelength	850nm
Form Factor	QSFP112 to 2xQSFP112
Connector	AOC
Case Temperature	0~70
Voltage Supply	3.3V
Transmitter	VCSEL
Receiver	PIN
TX Power	-4.6~5.5
Receiver Sensitivity	-6.3
Power consumption（Max）	8W
