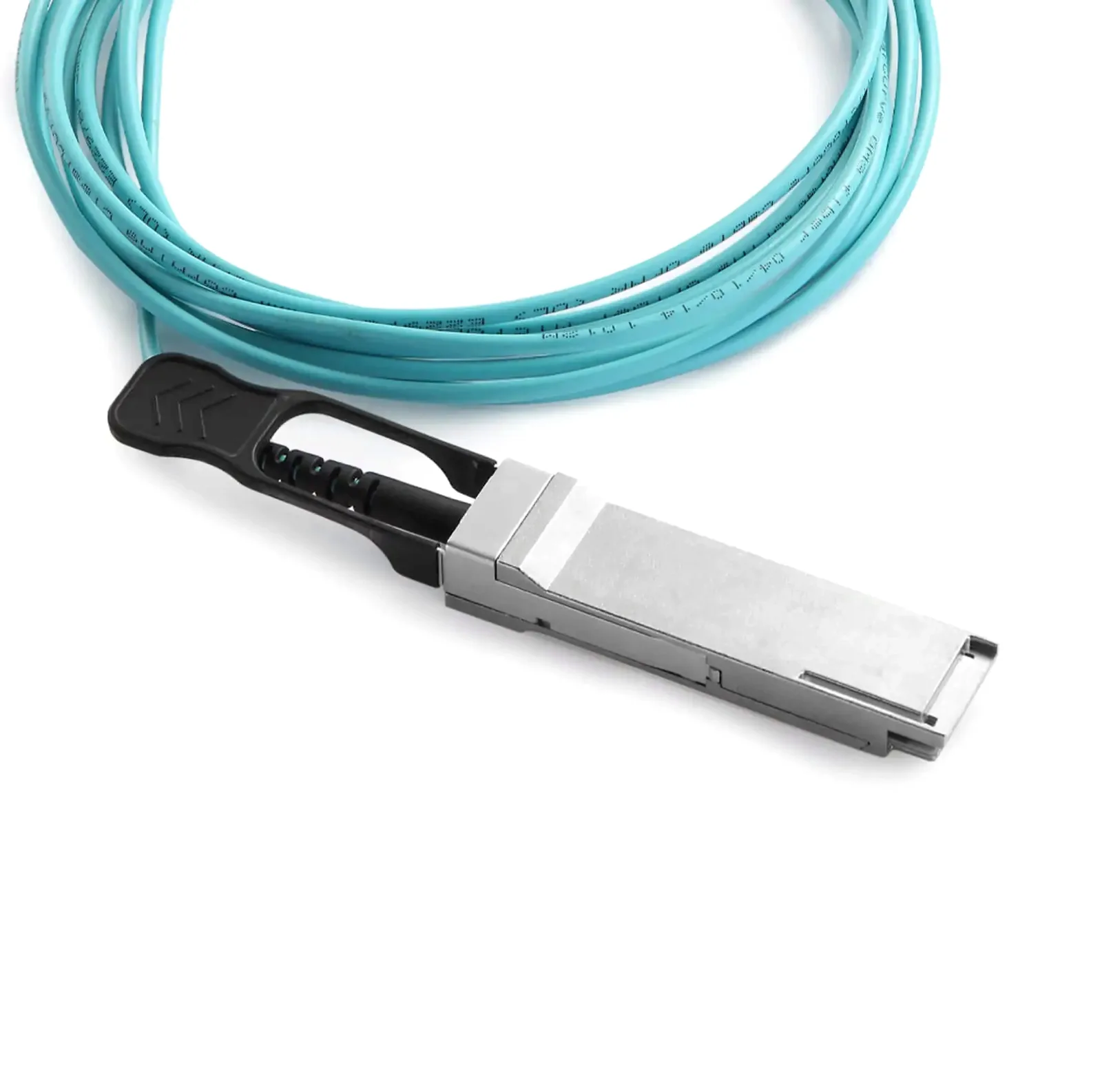

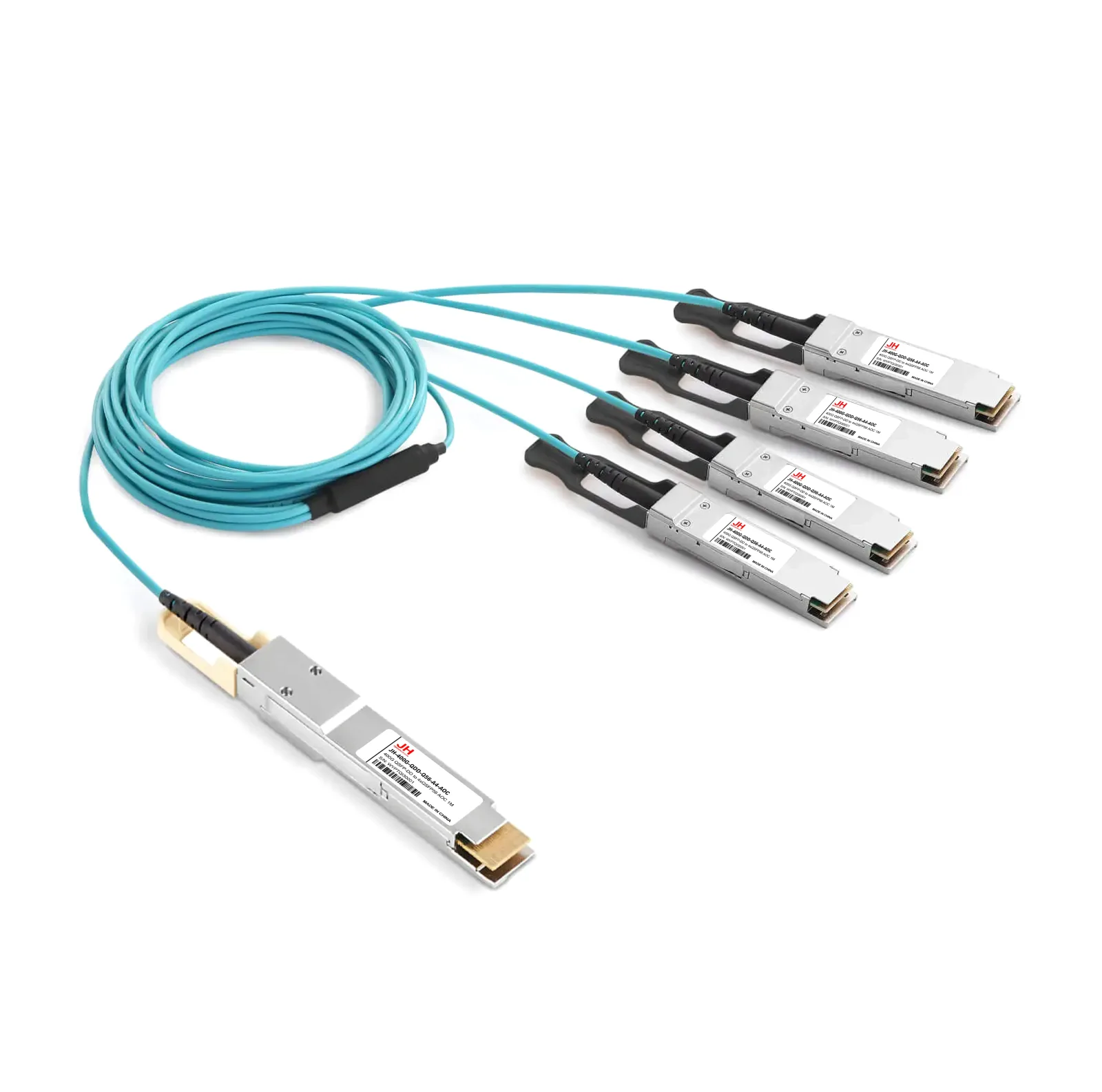

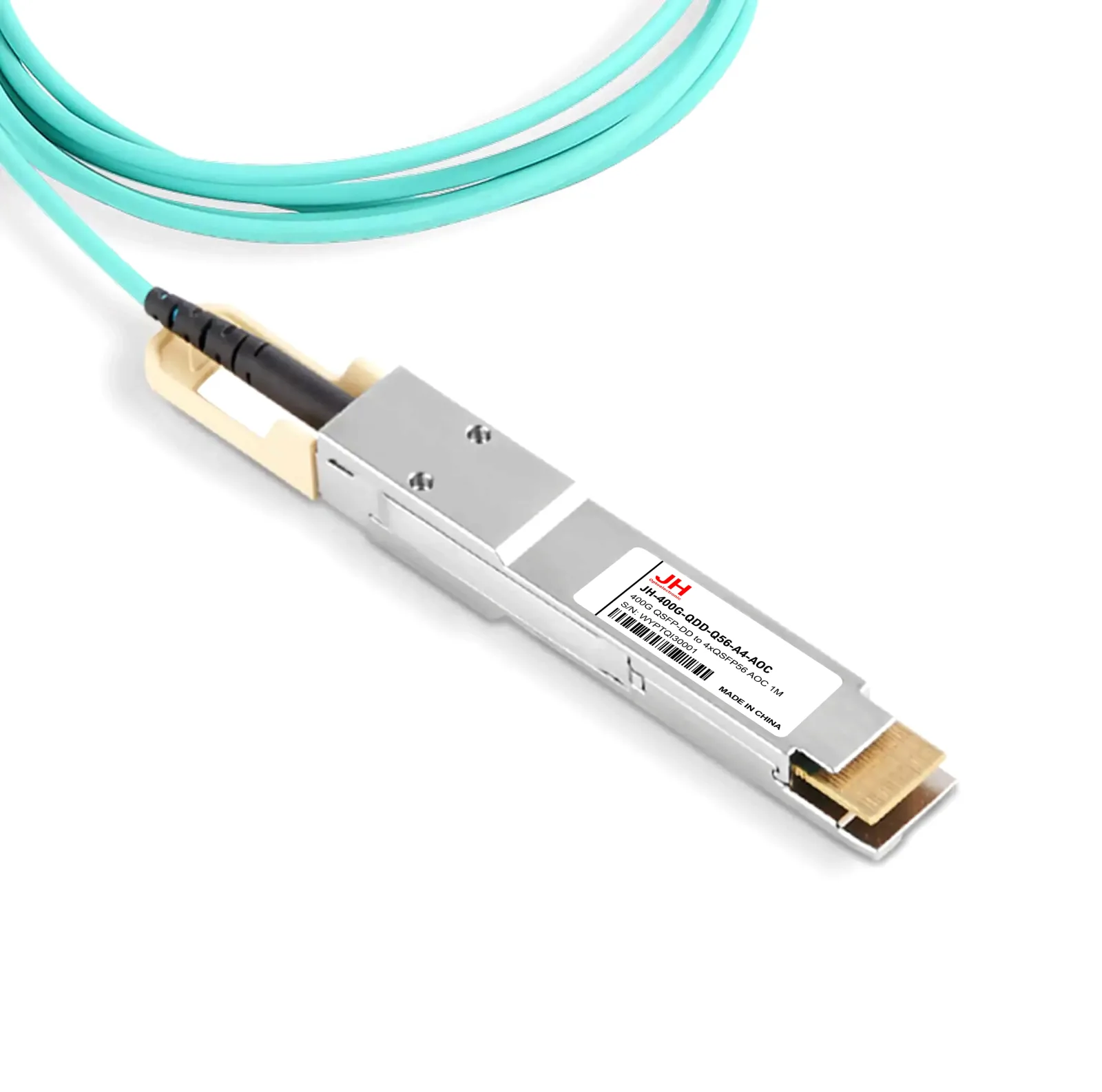

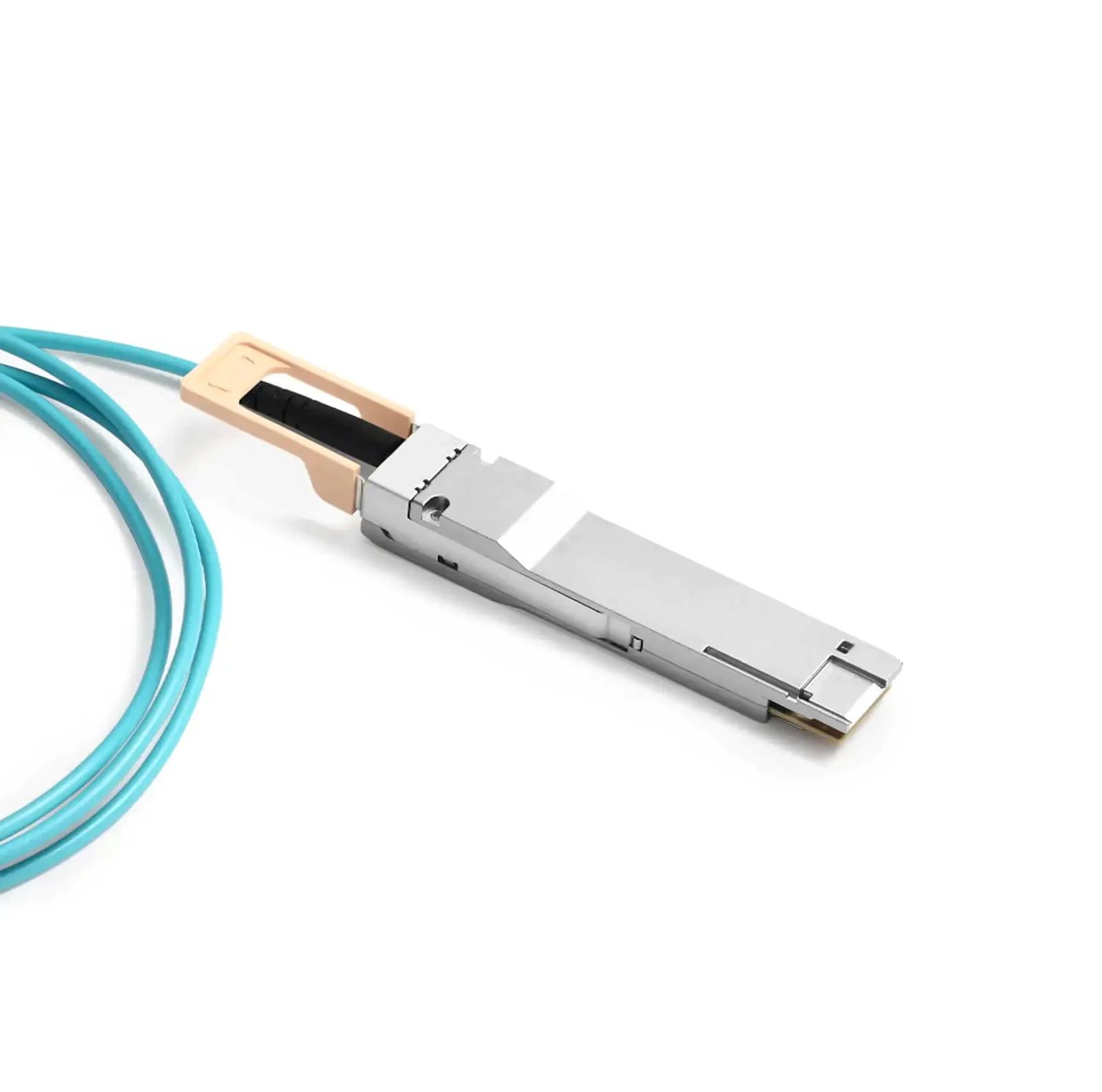

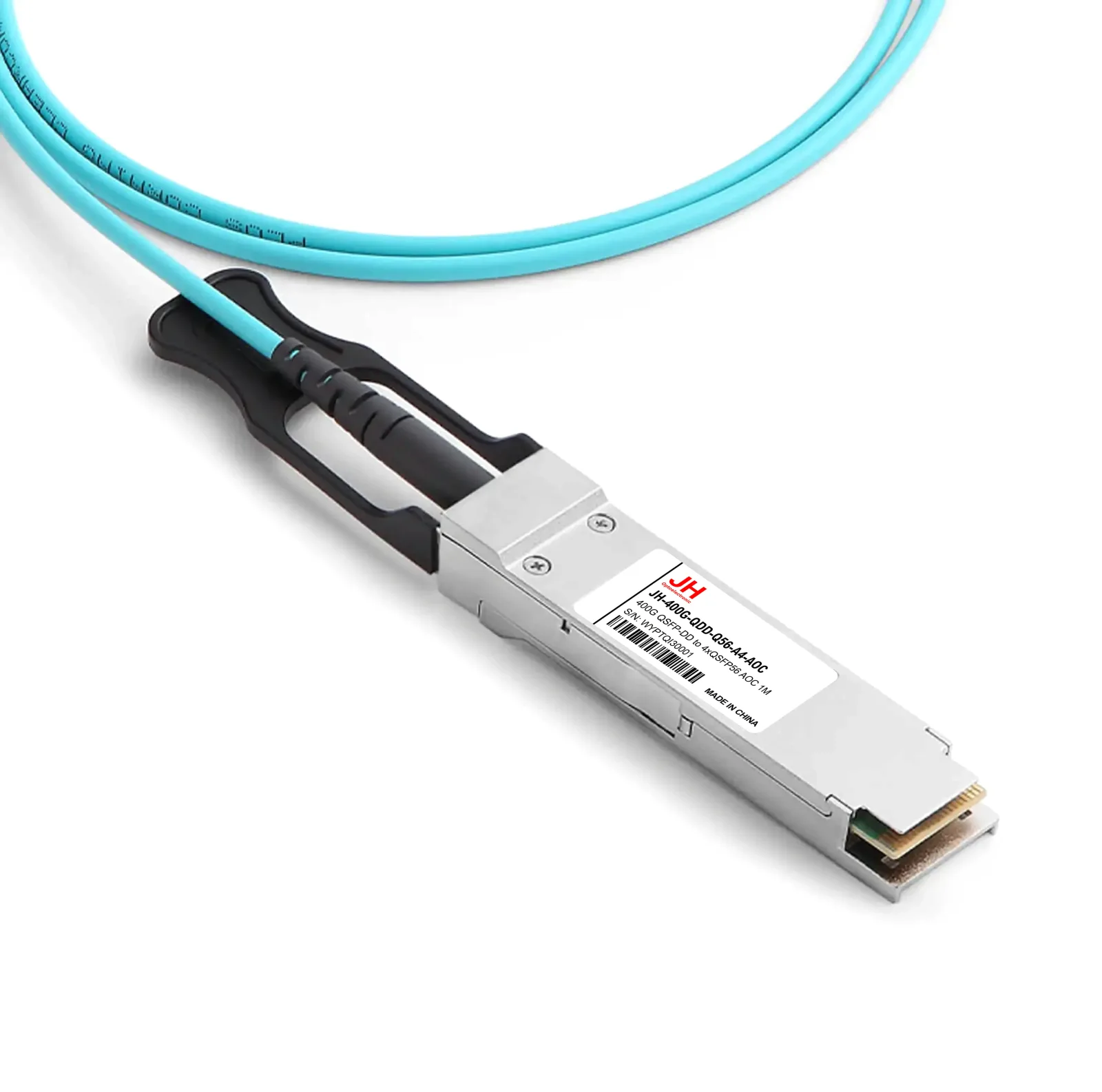

JH-400G-QDD-Q56-A4-AOC

型号：400G QSFP-DD to 4xQSFP56 AOC 1M

JH-400G-QDD-Q56-A4-AOC4x 100G QSFP56 breakout active optical cables are designed for use in 400 Gigabit Ethernet links over OM3 multimode fibers, each operating at data rates of up to 53.125Gbps per channel for QSFP-DD by PAM4 modulation and 25.78128Gbps per channel for QSFP56 with FEC support. This breakout cable is compliant with QSFP-DD MSA, SFF-8661, IEEE802.3bs-400GAUI-8, IEEE802.3bm-CAUI-4, CMIS 4.0 and SFF-8636.

联系我们

产品特性

Hot-pluggable QSFP-DD to 4xQSFP56 Active Optical Cable assembly
Supports 400Gbps data rate, compliant with QSFP-DD MSA and CMIS 5.0 standards
Maximum power consumption < 9W per end
Commercial operating temperature range: 0~70
Single +3.3V power supply
Built-in DDM/DOM digital diagnostic monitoring, supports real-time link performance monitoring
Class 1 laser safety certified, compliant with EN 60825-1 standard
Compliant with RoHS 2.0 environmental protection standard, lead-free design
Data Center 400G Interconnect, High-Density, Lightweight and EMI Immune

规格参数

Data Rate	400G
Distance	1-70M
Wavelength	850nm
Form Factor	QSFP-DD to 4xQSFP56
Connector	AOC
Case Temperature	0~70
Voltage Supply	3.3V
Transmitter	VCSEL
Receiver	PIN
TX Power	-4.6~5.5
Receiver Sensitivity	-6.3
Power consumption（Max）	9W

规格书

规格书下载

Datasheet
