JH-400G-OSFP-A1-AOC

型号：400G OSFP TO OSFP AOC 1M

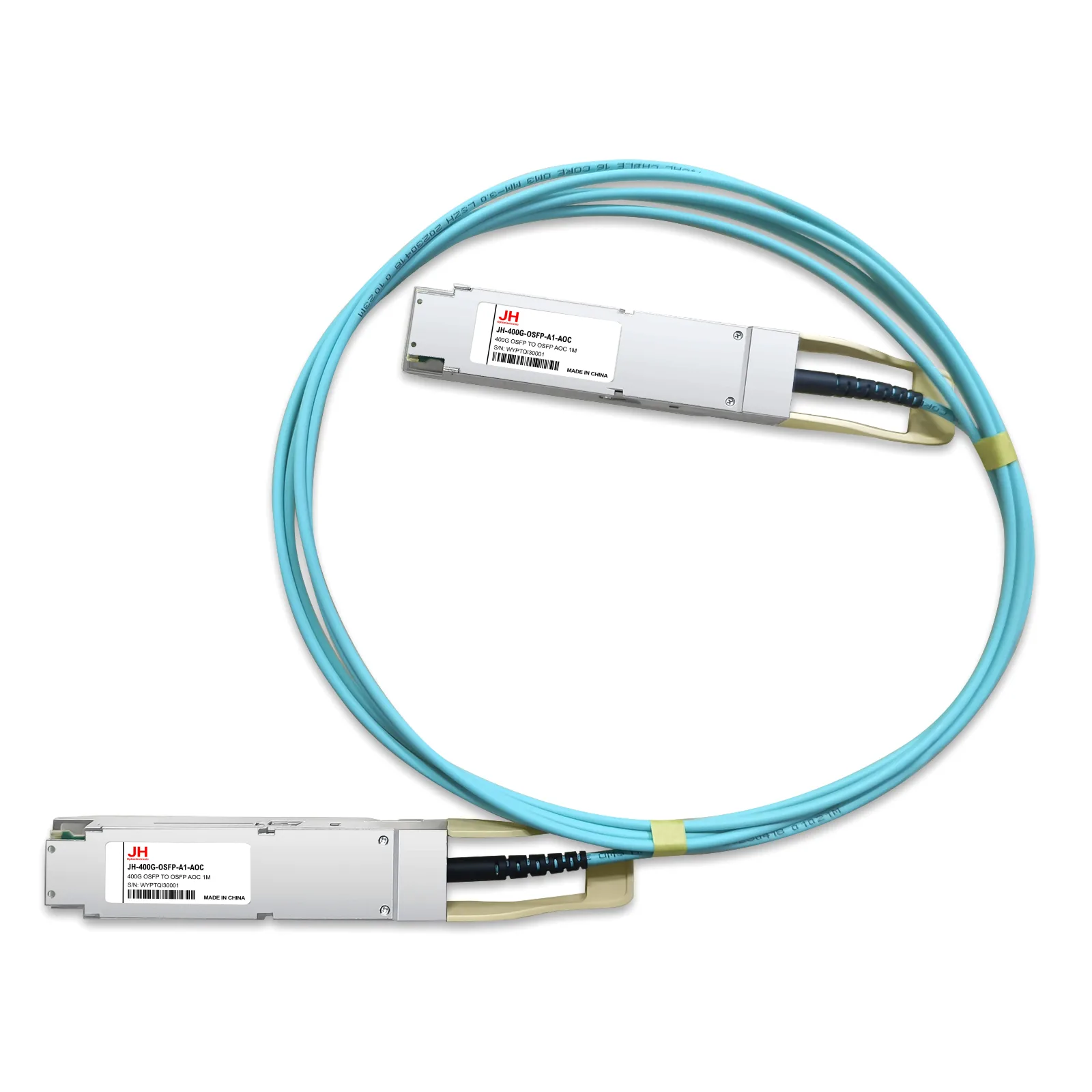

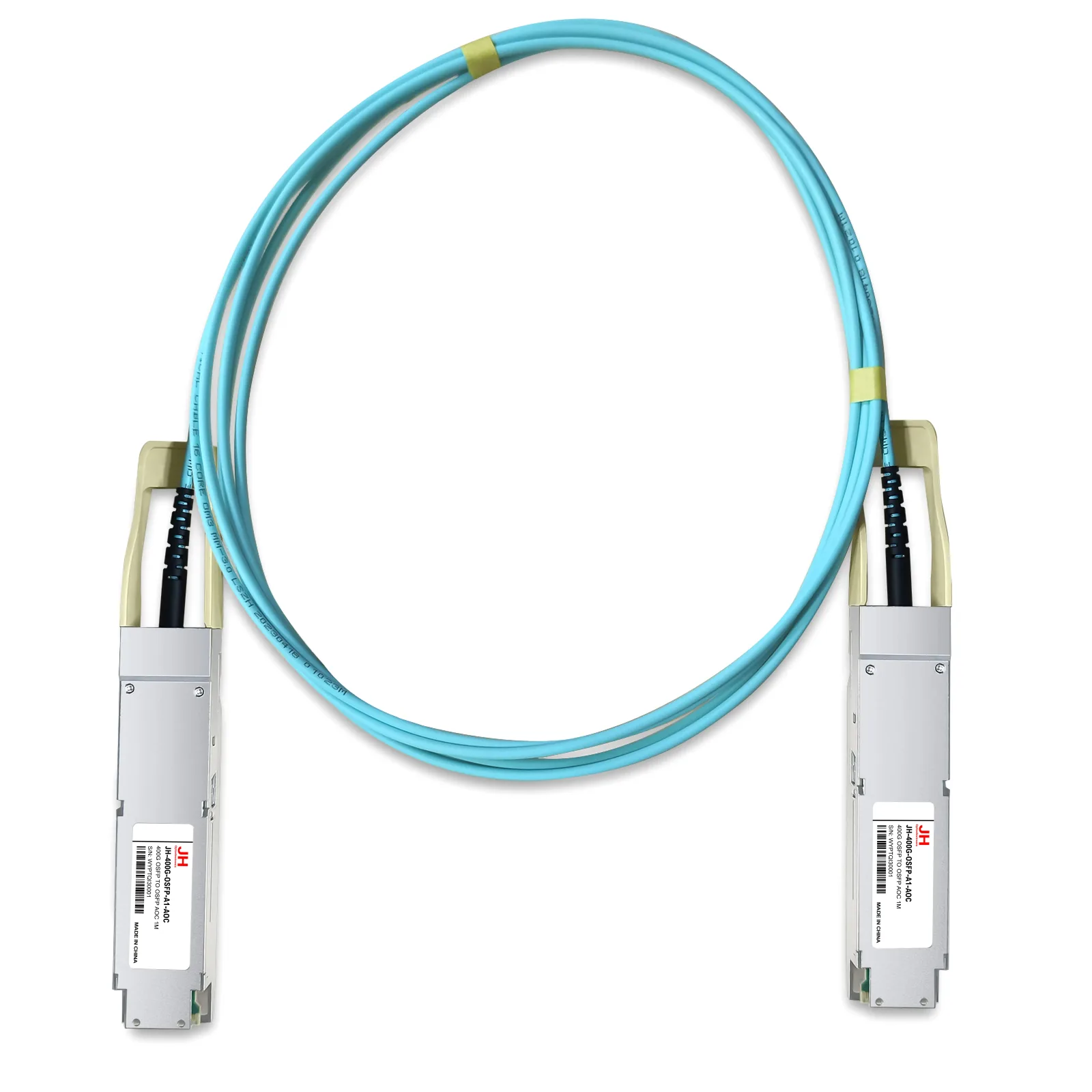

JH-400G-OSFP-A1-AOC 400G OSFP AOC active optical cable is designed for 400G Ethernet links in data centers. It uses 100G PAM4 and VCSEL technology to interconnect up to 425Gbps of data within 30m (OM3) or 50m (OM4) with the system FEC turned on.

联系我们

产品特性

Hot-pluggable OSFP TO OSFP Active Optical Cable assembly
Supports 400Gbps data rate, compliant with OSFP MSA and CMIS 5.0 standards
Maximum power consumption < 8W per end
Commercial operating temperature range: 0~70
Single +3.3V power supply
Built-in DDM/DOM digital diagnostic monitoring, supports real-time link performance monitoring
Class 1 laser safety certified, compliant with EN 60825-1 standard
Compliant with RoHS 2.0 environmental protection standard, lead-free design
Data Center 400G Interconnect, High-Density, Lightweight and EMI Immune

规格参数

Data Rate	400G
Distance	1-70M
Wavelength	850nm
Form Factor	OSFP TO OSFP
Connector	AOC
Case Temperature	0~70
Voltage Supply	3.3V
Transmitter	VCSEL
Receiver	PIN
TX Power	-4.6~5.5
Receiver Sensitivity	-6.3
Power consumption（Max）	8W

规格书

规格书下载

Datasheet
