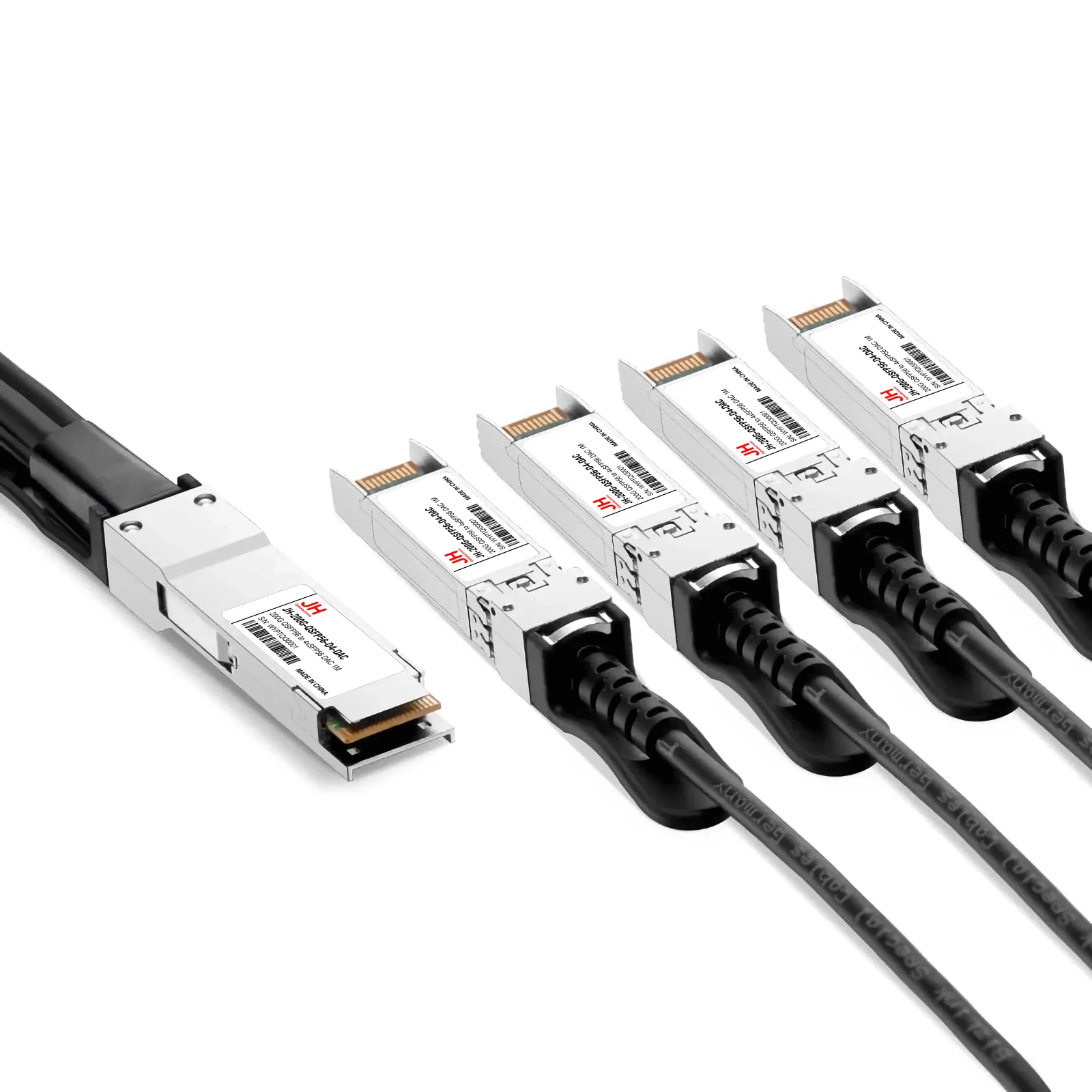

JH-200G-QSFP56-D4-DAC

型号：200G QSFP56 to 4xSFP56 DAC 1M

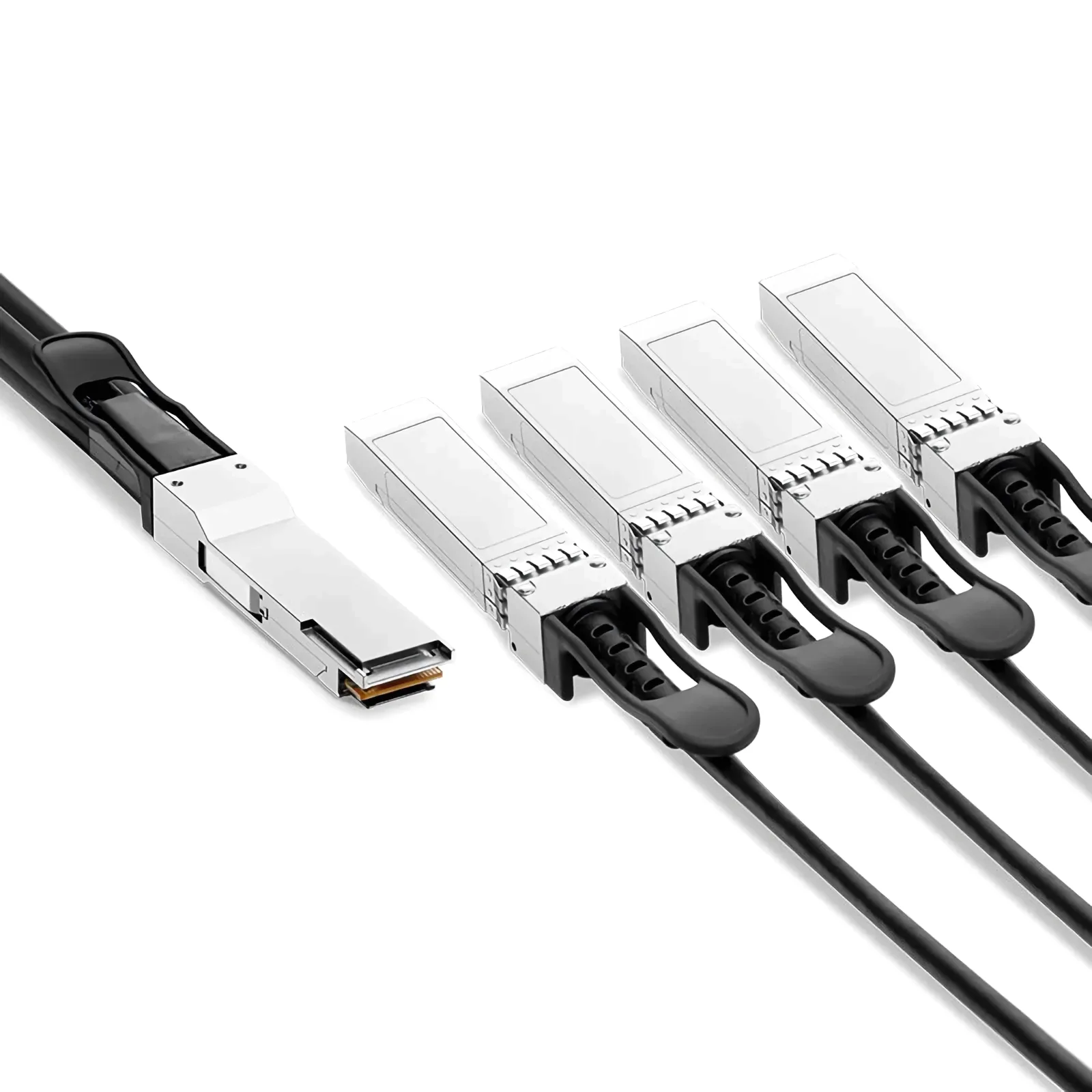

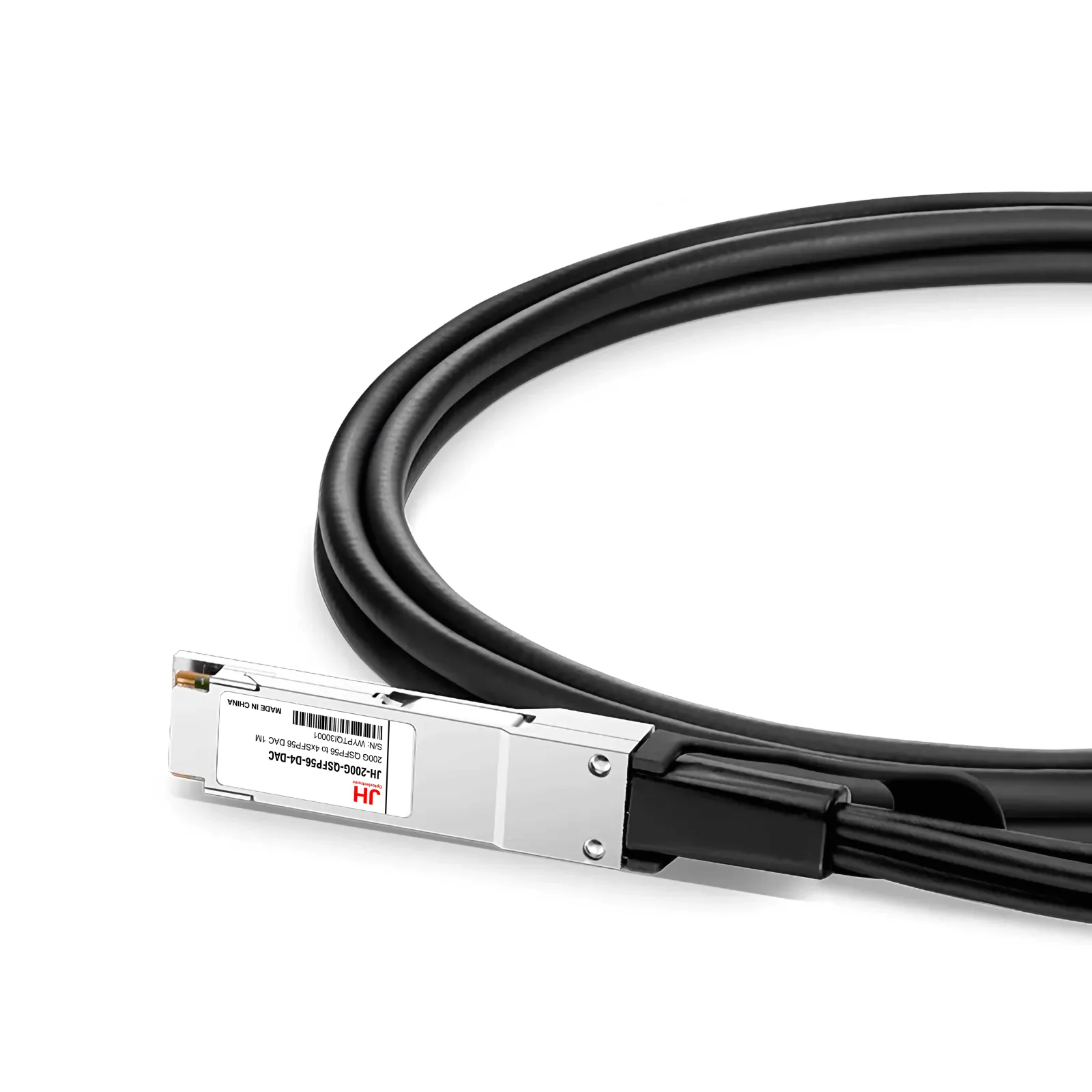

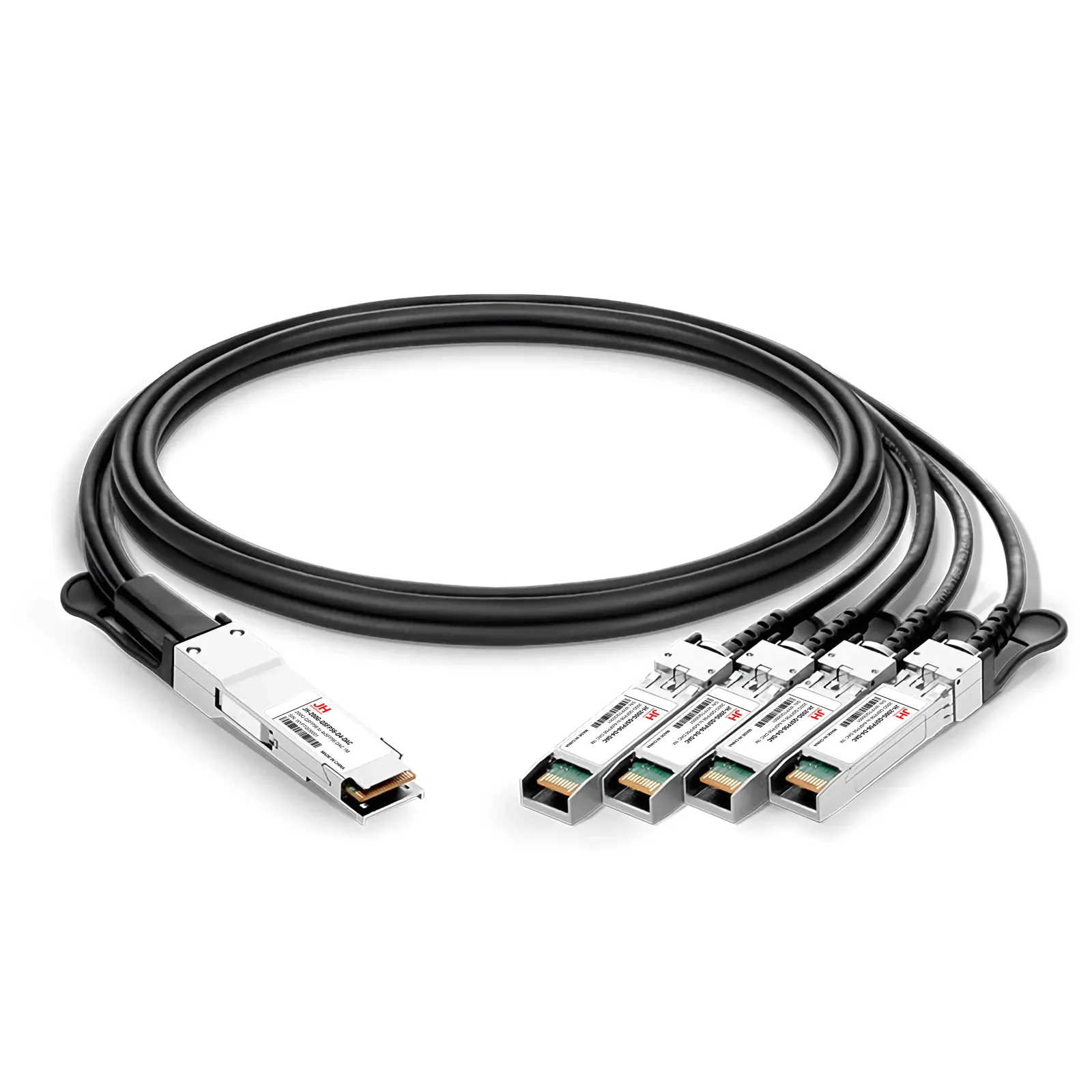

JH-200G-QSFP56-D4-DAC QSFP56 to 4x 50G SFP56 Direct Attach Cable operates over passive copper, which requires no additional power to ensure quality connectivity. This breakout cable is compliant with SFF-8661, SFF-8432, IEEE 802.3bs-200GAUI-4, IEEE802.3cd-50GAUI-1, SFP-8636 and SFF-8472 standards. It provides a connection of a 200G QSFP56 port on one end and to four 50G SFP56 ports on the other end and is suitable for cost-effective close-range interconnections within the equipment room of telecom operators or data centers, etc.

联系我们

产品特性

Hot-pluggable QSFP56 to 4xSFP56 Direct Attach Copper Cable assembly
Supports 200Gbps data rate, compliant with SFF-8665 and SFF-8636 standards
Maximum power consumption < 0.4W (passive copper, near-zero active power)
Commercial operating temperature range: 0~70
Single +3.3V power supply
Supports DDM/DOM digital diagnostic monitoring for link status and performance tracking
Compliant with relevant EMC/ESD protection standards
Compliant with RoHS 2.0 environmental protection standard, lead-free design
Data Center 4xSFP56 200G Interconnect, Lowest Cost per Bit

规格参数

Data Rate	200G
Distance	0.5-3M
Wavelength	Copper
Form Factor	QSFP56 to 4xSFP56
Connector	DAC
Case Temperature	0~70
Voltage Supply	3.3V
Transmitter	/
Receiver	/
TX Power	/
Receiver Sensitivity	/
Power consumption（Max）	0.4W
