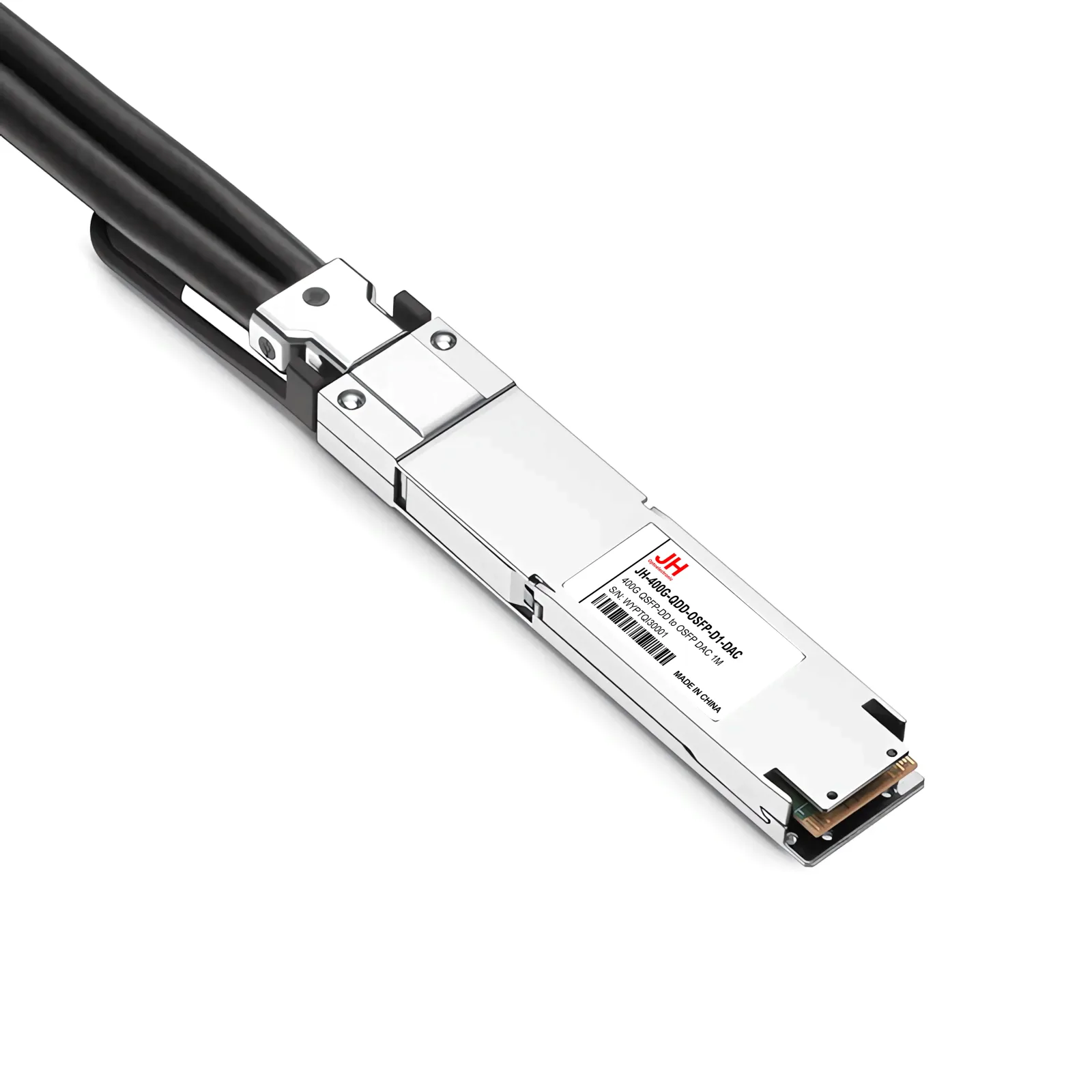

JH-400G-QDD-OSFP-D1-DAC

型号：400G QSFP-DD to OSFP DAC 1M

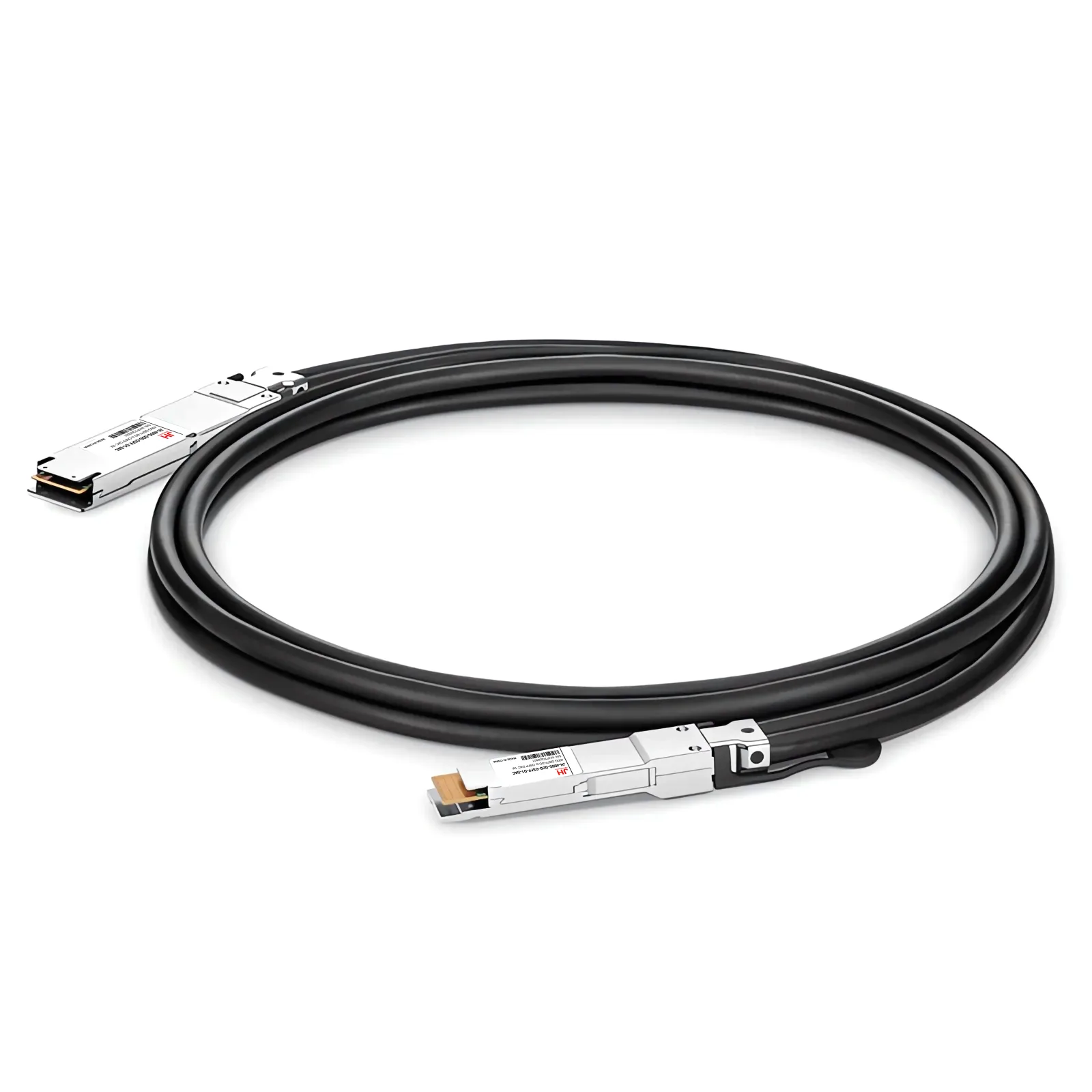

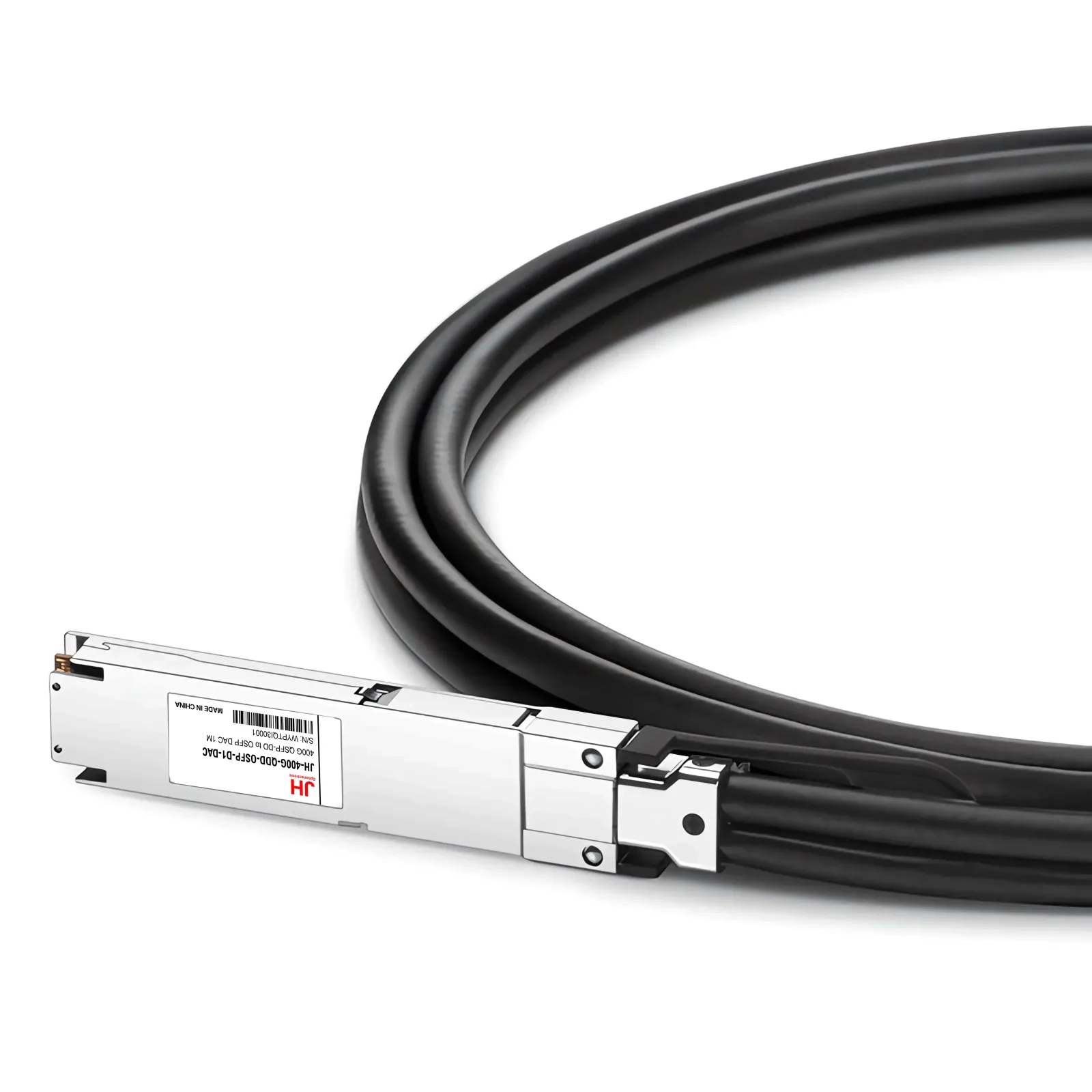

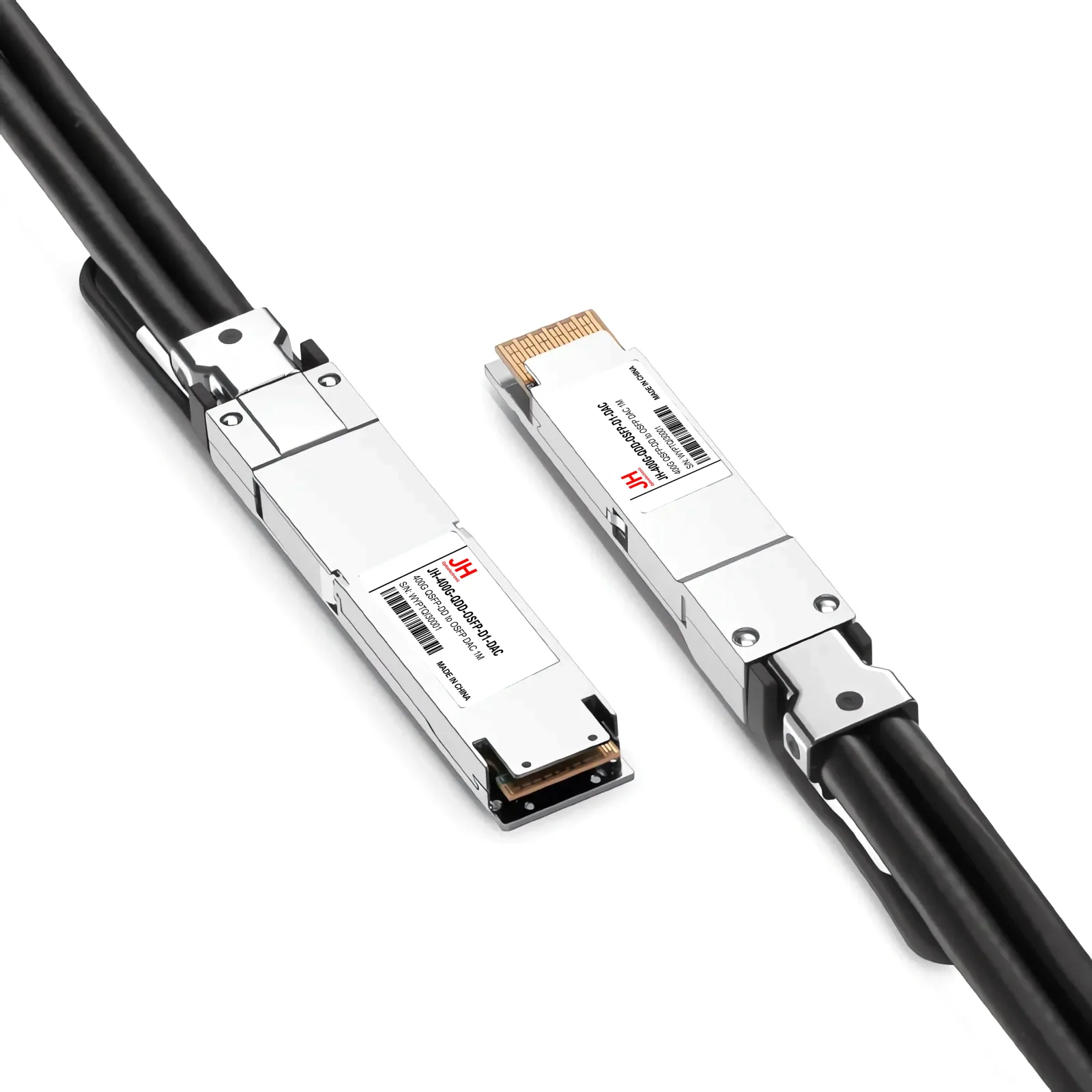

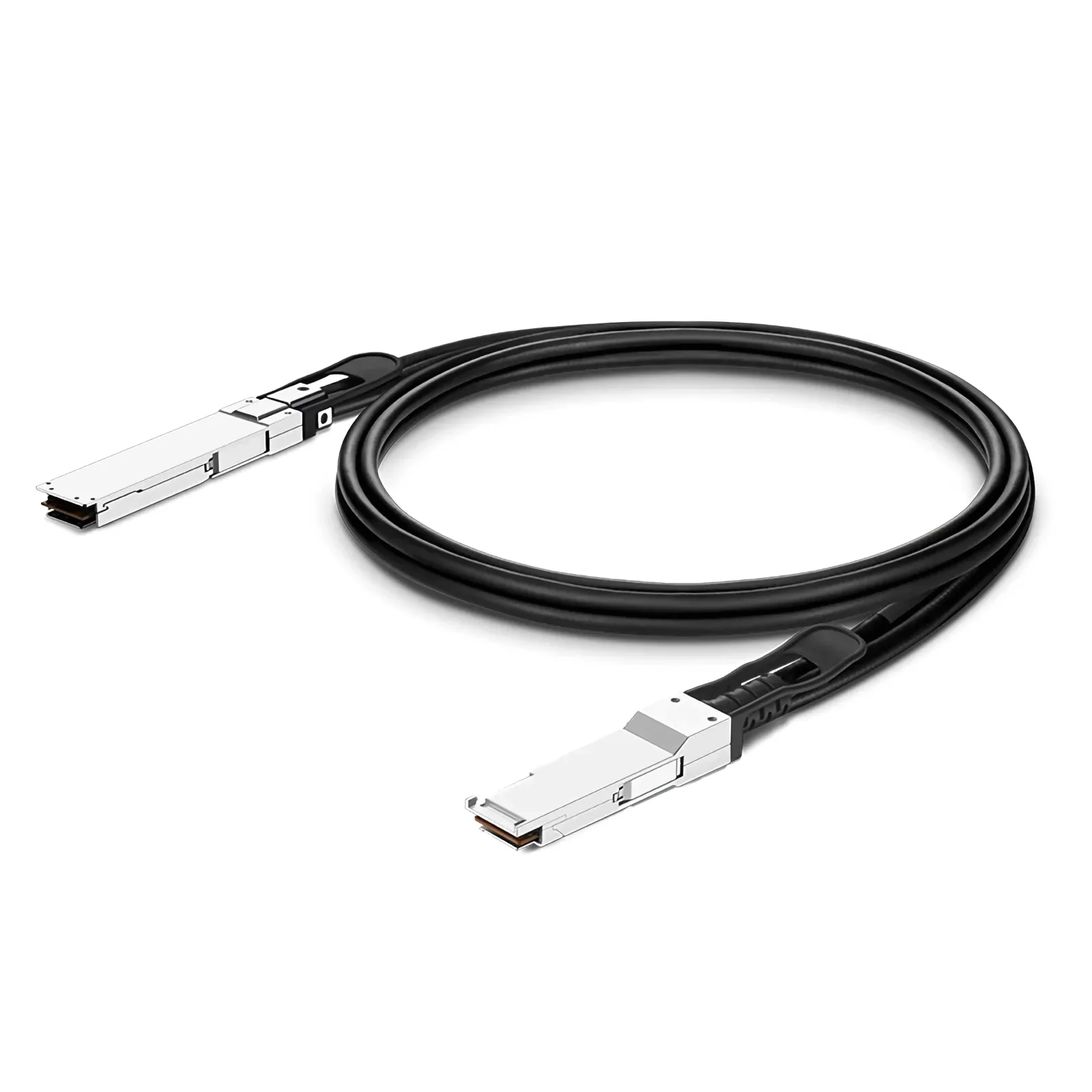

JH-400G-QDD-OSFP-D1-DAC OSFP to 400G QSFP-DD DAC provides a 400G copper direct-attach solution with a Flat-top (OSFP-RHS) form factor, suitable for very short links and offer a cost-effective way to establish a 400-Gigabit link between 400G ports of switches/routers within racks and across adjacent racks. This DAC is designed with ultra-low loss materials, square rings, twisted pair cable 8 wires and shell extension construction for superior mechanical properties and bending performance. It is tested in actual switching systems to ensure optimal signal integrity and the best end-to-end performance, ideal for SDN, ML, and Cloud Computing.

联系我们

产品特性

Hot-pluggable QSFP-DD to OSFP Direct Attach Copper Cable assembly
Supports 400Gbps data rate, compliant with OSFP MSA and CMIS 5.0 standards
Maximum power consumption < 0.5W (passive copper, near-zero active power)
Commercial operating temperature range: 0~70
Single +3.3V power supply
Supports DDM/DOM digital diagnostic monitoring for link status and performance tracking
Compliant with relevant EMC/ESD protection standards
Compliant with RoHS 2.0 environmental protection standard, lead-free design
Data Center OSFP 400G Interconnect, Lowest Cost per Bit

规格参数

Data Rate	400G
Distance	0.5-3M
Wavelength	Copper
Form Factor	QSFP-DD to OSFP
Connector	DAC
Case Temperature	0~70
Voltage Supply	3.3V
Transmitter	/
Receiver	/
TX Power	/
Receiver Sensitivity	/
Power consumption（Max）	0.5W
