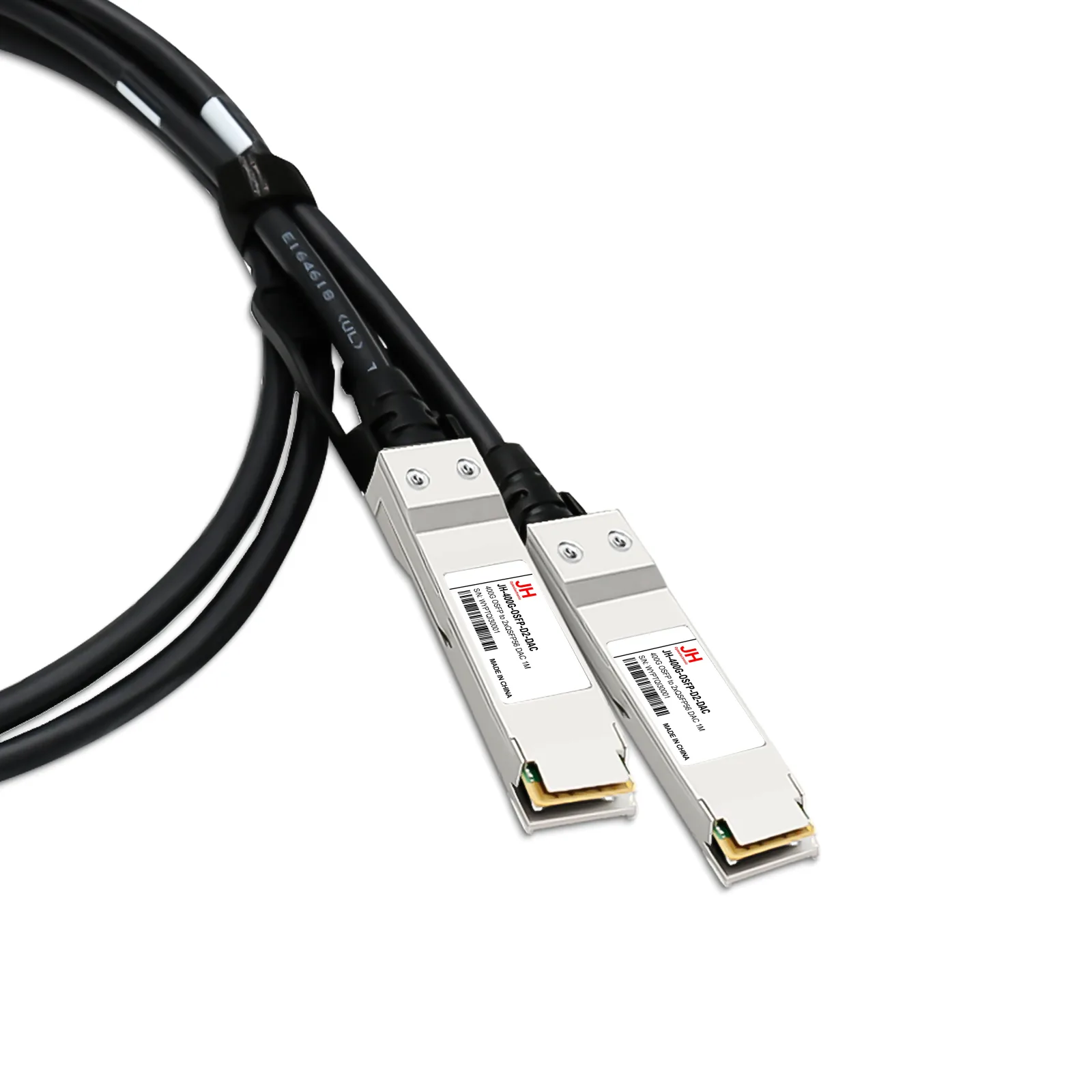

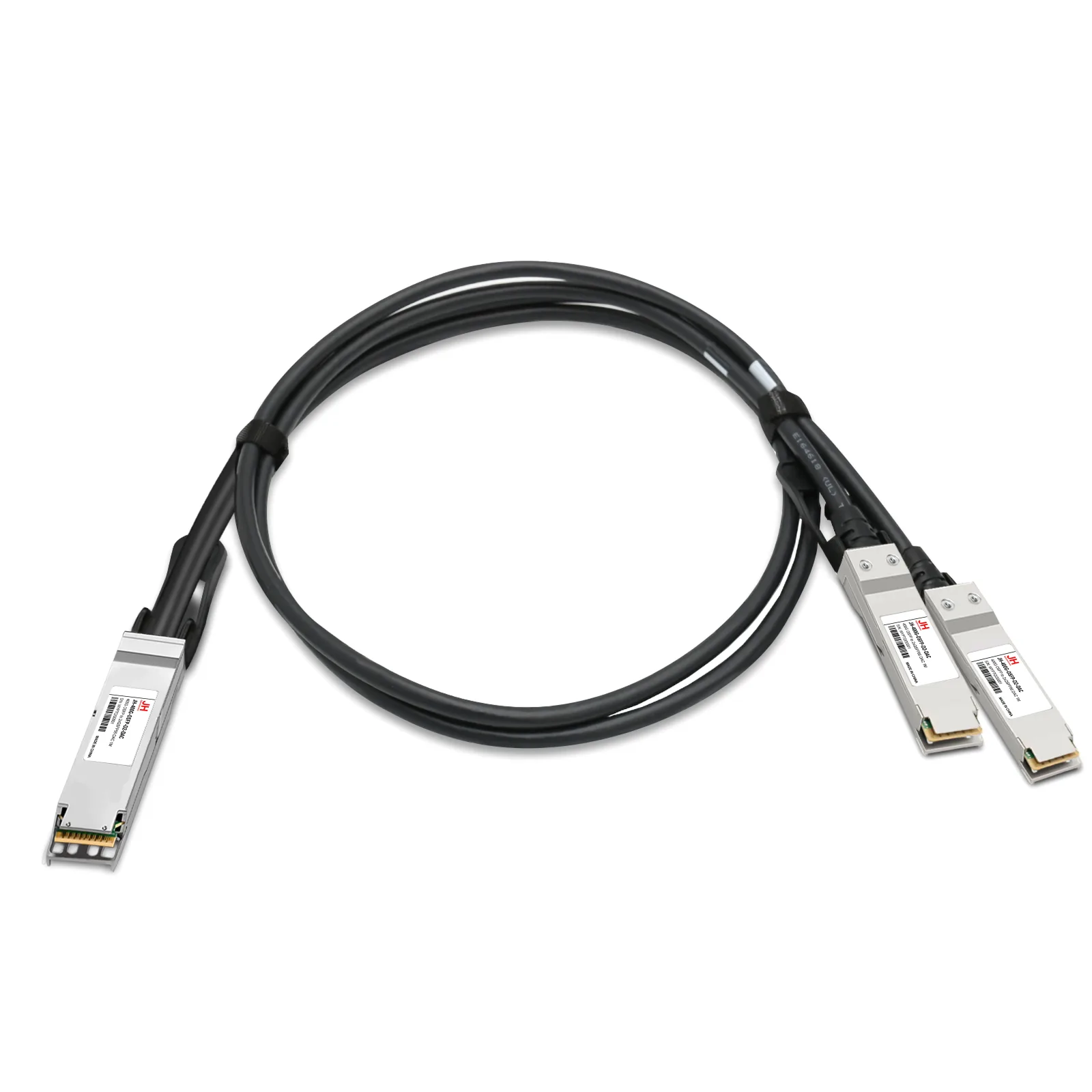

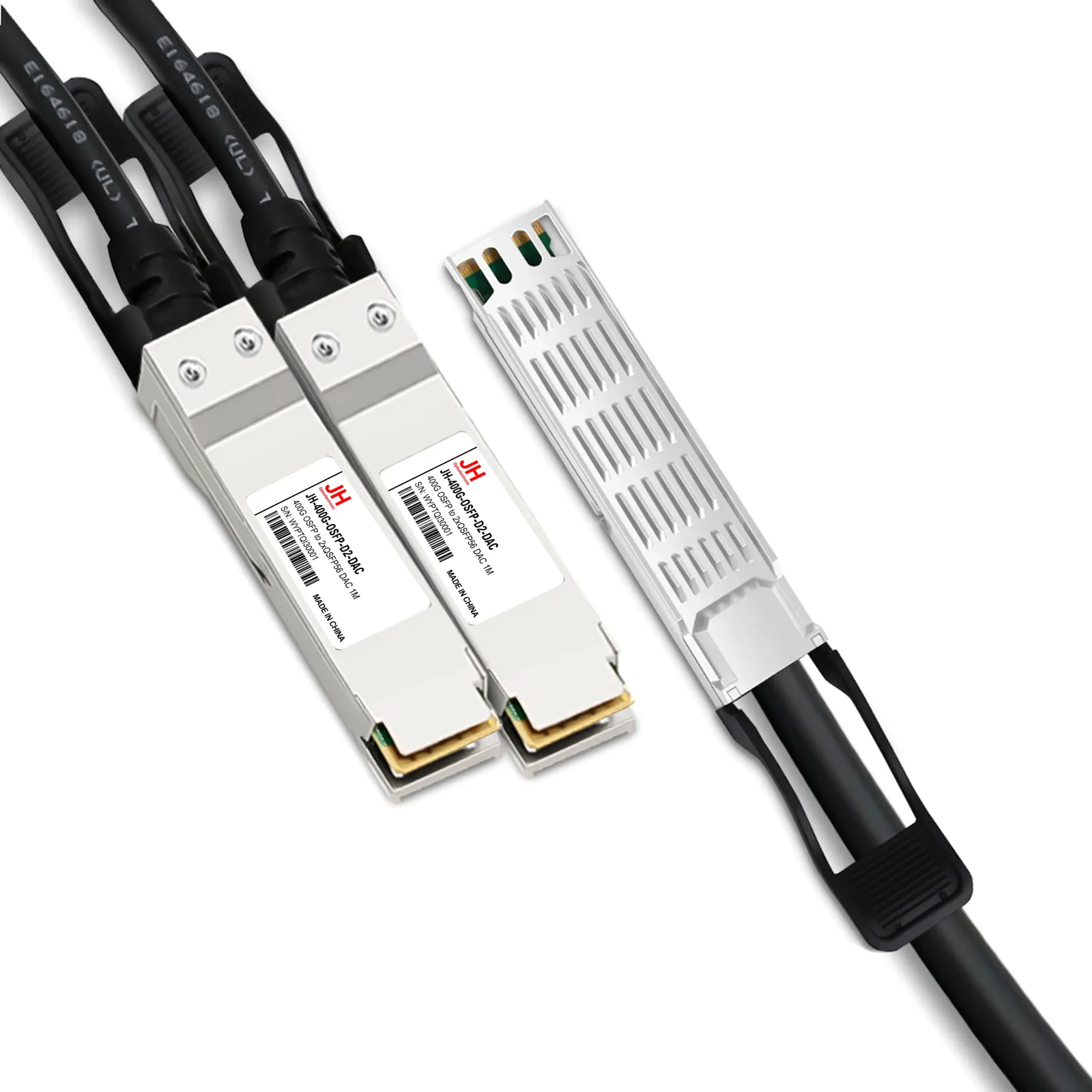

JH-400G-OSFP-D2-DAC

型号：400G OSFP to 2xQSFP56 DAC 1M

JH-400G-OSFP-D2-DAC OSFP to 2x QSFP56 cable assemblies are high performance, high bandwidth and cost effective interconnect solutions. OSFP pluggable solutions enable 400G standard applications with different data rates. It is fully compliant with OSFP MSA, CMISRev4.0, IEEE802.3cd, SFF-8436, SFF-8665, SFF-8679, and SFF-8636 standards, ideal for 400G Ethernet application.

联系我们

产品特性

Hot-pluggable OSFP to 2xQSFP56 Direct Attach Copper Cable assembly
Supports 400Gbps data rate, compliant with OSFP MSA and CMIS 5.0 standards
Maximum power consumption < 0.5W (passive copper, near-zero active power)
Commercial operating temperature range: 0~70
Single +3.3V power supply
Supports DDM/DOM digital diagnostic monitoring for link status and performance tracking
Compliant with relevant EMC/ESD protection standards
Compliant with RoHS 2.0 environmental protection standard, lead-free design
Data Center 2xQSFP56 400G Interconnect, Lowest Cost per Bit

规格参数

Data Rate	400G
Distance	0.5-3M
Wavelength	Copper
Form Factor	OSFP to 2xQSFP56
Connector	DAC
Case Temperature	0~70
Voltage Supply	3.3V
Transmitter	/
Receiver	/
TX Power	/
Receiver Sensitivity	/
Power consumption（Max）	0.5W
