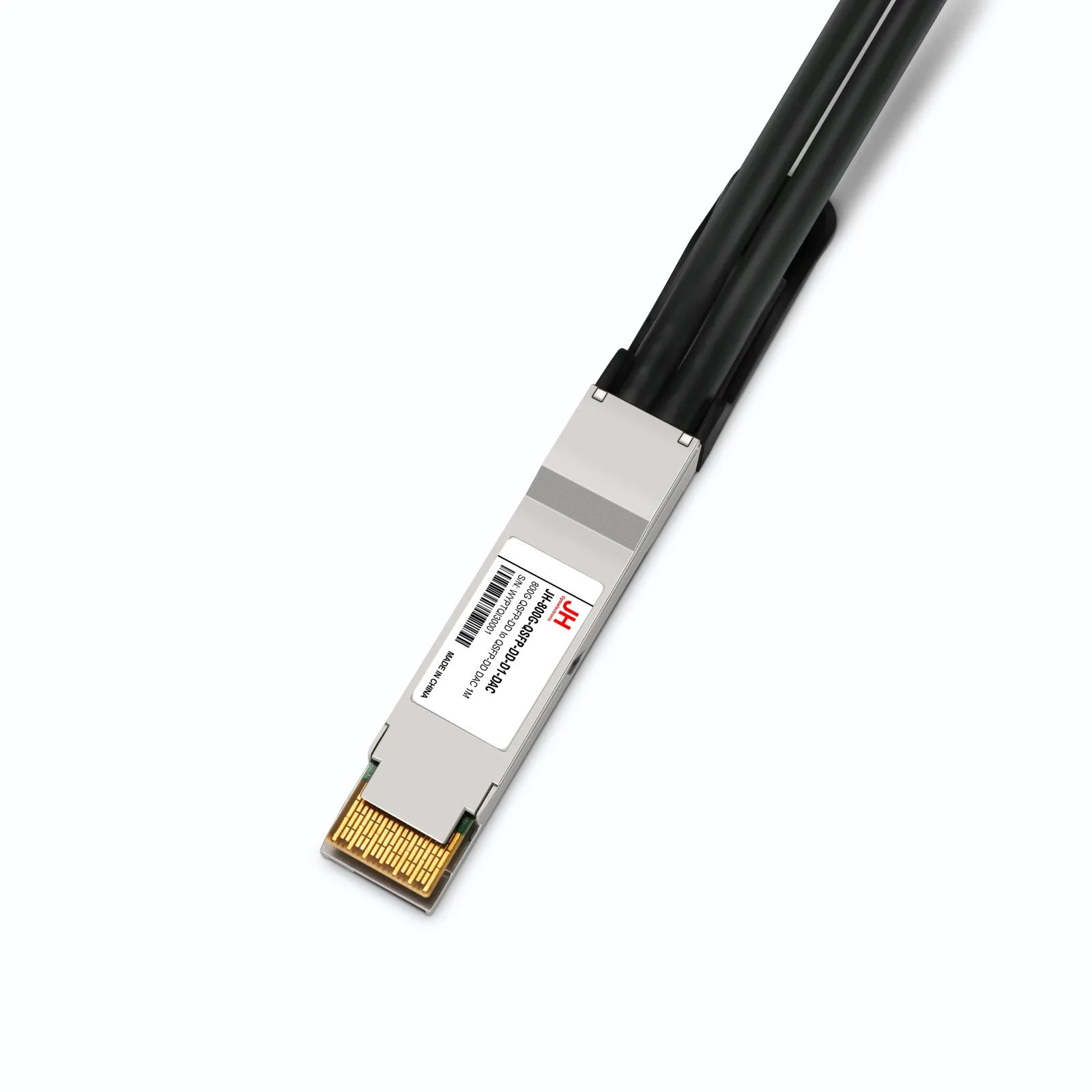

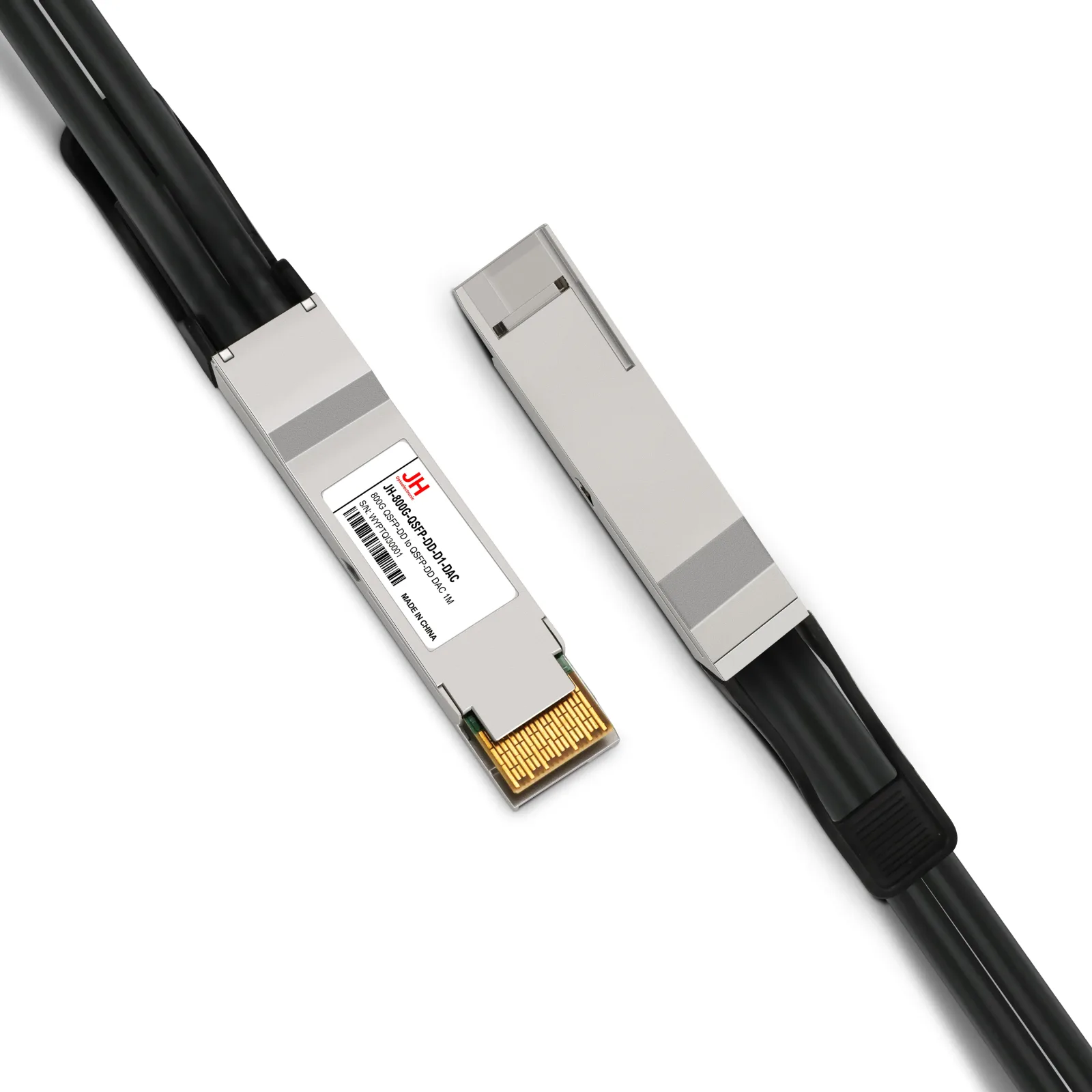

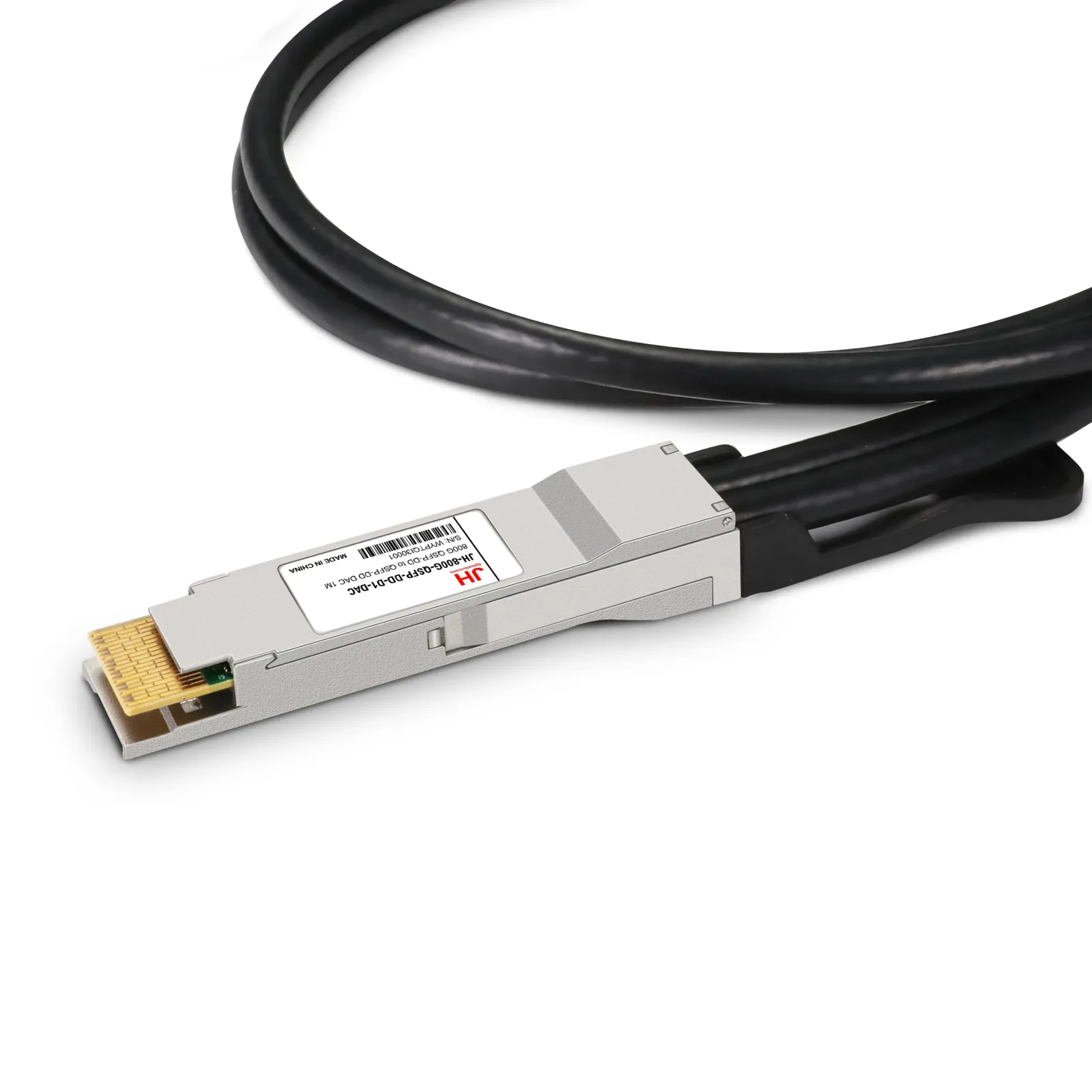

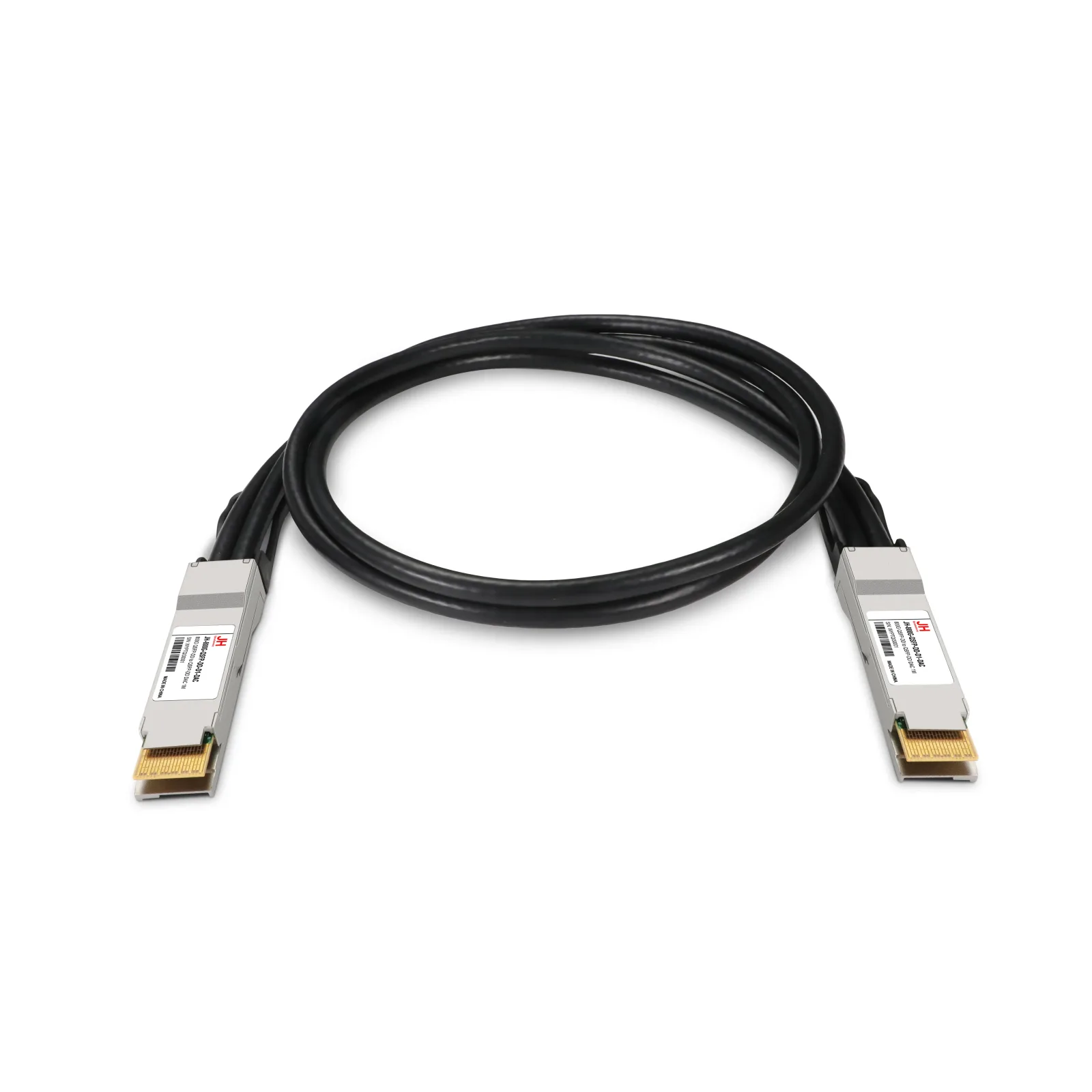

JH-800G-QSFP-DD-D1-DAC

型号：800G QSFP-DD to QSFP-DD DAC 1M

JH-800G-QSFP-DD-D1-DAC 800G QSFP-DD DAC is designed for use in 800G Ethernet applications. It contains 8 high-speed differential pairs (lanes), each operating at data rates of up to 100Gb/s. This cable is compliant with IEEE 802.3ck Ethernet standard and QSFP-DD MSA (Multi-Source Agreement).

联系我们

产品特性

Hot-pluggable QSFP-DD to QSFP Direct Attach Copper Cable assembly
Supports 800Gbps data rate, compliant with QSFP-DD MSA and CMIS 5.0 standards
Maximum power consumption < 0.6W (passive copper, near-zero active power)
Commercial operating temperature range: 0~70
Single +3.3V power supply
Supports DDM/DOM digital diagnostic monitoring for link status and performance tracking
Compliant with relevant EMC/ESD protection standards
Compliant with RoHS 2.0 environmental protection standard, lead-free design
Data Center QSFP 800G Interconnect, Lowest Cost per Bit

规格参数

Data Rate	800G
Distance	0.5-3M
Wavelength	Copper
Form Factor	QSFP-DD to QSFP
Connector	DAC
Case Temperature	0~70
Voltage Supply	3.3V
Transmitter	/
Receiver	/
TX Power	/
Receiver Sensitivity	/
Power consumption（Max）	0.6W
