JH-800G-OSFP-D4-DAC

型号：800G OSFP to 4xQSFP112 DAC 1M

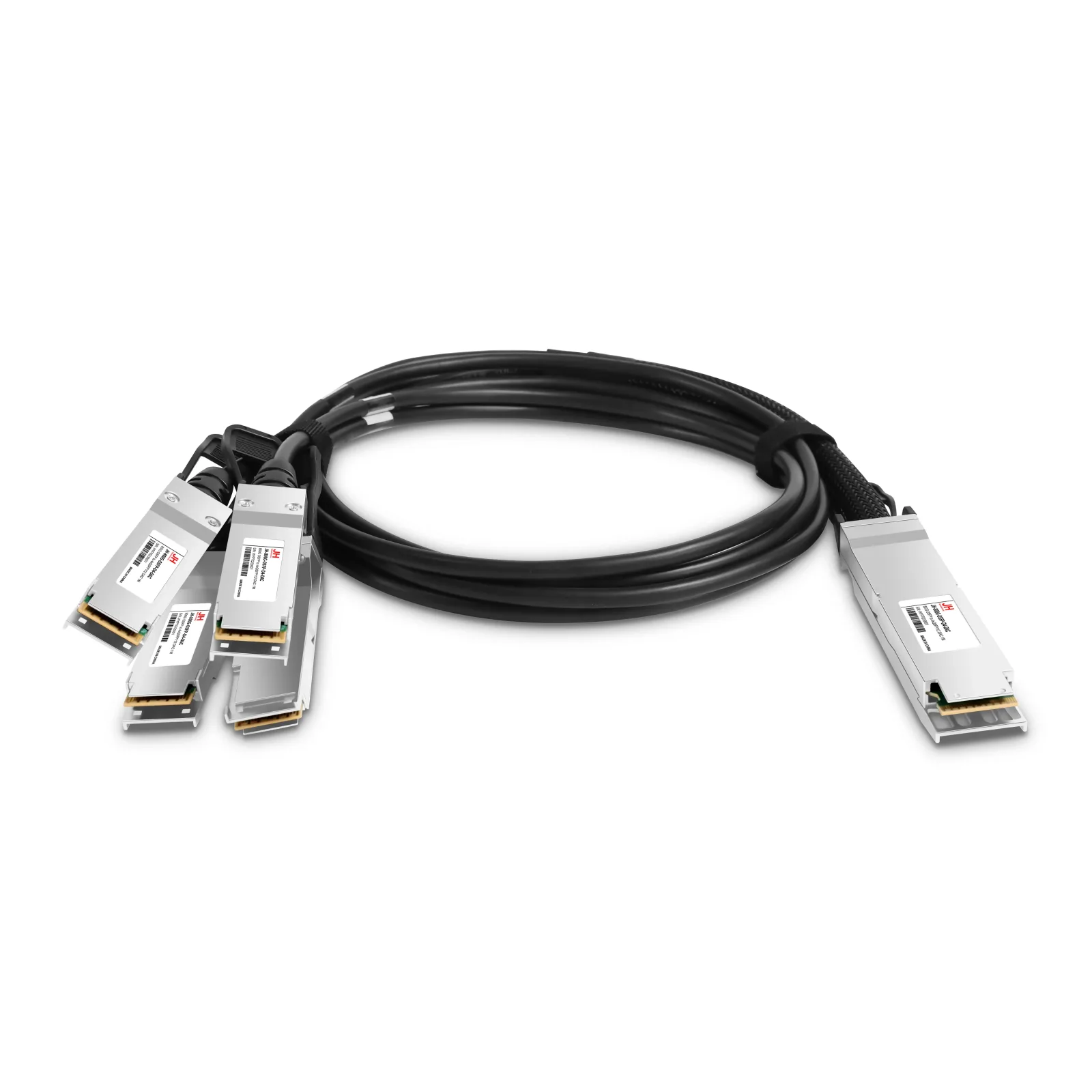

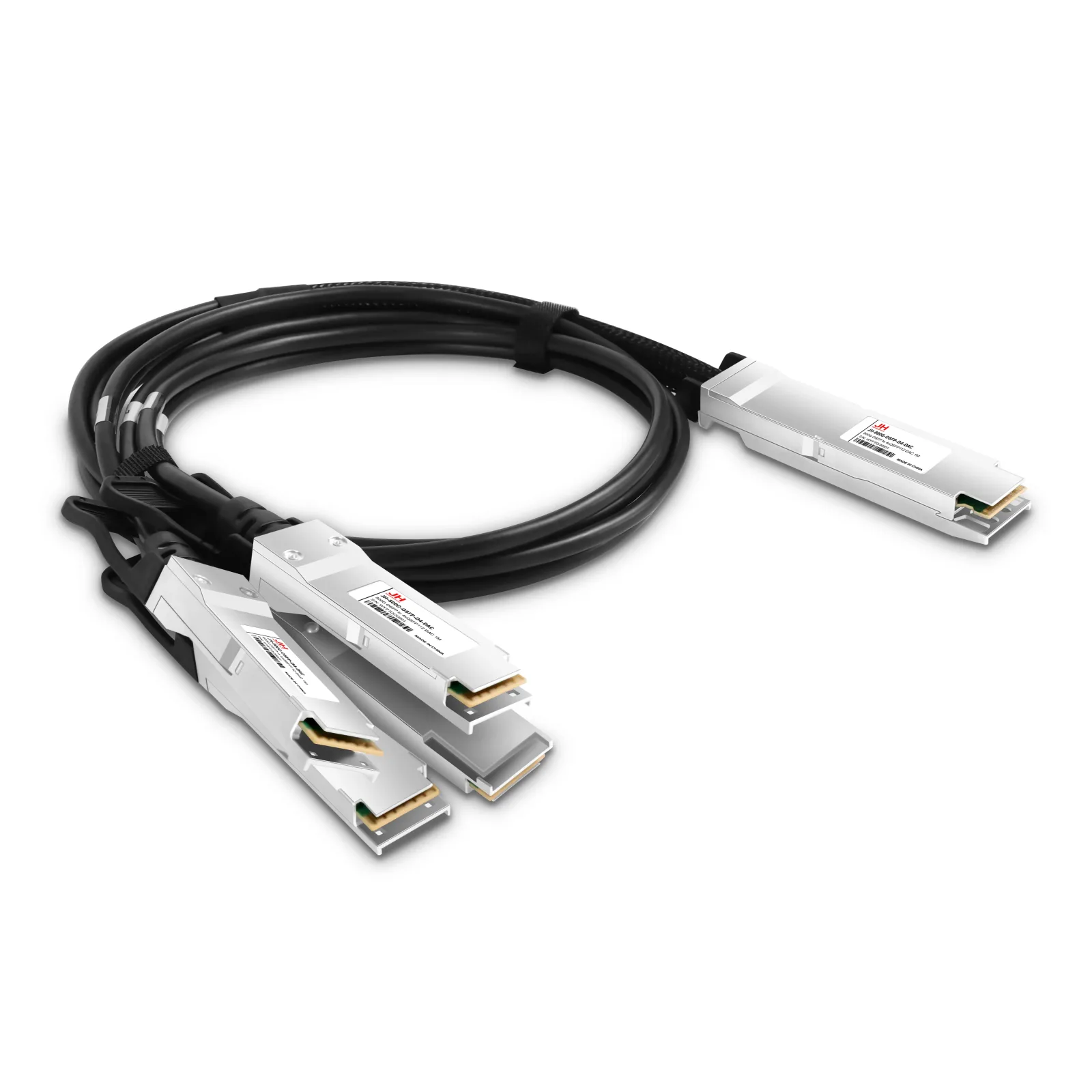

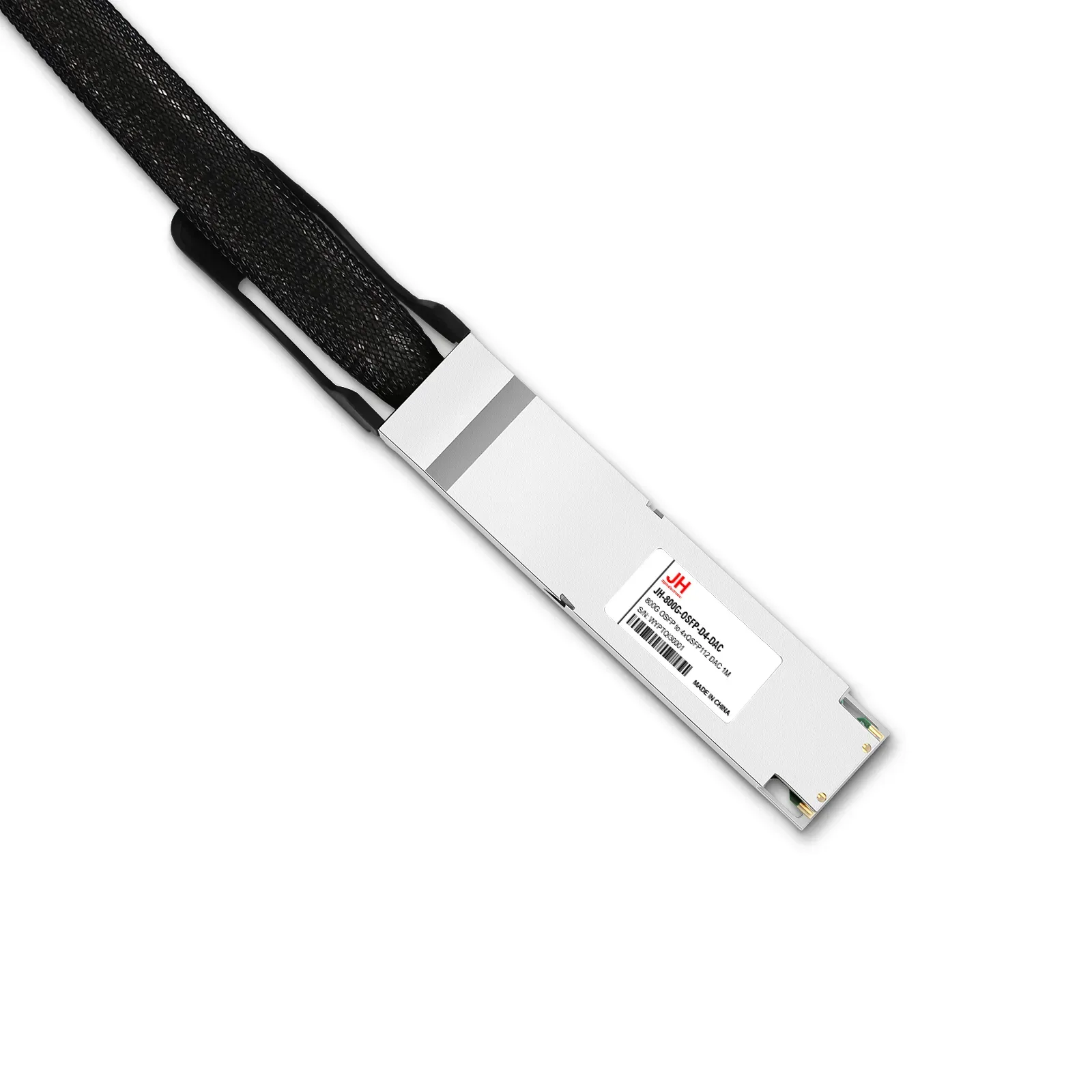

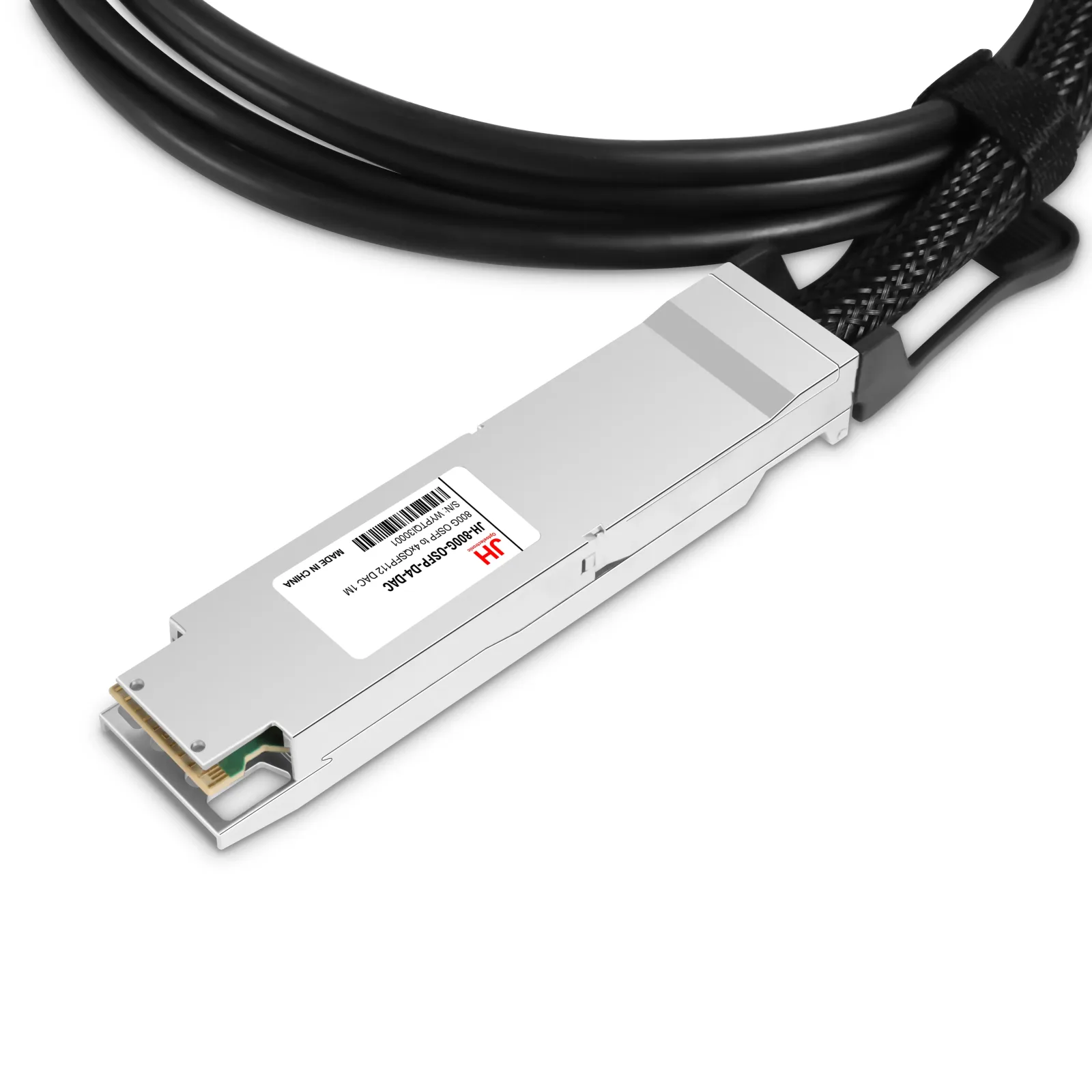

JH-800G-OSFP-D4-DAC 800G OSFP (Octal Small Form-factor Pluggable) to 4x 200G QSFP112 direct attach cable operates over passive copper, which requires no additional power to ensure quality connectivity. This breakout cable is compliant with OSFP MSA (Multi-Source Agreement), QSFP112 MSA, IEEE 802.3ck, and CMIS v5.0 standards. It provides a high-speed connection from an 800G OSFP IHS/finned top port typically used in switches to four 200G QSFP112 ports commonly used for NICs.

联系我们

产品特性

Hot-pluggable OSFP to 4xQSFP112 Direct Attach Copper Cable assembly
Supports 800Gbps data rate, compliant with OSFP MSA and CMIS 5.0 standards
Maximum power consumption < 0.6W (passive copper, near-zero active power)
Commercial operating temperature range: 0~70
Single +3.3V power supply
Supports DDM/DOM digital diagnostic monitoring for link status and performance tracking
Compliant with relevant EMC/ESD protection standards
Compliant with RoHS 2.0 environmental protection standard, lead-free design
Data Center 4xQSFP112 800G Interconnect, Lowest Cost per Bit

规格参数

Data Rate	800G
Distance	0.5-3M
Wavelength	Copper
Form Factor	OSFP to 4xQSFP112
Connector	DAC
Case Temperature	0~70
Voltage Supply	3.3V
Transmitter	/
Receiver	/
TX Power	/
Receiver Sensitivity	/
Power consumption（Max）	0.6W
