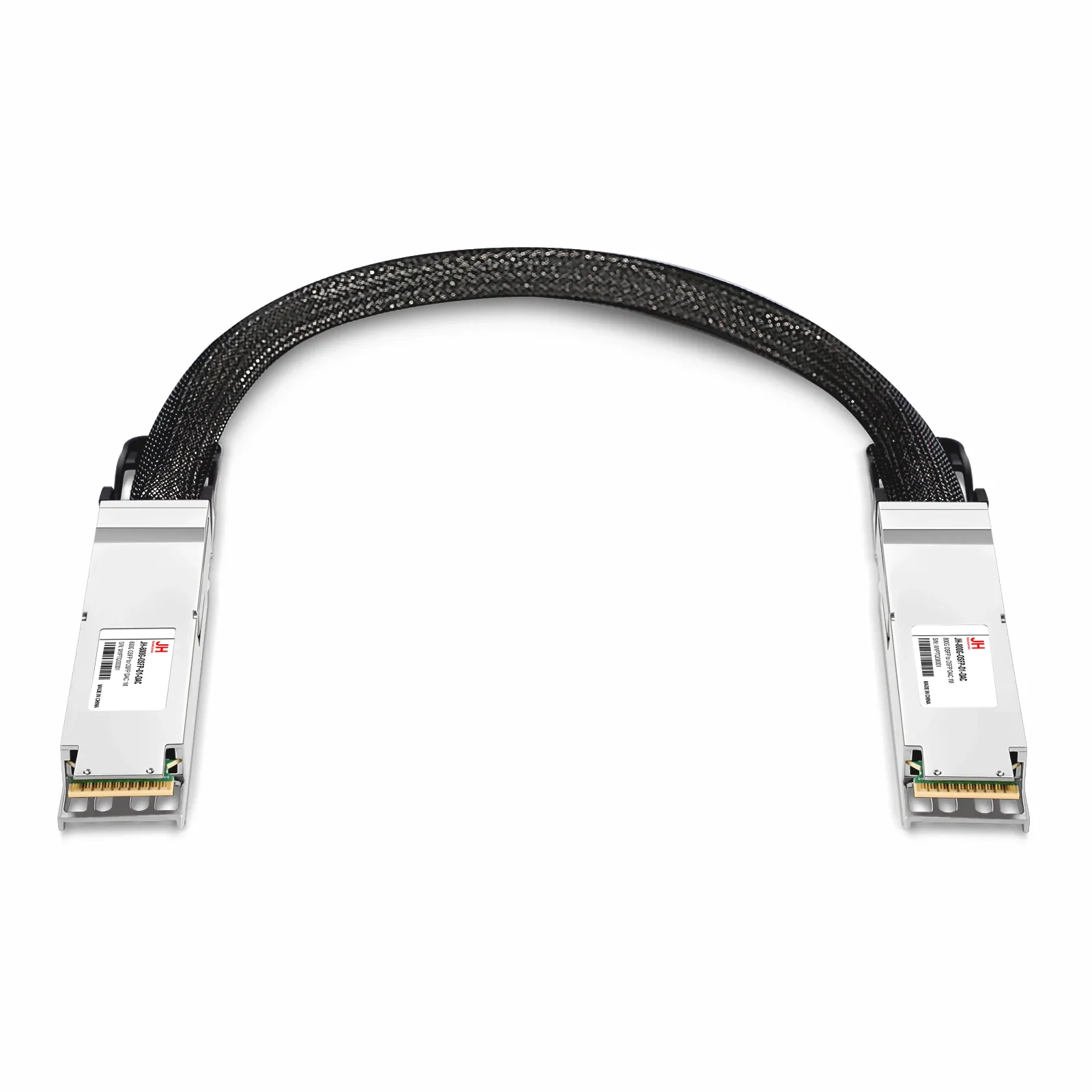

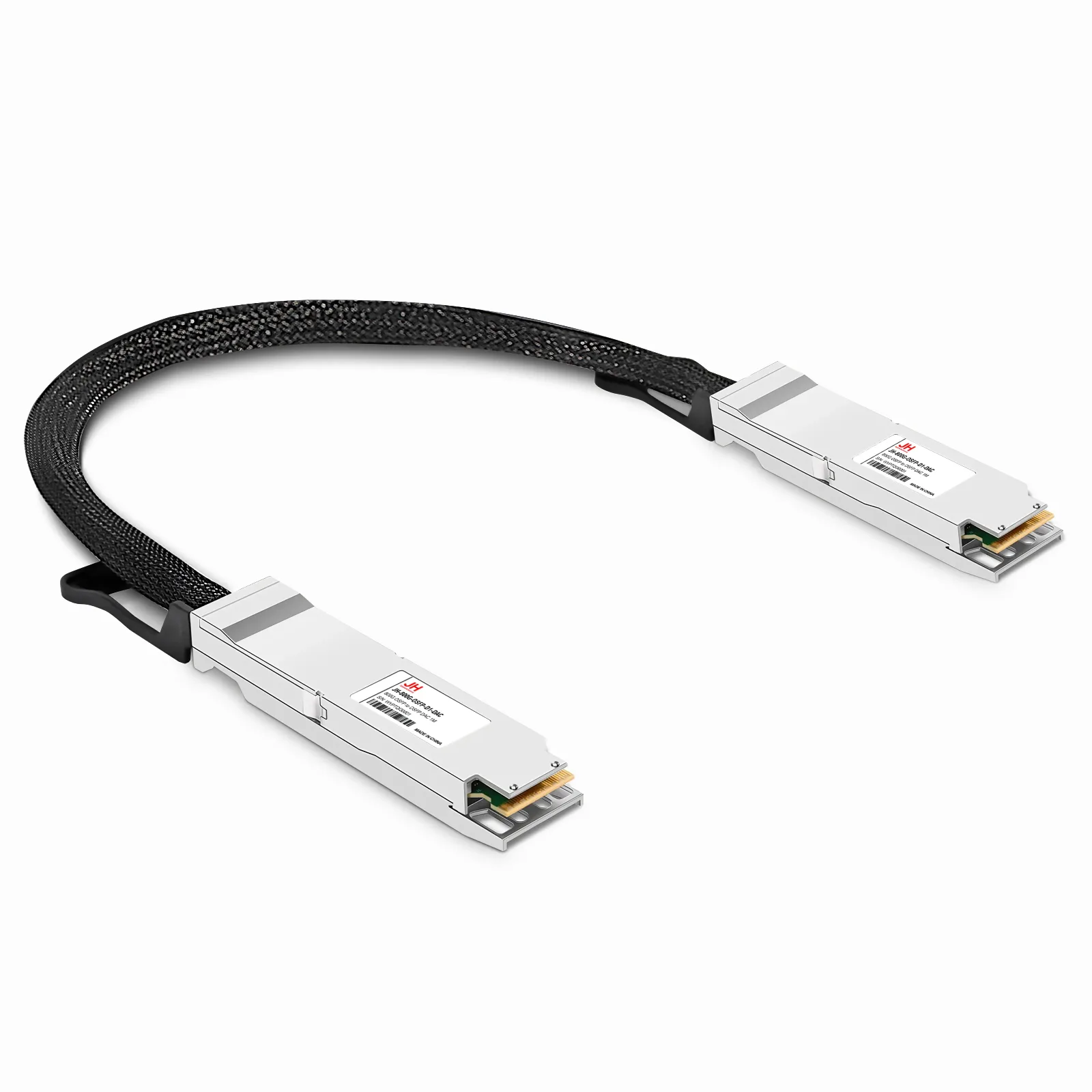

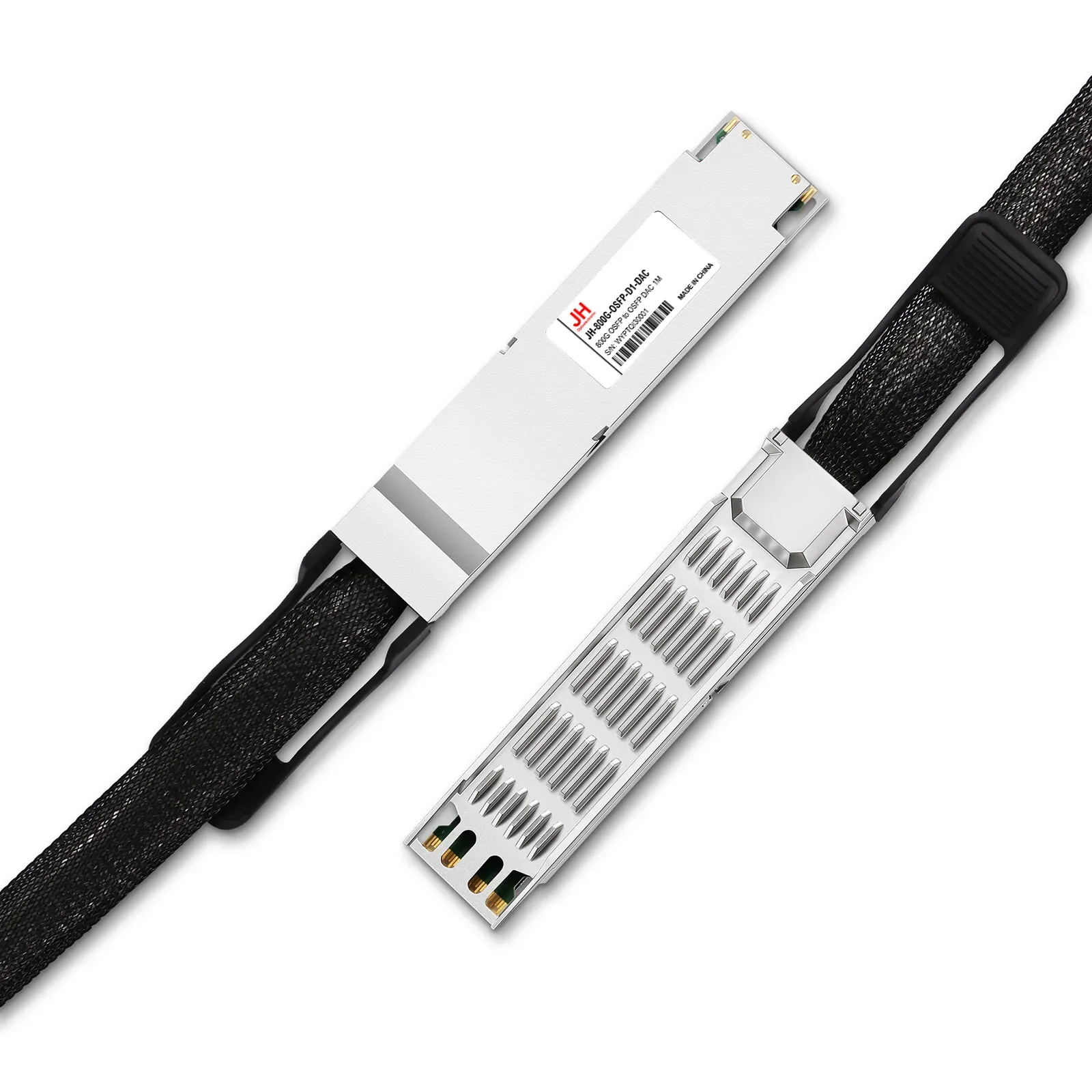

JH-800G-OSFP-D1-DAC

型号：800G OSFP to OSFP DAC 1M

JH-800G-OSFP-D1-DAC is a 2x 400Gb/s twin-port OSFP (Octal Small Form-factor Pluggable) to 2x 400Gb/s twin-port OSFP direct attach cable that operates over passive copper and integrates eight high-speed electrical pairs, each supporting up to 100Gb/s with 100G-PAM4 modulation to deliver 800Gb/s for short-reach links. It also supports configurations for 400G, 200G and 100G applications, providing flexibility for various network setups. This cable is compliant with OSFP MSA (Multi-Source Agreement), CMIS Rev 4.0, and IEEE 802.3ck standards.

联系我们

产品特性

Hot-pluggable OSFP to OSFP Direct Attach Copper Cable assembly
Supports 800Gbps data rate, compliant with OSFP MSA and CMIS 5.0 standards
Maximum power consumption < 0.6W (passive copper, near-zero active power)
Commercial operating temperature range: 0~70
Single +3.3V power supply
Supports DDM/DOM digital diagnostic monitoring for link status and performance tracking
Compliant with relevant EMC/ESD protection standards
Compliant with RoHS 2.0 environmental protection standard, lead-free design
Data Center OSFP 800G Interconnect, Lowest Cost per Bit

规格参数

Data Rate	800G
Distance	0.5-3M
Wavelength	Copper
Form Factor	OSFP to OSFP
Connector	DAC
Case Temperature	0~70
Voltage Supply	3.3V
Transmitter	/
Receiver	/
TX Power	/
Receiver Sensitivity	/
Power consumption（Max）	0.6W
