型号：10G SFP+ RJ45 Copper 30M

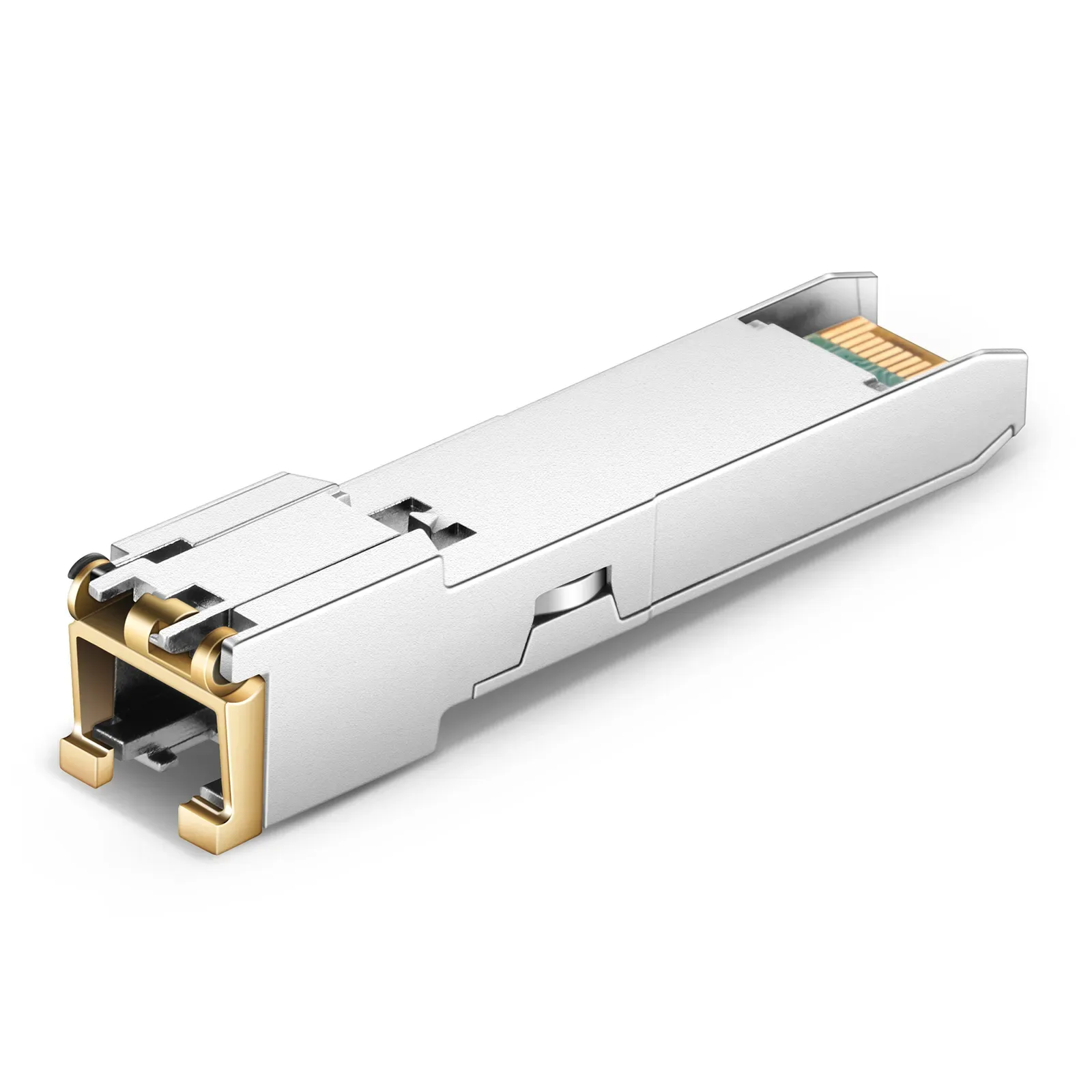

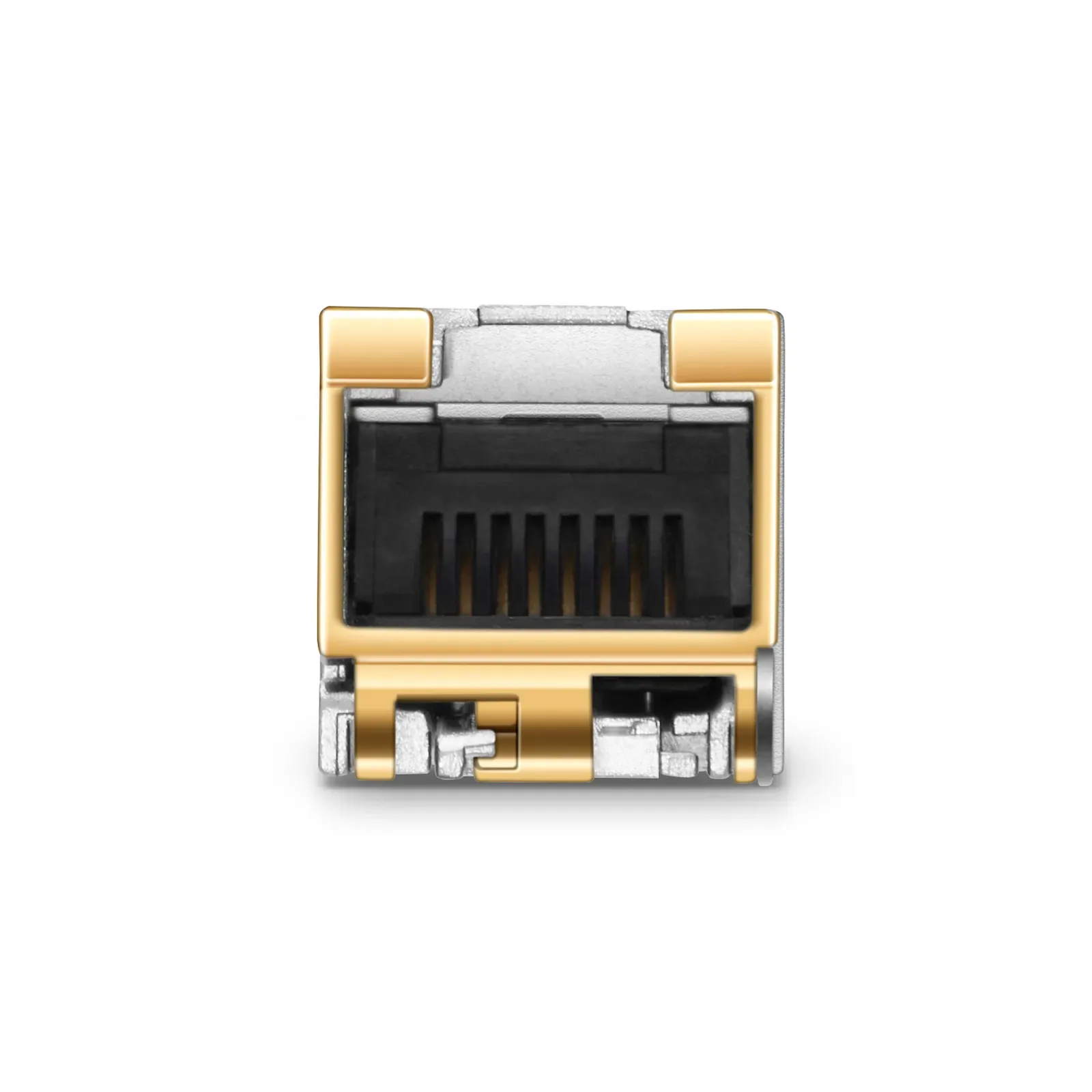

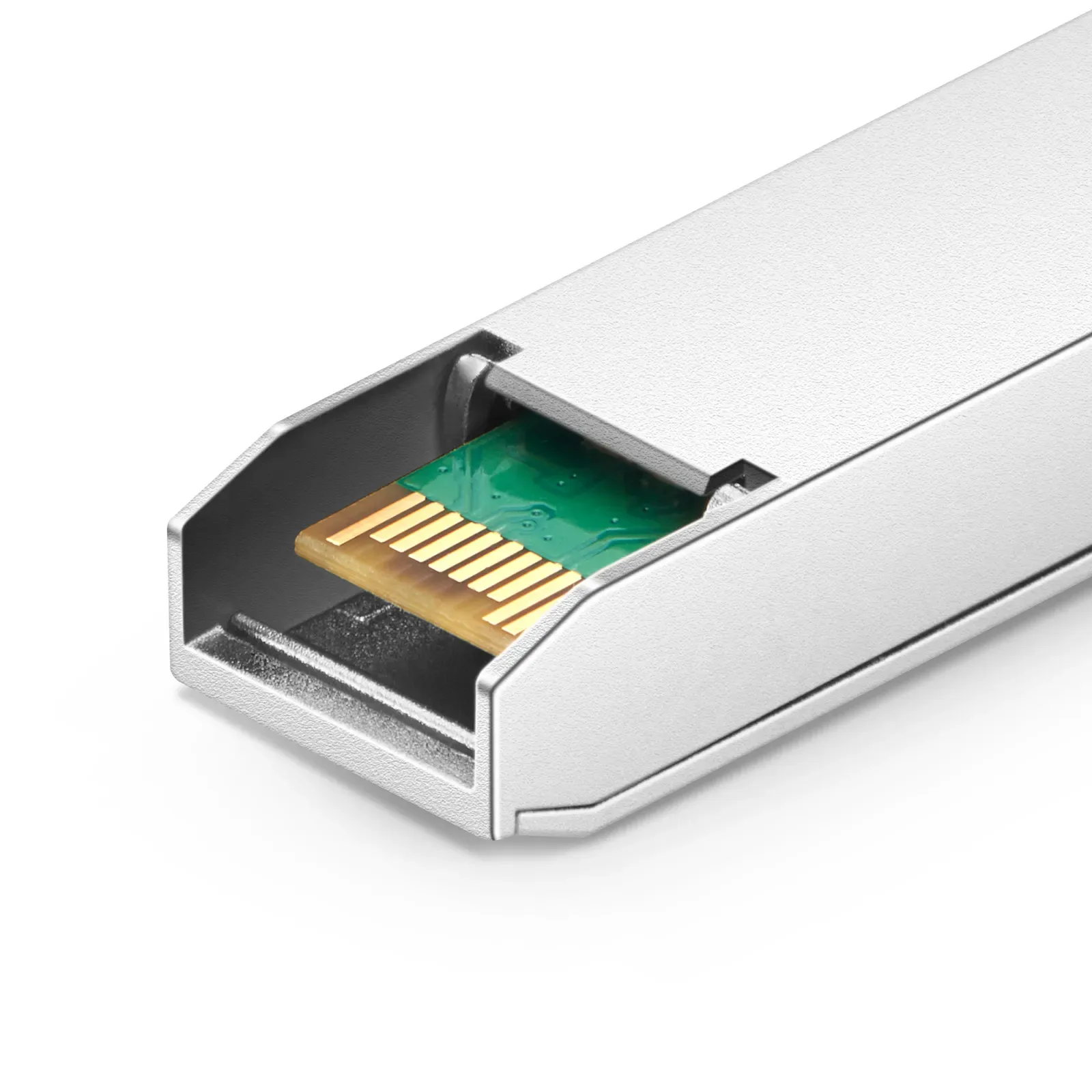

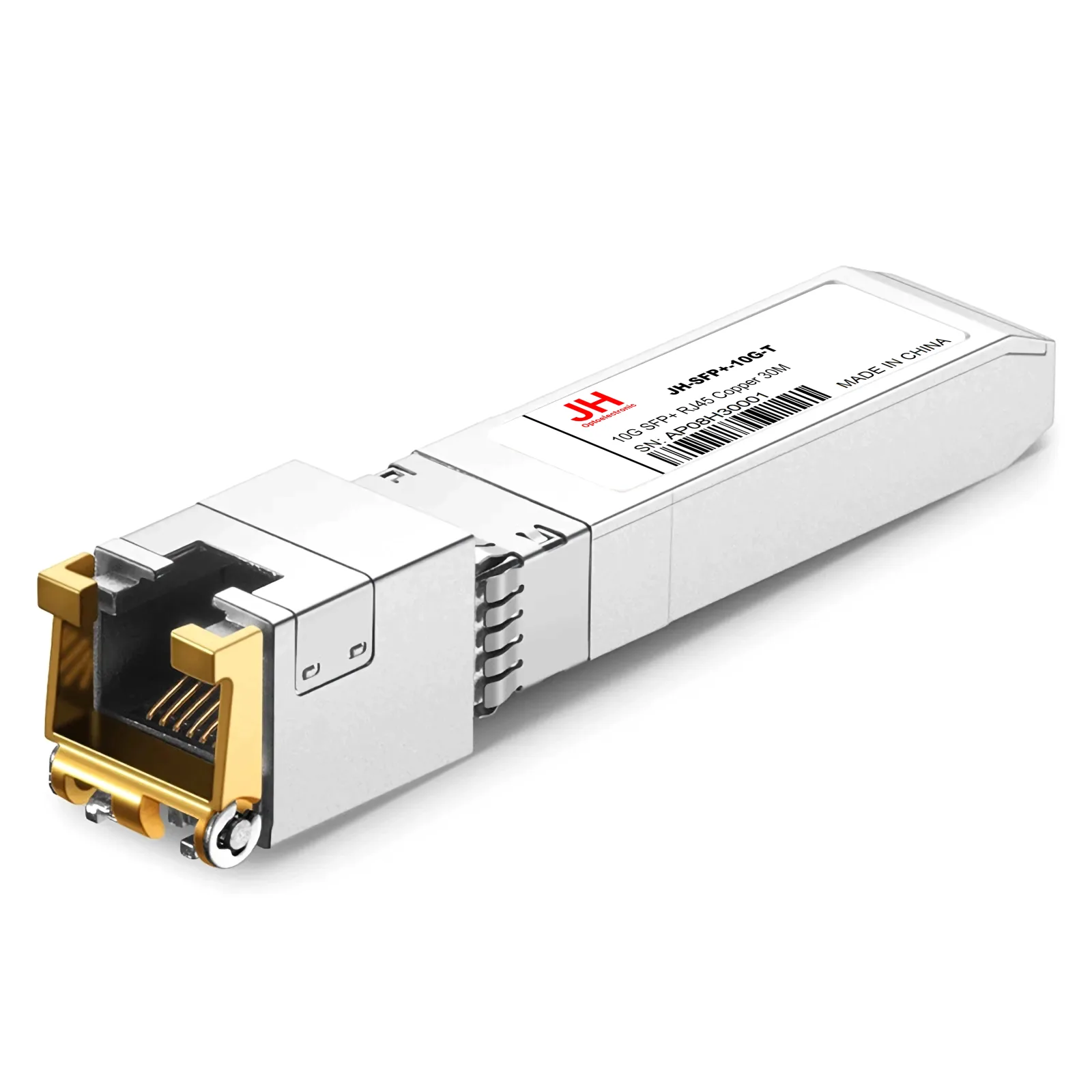

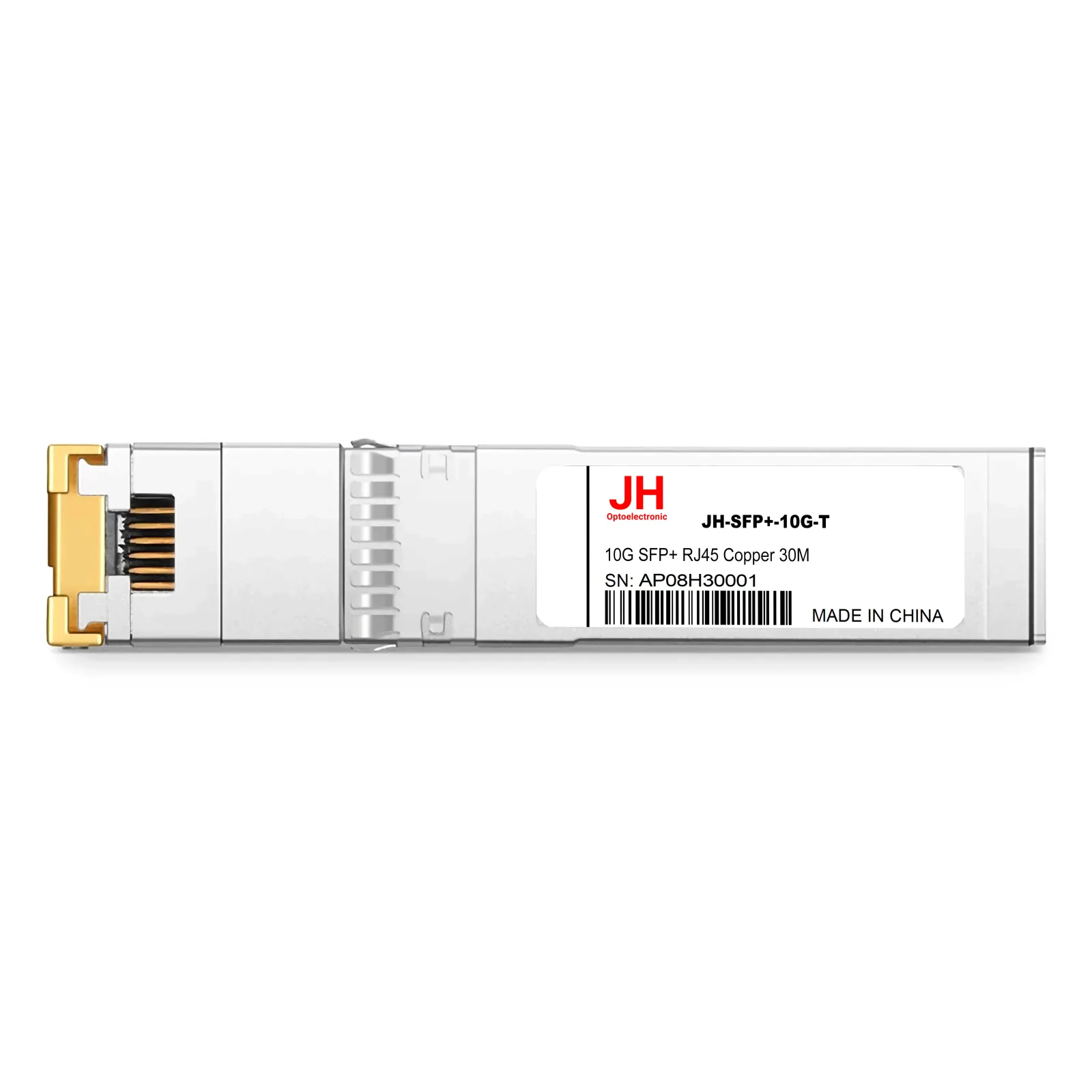

JH-SFP+-10G-T offers connectivity options at 10Gbps data rates. The module features an SFP+ form factor and an RJ-45 interface, enabling the use of CAT6A/CAT7 cables for connecting to endpoints with embedded 10GBASE-T ports. It supports distances of up to 30 meters, providing a cost-effective solution for intra-rack and inter-rack connections. This transceiver is compliant with IEEE 802.3an, IEEE 802.3az, SFF-8431 and SFP+ MSA. Each SFP transceiver module is individually tested to be used on a series of switches, routers, servers, network interface card (NICs) etc. Featuring low power consumption, this easy to install, hot swappable 10G SFP+ transceiver is ideal for enterprise networking for LAN applications and different other networking places using copper connections.
| Data Rate | 10G |
| Distance | 30M |
| Wavelength | Copper |
| Form Factor | SFP+ |
| Connector | RJ45 |
| Case Temperature | 0~70/-40~85 |
| Voltage Supply | 3.3V |
| Transmitter | / |
| Receiver | / |
| TX Power | / |
| Receiver Sensitivity | / |
| Power consumption（Max） | 2.5W |
