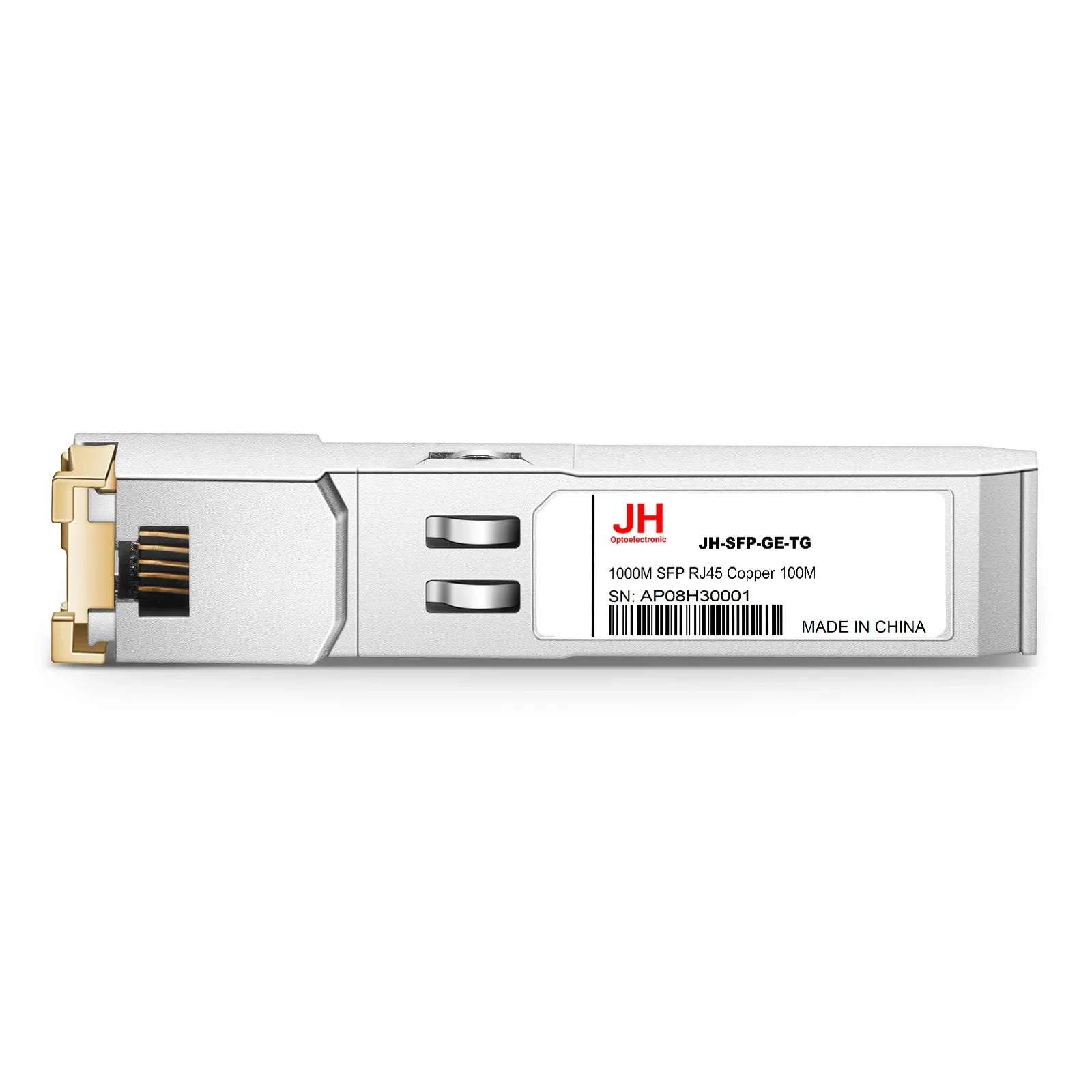

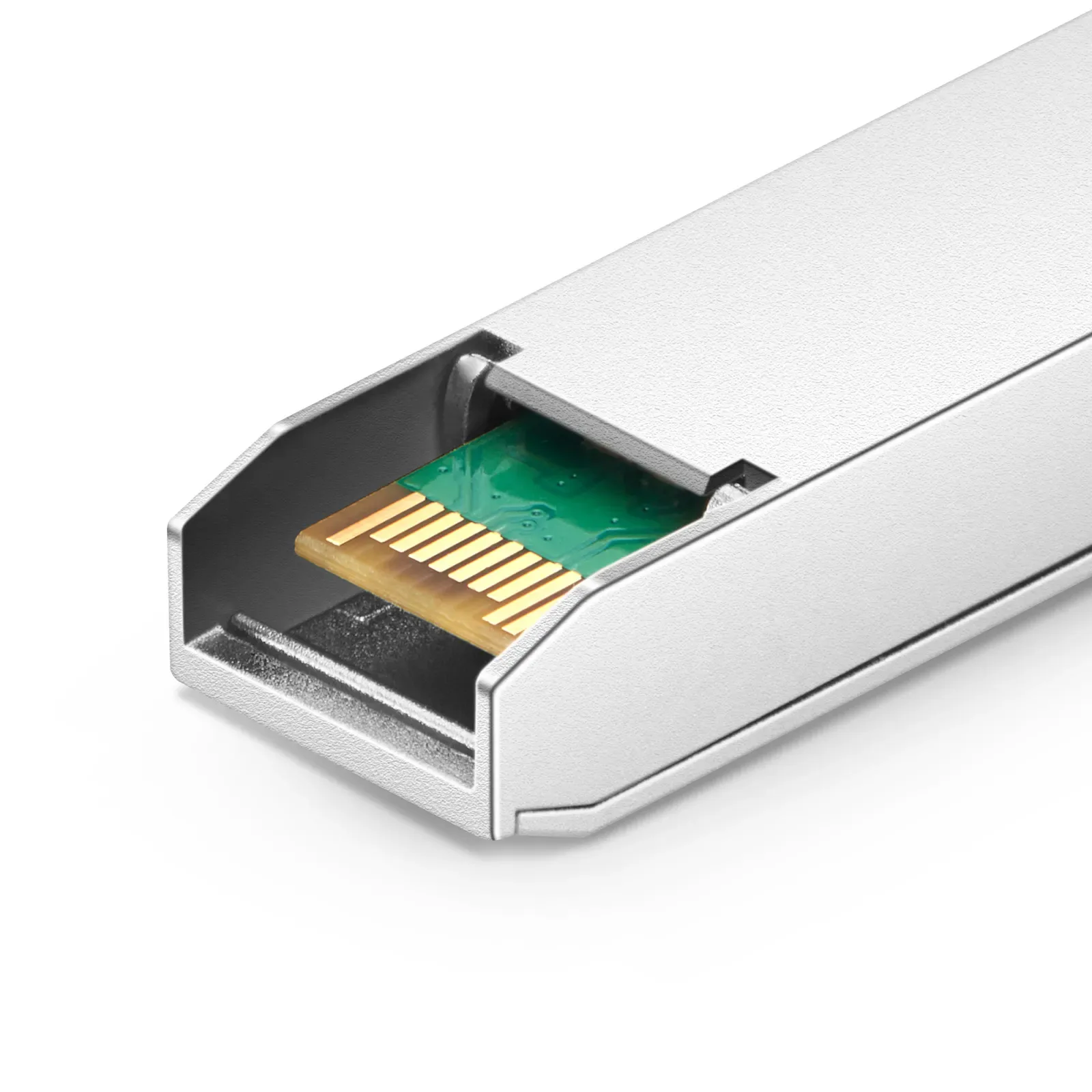

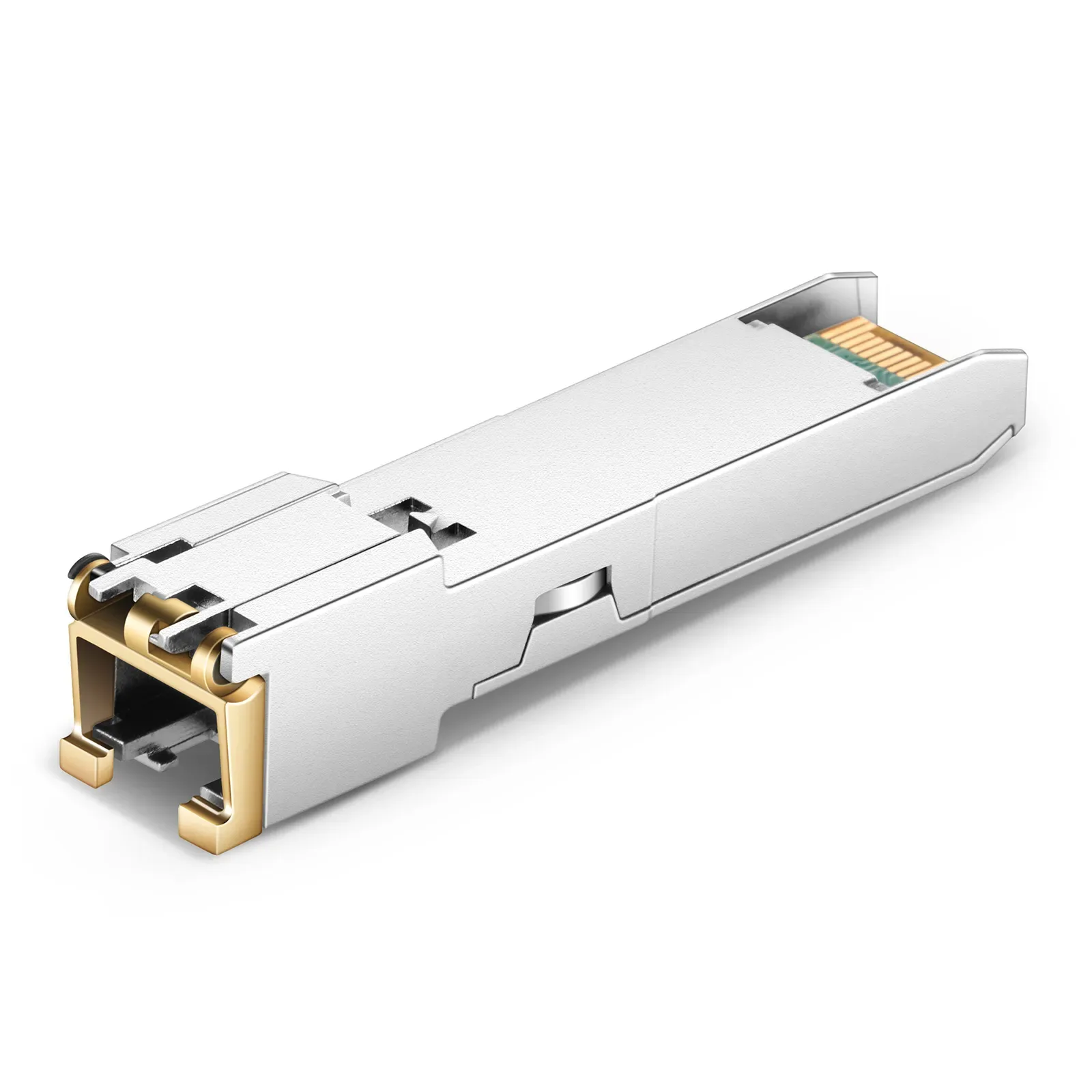

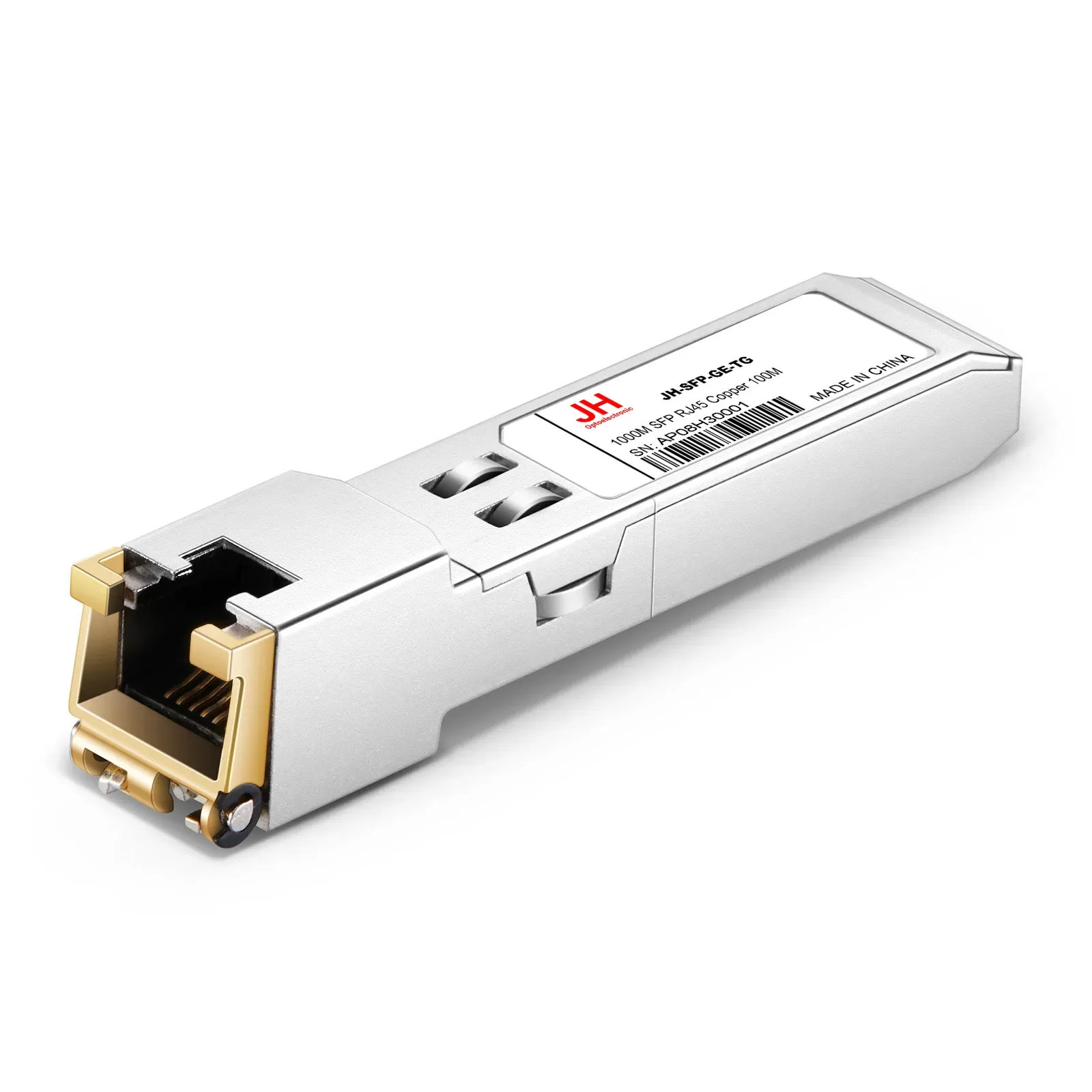

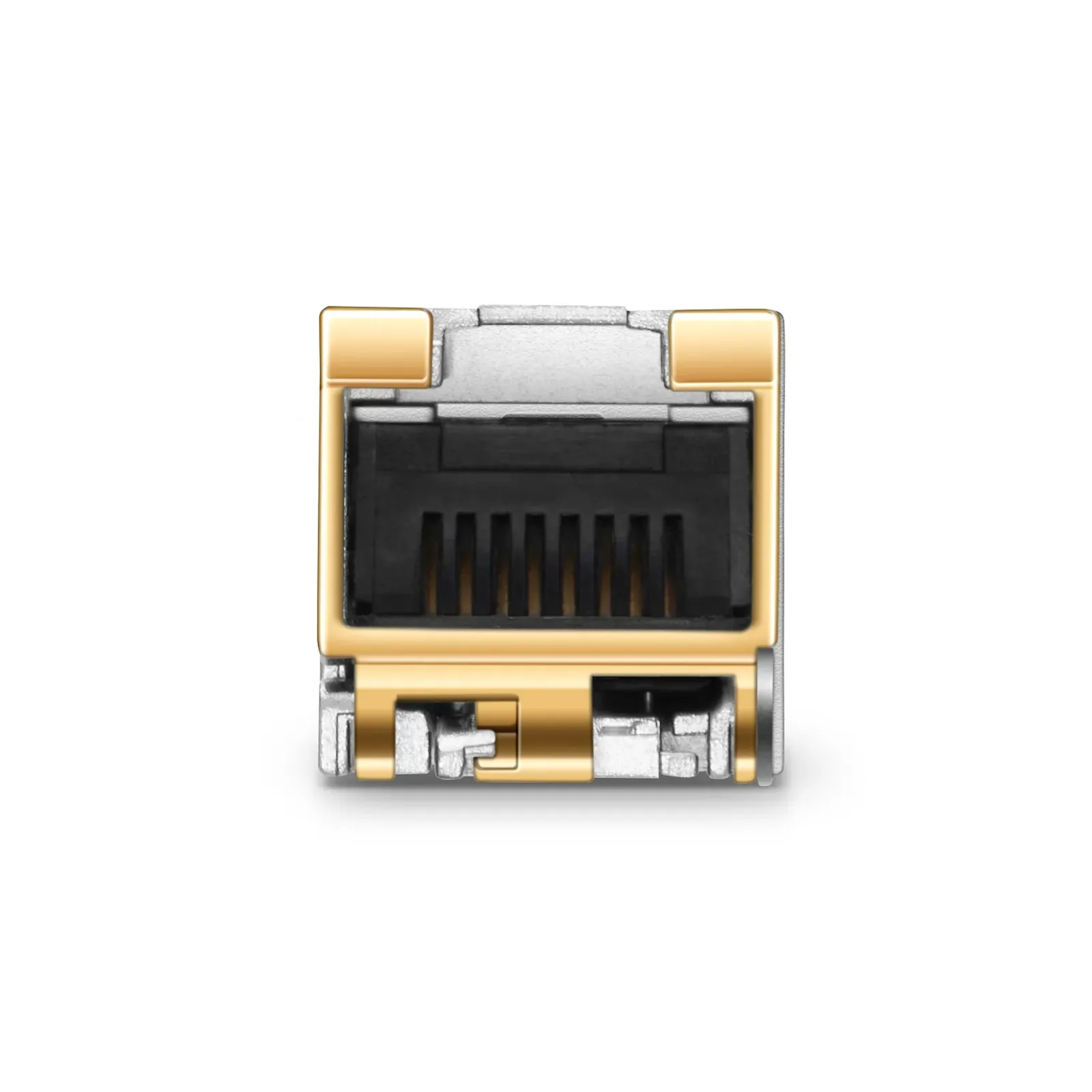

JH-SFP-GE-TG

型号：1000M SFP RJ45 Copper 100M

JH-SFP-GE-TG supports up to 100m link lengths over a copper connection via a RJ-45 connector. Each SFP transceiver module is individually tested to be used on a series of switches, routers, servers, network interface card (NICs) etc.This transceiver is compliant with IEEE STD 802.3, 802.3ab, and SFP MSA. Featuring low power consumption, the hot swappable 1G SFP transceiver is ideal for enterprise networking for LAN applications and different other networking places using copper connections.

联系我们

产品特性

Hot-pluggable SFP form factor
Supports 1000Mbps rate, compliant with IEEE 802.3ab Gigabit Ethernet standard
Maximum power consumption < 1.2W
Commercial operating temperature range: 0~70/-40~85
Single +3.3V power supply
Supports link training, ESD protection, low power consumption design, hot-swappable
Compliant with relevant safety standards, ESD protection
Compliant with RoHS 2.0 environmental protection standard, lead-free design
Enterprise LAN, 1000BASE-T

规格参数

Data Rate	1.25G
Distance	1000M
Wavelength	Copper
Form Factor	SFP
Connector	RJ45
Case Temperature	0~70/-40~85
Voltage Supply	3.3V
Transmitter	/
Receiver	/
TX Power	/
Receiver Sensitivity	/
Power consumption（Max）	1.5W

规格书

规格书下载

Datasheet
