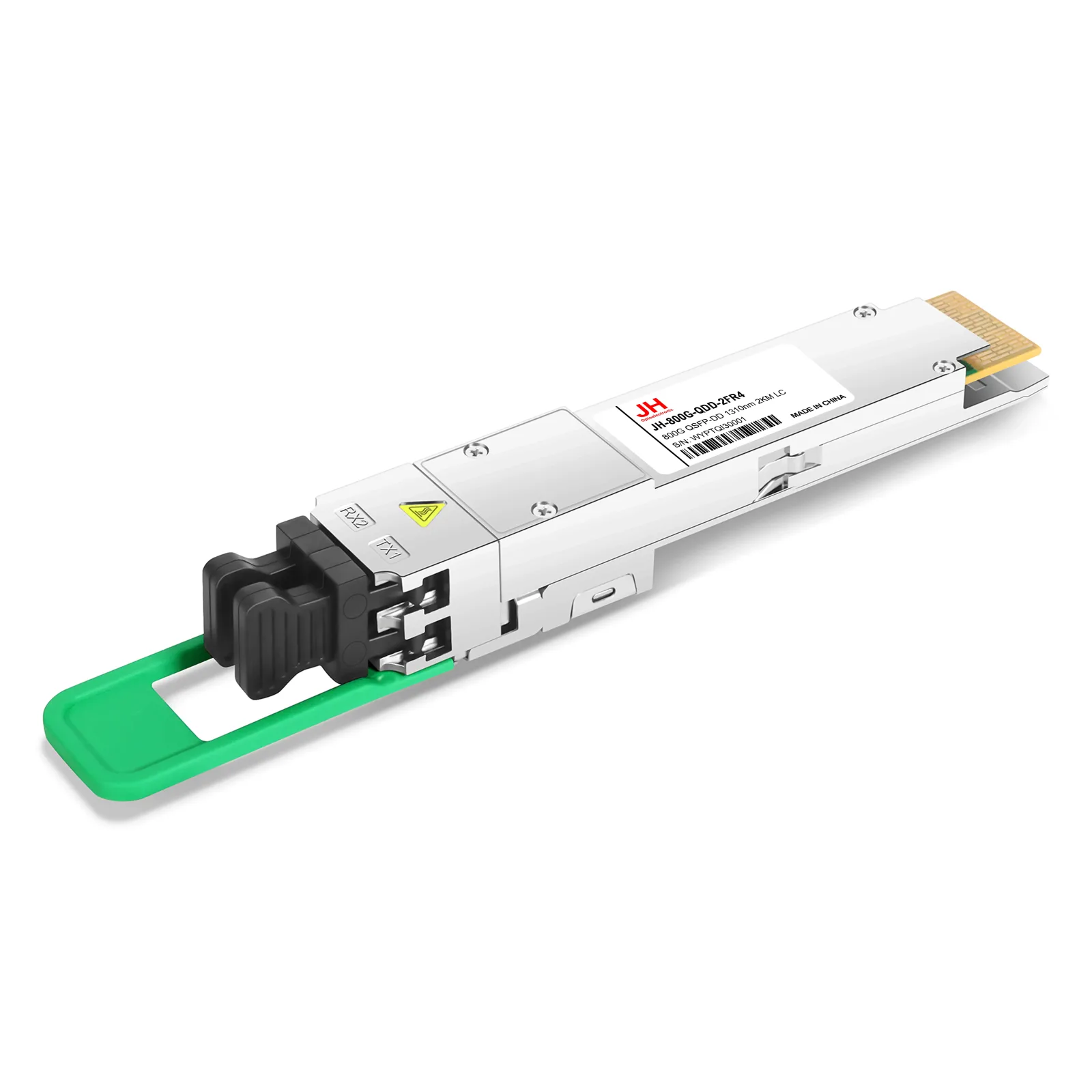

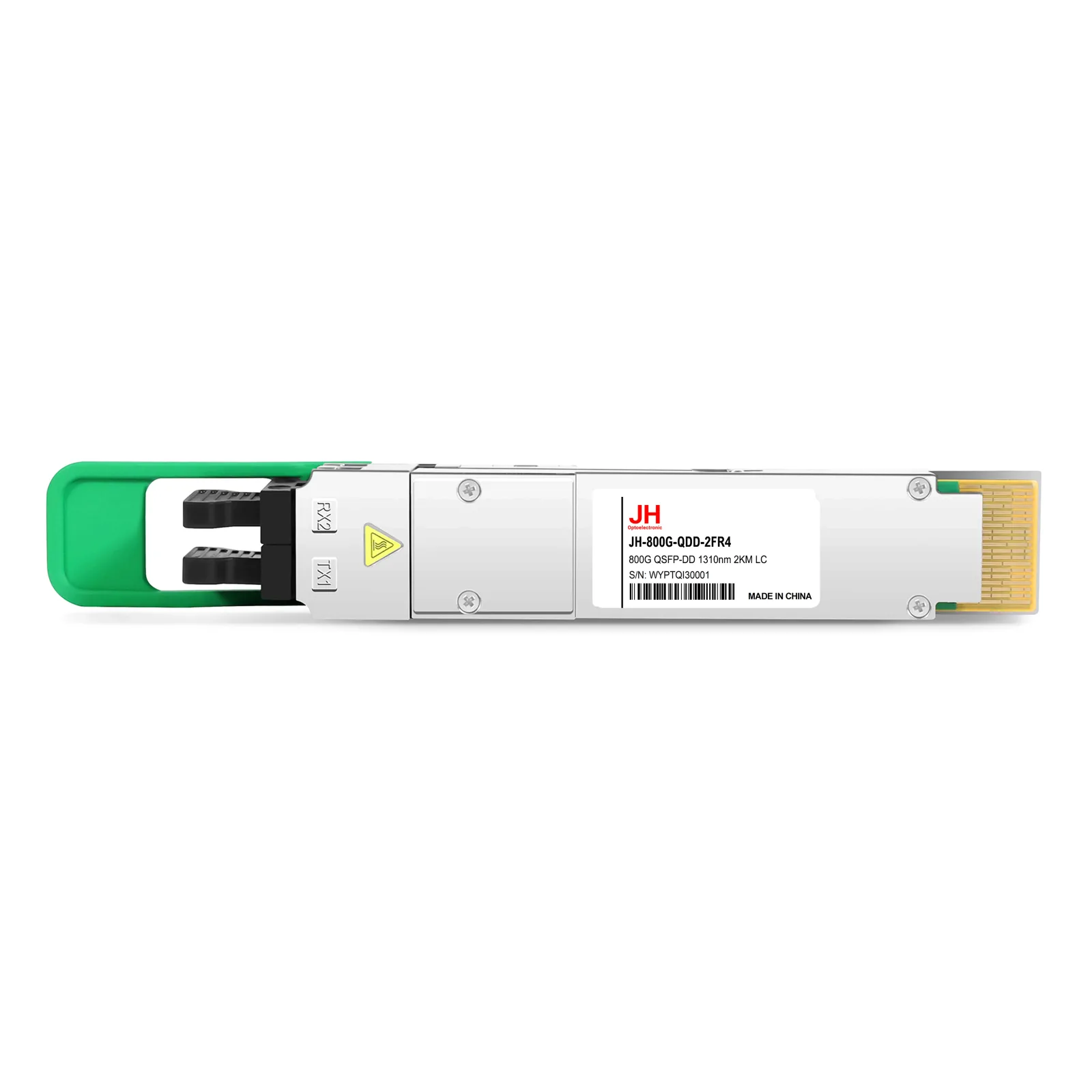

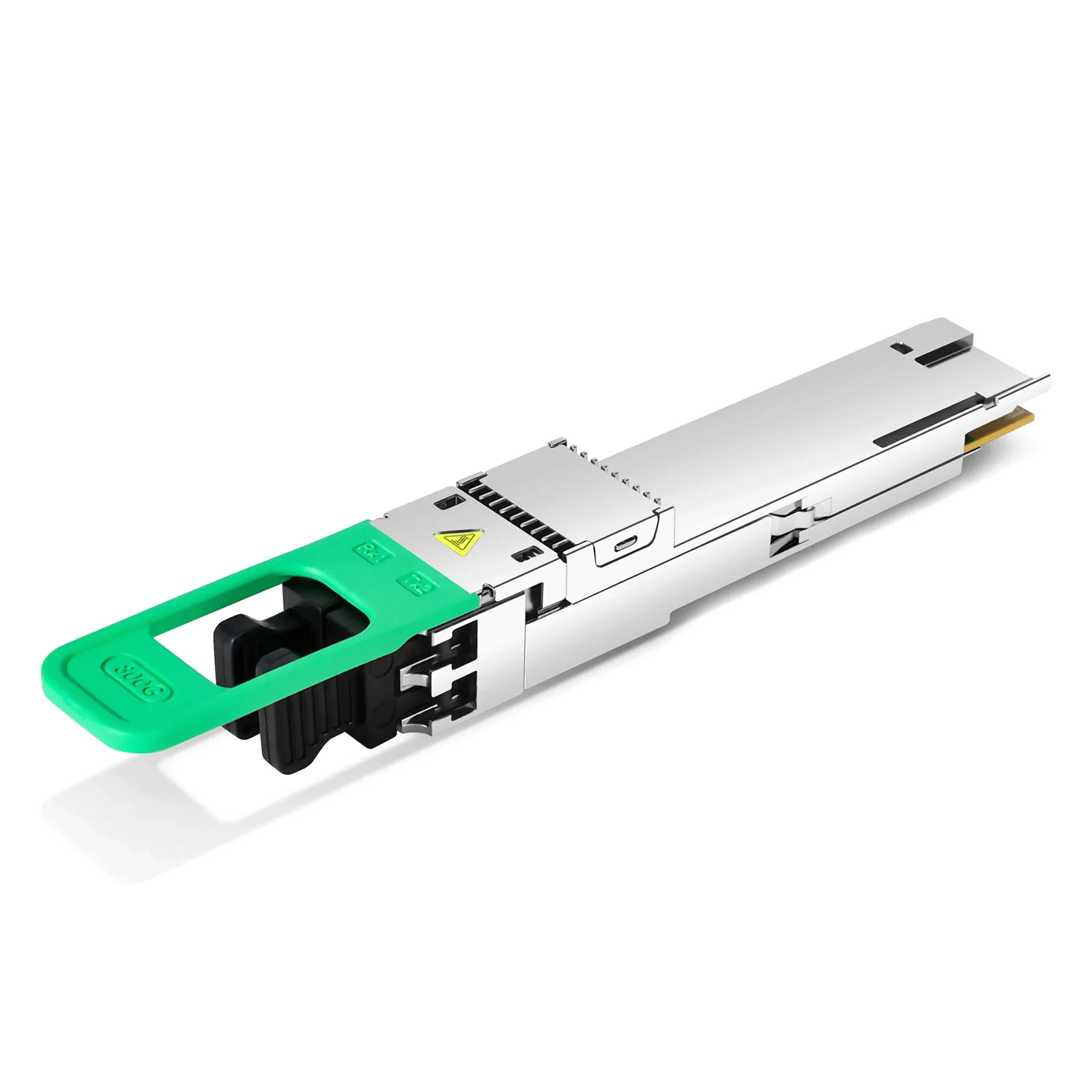

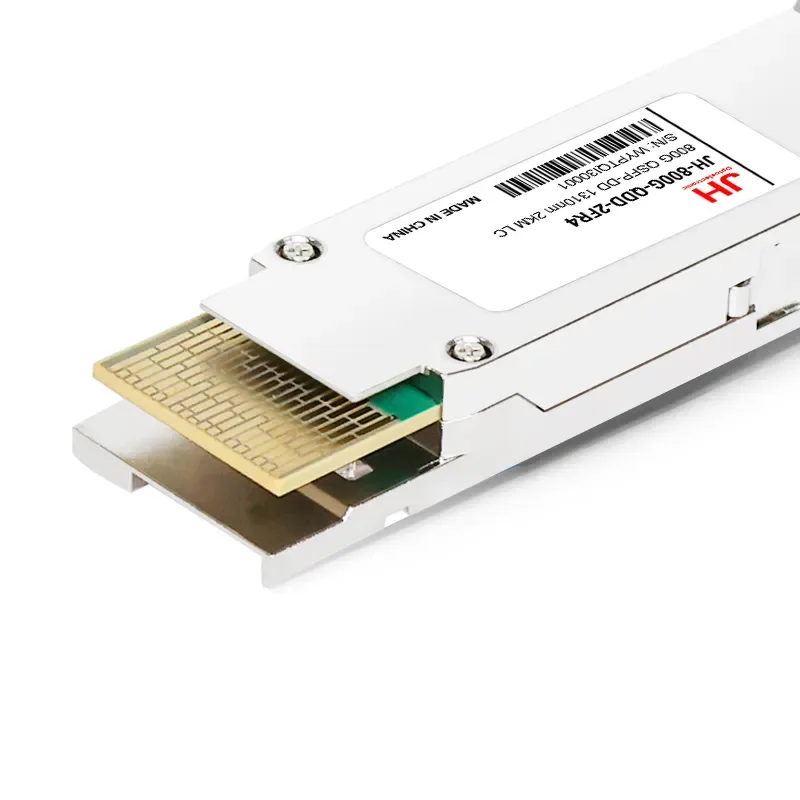

JH-800G-QDD-2FR4

型号：800G QSFP-DD 1310nm 2KM LC

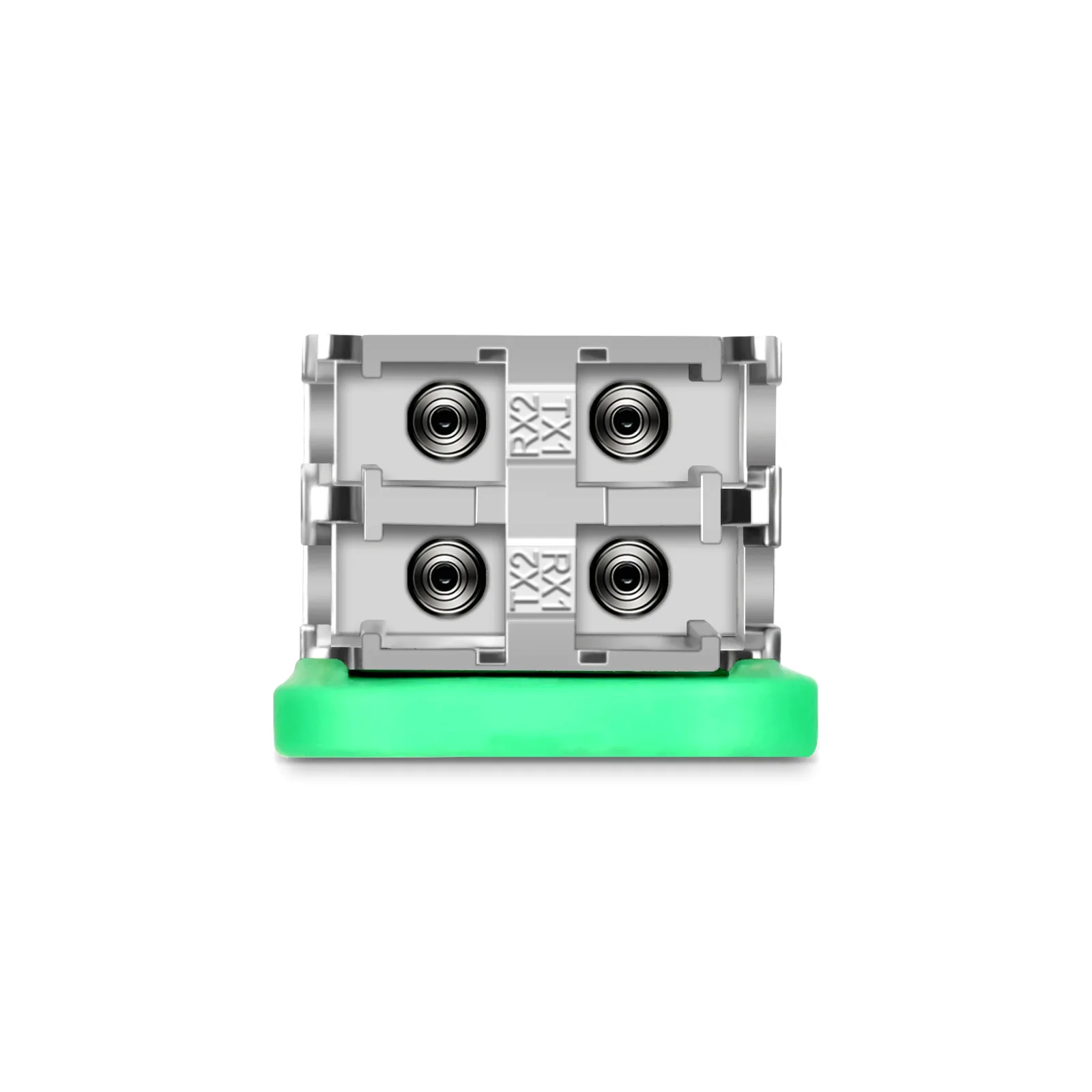

JH-800G-QDD-2FR4 module is designed for 800GBASE Ethernet throughput up to 2km link lengths over OS2 single-mode fiber (SMF) via dual duplex LC/UPC connectors. This transceiver is compliant with IEEE P802.3ck, IEEE 802.3cu, QSFP-DD MSA standards. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters.

联系我们

产品特性

Hot-pluggable QSFP-DD form factor
Supports 800Gbps data rate (8x100G PAM4), compliant with IEEE 802.3df standard
Maximum power consumption < 16.5W
Commercial operating temperature range: 0~70
Single +3.3V power supply
Supports CMIS 5.0 digital diagnostic monitoring, 100G/lane PAM4, low power design, hot-swappable
Class 1 laser safety certified, compliant with EN 60825-1 standard
Compliant with RoHS 2.0 environmental protection standard, lead-free design
Cloud DCI, Inter-Pod Connectivity

规格参数

Data Rate	800G
Distance	2KM
Wavelength	1310nm
Form Factor	QSFP-DD
Connector	LC
Case Temperature	0~70
Voltage Supply	3.3V
Transmitter	EML
Receiver	PIN
TX Power	-3.2~4.4
Receiver Sensitivity	-7.2
Power consumption（Max）	16.5W
