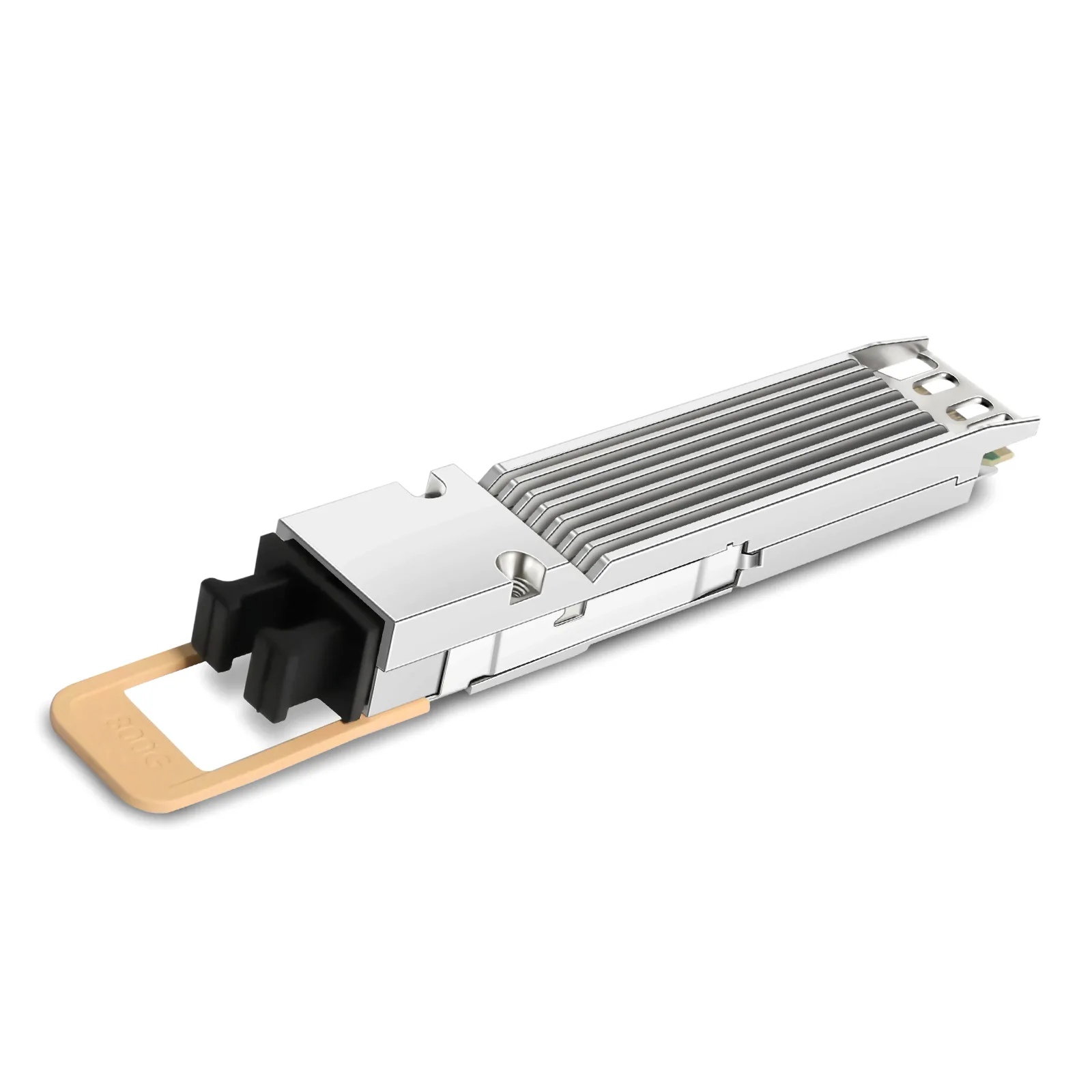

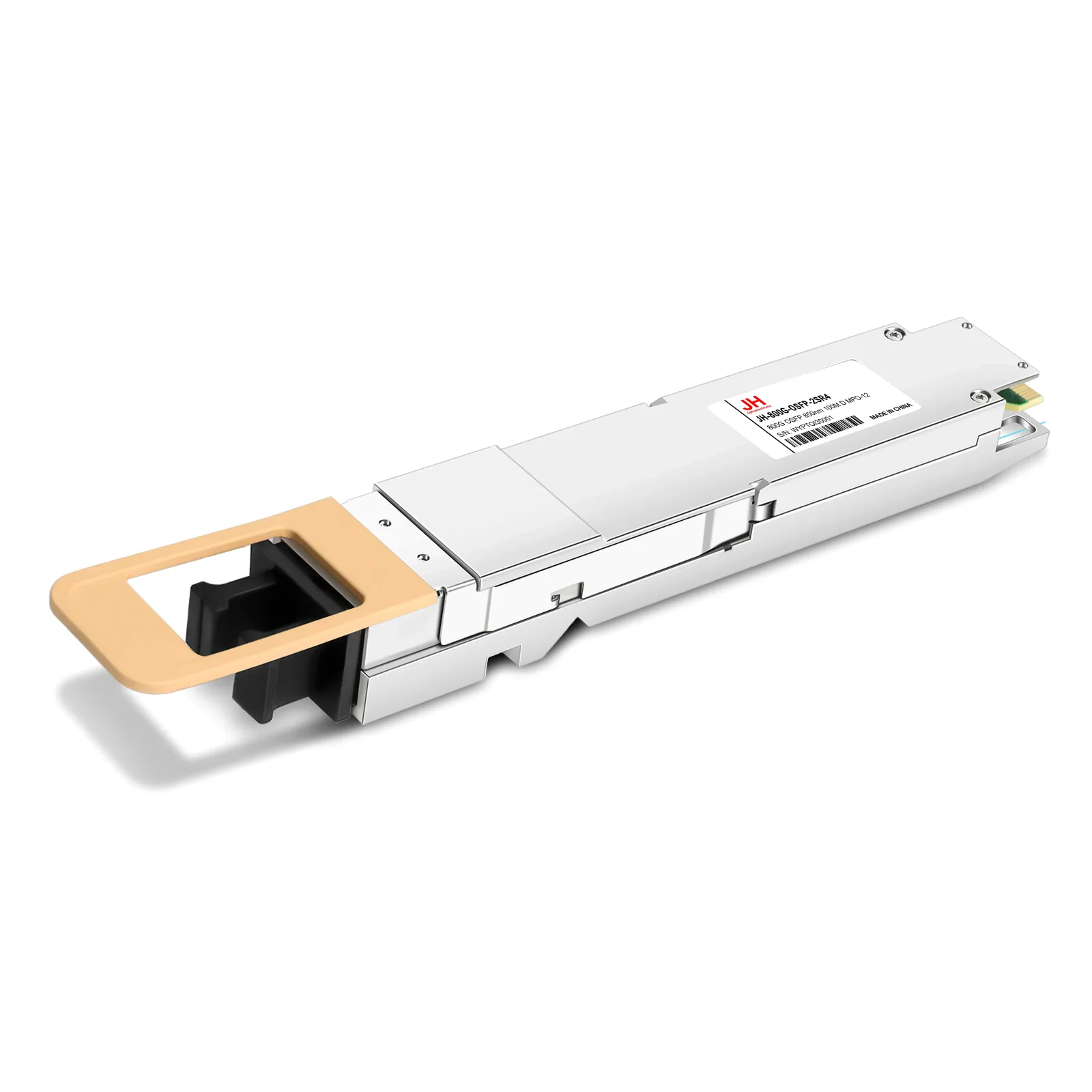

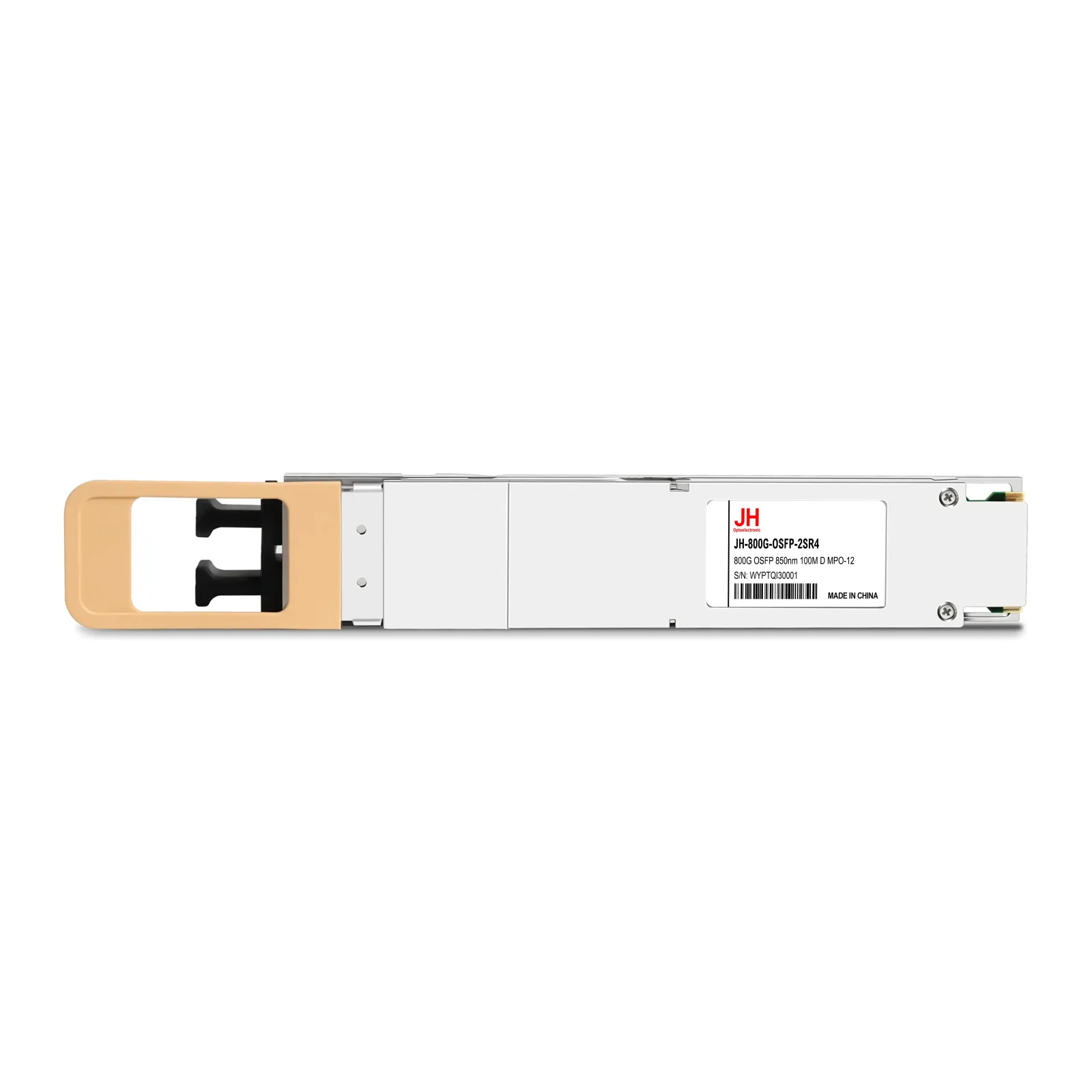

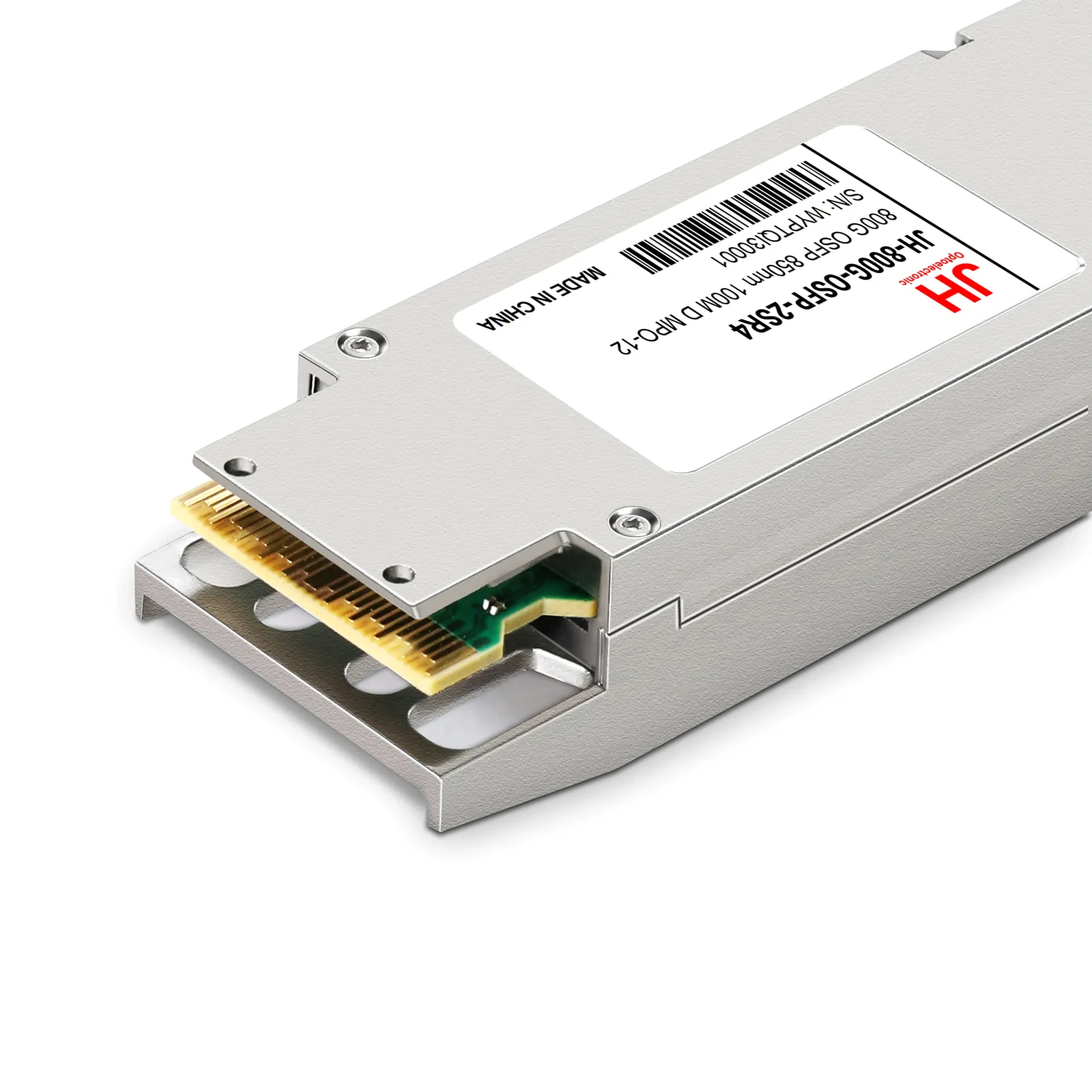

JH-800G-OSFP-2SR4

型号：800G OSFP 850nm 100M D MPO-12

JH-800G-OSFP-2SR4 module is designed for 800GBASE Ethernet throughput up to 100m link lengths over OM4 multimode fiber (MMF) using a wavelength of 850nm via dual MTP/MPO-12 APC connectors. This transceiver is compliant with IEEE 802.3ck, OSFP MSA standards. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters.

联系我们

产品特性

Hot-pluggable OSFP form factor
Supports 800Gbps data rate (8x100G PAM4), compliant with IEEE 802.3df standard
Maximum power consumption < 16W
Commercial operating temperature range: 0~70
Single +3.3V power supply
Supports CMIS 5.0 digital diagnostic monitoring, 100G/lane PAM4, low power design, hot-swappable
Class 1 laser safety certified, compliant with EN 60825-1 standard
Compliant with RoHS 2.0 environmental protection standard, lead-free design
Hyperscale Data Center, Spine-Leaf Fabric

规格参数

Data Rate	800G
Distance	100M
Wavelength	850nm
Form Factor	OSFP

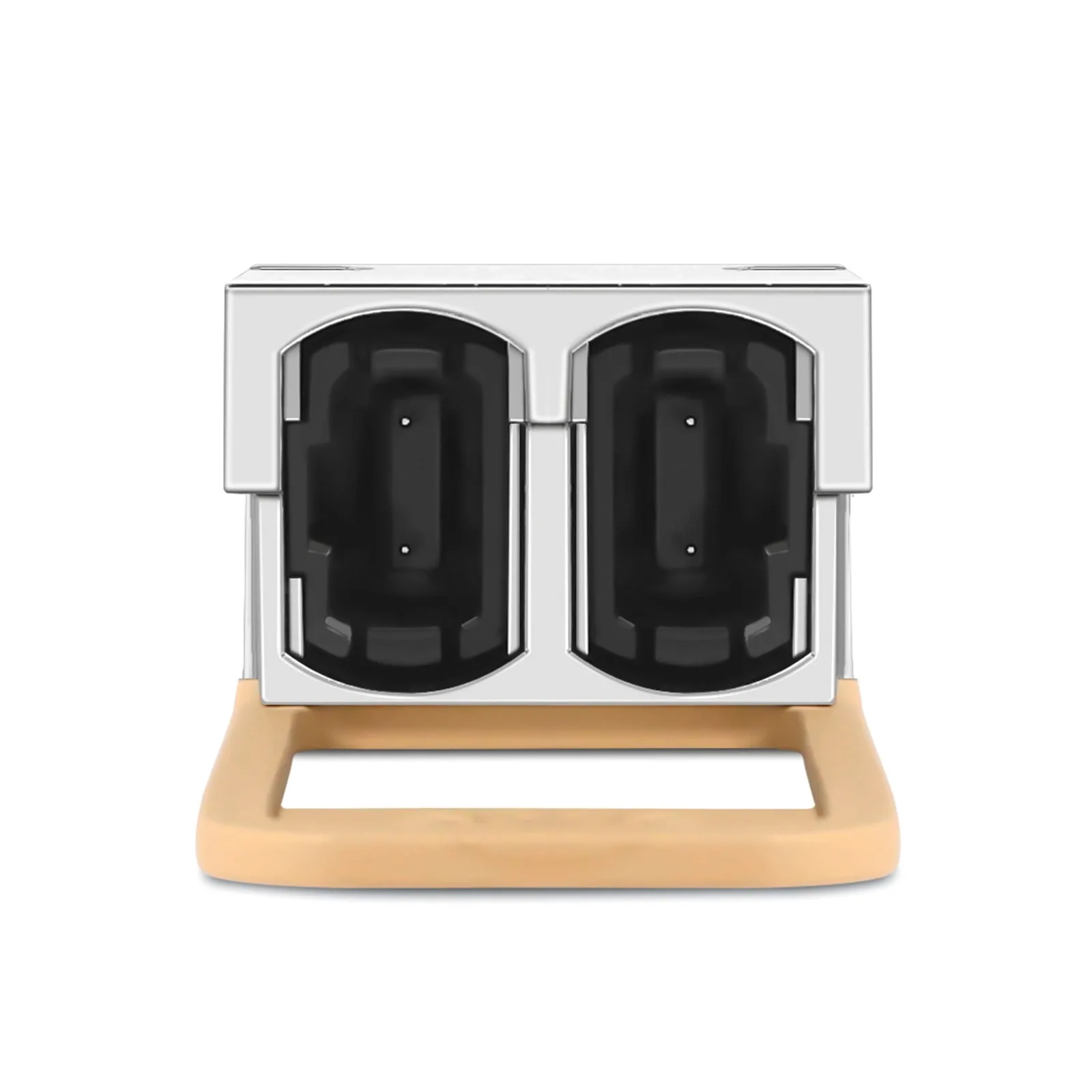

Connector	D MPO-12
Case Temperature	0~70
Voltage Supply	3.3V
Transmitter	VCSEL
Receiver	PIN
TX Power	-4.6~4
Receiver Sensitivity	-6.4
Power consumption（Max）	16W
