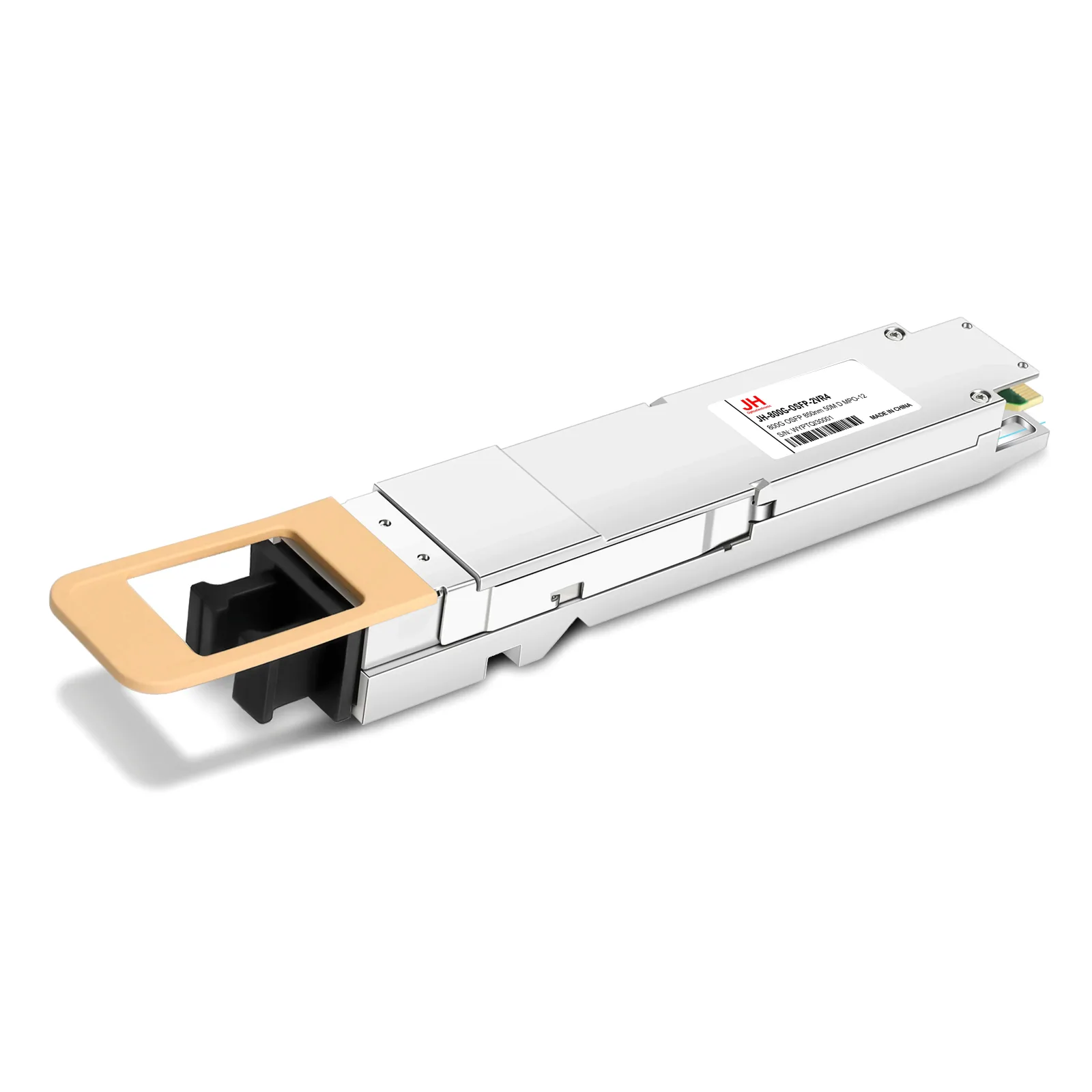

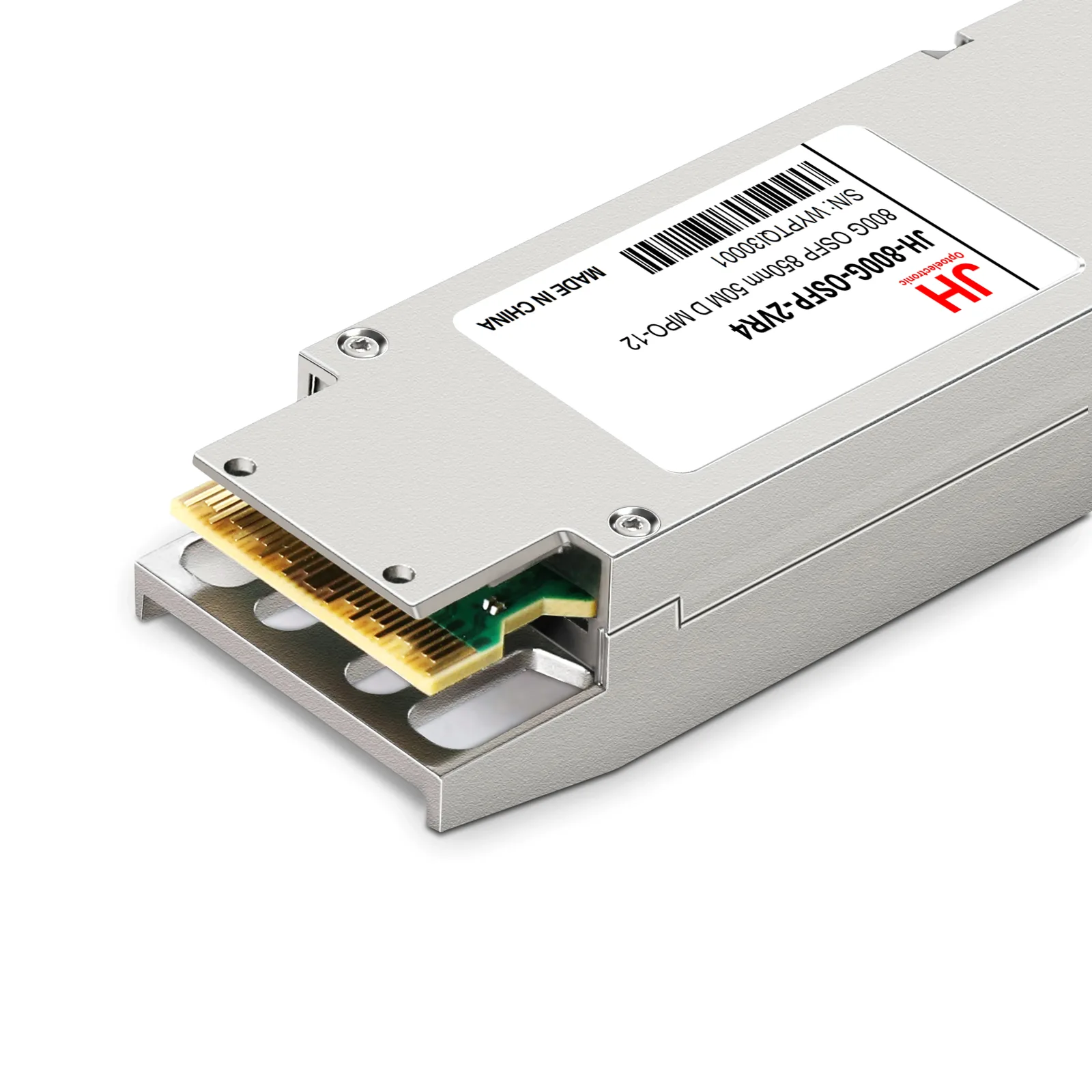

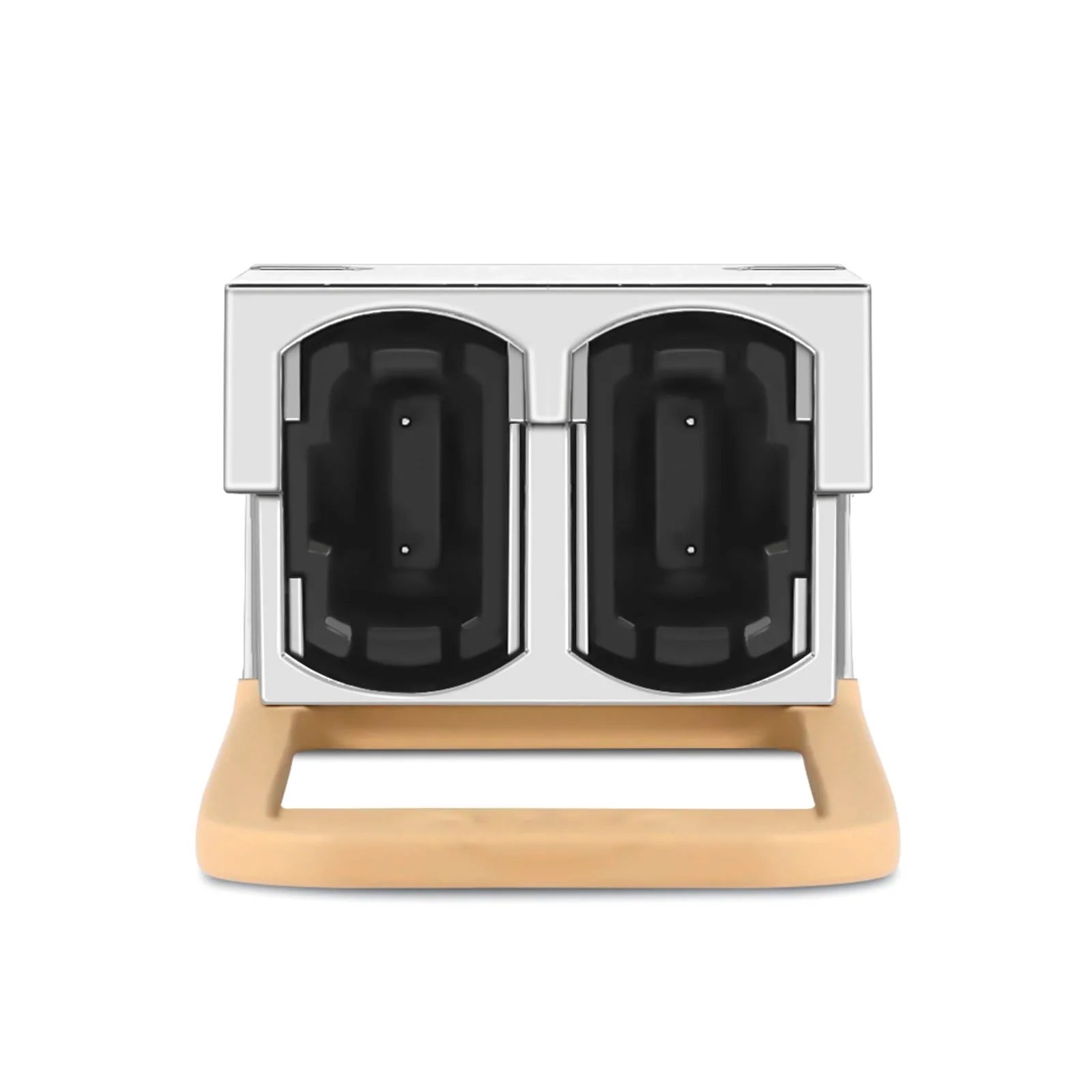

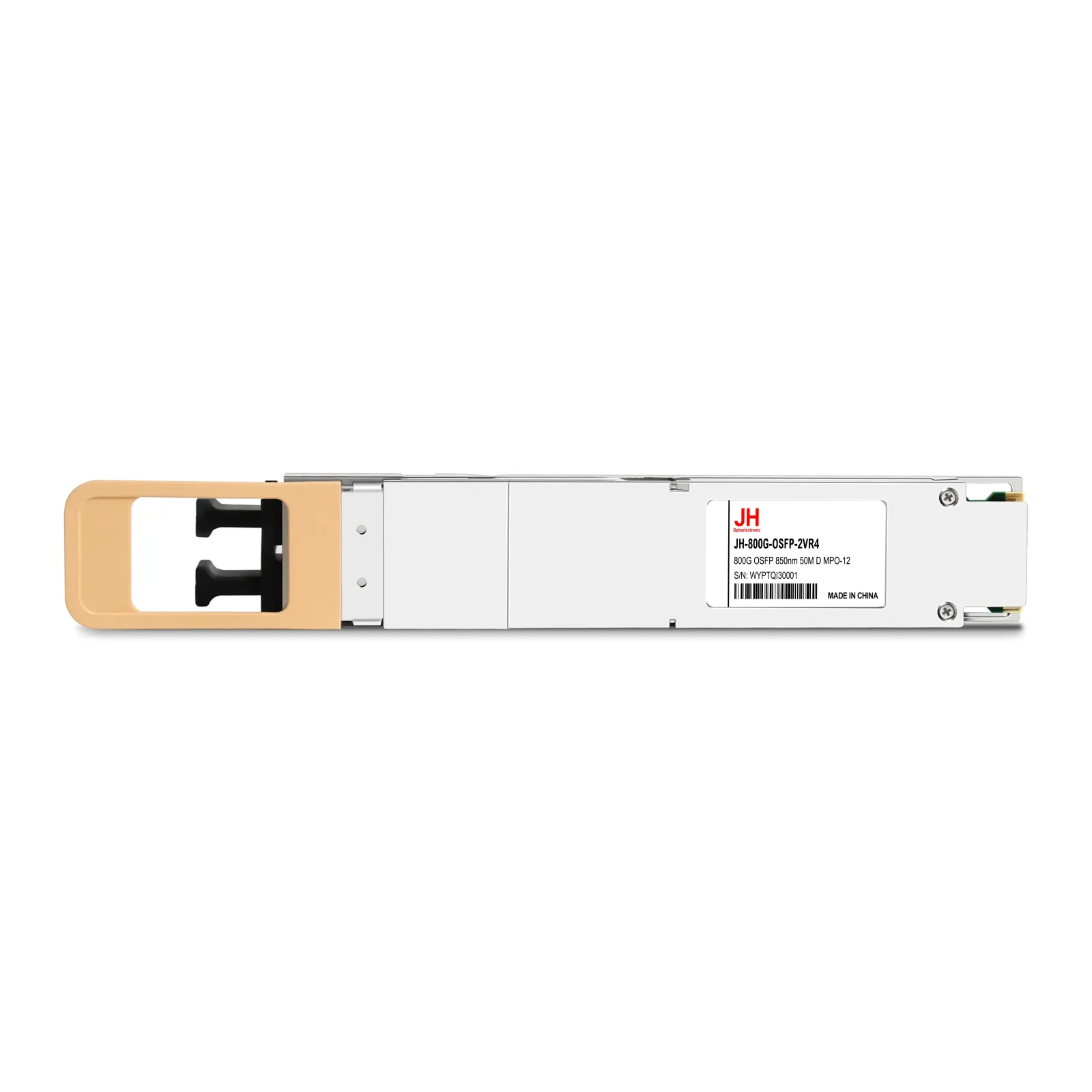

型号：800G OSFP 850nm 50M D MPO-12
JH-800G-OSFP-2VR4 module is designed for 800GBASE Ethernet throughput up to 50m link lengths over OM4 multimode fiber (MMF) using a wavelength of 850nm via dual MTP/MPO-12 APC connectors. This transceiver is compliant with IEEE 802.3ck, OSFP MSA standards. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters.
| Data Rate | 800G |
| Distance | 50M |
| Wavelength | 850nm |
| Form Factor | OSFP |
| Connector | D MPO-12 |
| Case Temperature | 0~70 |
| Voltage Supply | 3.3V |
| Transmitter | VCSEL |
| Receiver | PIN |
| TX Power | -4.6~4 |
| Receiver Sensitivity | -6.3 |
| Power consumption（Max） | 16W |
