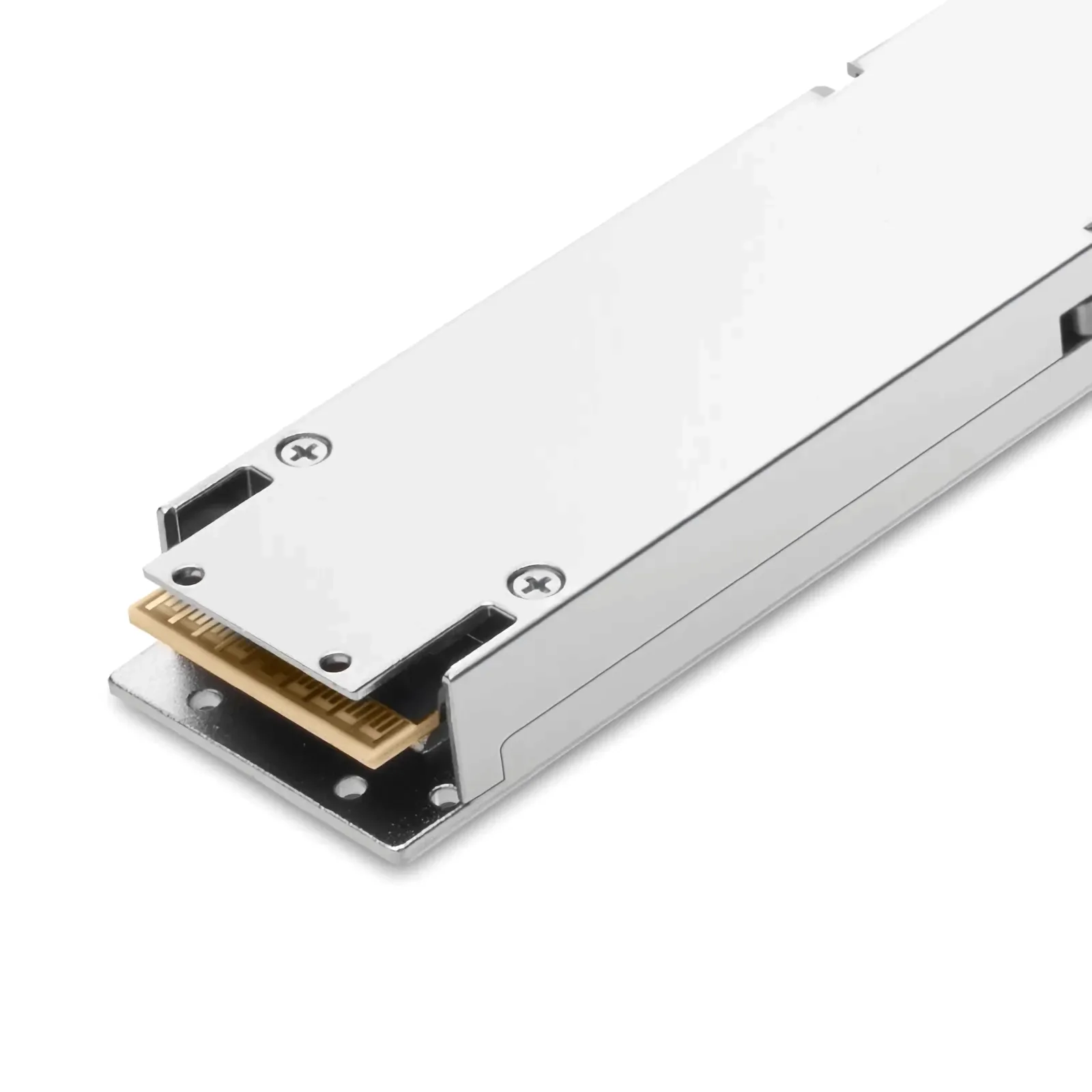

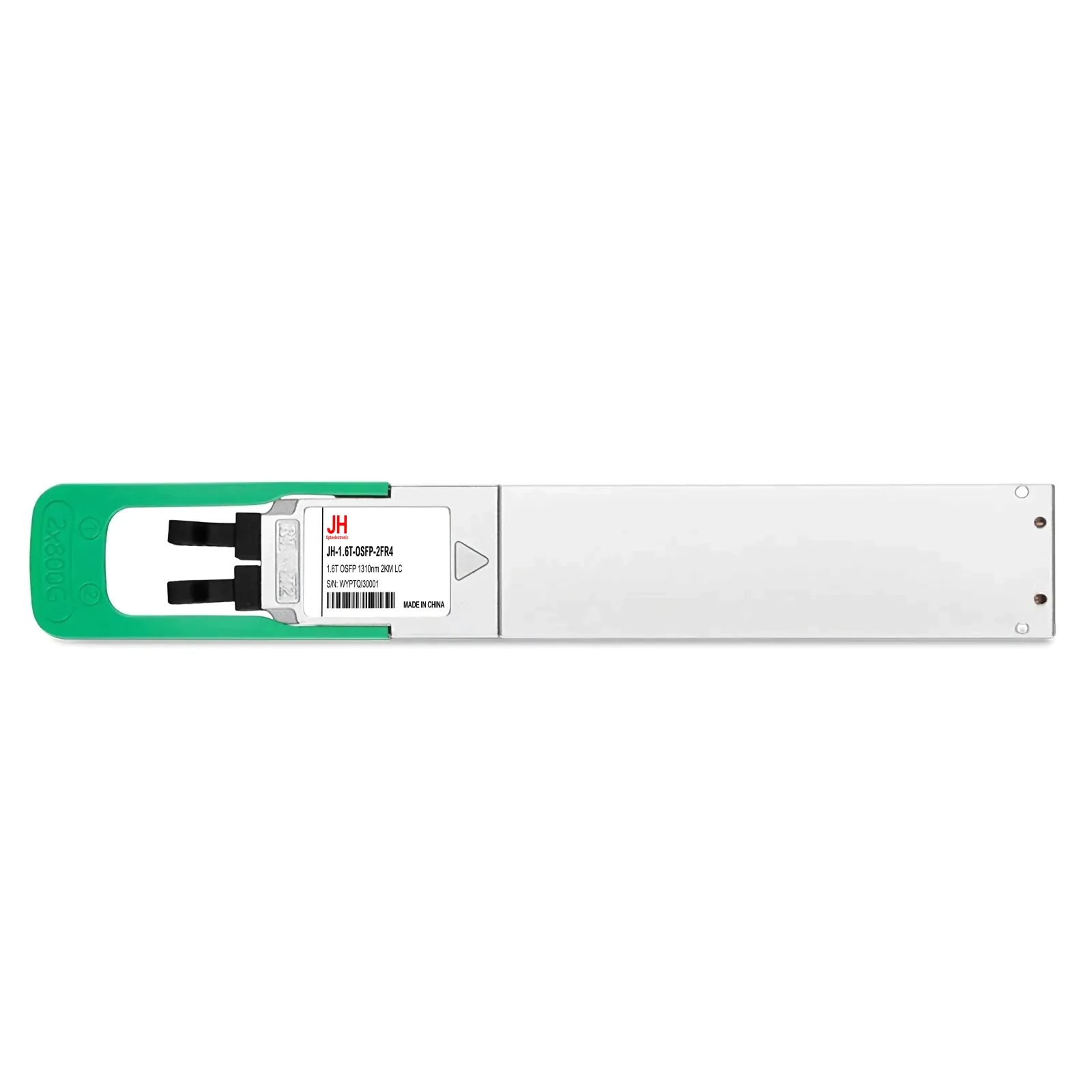

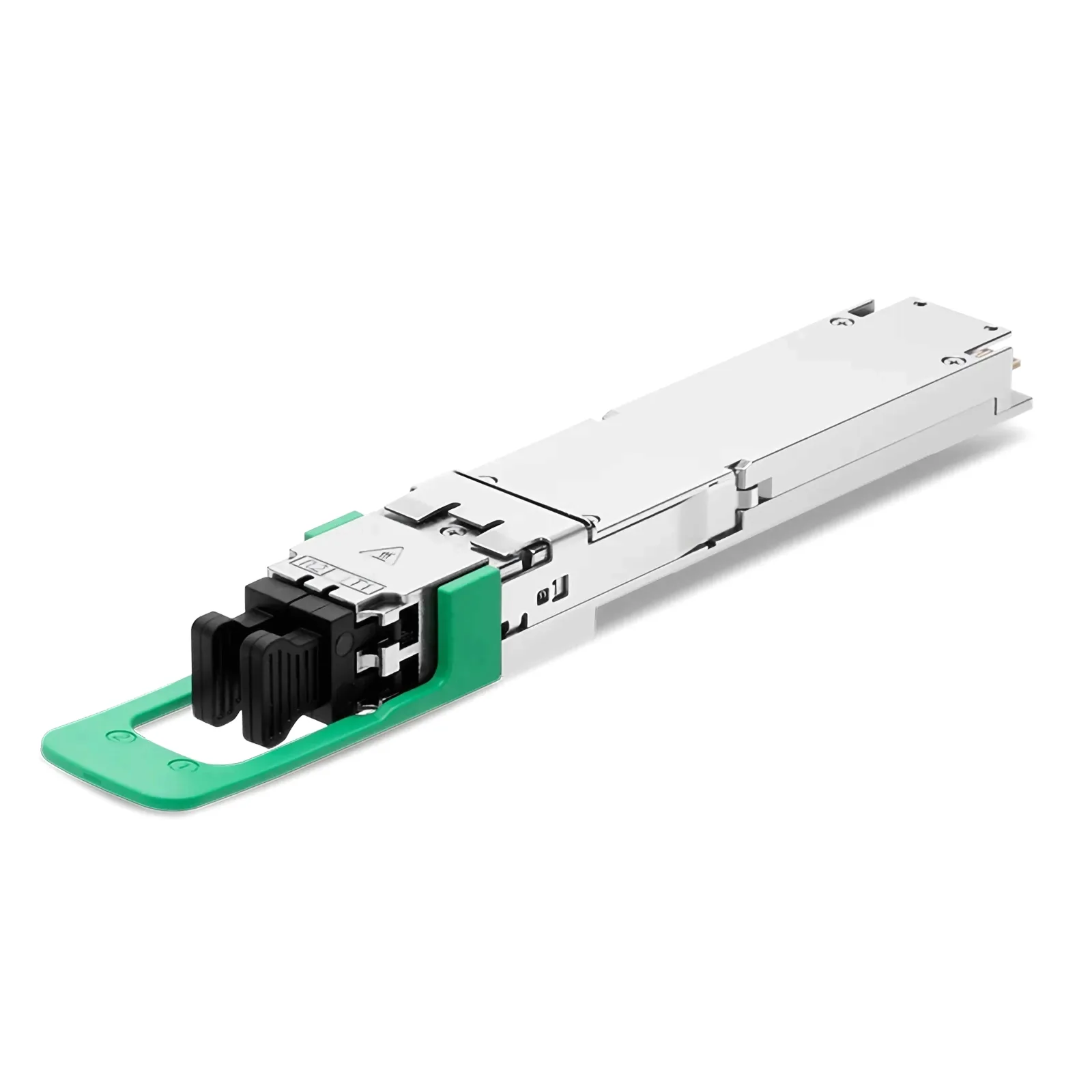

JH-1.6T-OSFP-2FR4

型号：1.6T OSFP 1310nm 2KM LC

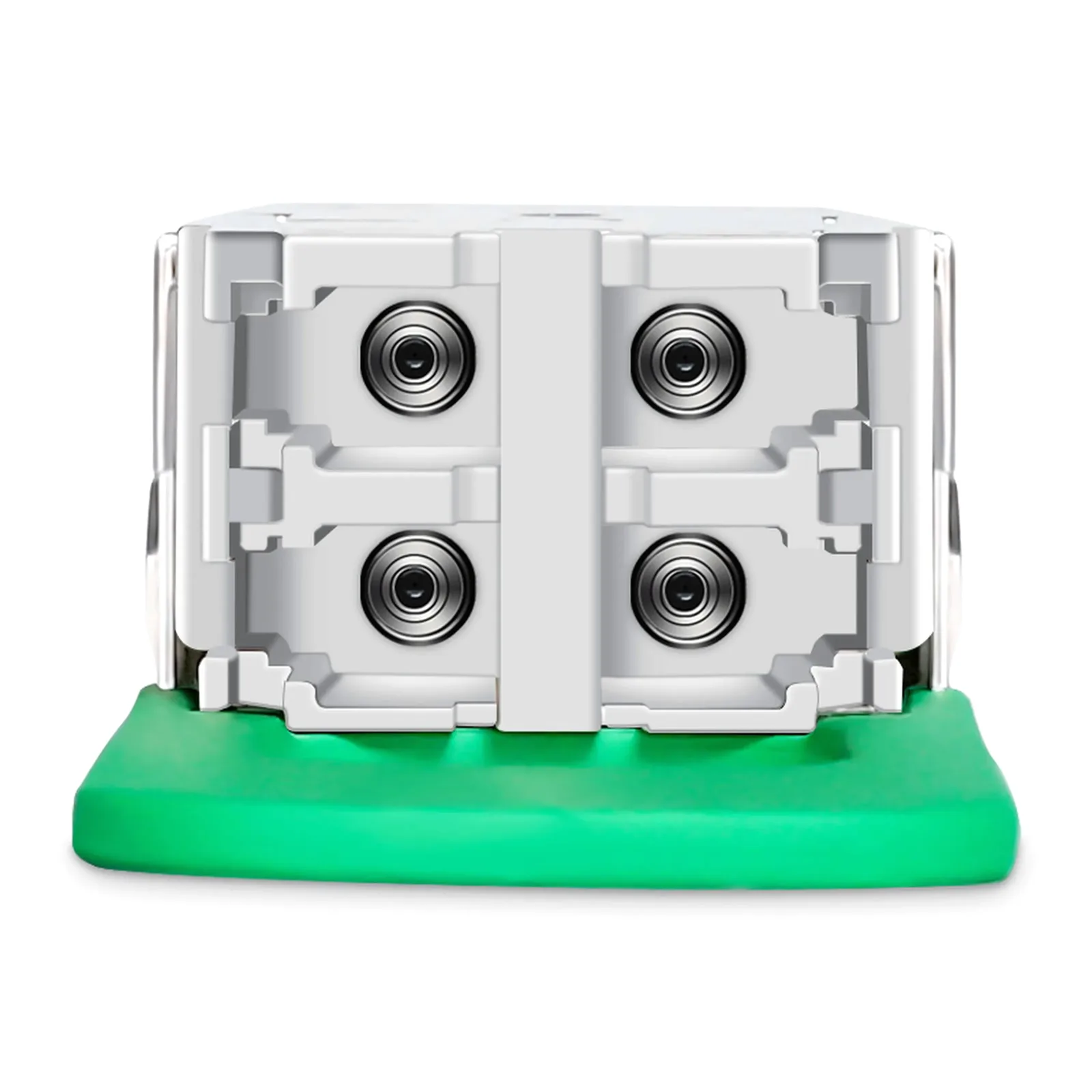

JH-1.6T-OSFP-2FR4 module is an 1.6T 2x 800Gb/s Twin-port OSFP, 2x FR4 single mode, Multiplexed, 8-channel transceiver using two, 2-fiber, LC Duplex optical connectors each carrying 4-channels of 200G-PAM4. The dual far reach 8-channel (2x FR4) design uses 200G-PAM4 electrical and optical modulation based on the CWDM4 serial, multiplexed 1310nm wavelength grid.

联系我们

产品特性

Hot-pluggable OSFP form factor
Supports 1.6Tbps (2x800G) data rate, 8x200G PAM4, compliant with IEEE 802.3dj standard
Maximum power consumption < 26W
Commercial operating temperature range: 0~70
Single +3.3V power supply
Supports CMIS 5.3 digital diagnostic monitoring, 200G/lane PAM4 modulation, low power design, hot-swappable
Compliant with relevant safety standards, ESD protection
Compliant with RoHS 2.0 environmental protection standard, lead-free design
Cloud DCI, Inter-Pod Connectivity

规格参数

Data Rate	1.6T
Distance	2KM
Wavelength	1310nm
Form Factor	OSFP
Connector	LC
Case Temperature	0~70
Voltage Supply	3.3V
Transmitter	SiPh
Receiver	PIN
TX Power	-2.2~5
Receiver Sensitivity	-6.2
Power consumption（Max）	26W
