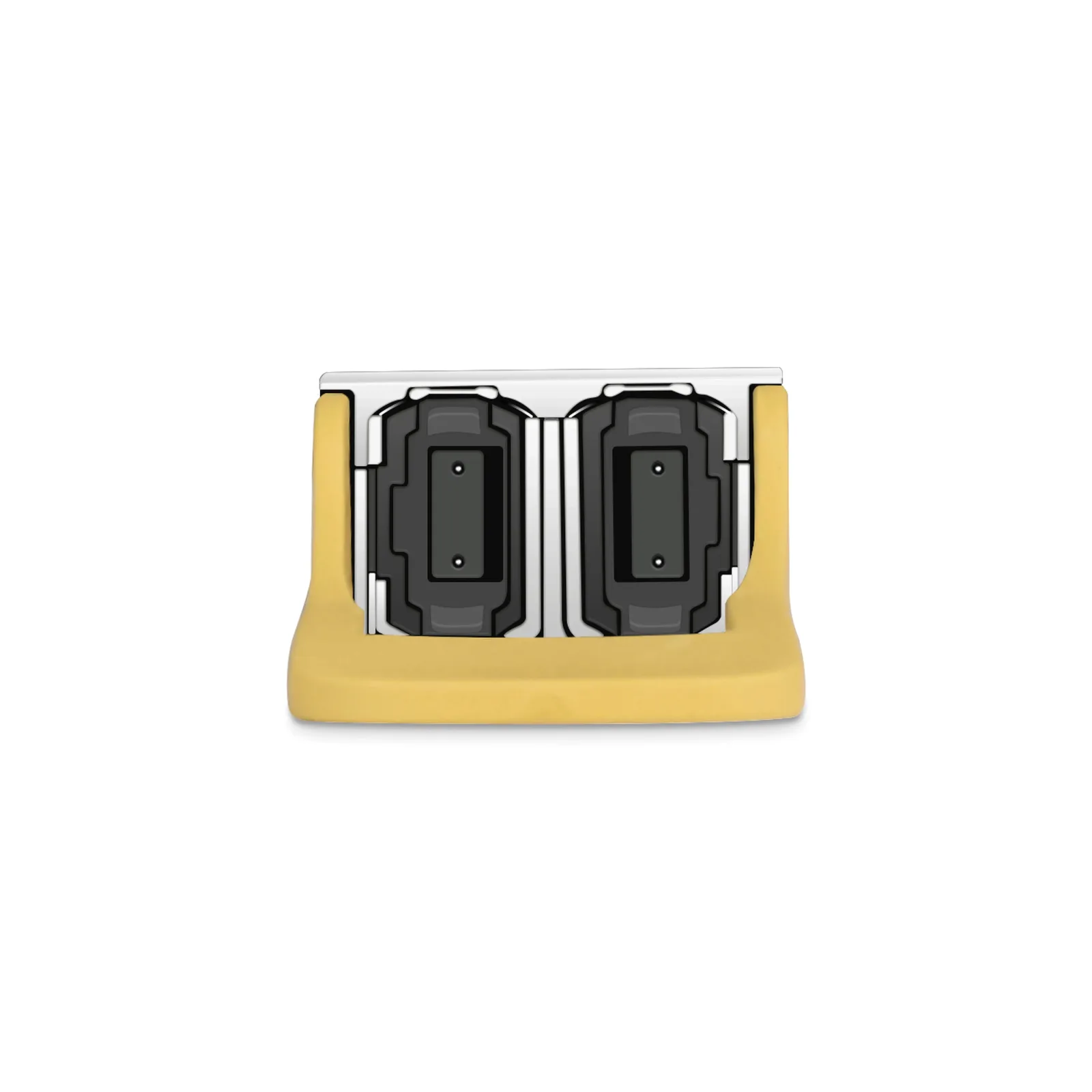

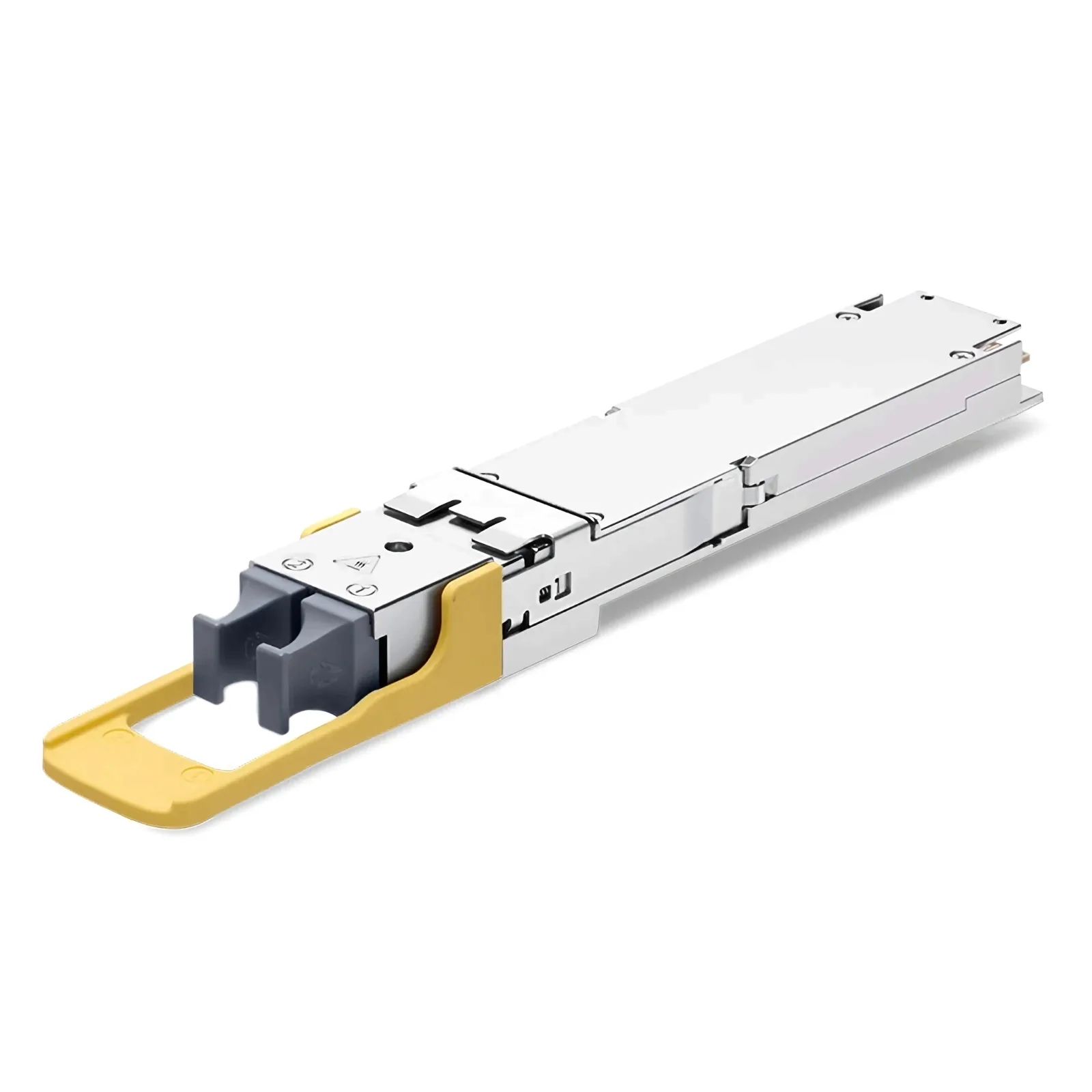

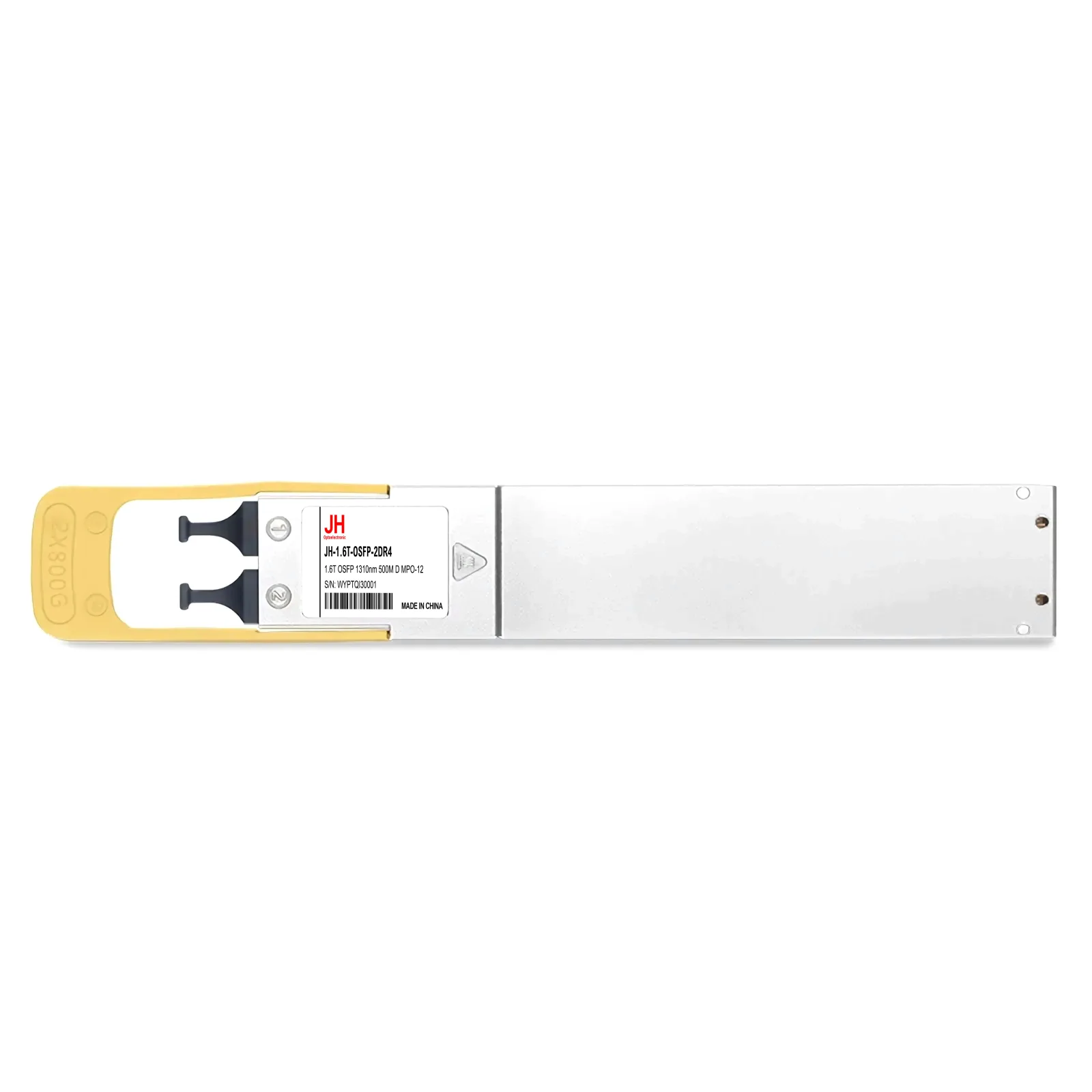

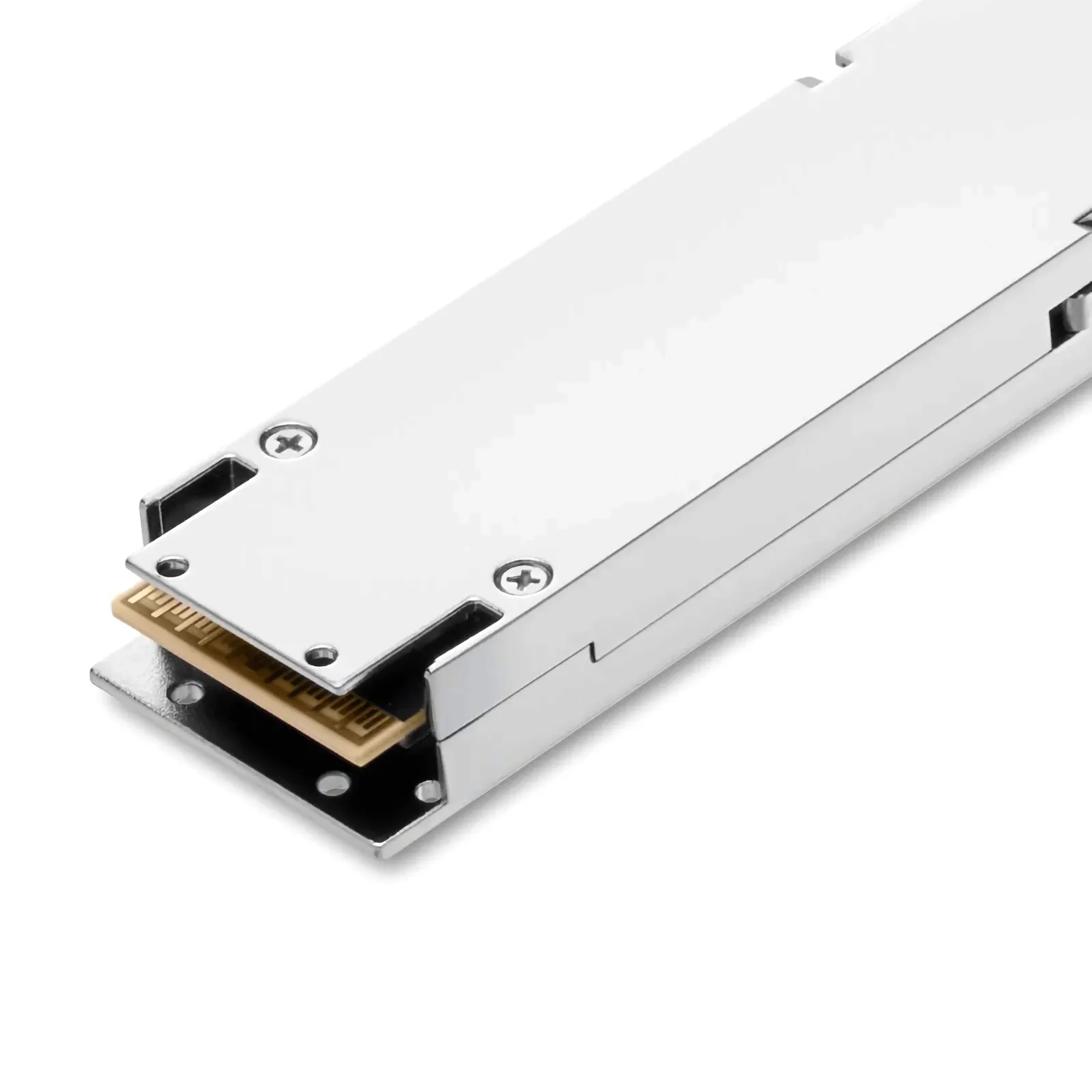

JH-1.6T-OSFP-2DR4

型号：1.6T OSFP 1310nm 500M D MPO-12

JH-1.6T-OSFP-2DR4 module is an 1.6T 2x 800Gb/s Twin-port OSFP, 2xDR4/DR8 single mode, parallel, 8-channel transceiver using two, 2-fiber, 4-channel MPO-12/APC optical connectors at 800Gb/s each. The parallel single mode, short reach 8-channel (2xDR4/DR8), uses 200G-PAM4 modulation and has a maximum fiber reach of 500-meters using 8 single mode fibers.

联系我们

产品特性

Hot-pluggable OSFP form factor
Supports 1.6Tbps (2x800G) data rate, 8x200G PAM4, compliant with IEEE 802.3dj standard
Maximum power consumption < 32W
Commercial operating temperature range: 0~70
Single +3.3V power supply
Supports CMIS 5.3 digital diagnostic monitoring, 200G/lane PAM4 modulation, low power design, hot-swappable
Compliant with relevant safety standards, ESD protection
Compliant with RoHS 2.0 environmental protection standard, lead-free design
Hyperscale DC, Intra-Data Center Fabric

规格参数

Data Rate	1.6T
Distance	500M
Wavelength	1310nm
Form Factor	OSFP
Connector	D MPO-12
Case Temperature	0~70
Voltage Supply	3.3V
Transmitter	CW (SiPh)
Receiver	PIN
TX Power	-3.3~4
Receiver Sensitivity	-6.3
Power consumption（Max）	32W
