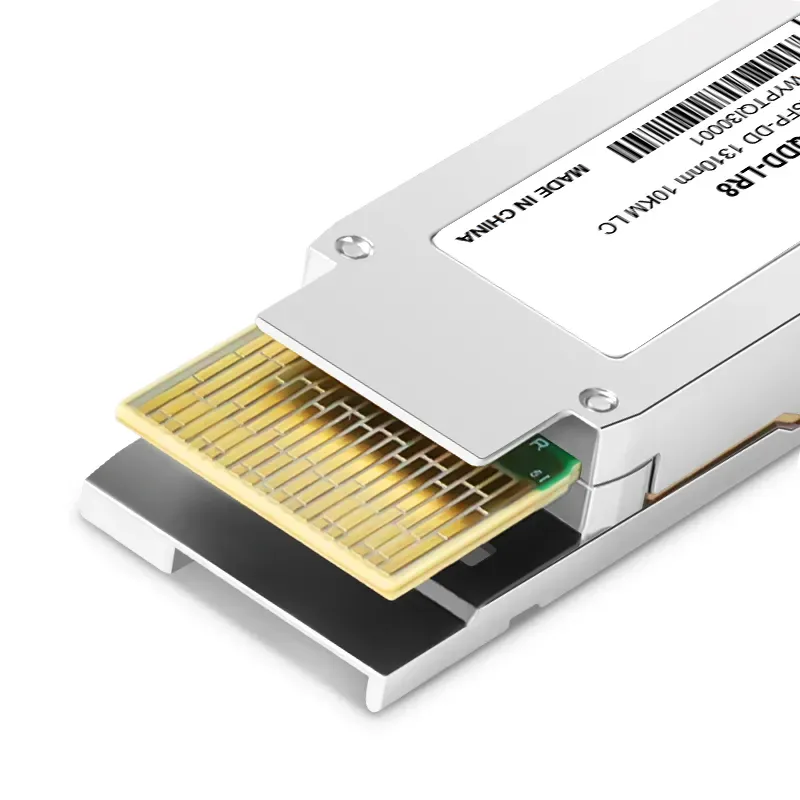

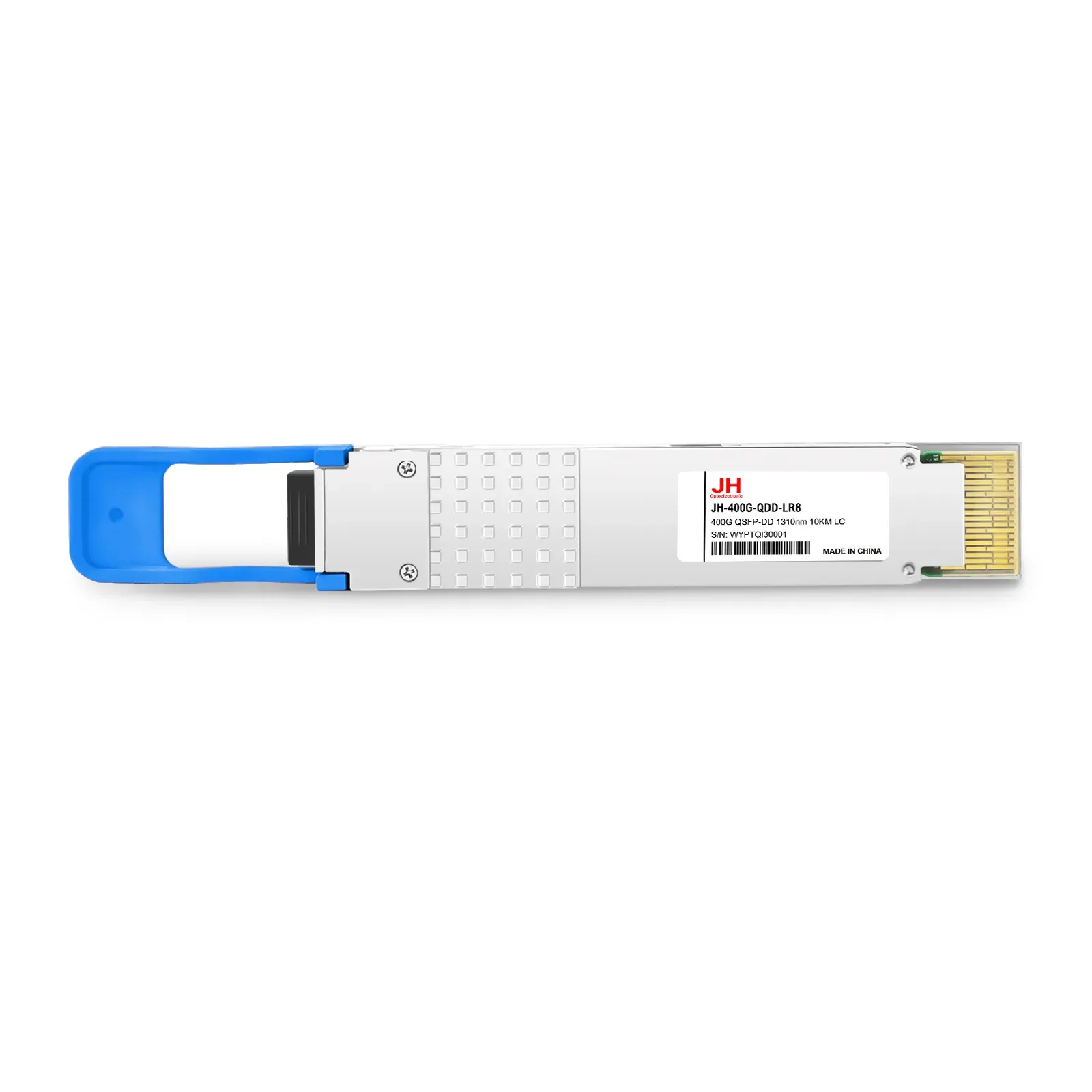

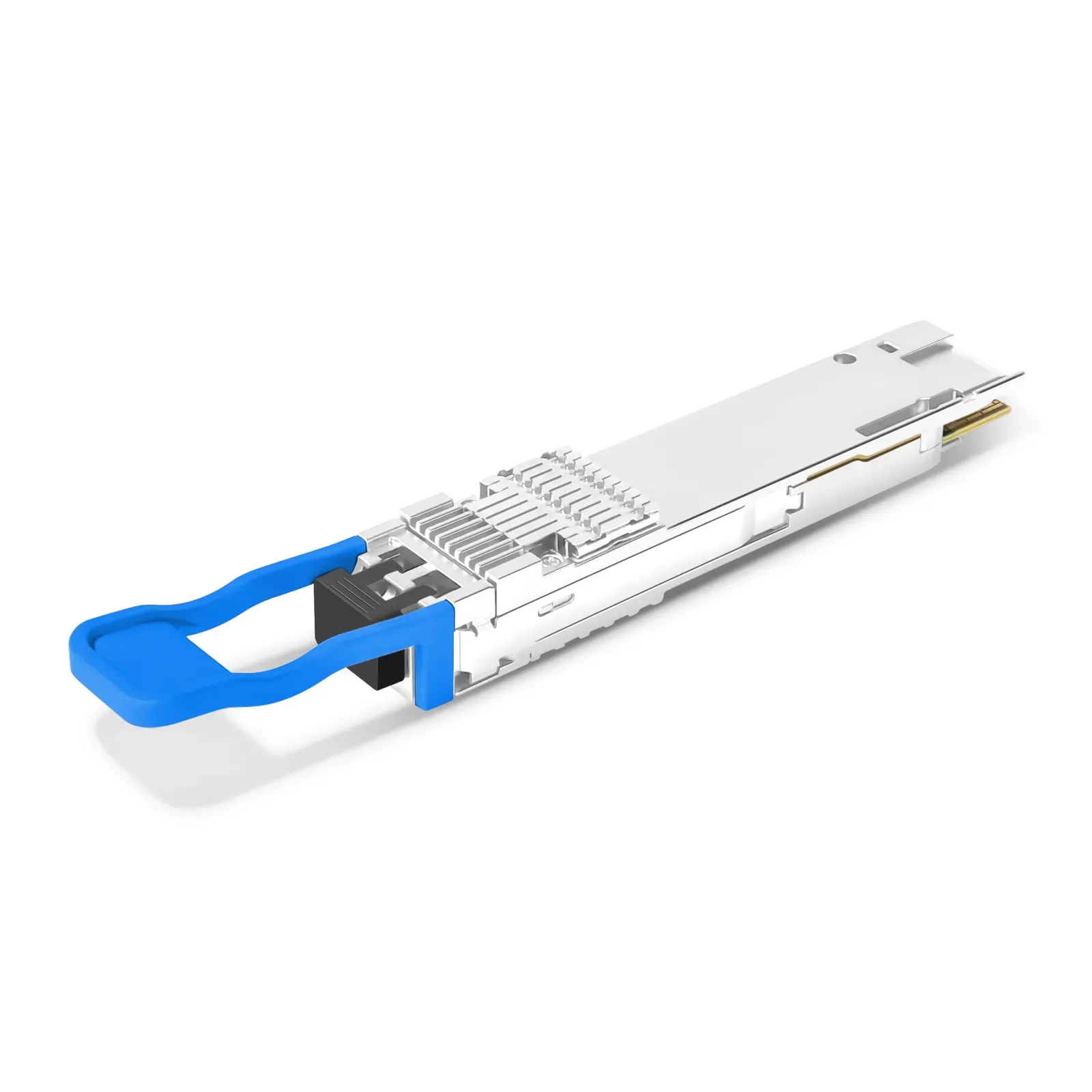

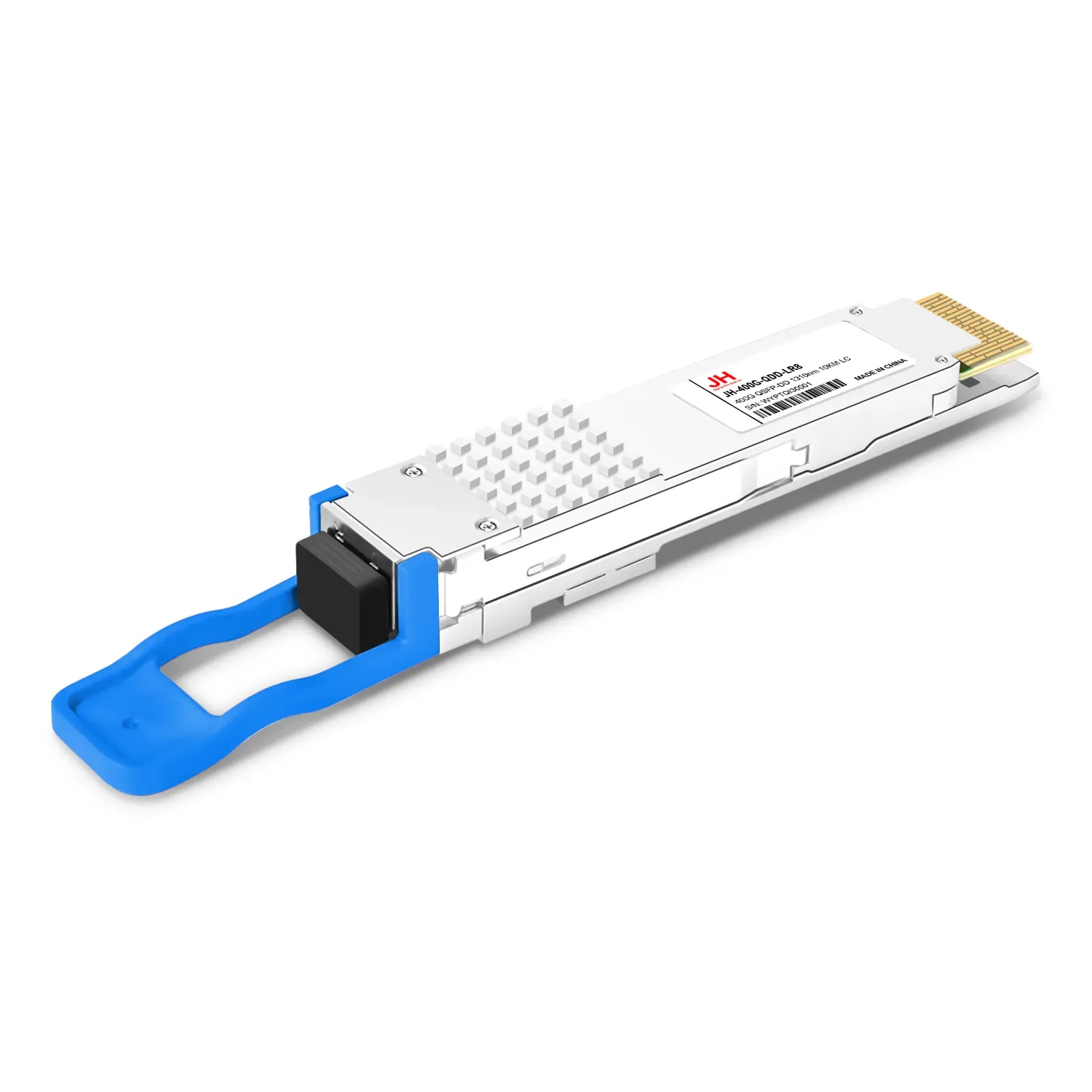

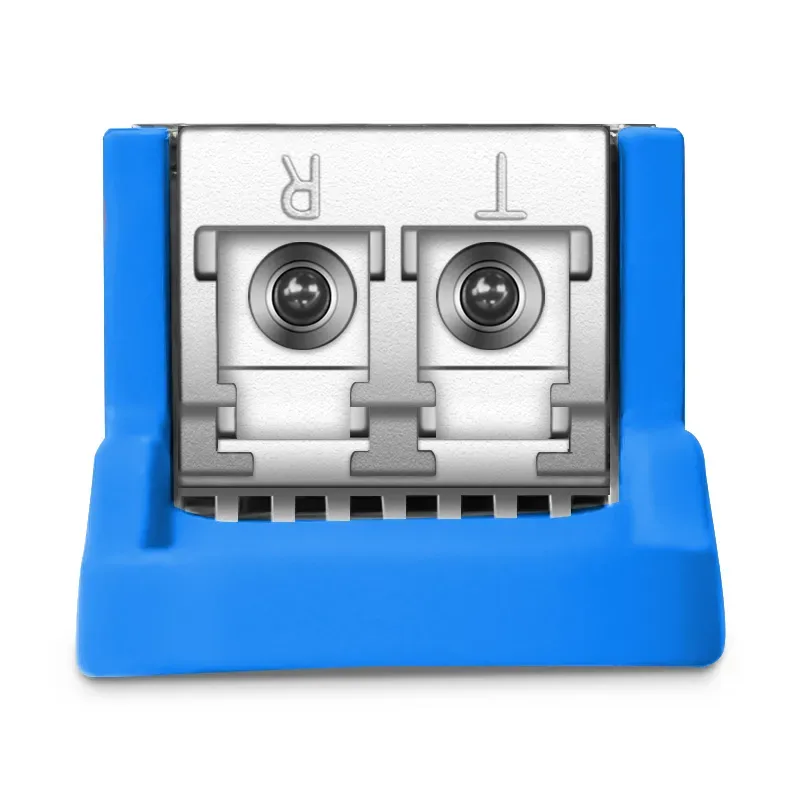

型号：400G QSFP-DD 1310nm 10KM LC LR8
JH-400G-QDD-LR8 module, Duplex LC connector, up to 10km over parallel single-mode fiber. It is compliant to IEEE 802.3bs protocol and 400GAUI-8/CEI-56G-VSR-PAM4 standard. The 400 Gigabit Ethernet signal is carried over eight wavelengths. Multiplexing and demultiplexing of the eight wavelengths are managed within the device.
| Data Rate | 400G |
| Distance | 10KM |
| Wavelength | 1310nm |
| Form Factor | QSFP-DD |
| Connector | LC |
| Case Temperature | 0~70 |
| Voltage Supply | 3.3V |
| Transmitter | EML |
| Receiver | PIN |
| TX Power | -2.8~5.3 |
| Receiver Sensitivity | -9.1 |
| Power consumption（Max） | 13W |
