型号：400G QSFP-DD 1310nm 2KM LC

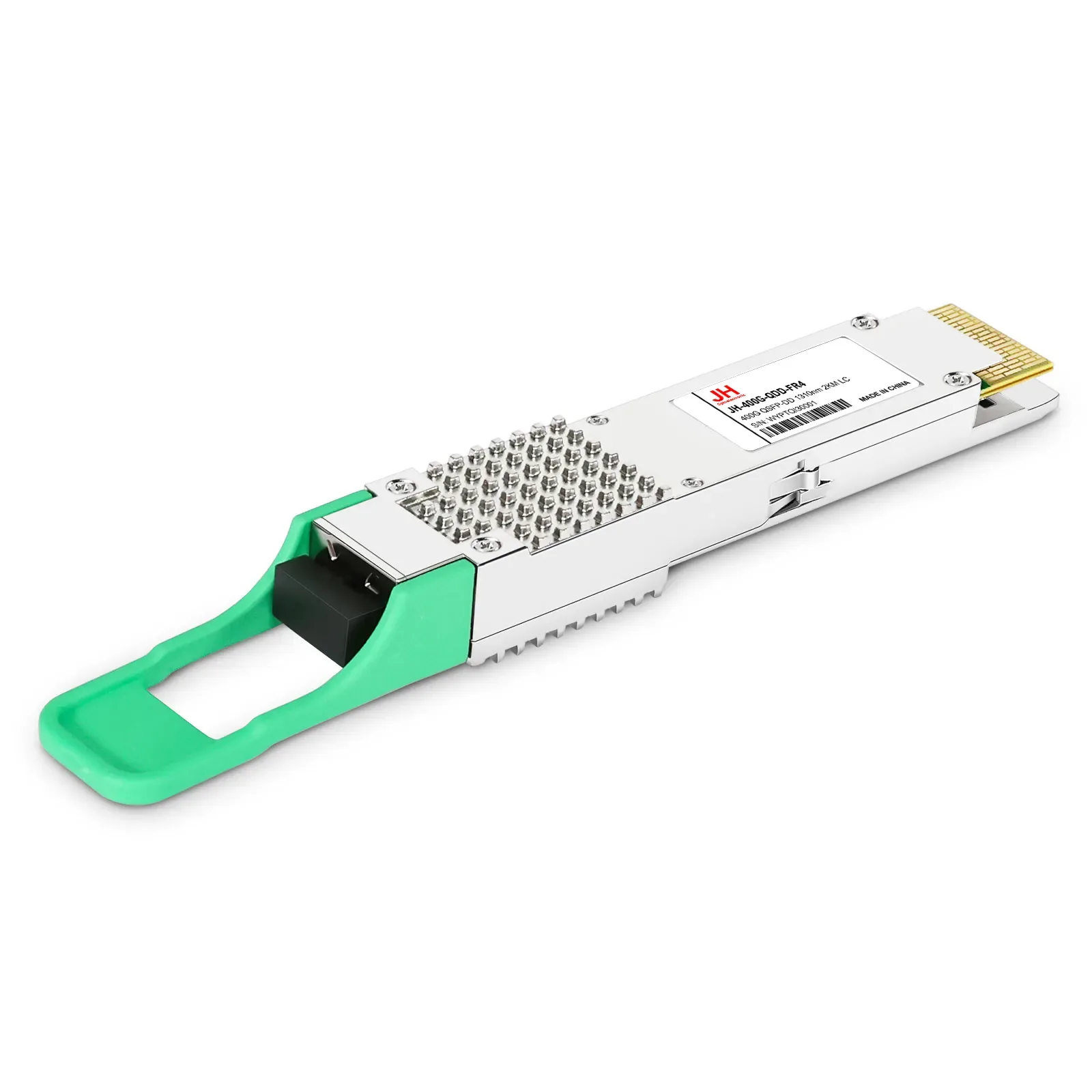

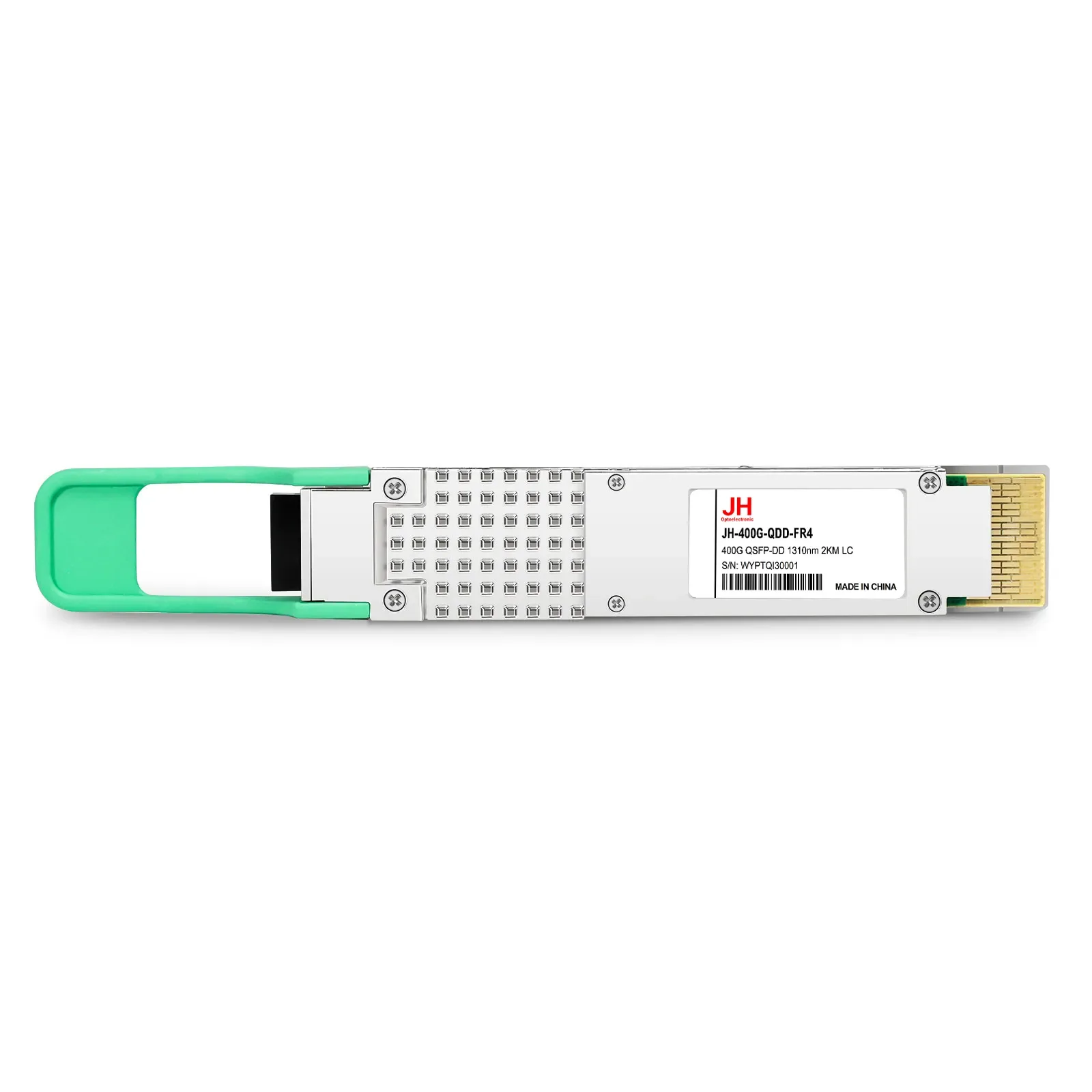

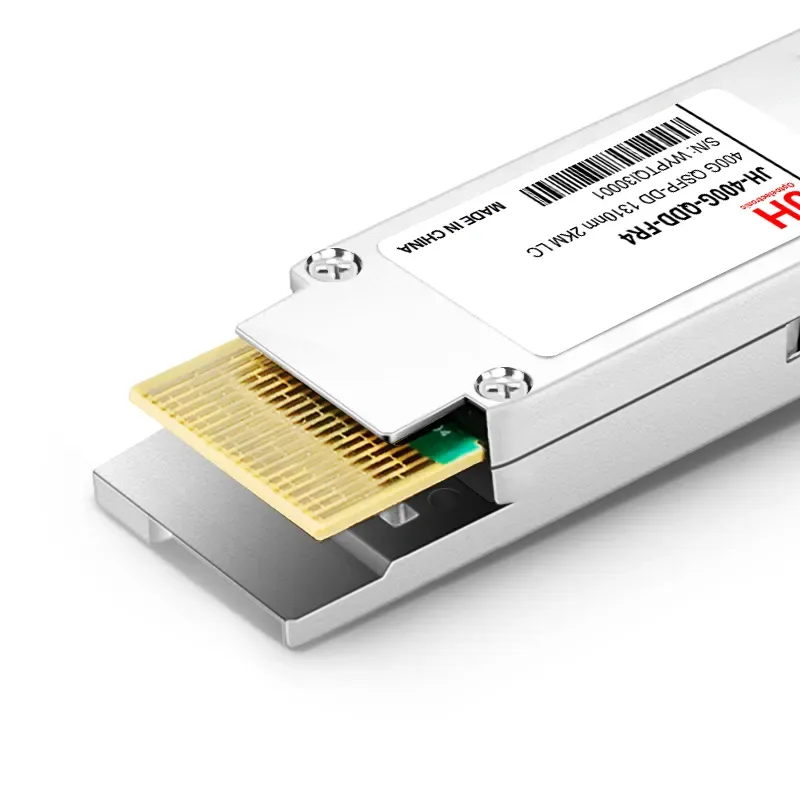

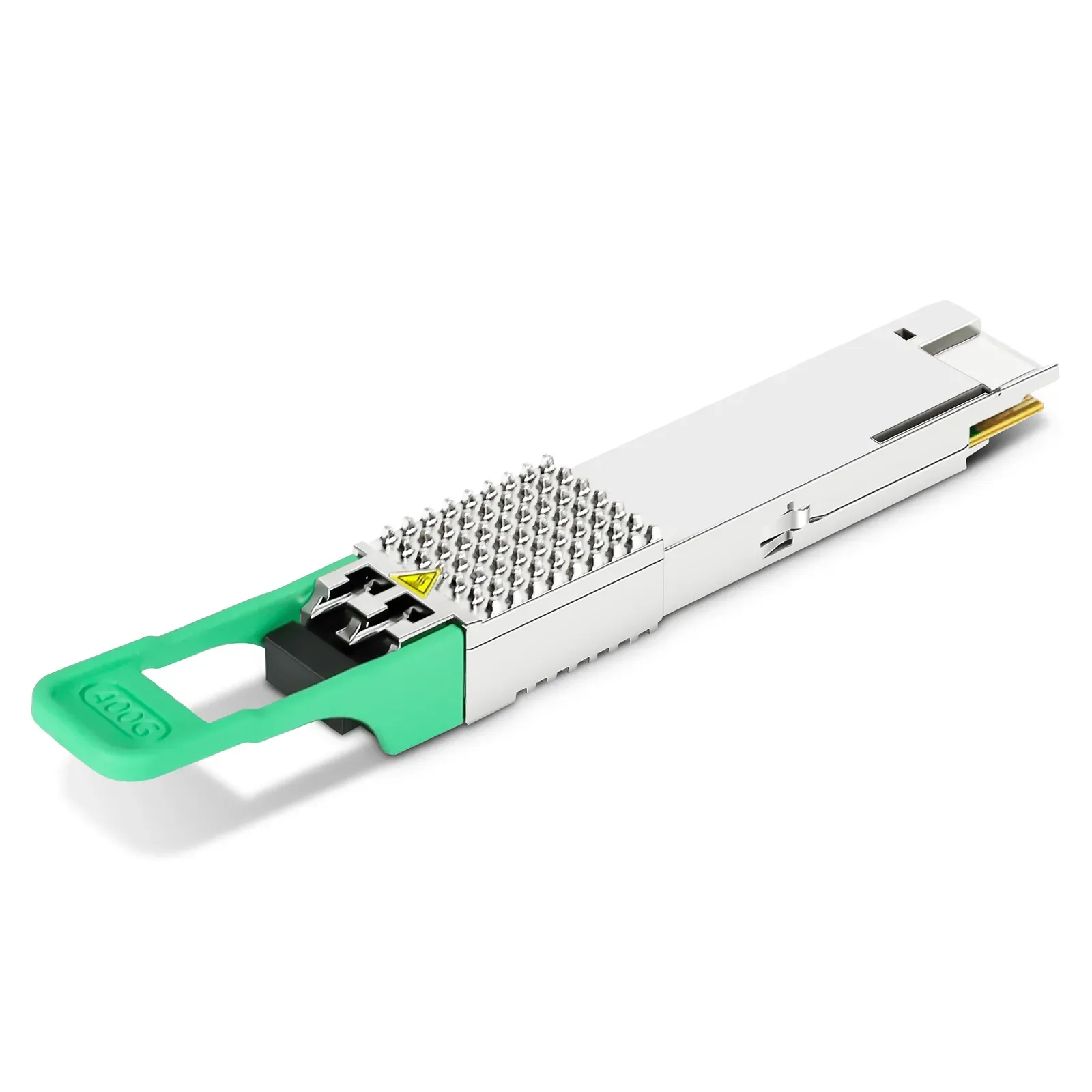

JH-400G-QDD-FR4 module, Duplex LC connector, up to 2km over parallel single-mode fiber. It is compliant to IEEE 802.3bs, 400GBASE-FR4 Spec of 100G Lambda MSA group, and 400GAUI-8/CEI-56G-VSR-PAM4 standards. The 400 Gigabit Ethernet signal is carried over four CWDM grid optical wavelengths. Multiplexing and demultiplexing of the four wavelengths are managed within the device.
| Data Rate | 400G |
| Distance | 2KM |
| Wavelength | 1310nm |
| Form Factor | QSFP-DD |
| Connector | LC |
| Case Temperature | 0~70 |
| Voltage Supply | 3.3V |
| Transmitter | EML |
| Receiver | PIN |
| TX Power | -3.3~3.5 |
| Receiver Sensitivity | -7.3 |
| Power consumption（Max） | 12W |
