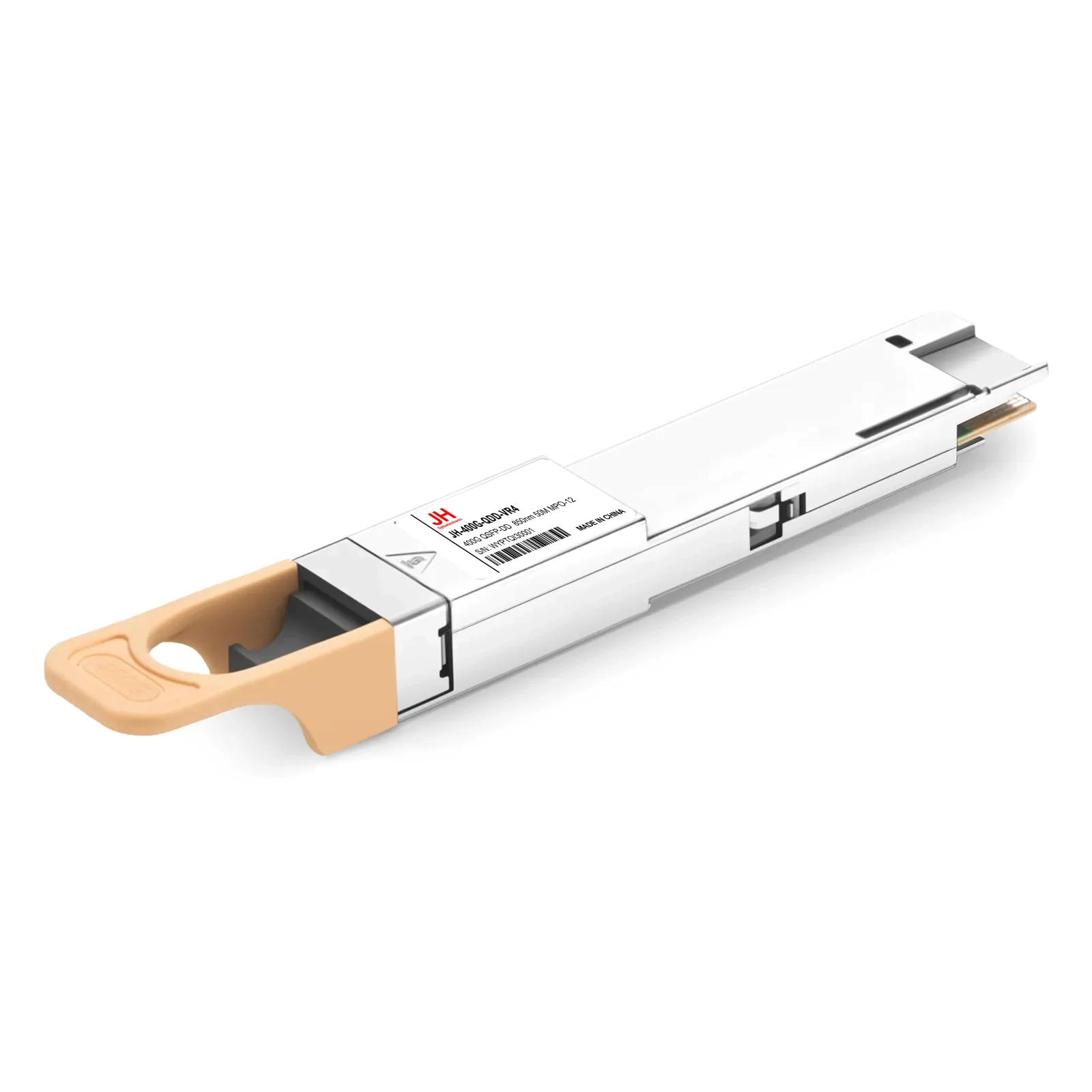

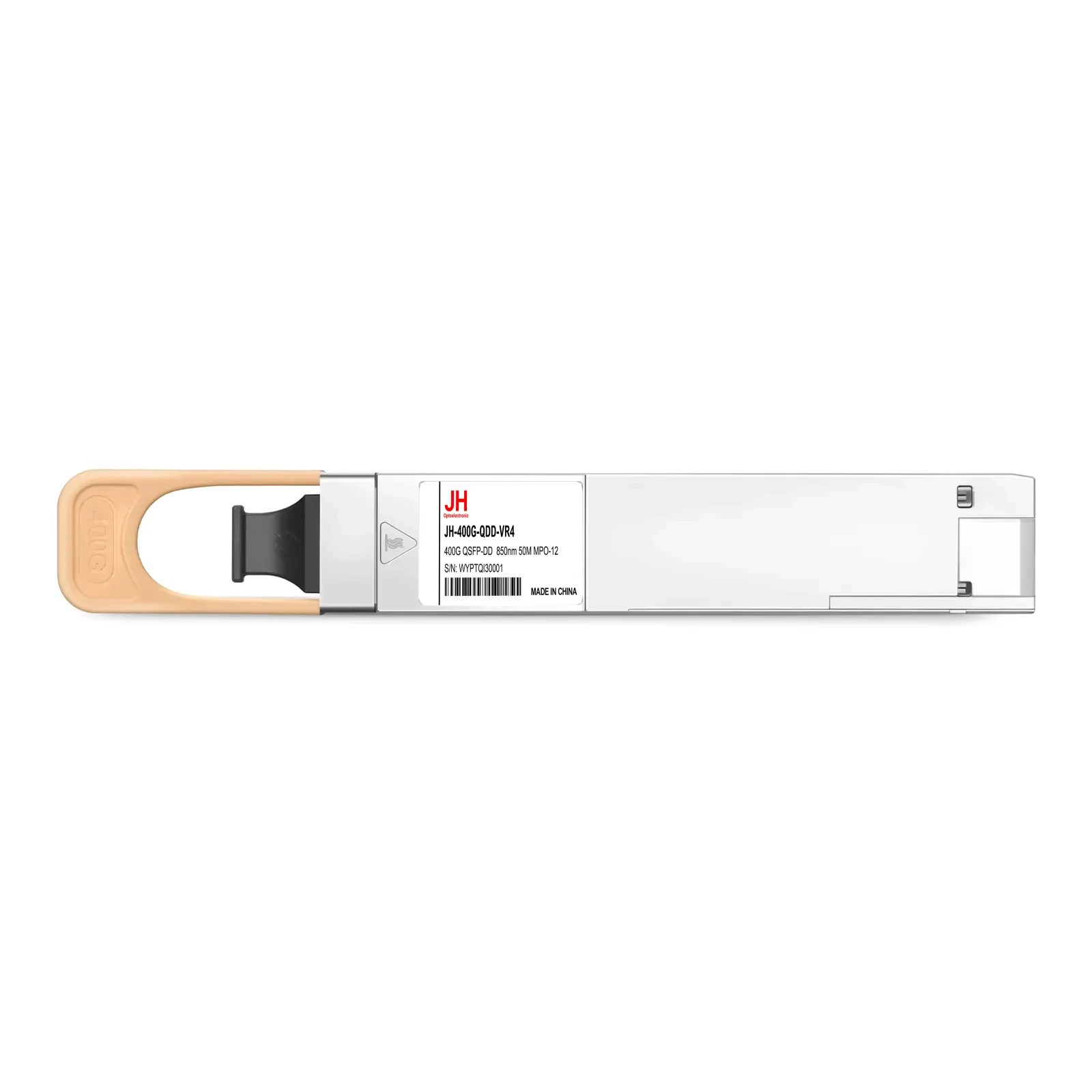

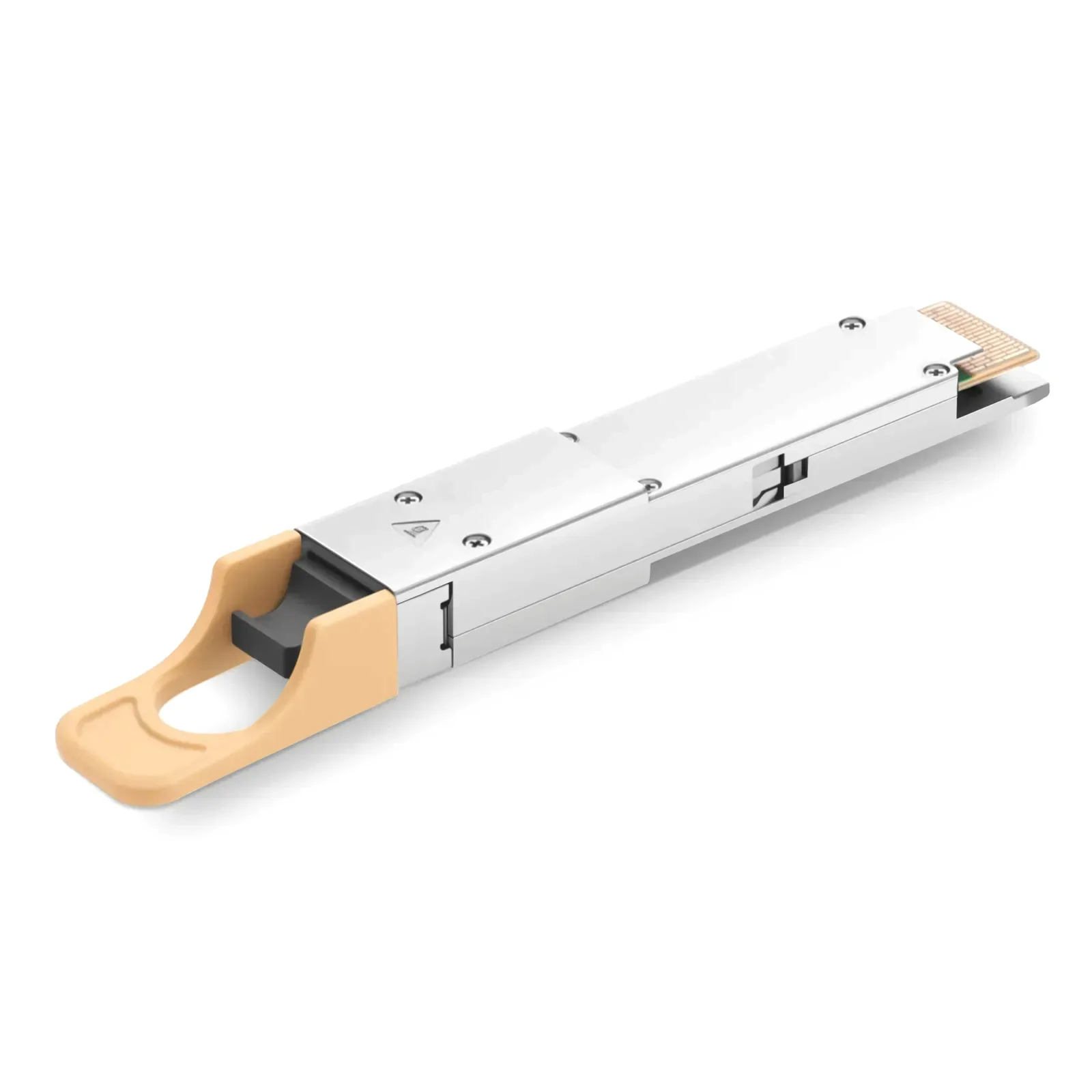

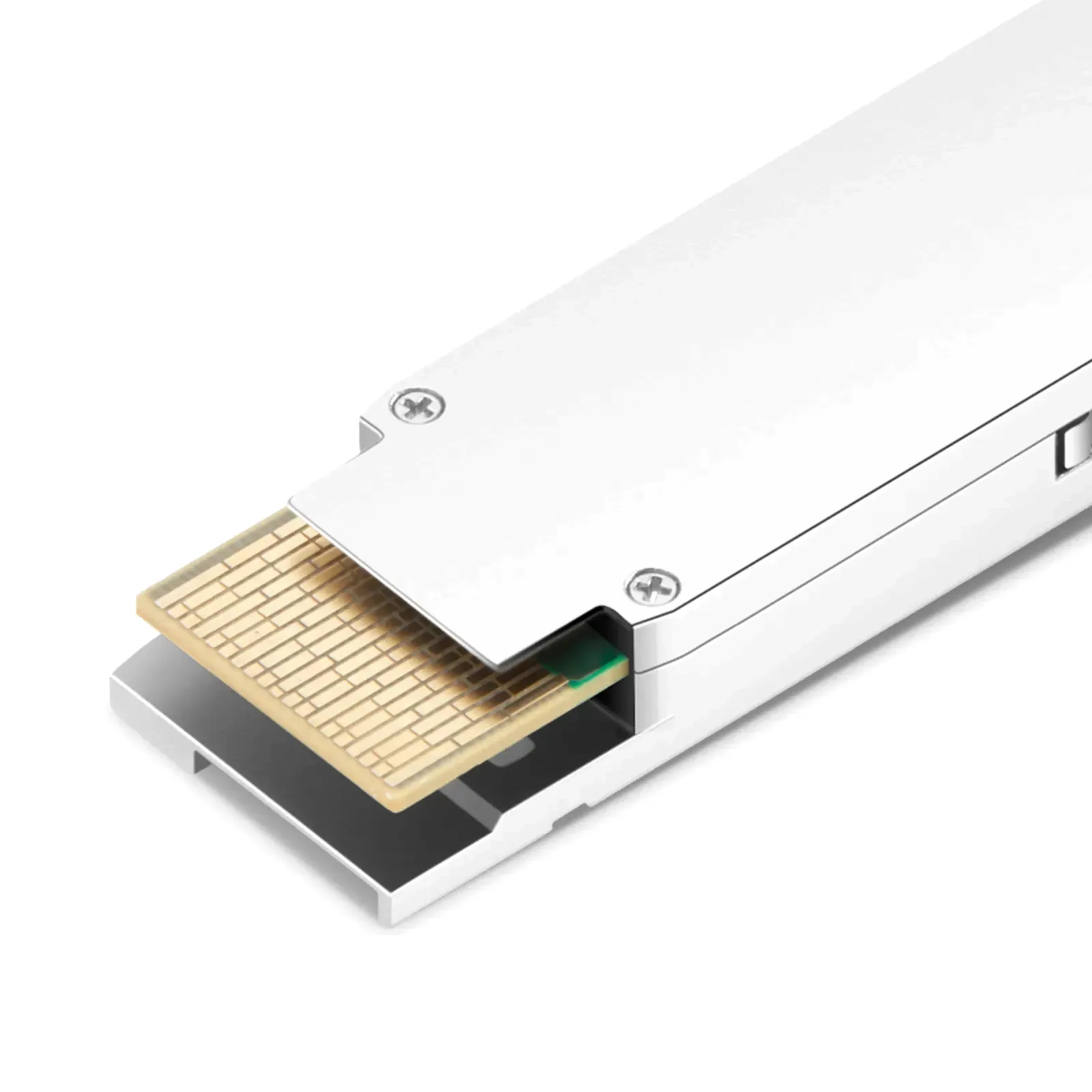

JH-400G-QDD-VR4

型号：400G QSFP-DD 850nm 50M MPO-12

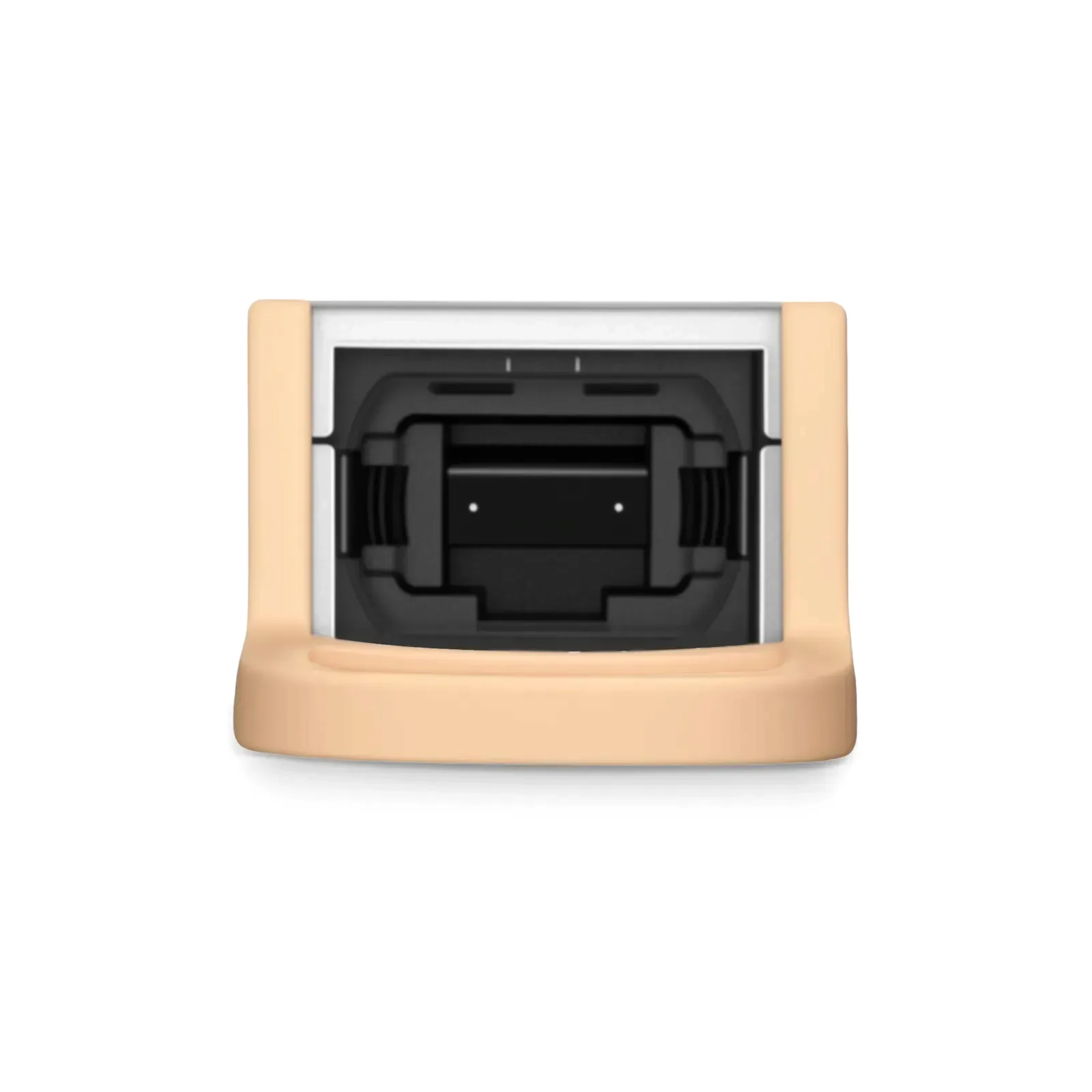

JH-400G-QDD-VR4 module, MTP/MPO-12 connector, up to 50m over parallel OM4 multi-mode fiber. It is compliant to IEEE 802.3df-2024 protocol and 400GAUI-8 standard.The 400 Gigabit Ethernet signal is carried over four parallel lanes by one wavelength per lane.

联系我们

产品特性

Hot-pluggable QSFP-DD form factor
Supports 400Gbps data transmission rate, compliant with IEEE 802.3cu 400G Ethernet standard
Maximum power consumption < 12W
Commercial operating temperature range: 0~70
Single +3.3V power supply
Supports CMIS 4.0 digital diagnostic monitoring, 50G/lane PAM4, low power design, hot-swappable
Class 1 laser safety certified, compliant with EN 60825-1 standard
Compliant with RoHS 2.0 environmental protection standard, lead-free design
Cloud Data Center, Intra-Pod Connectivity

规格参数

Data Rate	400G
Distance	50M
Wavelength	850nm
Form Factor	QSFP-DD
Connector	MPO-12
Case Temperature	0~70
Voltage Supply	3.3V
Transmitter	VCSEL
Receiver	PIN
TX Power	-4.6~4
Receiver Sensitivity	-6.4
Power consumption（Max）	12W

规格书

规格书下载

Datasheet
