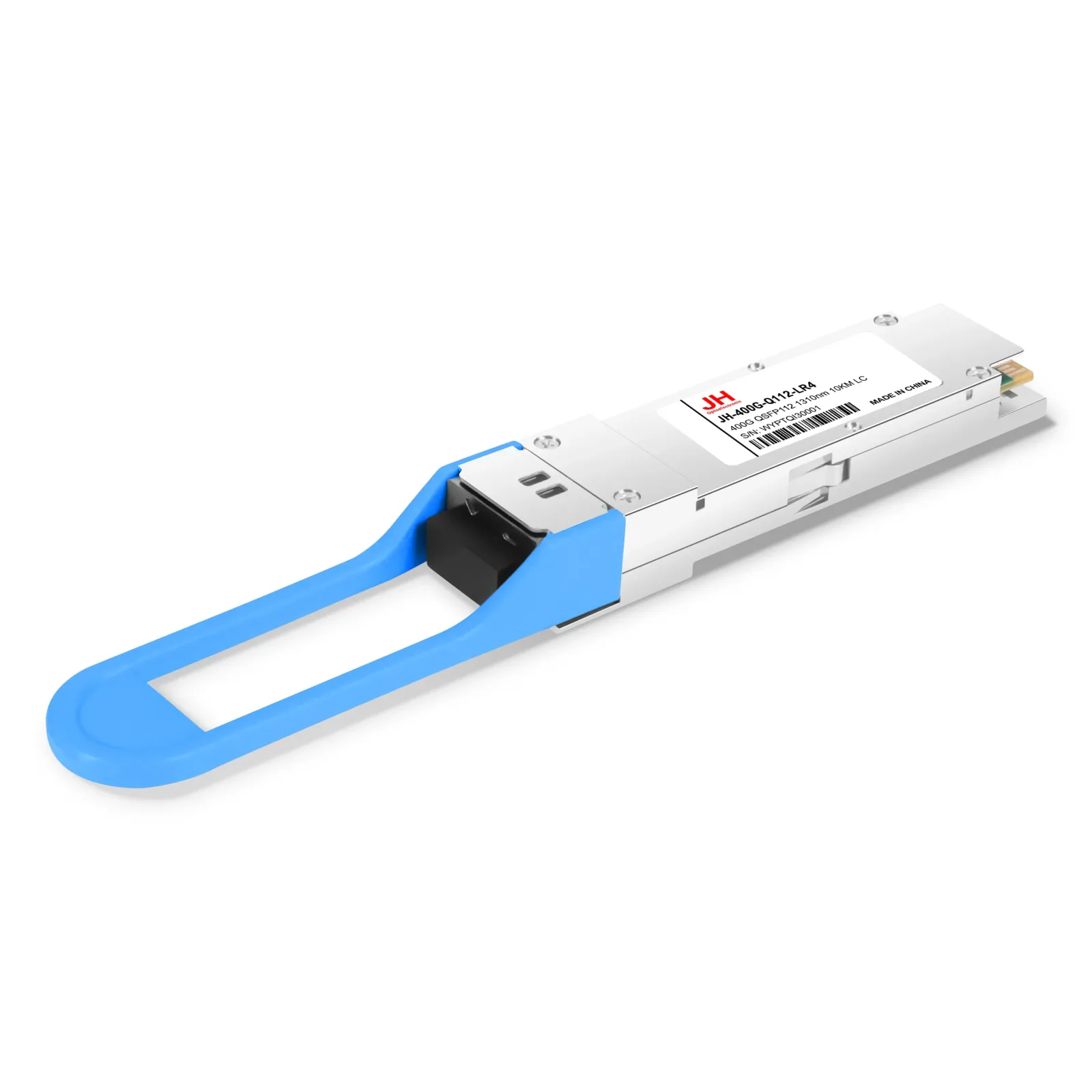

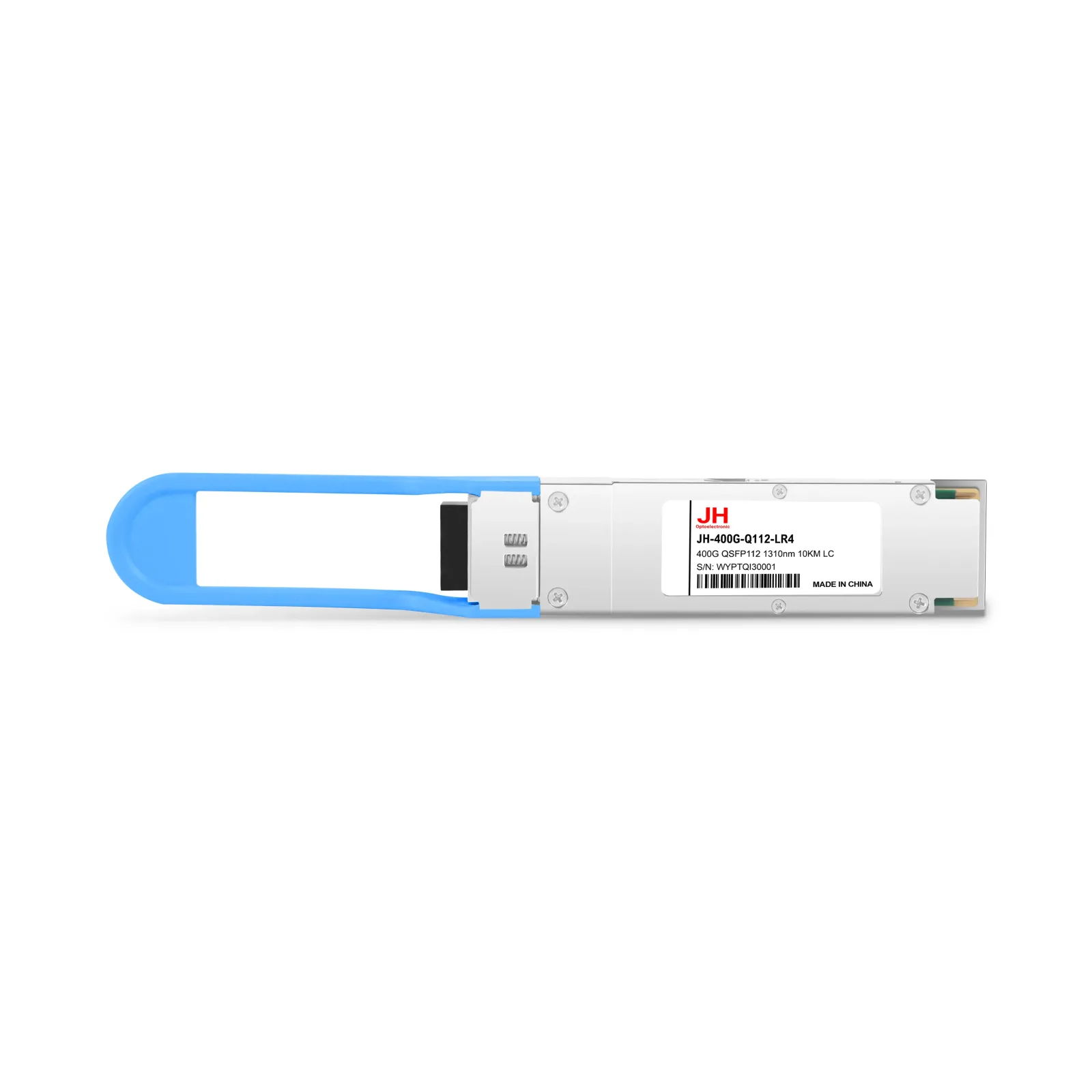

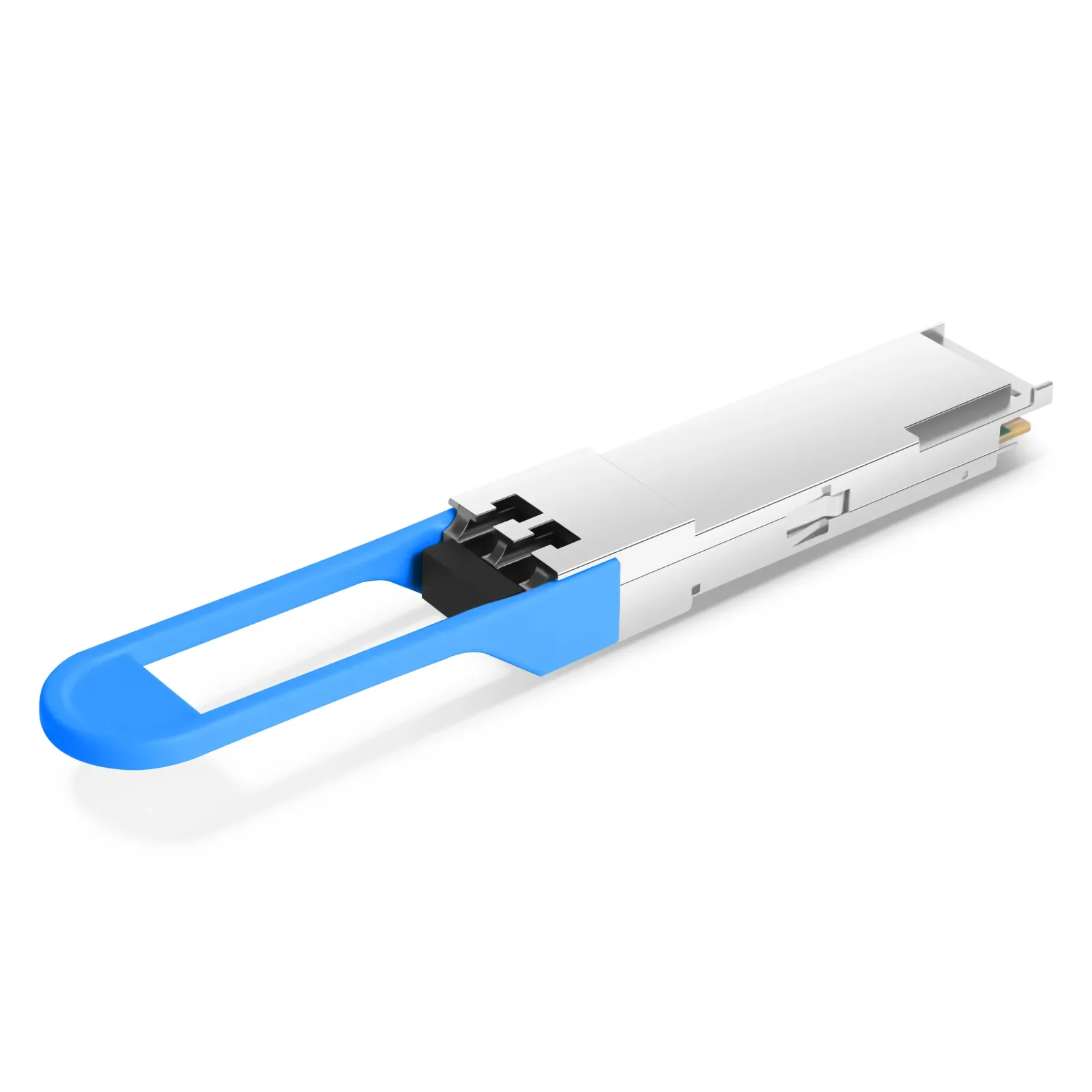

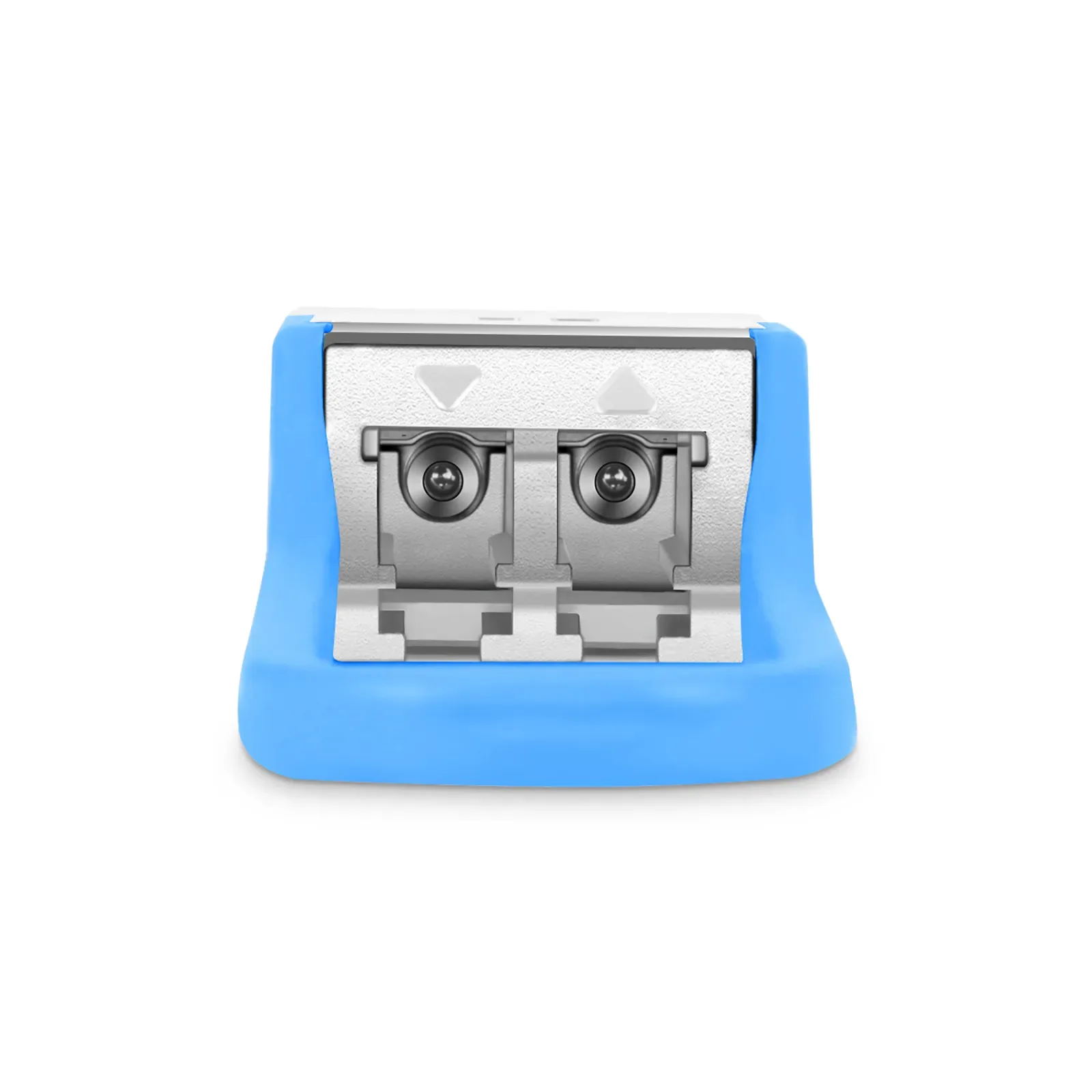

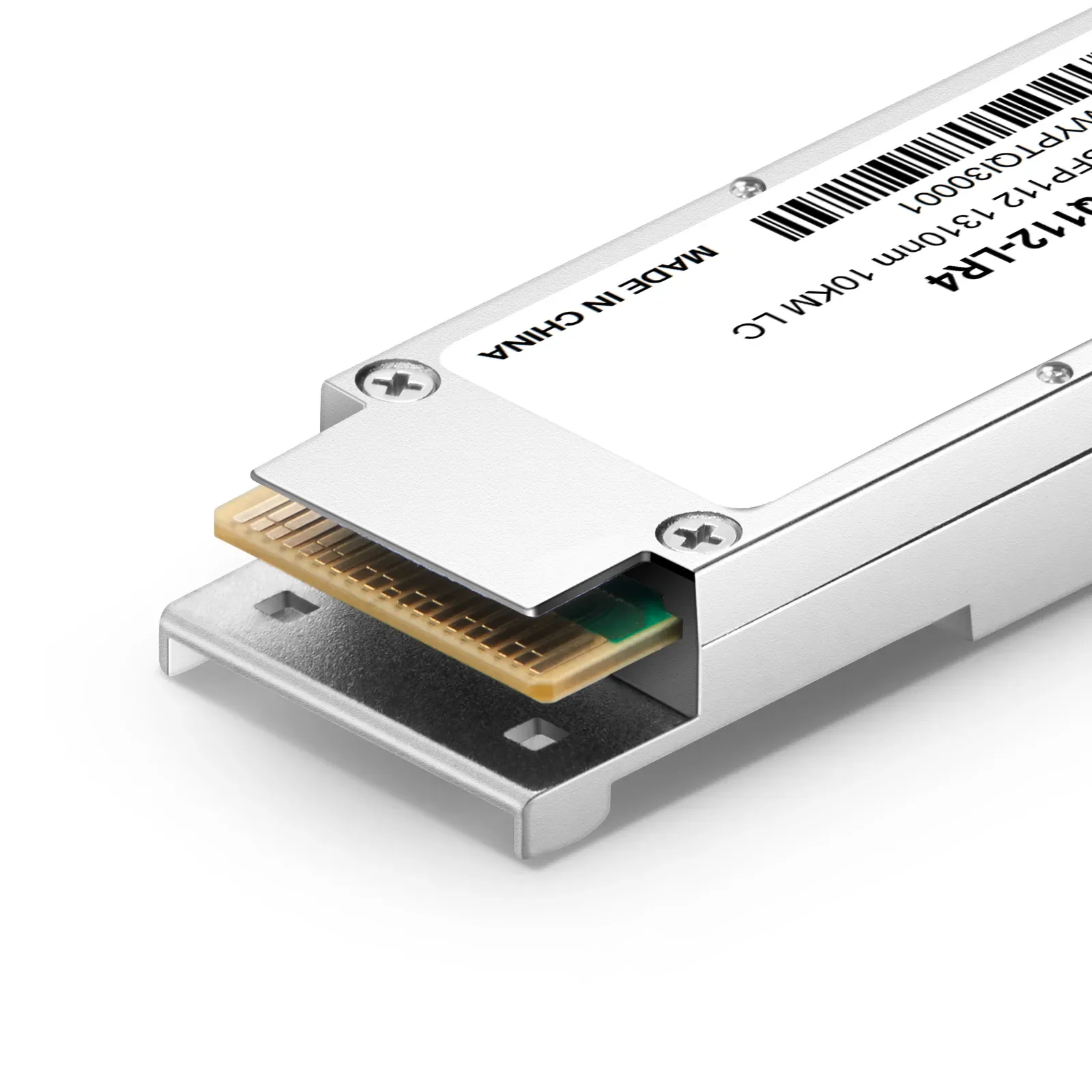

型号：400G QSFP112 1310nm 10KM LC
JH-400G-Q112-LR4 optical transceiver is designed for long-reach data center interconnections. It complies with QSFP112 MSA, 400G-LR4 and IEEE 802.3ck 400GBASE-LR4.The module integrates 4-channel CWDM Mux/DeMux with central wavelengths at 1271nm, 1291nm, 1311nm and 1331nm. It supports transmission distances up to 10km over G.652 SMF with KP-FEC.
| Data Rate | 400G |
| Distance | 10KM |
| Wavelength | 1310nm |
| Form Factor | QSFP112 |
| Connector | LC |
| Case Temperature | 0~70 |
| Voltage Supply | 3.3V |
| Transmitter | EML |
| Receiver | PIN |
| TX Power | -2.7~5.1 |
| Receiver Sensitivity | -9 |
| Power consumption（Max） | 10W |
