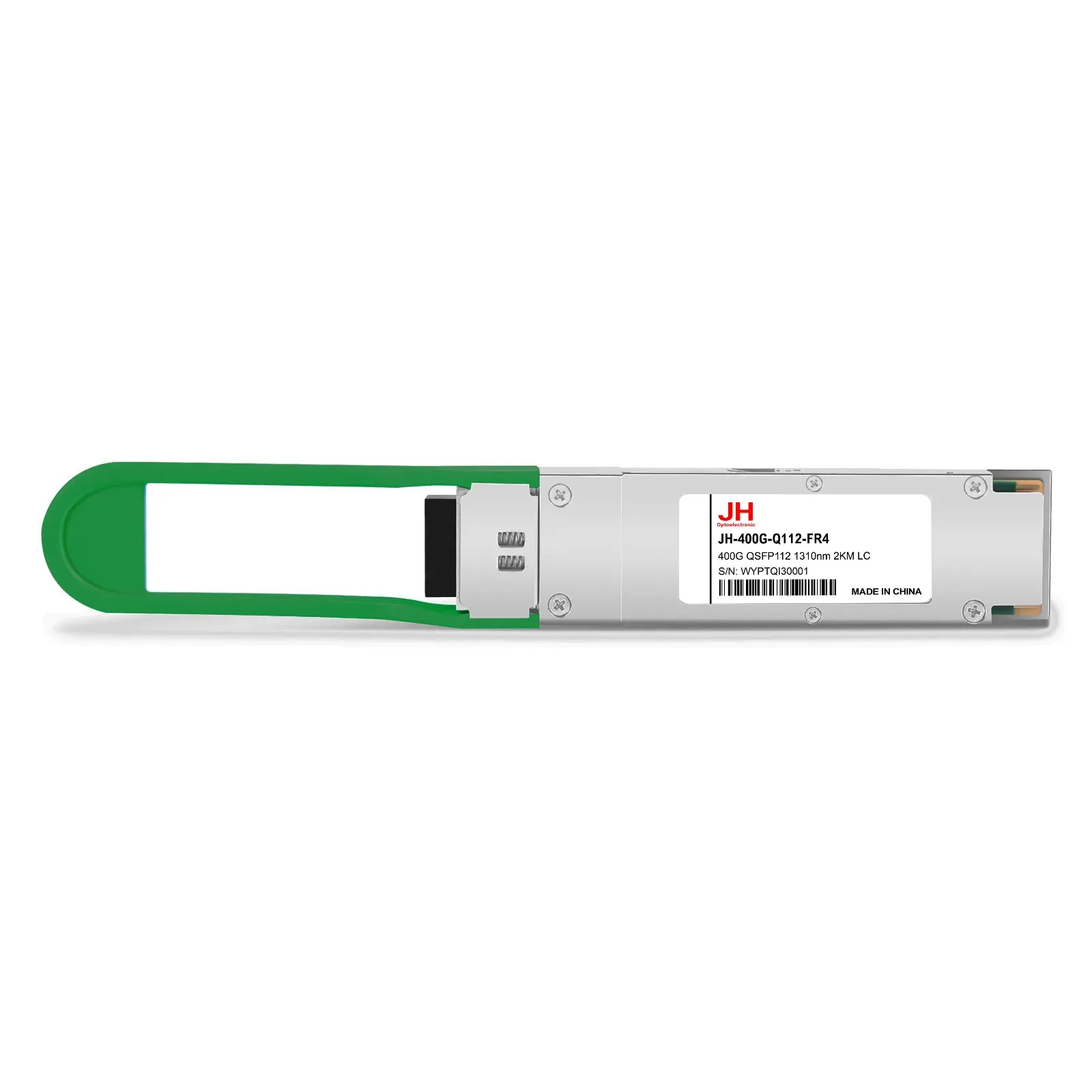

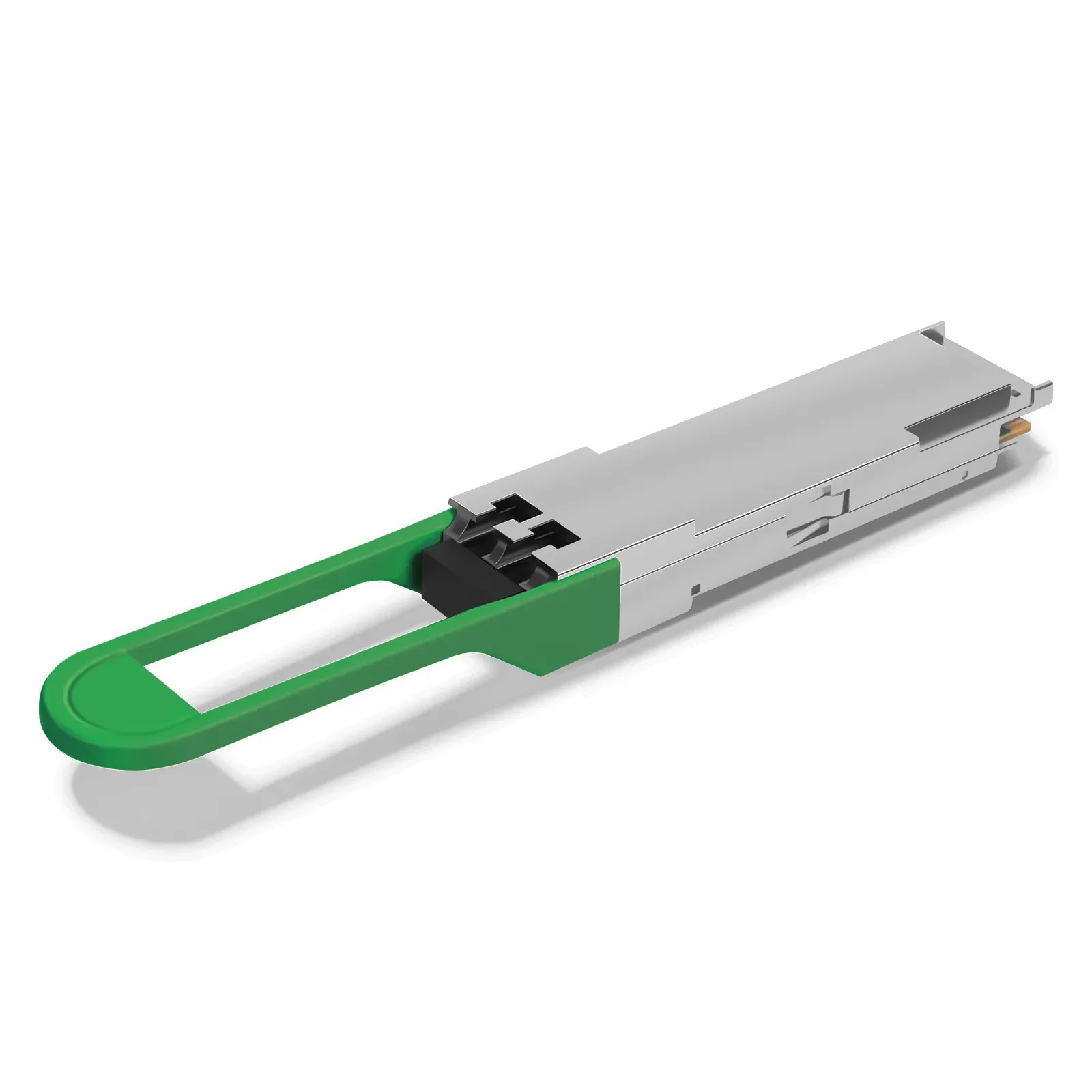

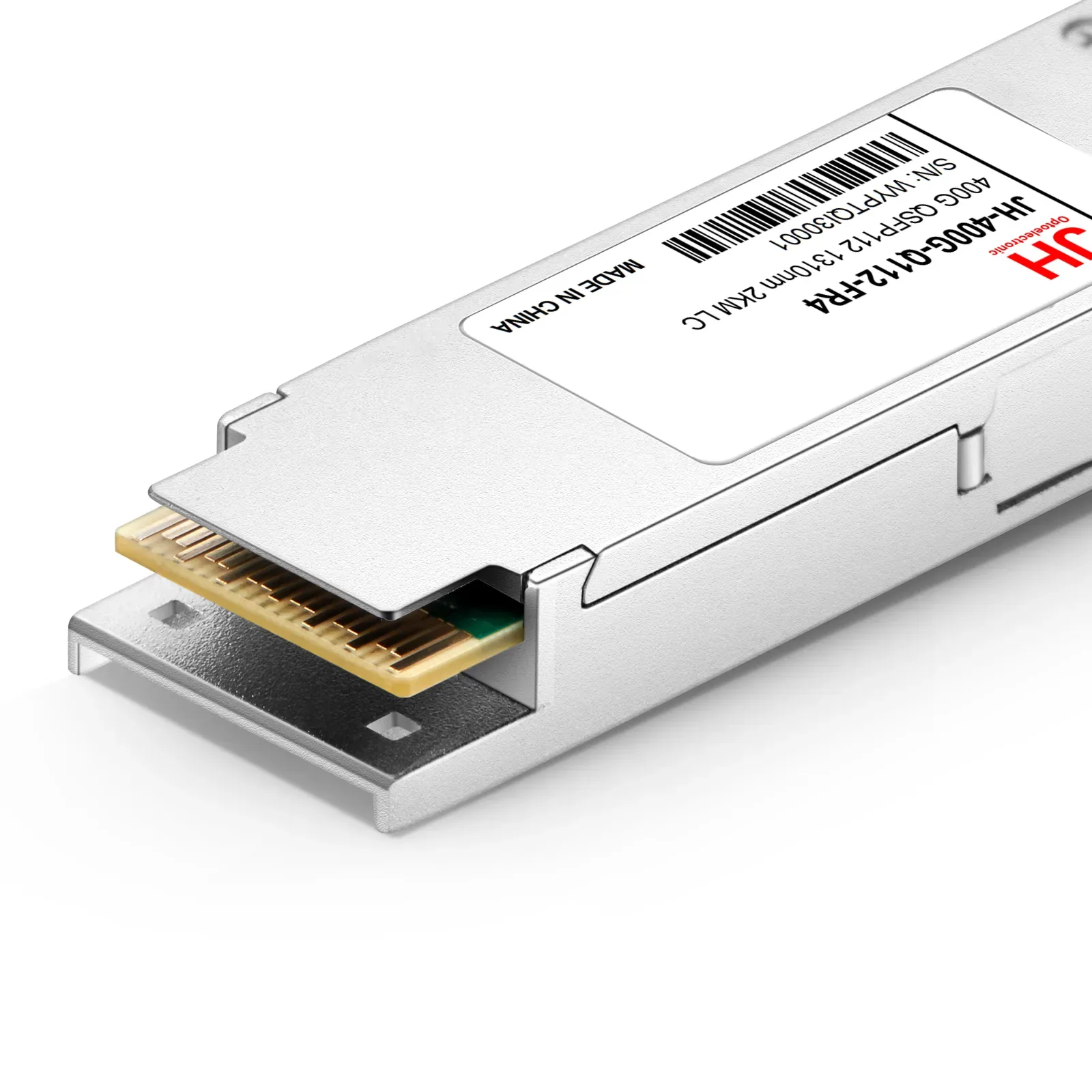

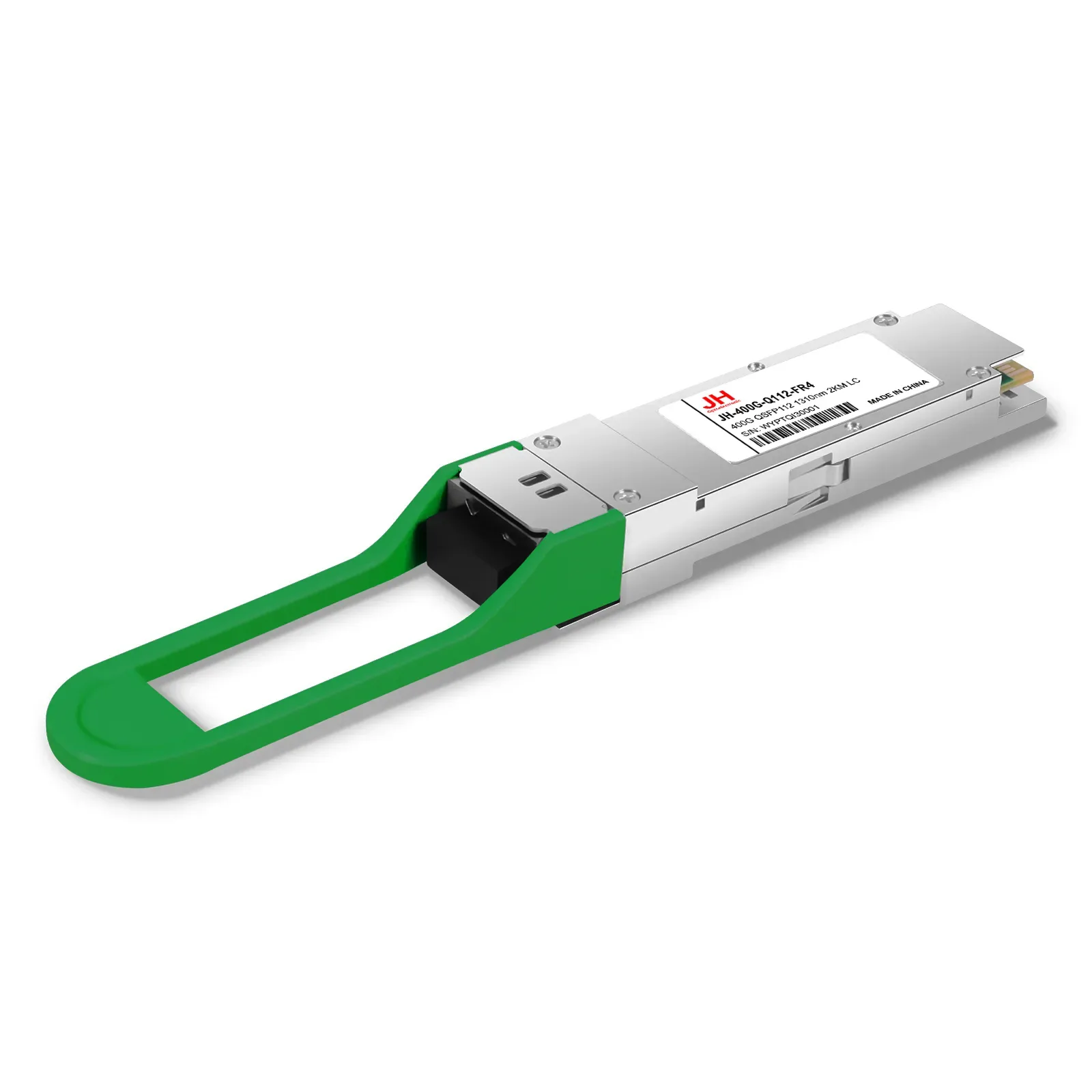

JH-400G-Q112-FR4

型号：400G QSFP112 1310nm 2KM LC

JH-400G-Q112-FR4 optical transceiver is designed for long-reach data center interconnections. It complies with QSFP112 MSA, 400G-FR4 and IEEE 802.3ck 400GBASE-FR4.The module integrates 4-channel CWDM Mux/DeMux with central wavelengths at 1271nm、1291nm、1311nm and 1331nm. It supports transmission distances up to 2km over G.652 SMF with KP-FEC.

联系我们

产品特性

Hot-pluggable QSFP112 form factor
Supports 400Gbps data transmission rate, compliant with IEEE 802.3cu 400G Ethernet standard
Maximum power consumption < 10W
Commercial operating temperature range: 0~70
Single +3.3V power supply
Supports DDM/DOM digital diagnostic monitoring function, low power consumption design, hot-swappable
Class 1 laser safety certified, compliant with EN 60825-1 standard
Compliant with RoHS 2.0 environmental protection standard, lead-free design
Cloud DCI, Intra-Facility Connectivity

规格参数

Data Rate	400G
Distance	2KM
Wavelength	1310nm
Form Factor	QSFP112

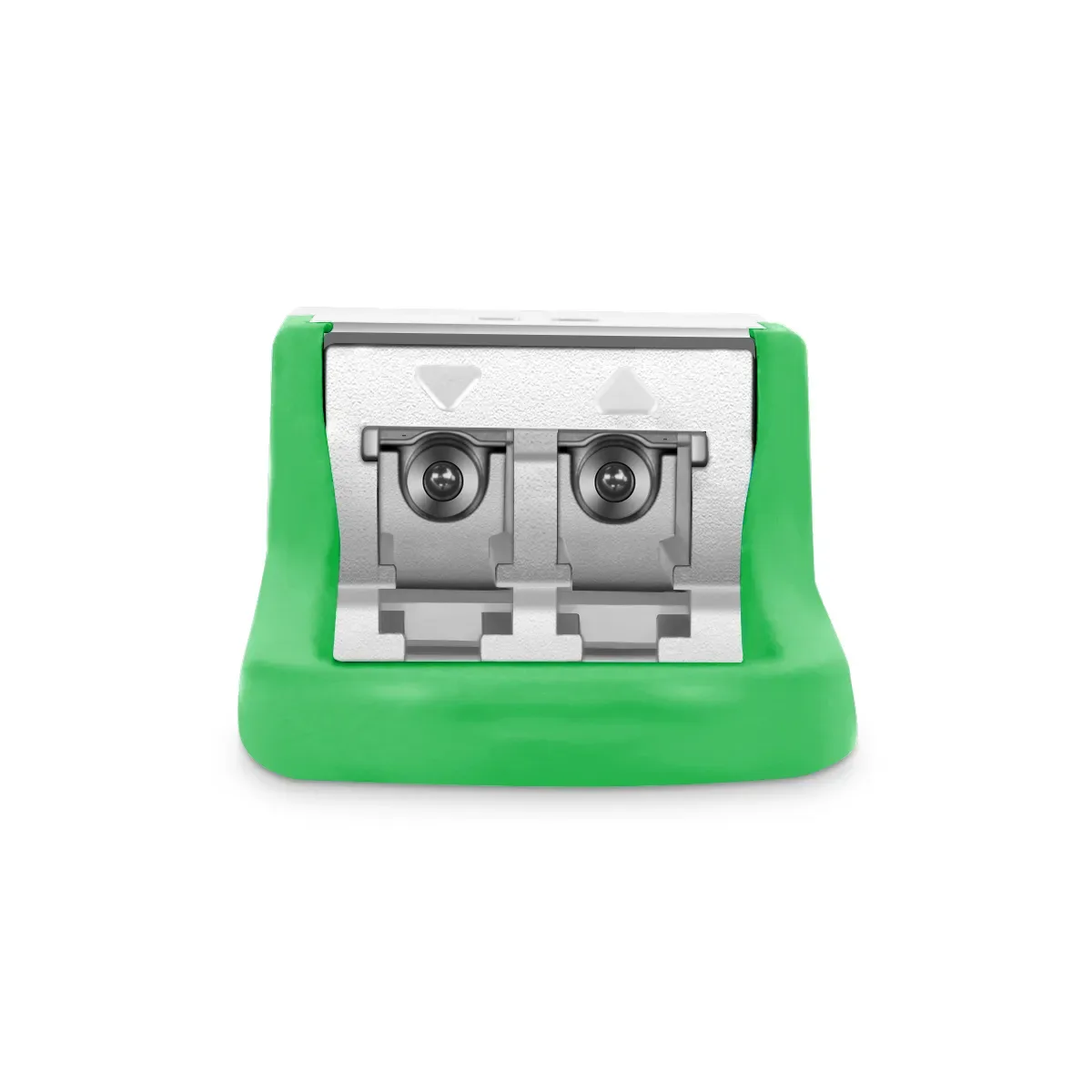

Connector	LC
Case Temperature	0~70
Voltage Supply	3.3V
Transmitter	EML
Receiver	PIN
TX Power	-3.3~3.5
Receiver Sensitivity	-7.3
Power consumption（Max）	10W
