型号：400G QSFP112 1310nm 2KM MPO-12

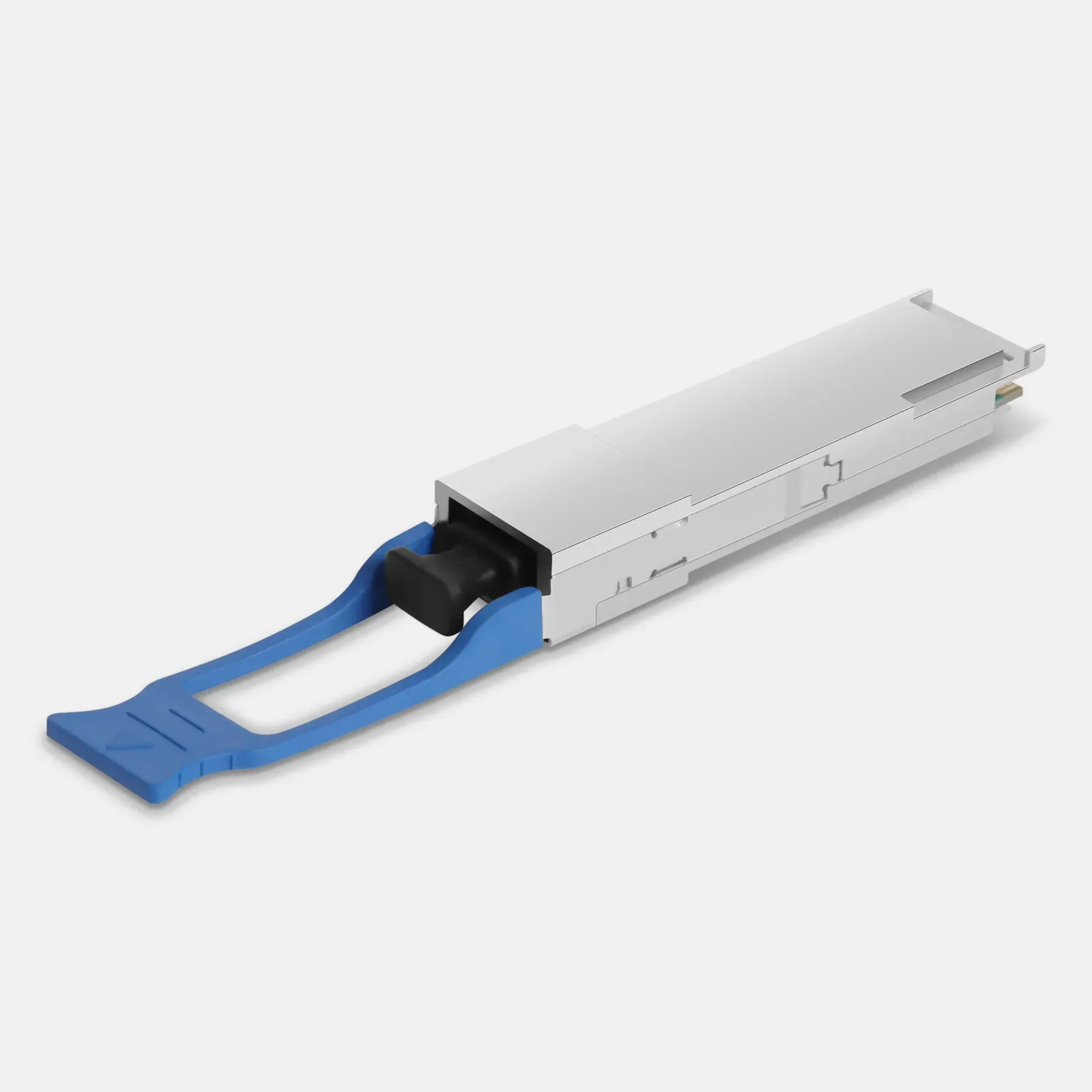

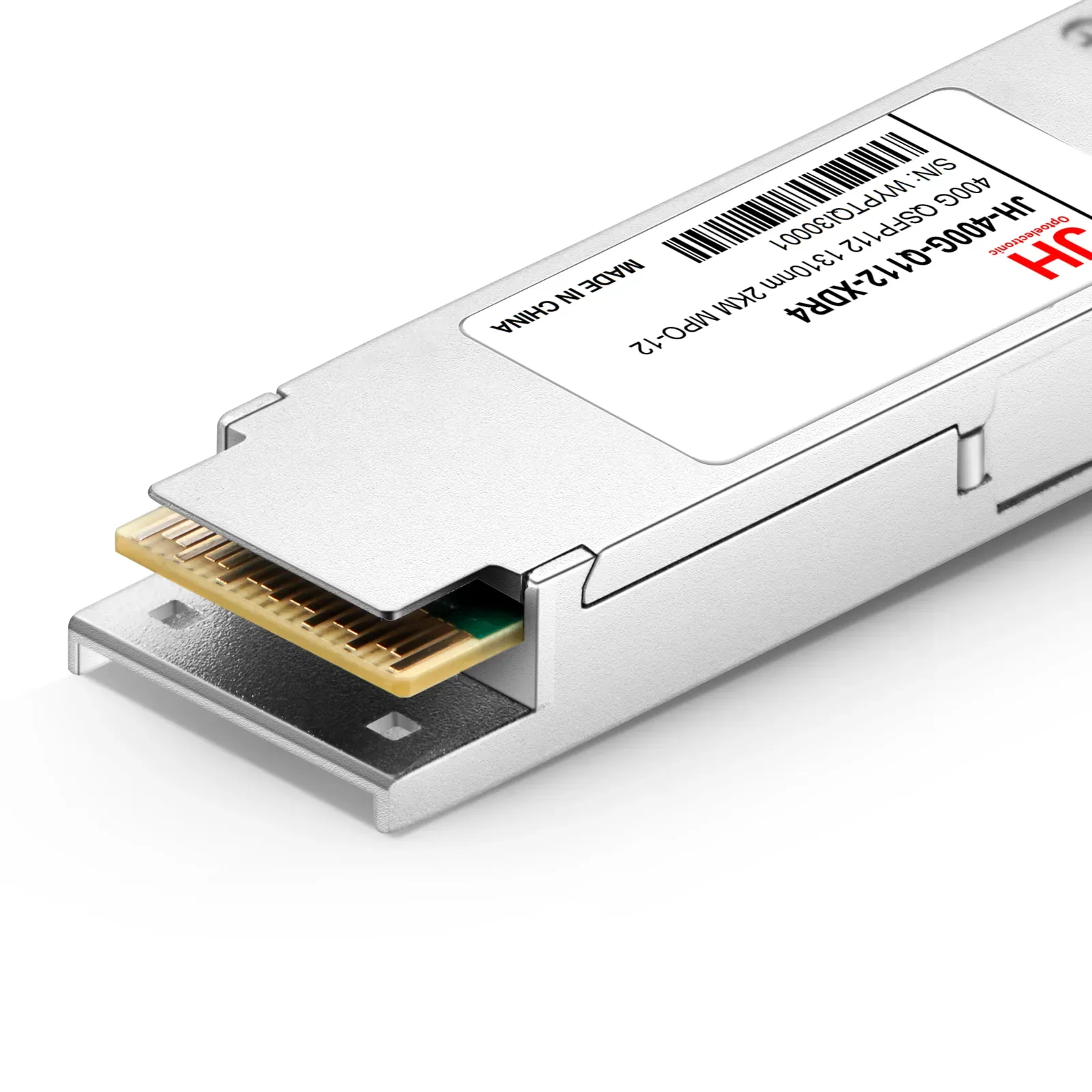

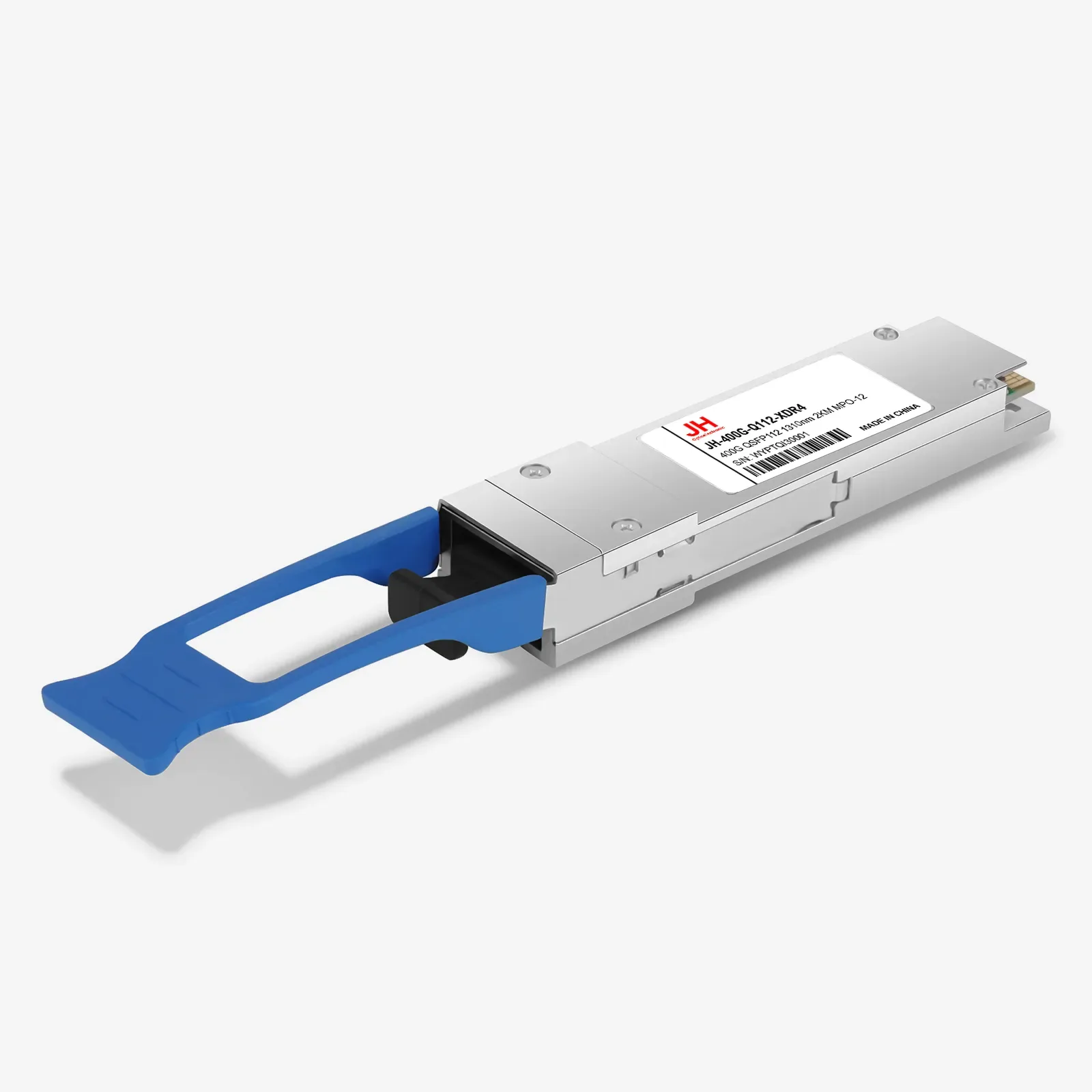

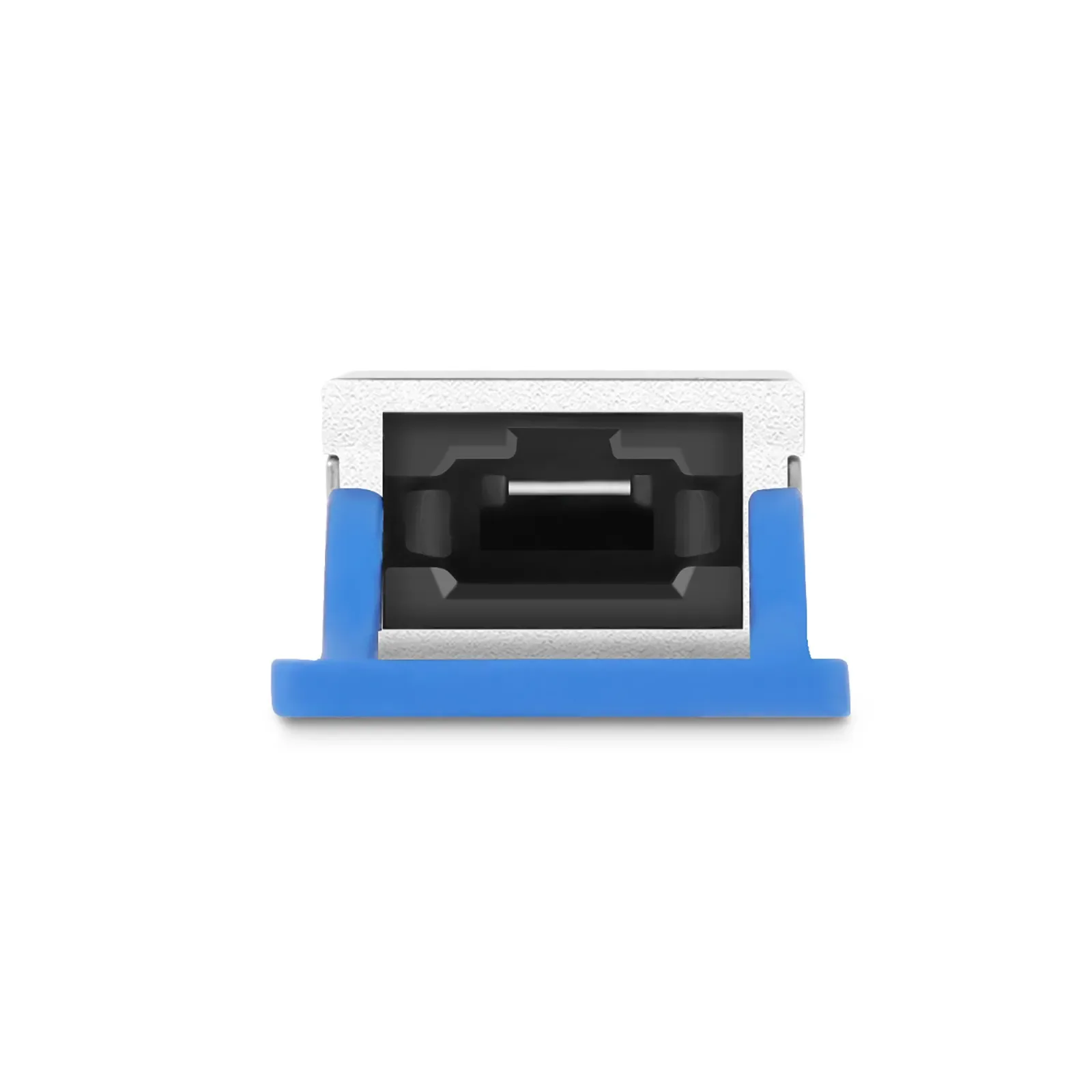

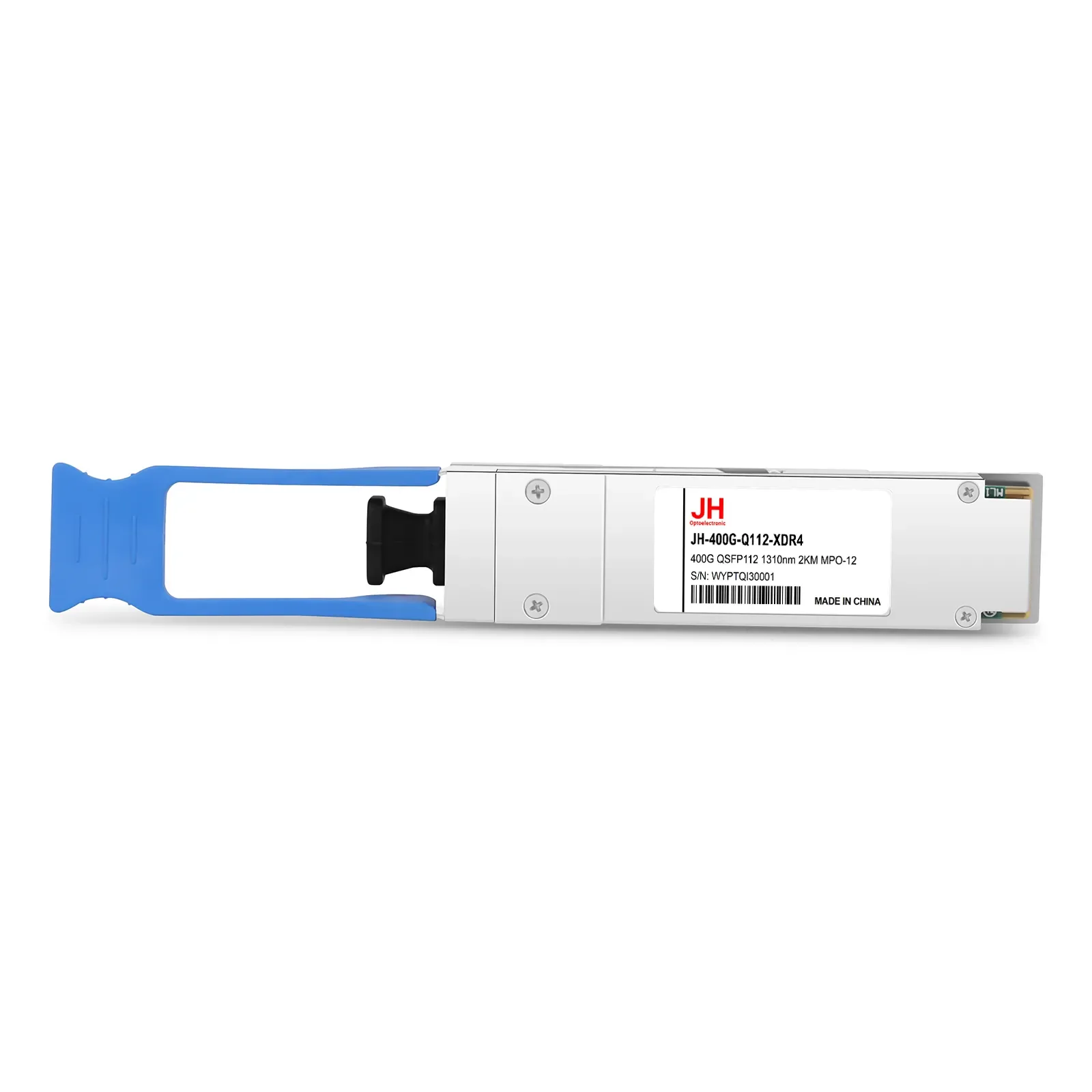

JH-400G-Q112-XDR4 Silicon Optical Module is a hot-pluggable optical transceiver module based on silicon photonics integration technology, designed for data center 400GBASE-DR4 Ethernet links, with 100G PAM4 and 4-way single-mode parallel technology, and supports 500m/2km/10km maximum transmission distance.
| Data Rate | 400G |
| Distance | 2KM |
| Wavelength | 1310nm |
| Form Factor | QSFP112 |
| Connector | MPO-12 |
| Case Temperature | 0~70 |
| Voltage Supply | 3.3V |
| Transmitter | EML |
| Receiver | PIN |
| TX Power | -2.4~4 |
| Receiver Sensitivity | -6.4 |
| Power consumption（Max） | 10W |
