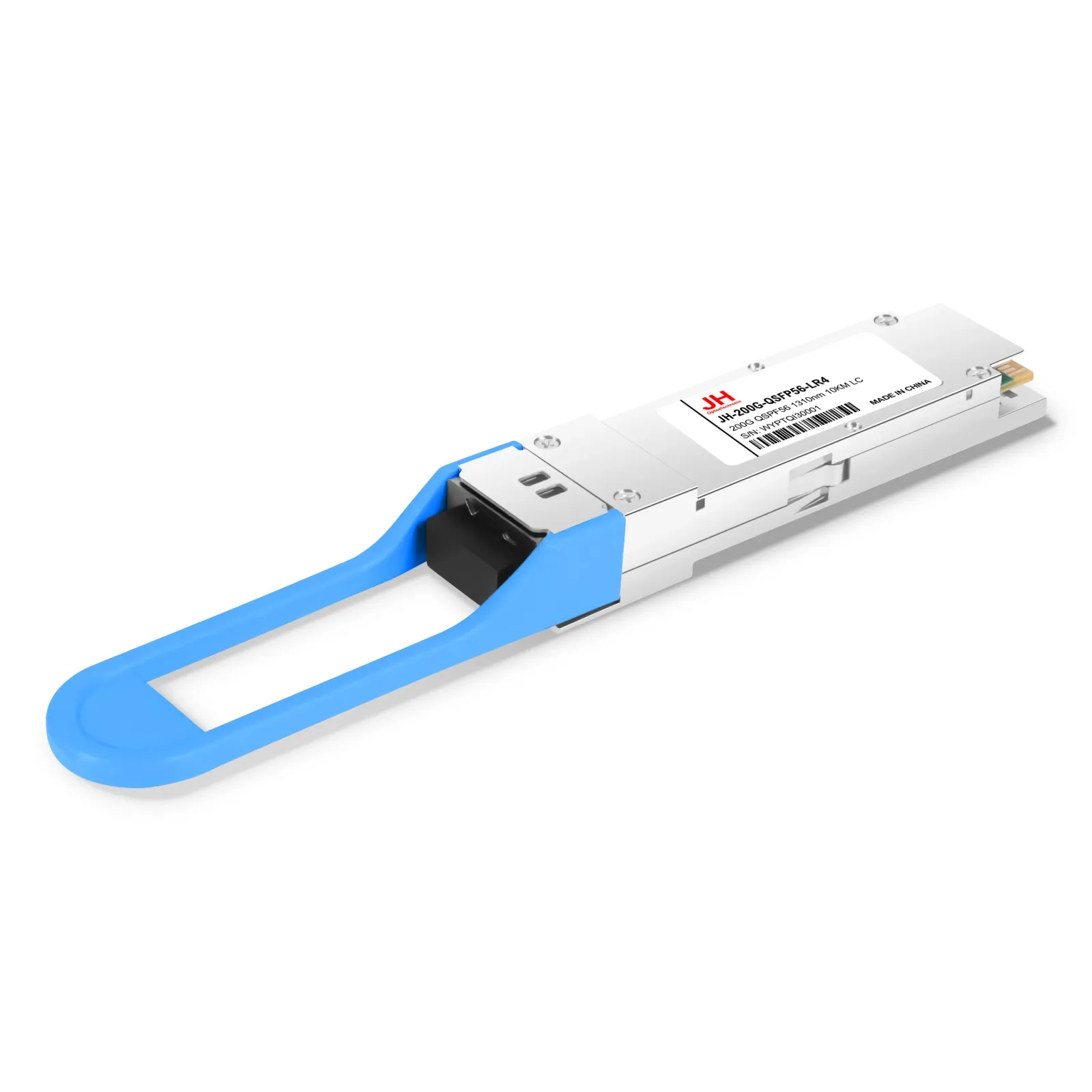

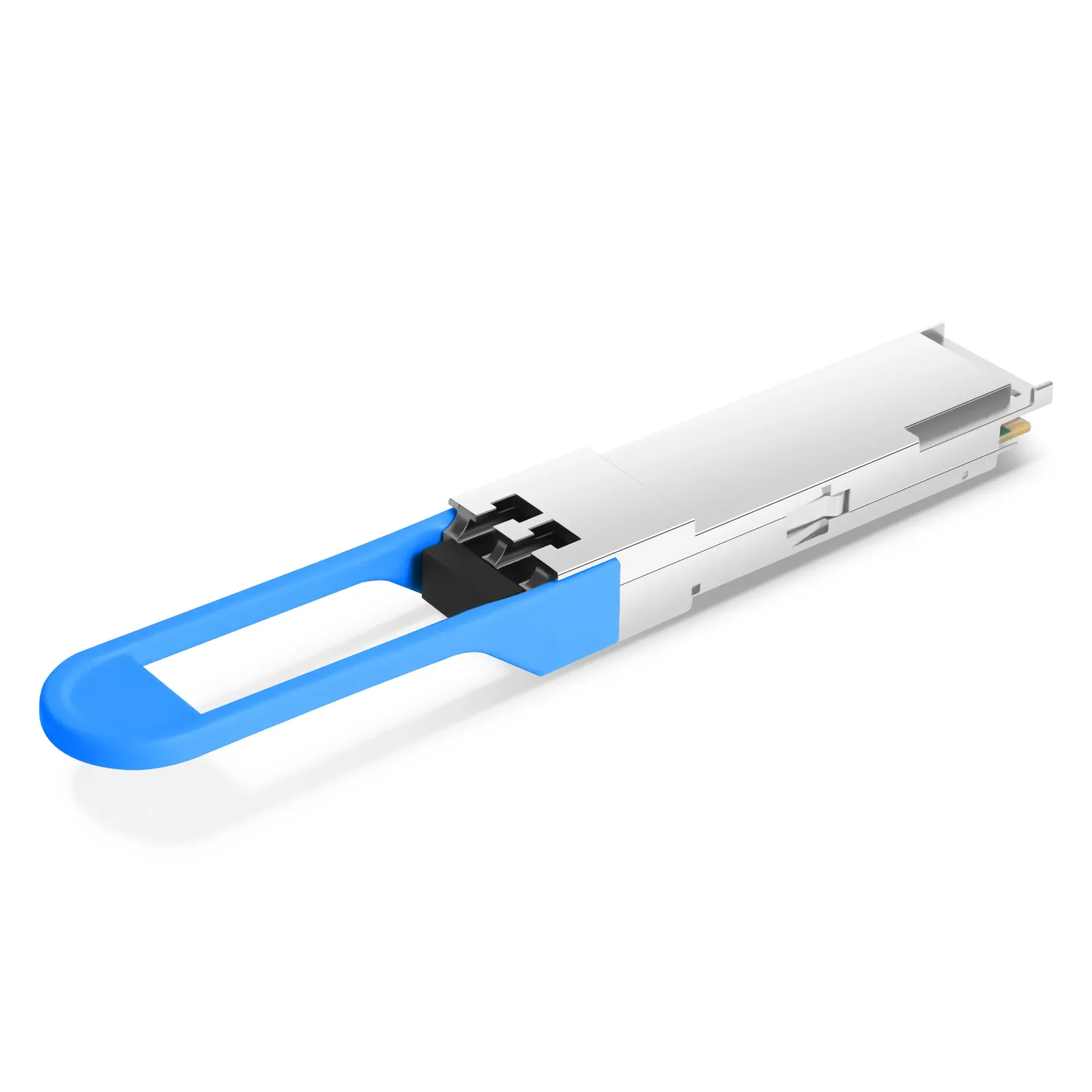

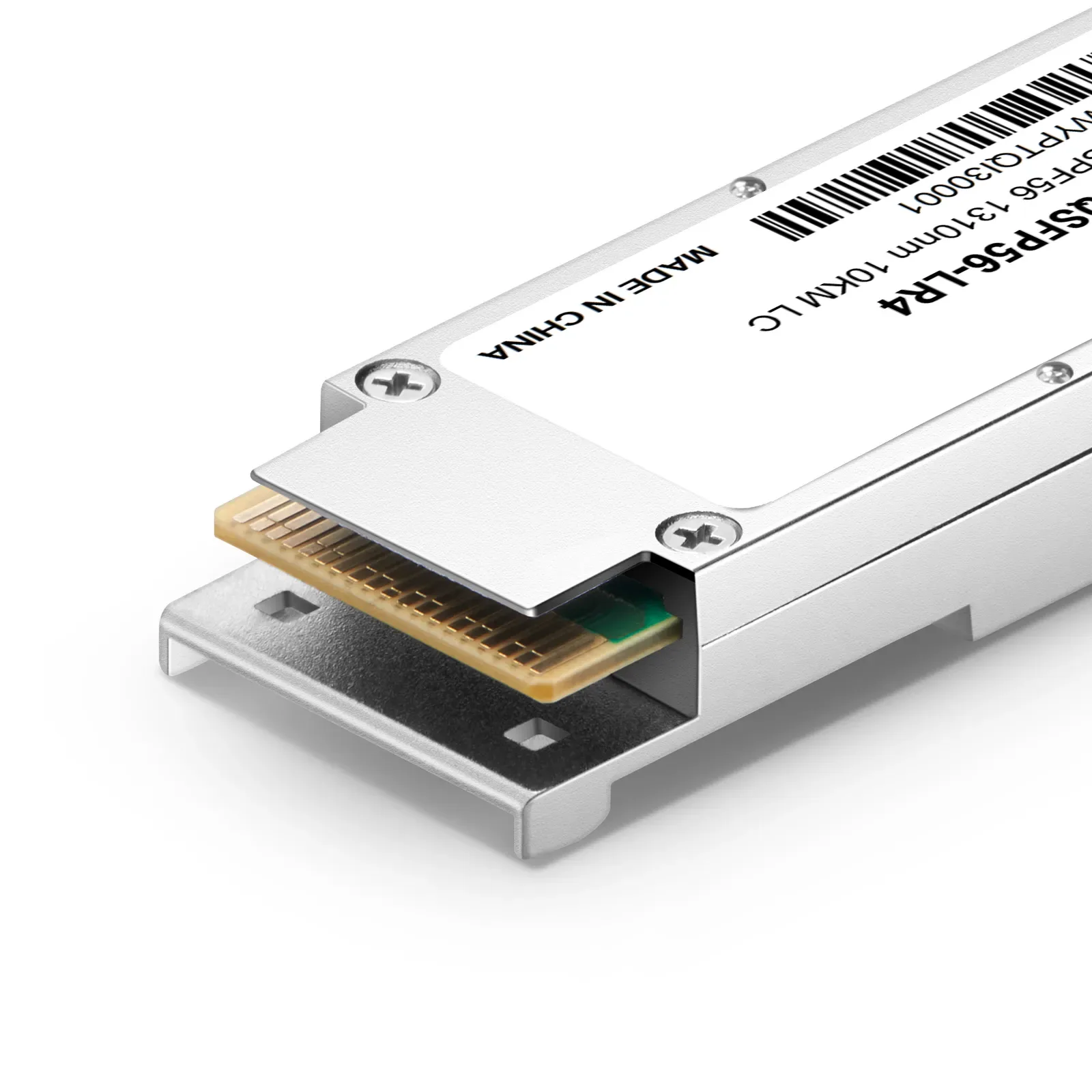

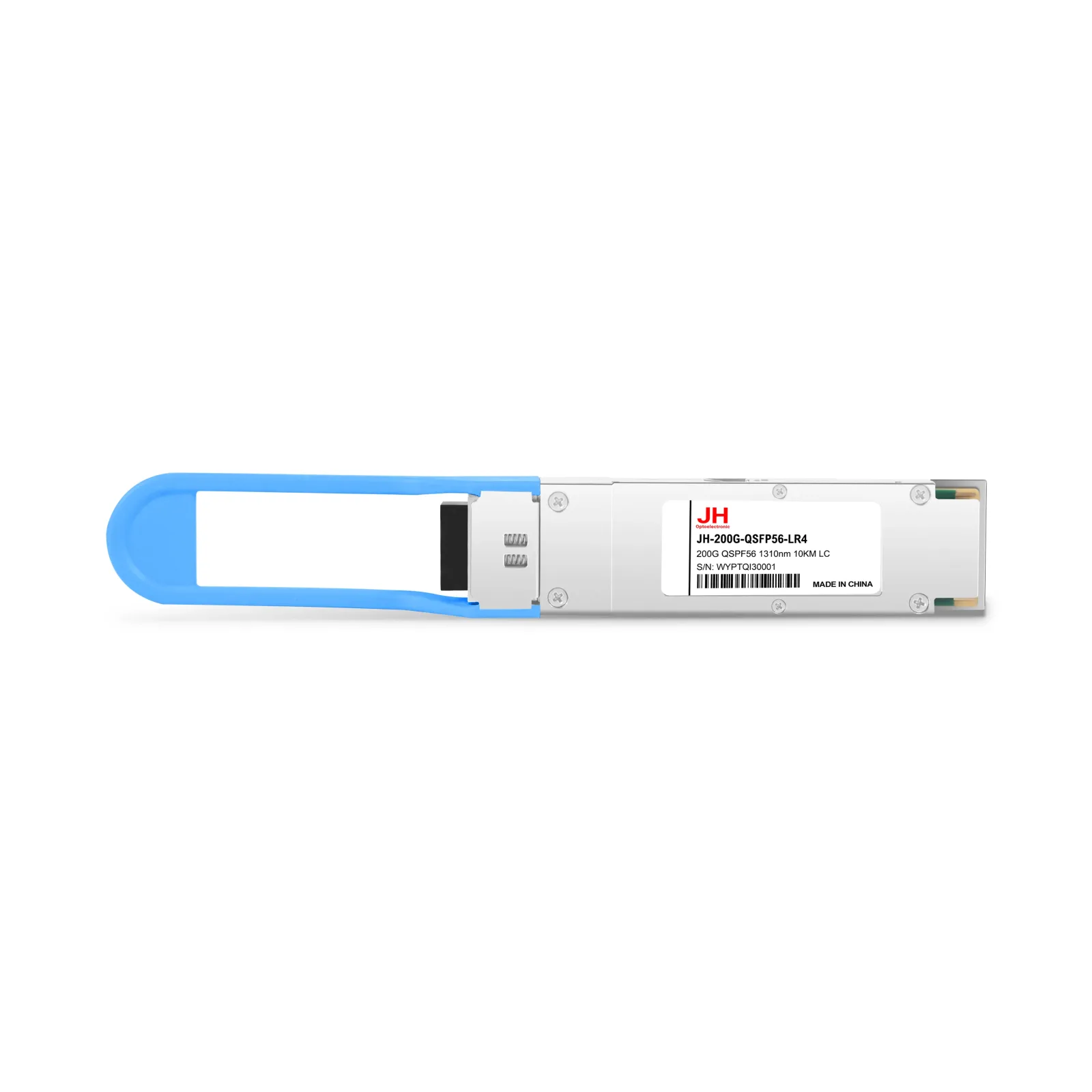

JH-200G-QSFP56-LR4

型号：200G QSFP56 1310nm 10KM LC

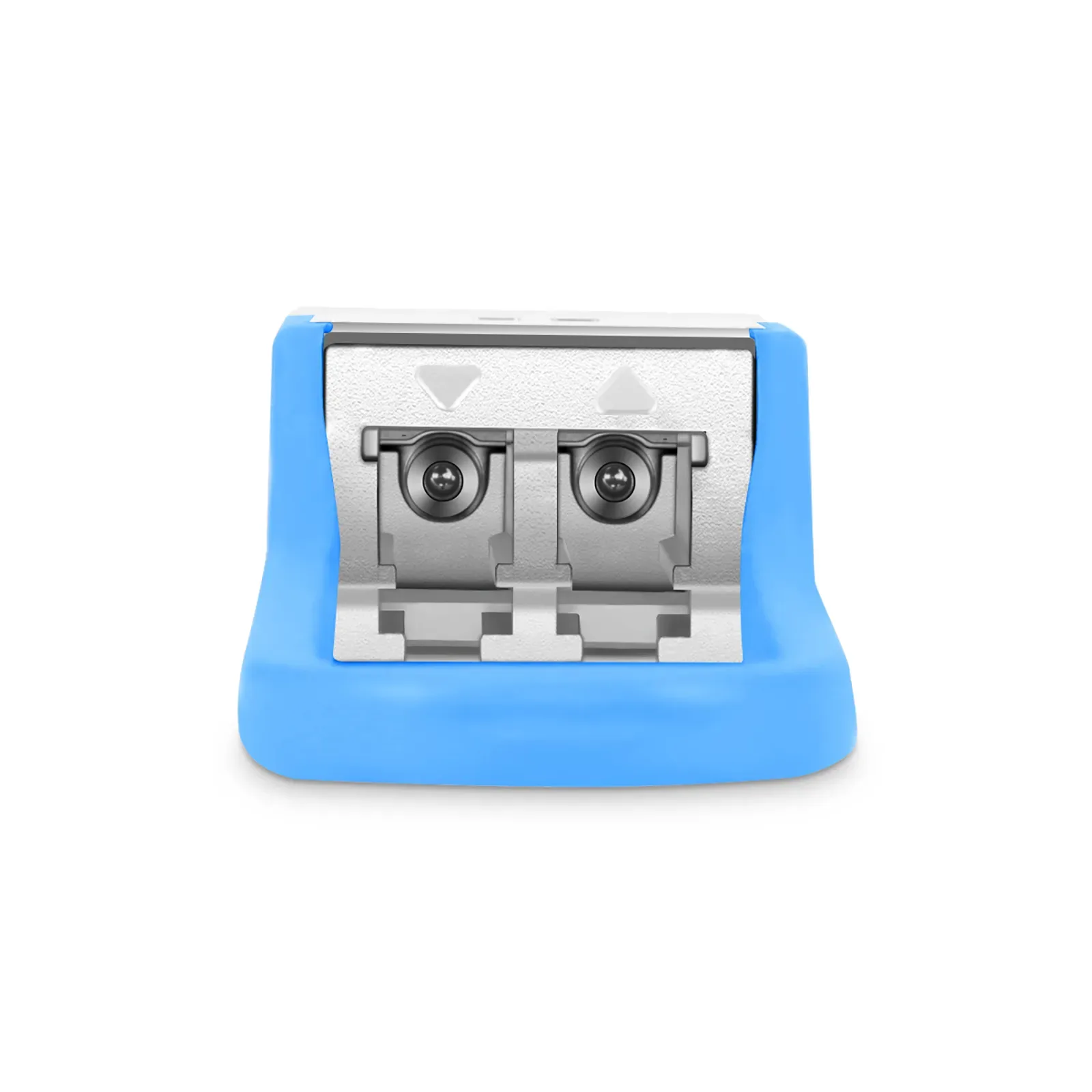

JH-200G-QSFP56-LR4 supports up to 10km link lengths over single-mode fiber (SMF) via an LC duplex connector.This transceiver is compliant with SFF-8661,and IEEE 802.3bs standards. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable for 200G Ethernet, Data Center, and 5G backhaul.

联系我们

产品特性

Hot-pluggable QSFP56 form factor
Supports 200Gbps data rate (4x50G PAM4), compliant with IEEE 802.3cd 200G Ethernet standard
Maximum power consumption < 8W
Commercial operating temperature range: 0~70
Single +3.3V power supply
Supports DDM/DOM digital diagnostic monitoring, PAM4 LAN-WDM wavelength multiplexing, hot-swappable
Class 1 laser safety certified, compliant with EN 60825-1 standard
Compliant with RoHS 2.0 environmental protection standard, lead-free design
Cloud DCI, Metro Aggregation

规格参数

Data Rate	200G
Distance	10KM
Wavelength	1310nm
Form Factor	QSFP56
Connector	LC
Case Temperature	0~70
Voltage Supply	3.3V
Transmitter	DFB
Receiver	PIN
TX Power	-3.4~5.3
Receiver Sensitivity	-9.7
Power consumption（Max）	8W
