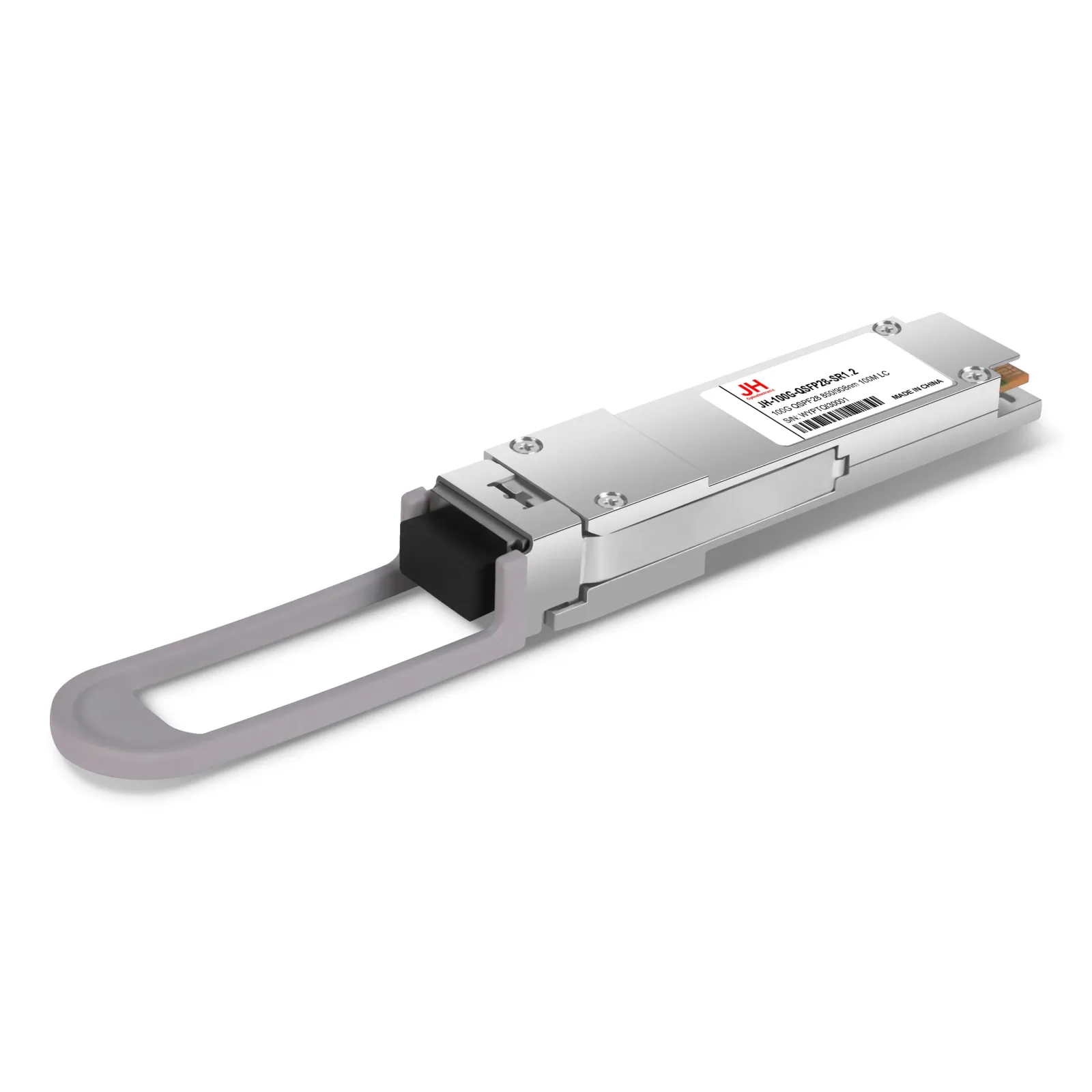

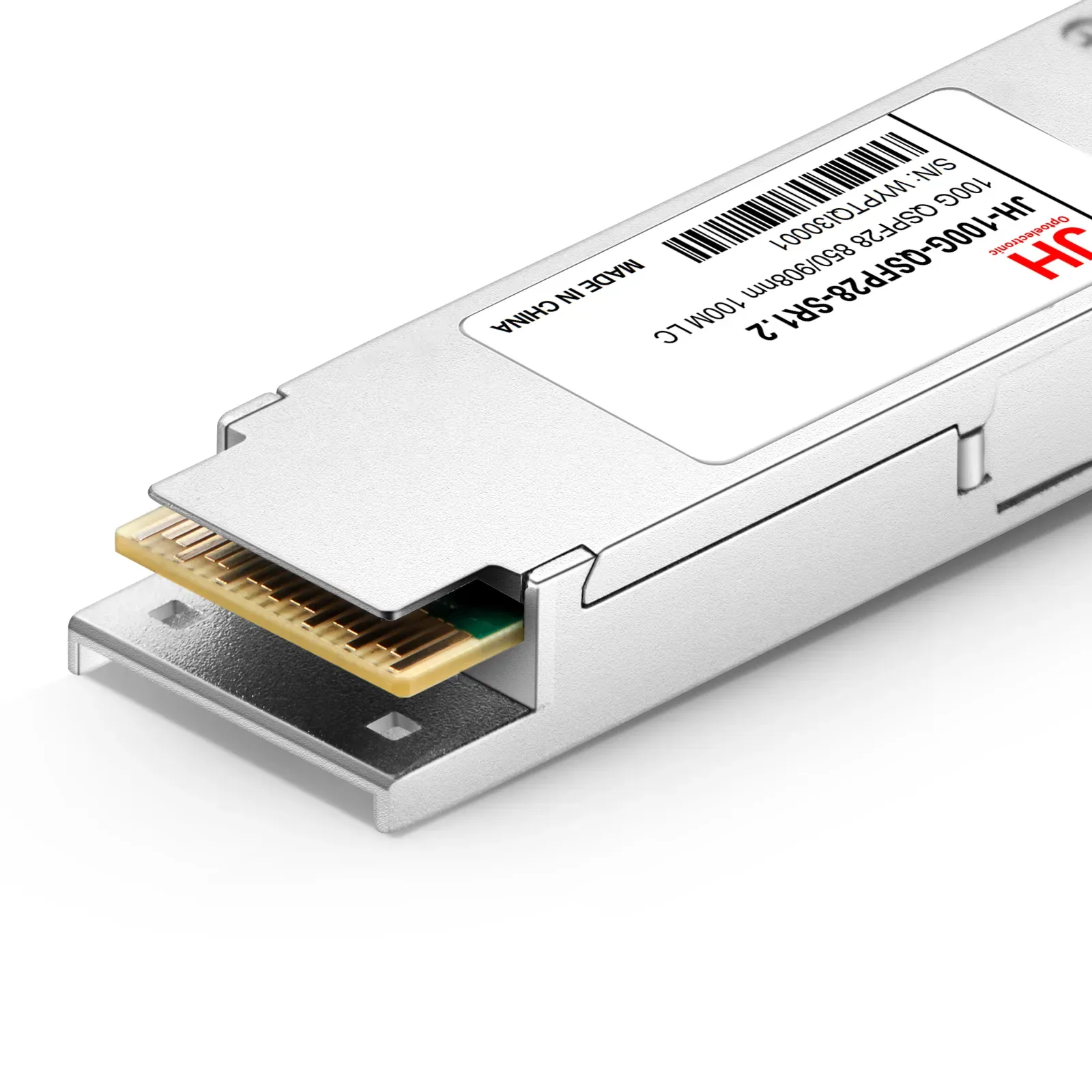

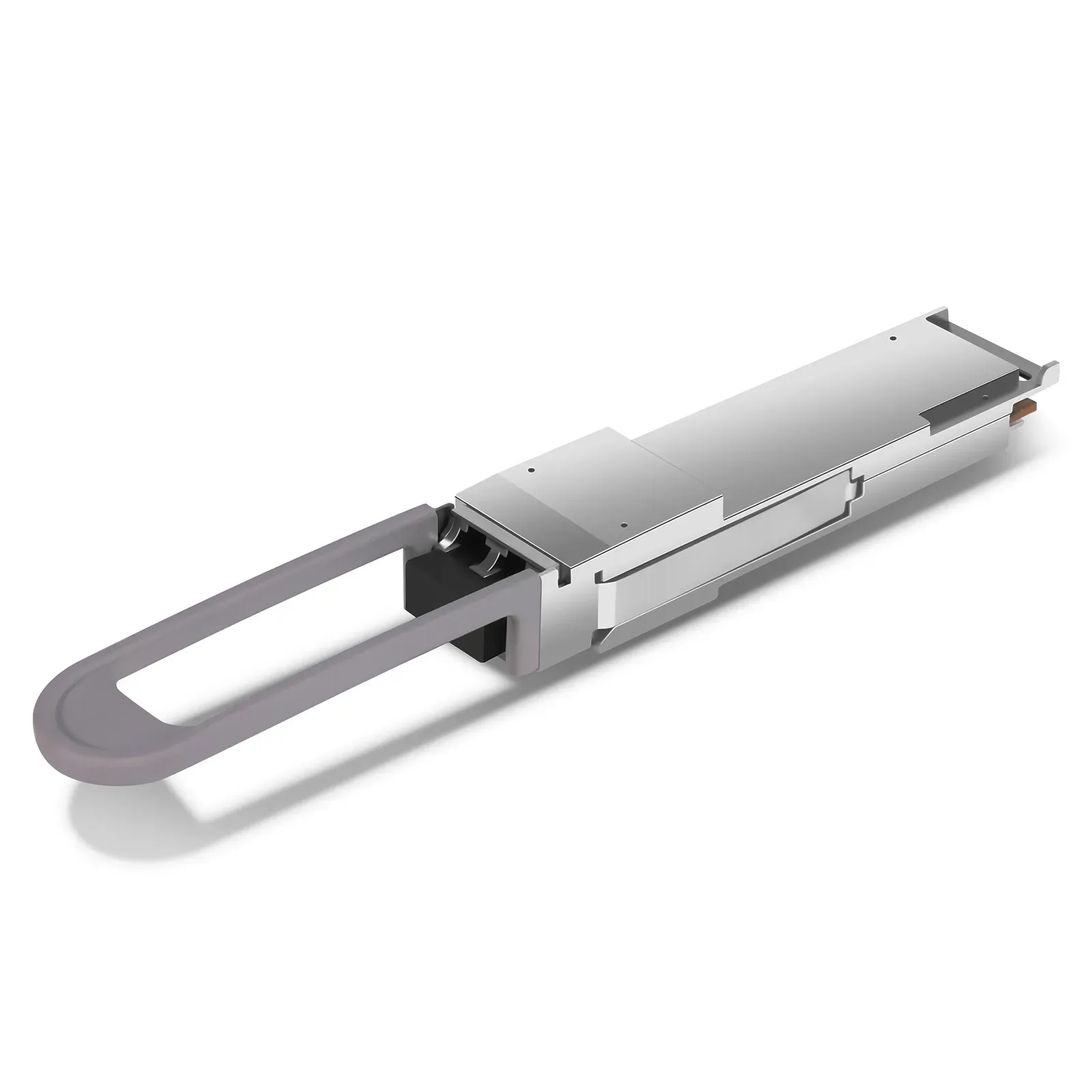

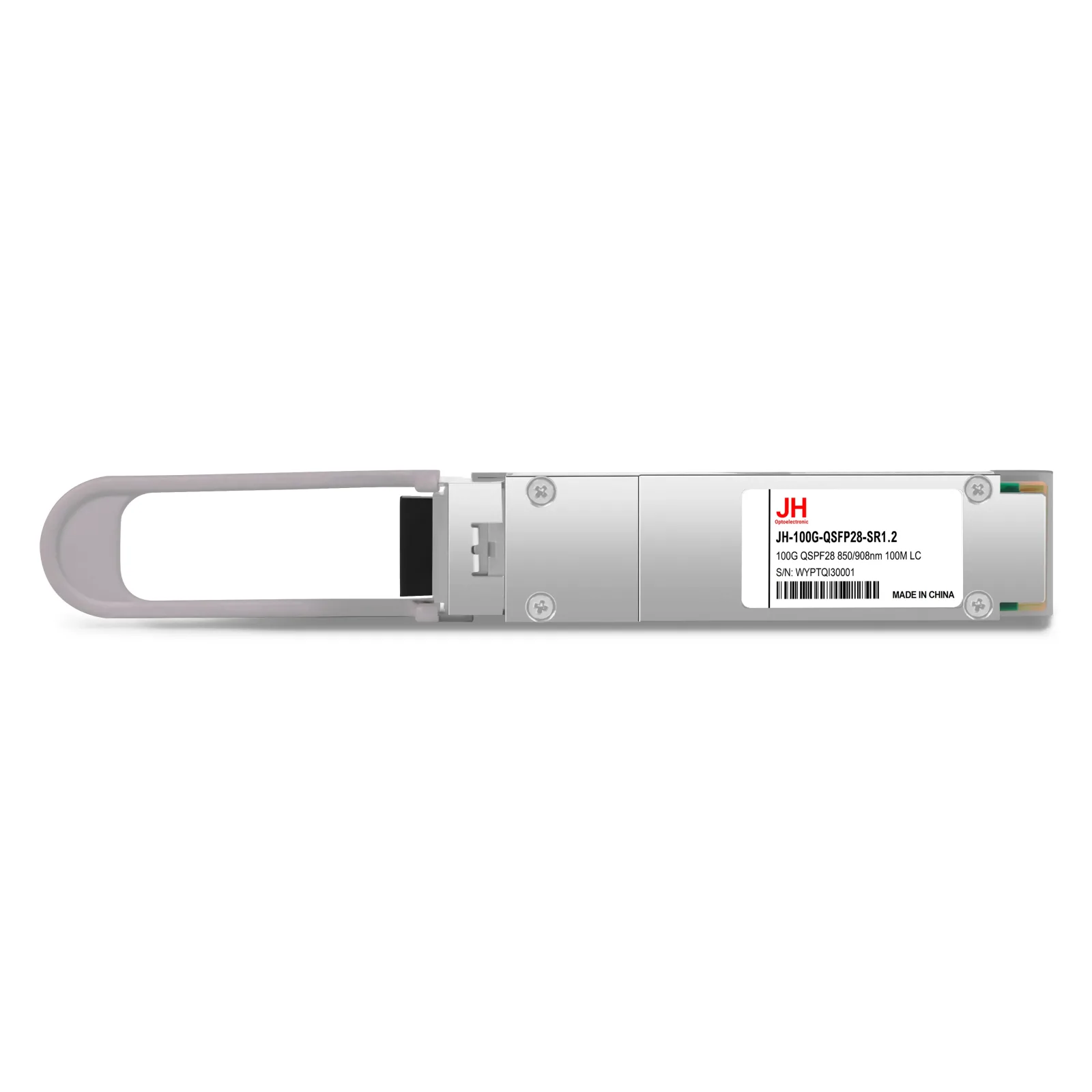

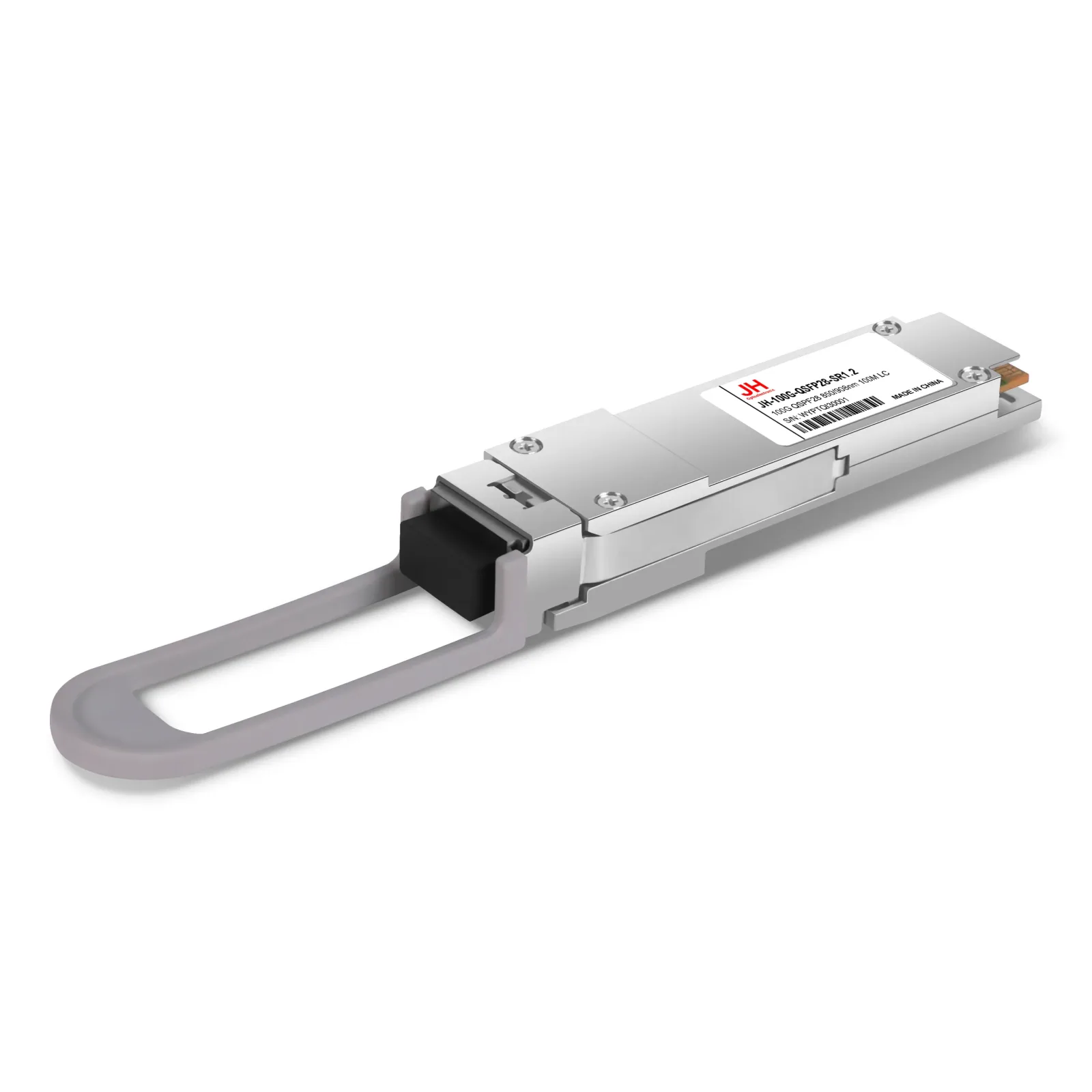

JH-100G-QSFP28-SR1.2

型号：100G QSFP28 850/908nm 100M LC

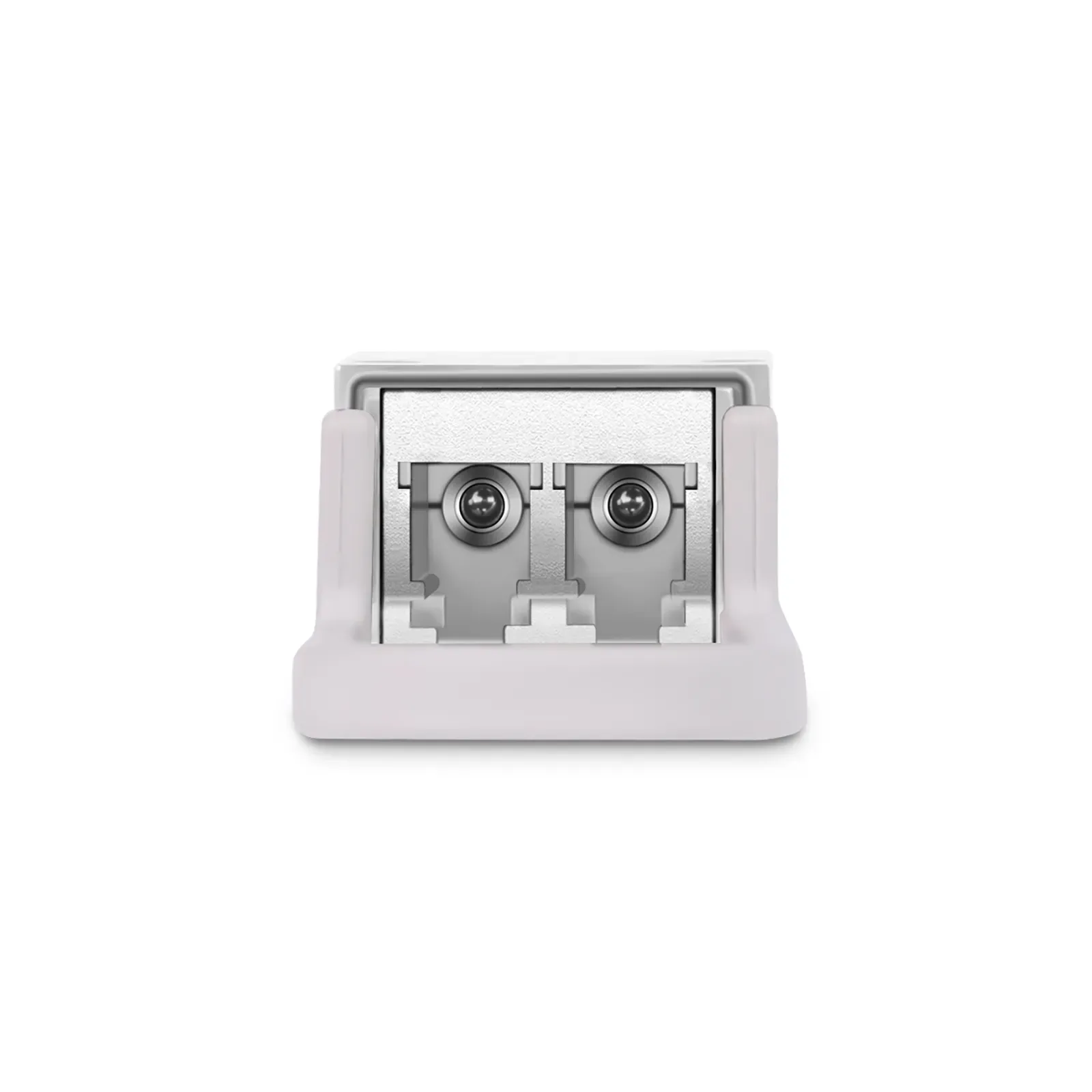

JH-100G-QSFP28-SR1.2 is a pluggable optical module with a duplex LC connector, designed for short-reach data communication and interconnect applications over Multi-Mode Fiber (MMF). Supporting 100Gb/s data rates, it integrates four electrical data channels into two optical lanes using Dual Wavelength VCSEL (850nm and 910nm) for optical communication. It offers customers a compelling solution that enables reuse of their existing 10/40Gb duplex MMF infrastructure for migration to 100G with a path to 400G.

联系我们

产品特性

Hot-pluggable QSFP28 form factor
Supports 100Gbps data transmission rate, compliant with IEEE 802.3ba 100G Ethernet standard
Maximum power consumption < 3.5W
Commercial operating temperature range: 0~70
Single +3.3V power supply
Supports DDM/DOM digital diagnostic monitoring function, low power consumption design, hot-swappable
Class 1 laser safety certified, compliant with EN 60825-1 standard
Compliant with RoHS 2.0 environmental protection standard, lead-free design
Data Center, Duplex MMF Backbone

规格参数

Data Rate	100G
Distance	100M
Wavelength	BIDI
Form Factor	QSFP28
Connector	LC
Case Temperature	0~70
Voltage Supply	3.3V
Transmitter	VCSEL
Receiver	PIN
TX Power	-6~4
Receiver Sensitivity	-3
Power consumption（Max）	3.5W
