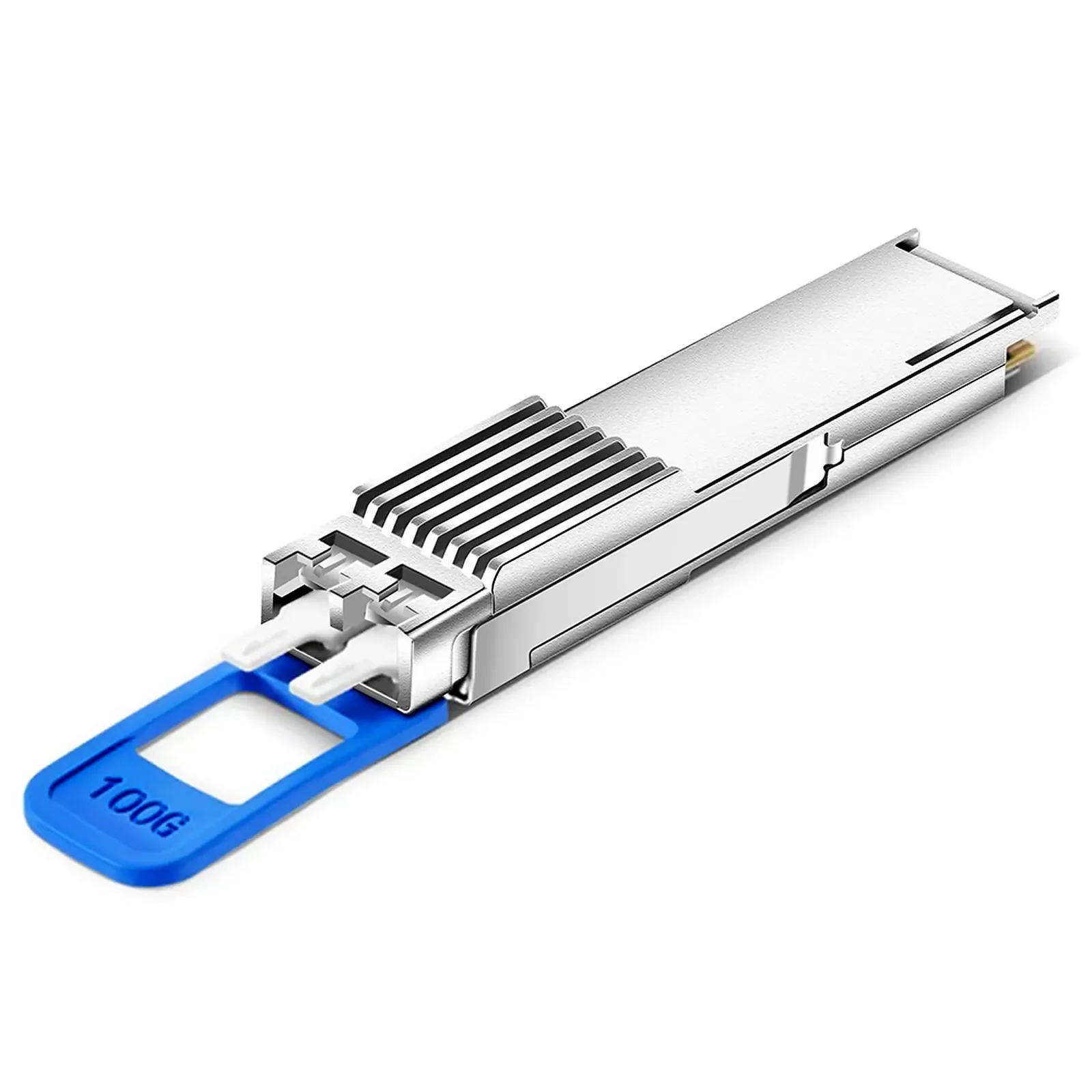

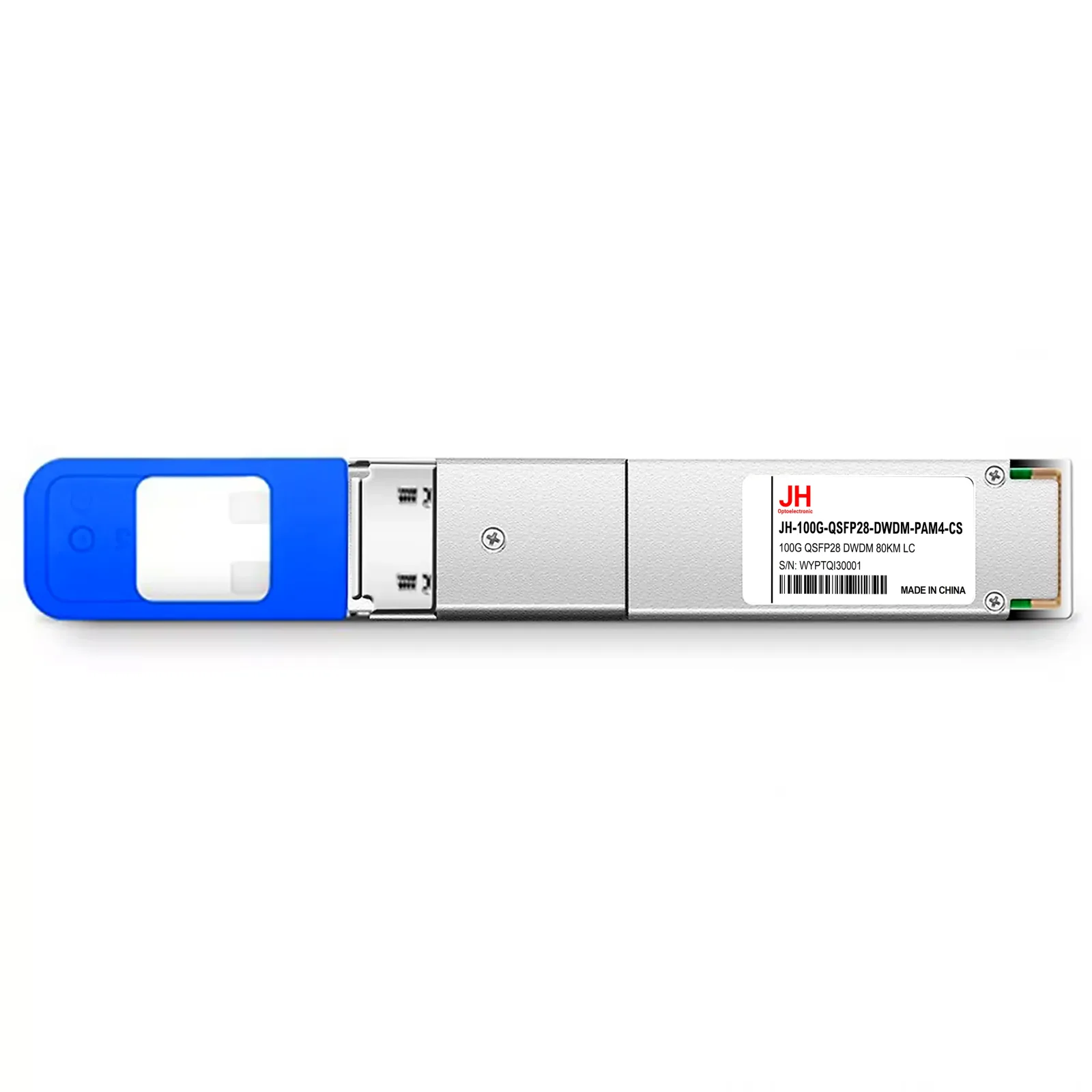

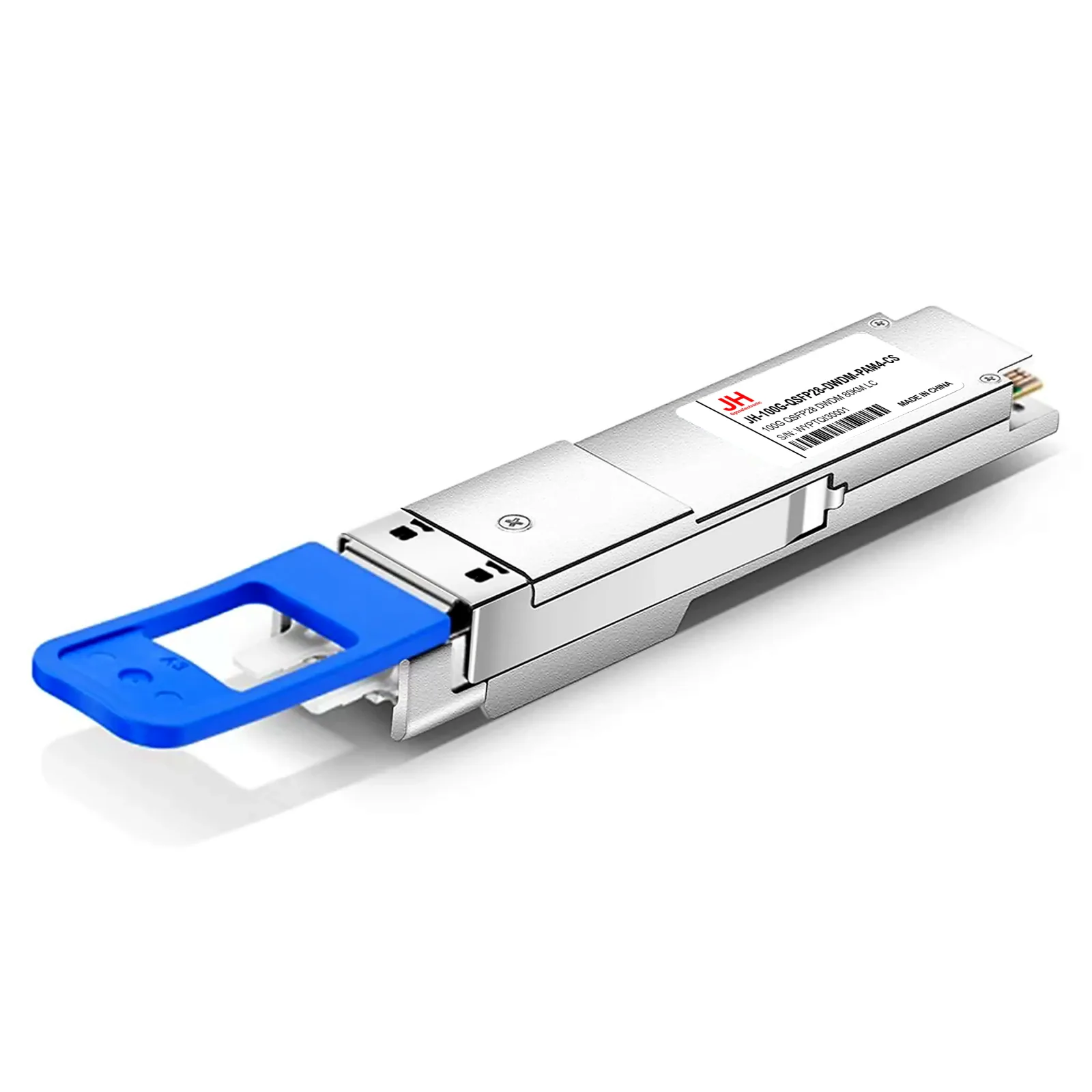

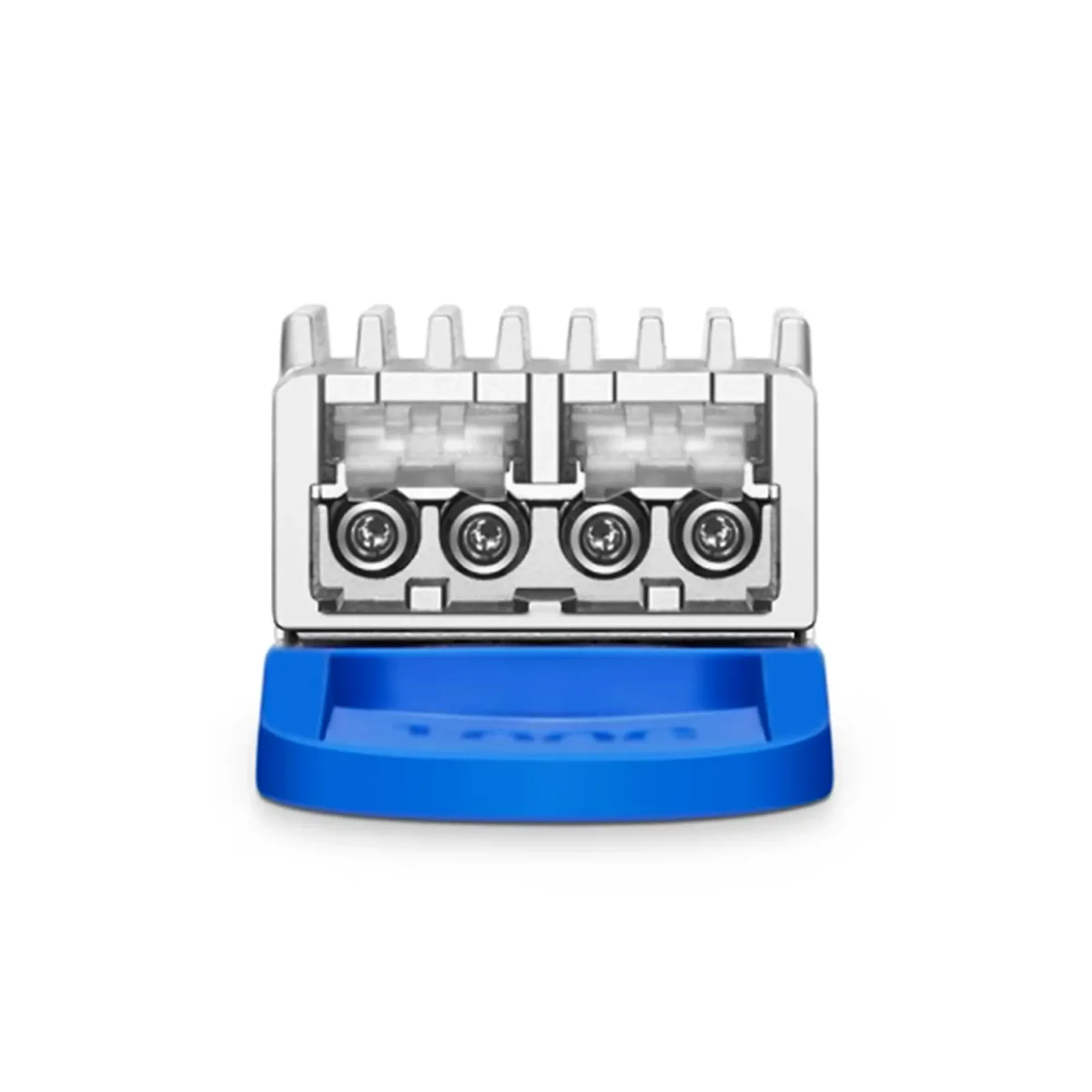

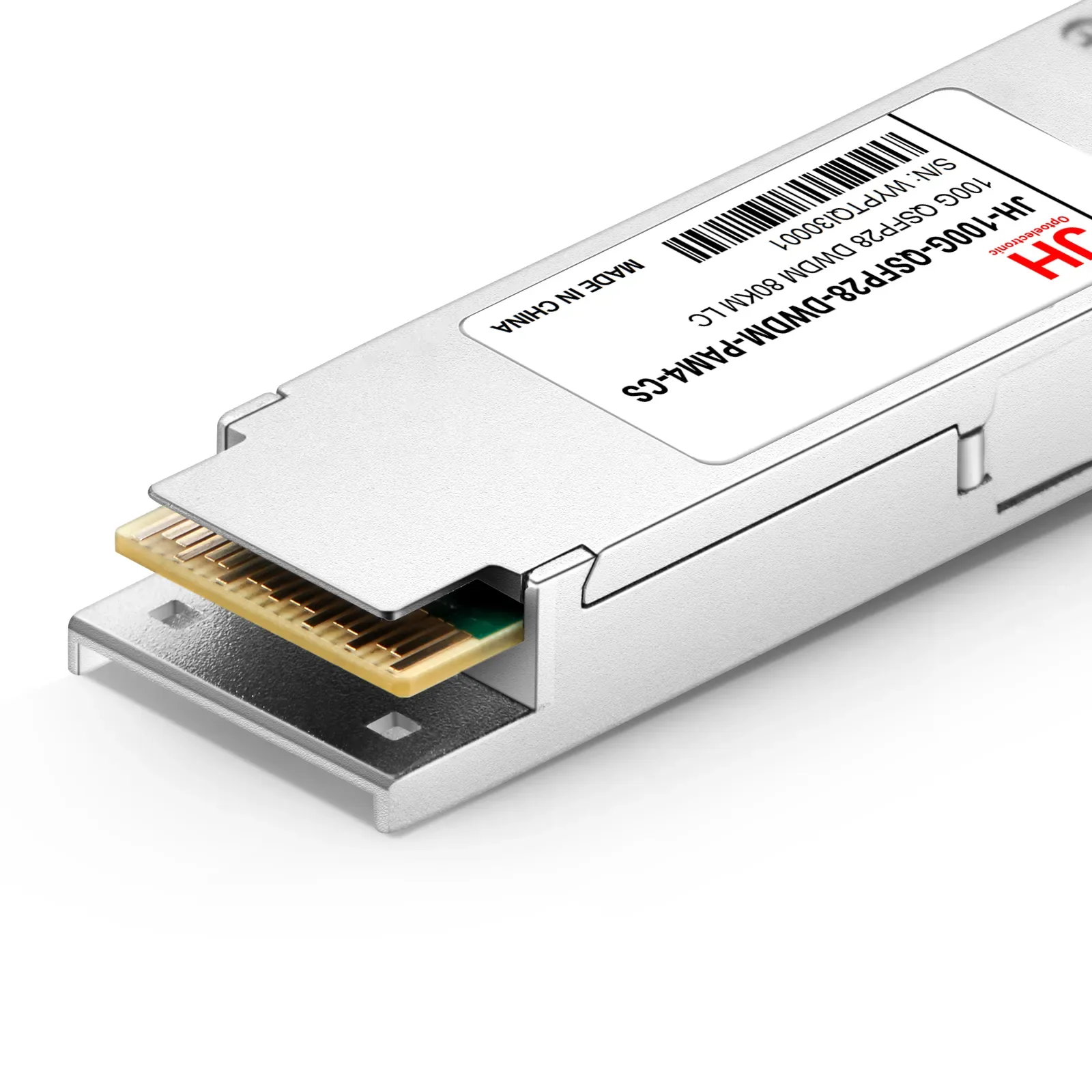

JH-100G-QSFP28-DWDM-PAM4-CS

型号：100G QSFP28 DWDM 80KM LC

JH-100G-QSFP28-DWDM-PAM4-CS supports to multiple 100G links up to 80km using TDCM and EDFA over single-mode fiber (SMF) via an CS connector. PAM4 modulation technology allows for DWDM connectivity in a QSFP28 form factor on the 100G ITU DWDM wavelength grid. This transceiver is compliant with IEEE 802.3bm, QSFP28 MSA, SFF-8636 and SFF-8024 standards. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. Featuring low power consumption, high speed and long transmission distance, this transceiver is ideal for DCI, 100G Ethernet Metro-Access over DWDM, Campus and Enterprise Links, etc.

联系我们

产品特性

Hot-pluggable QSFP28 form factor
Supports 100Gbps data transmission rate, compliant with IEEE 802.3ba 100G Ethernet standard
Maximum power consumption < 5.5W
Commercial operating temperature range: 0~70
Single +3.3V power supply
Supports DDM/DOM digital diagnostic monitoring function, low power consumption design, hot-swappable
Class 1 laser safety certified, compliant with EN 60825-1 standard
Compliant with RoHS 2.0 environmental protection standard, lead-free design
Carrier Metro/Long-Haul, DWDM Transport

规格参数

Data Rate	100G
Distance	80KM
Wavelength	DWDM
Form Factor	QSFP28
Connector	LC
Case Temperature	0~70
Voltage Supply	3.3V
Transmitter	EML
Receiver	PIN
TX Power	-1~+4
Receiver Sensitivity	-12.5
Power consumption（Max）	5.5W
