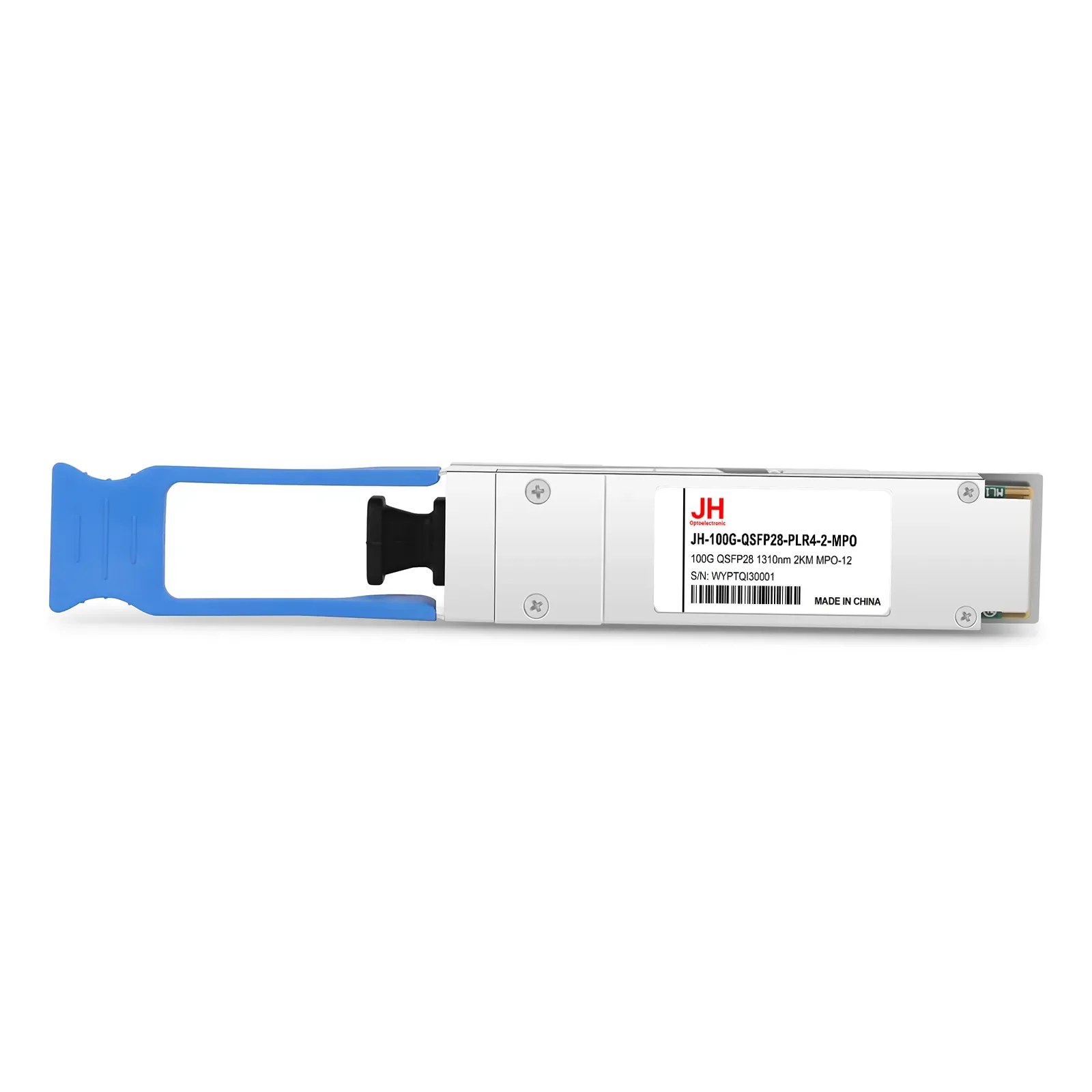

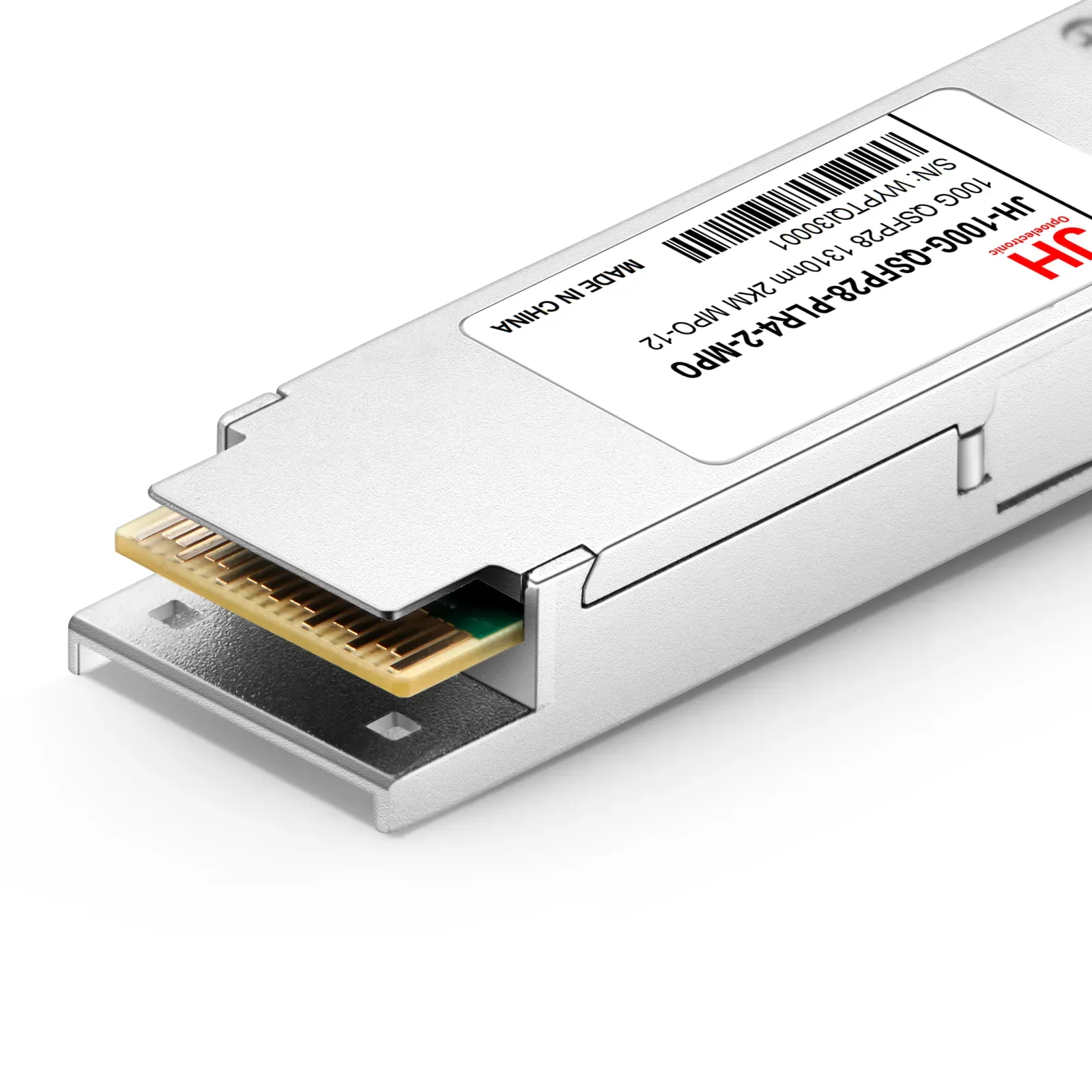

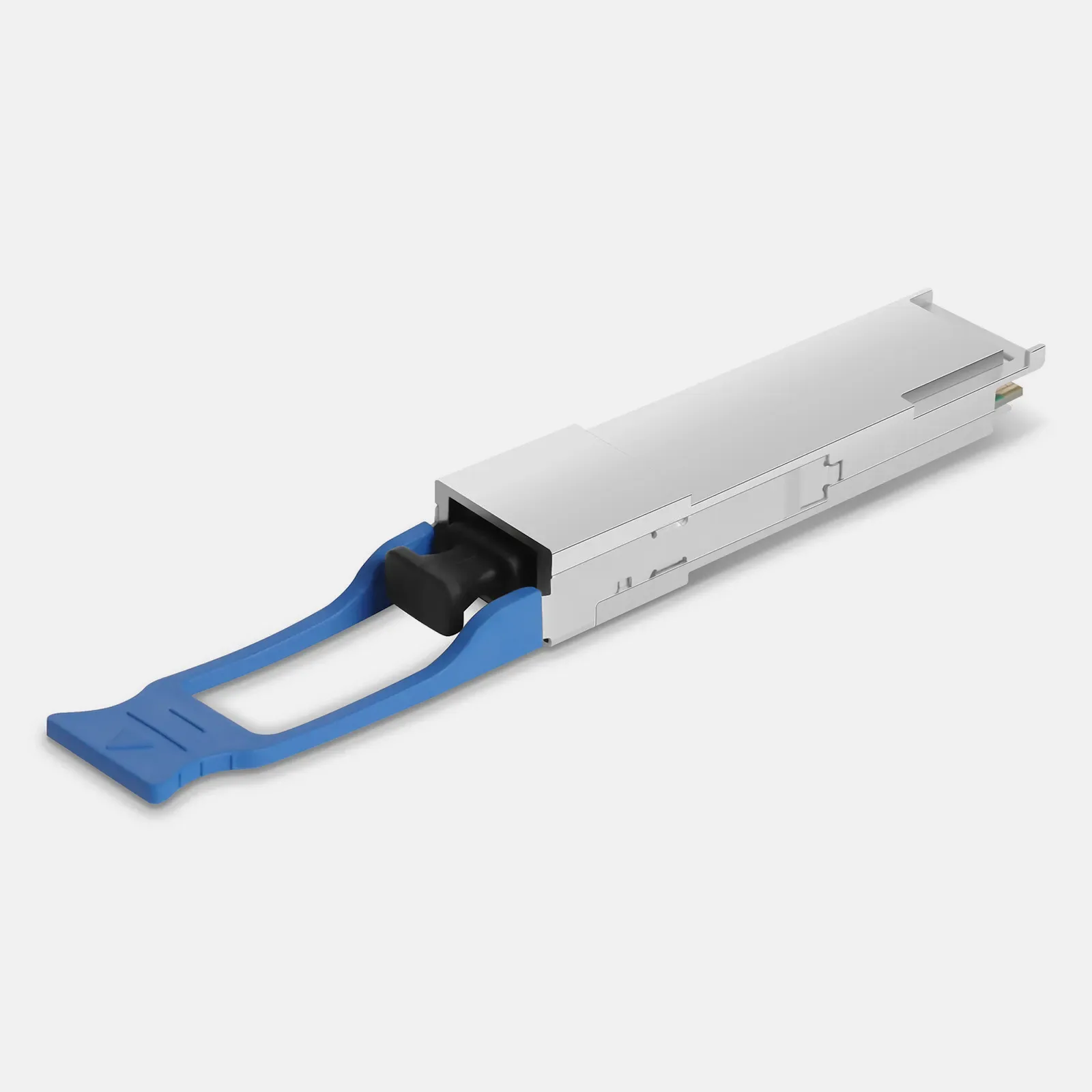

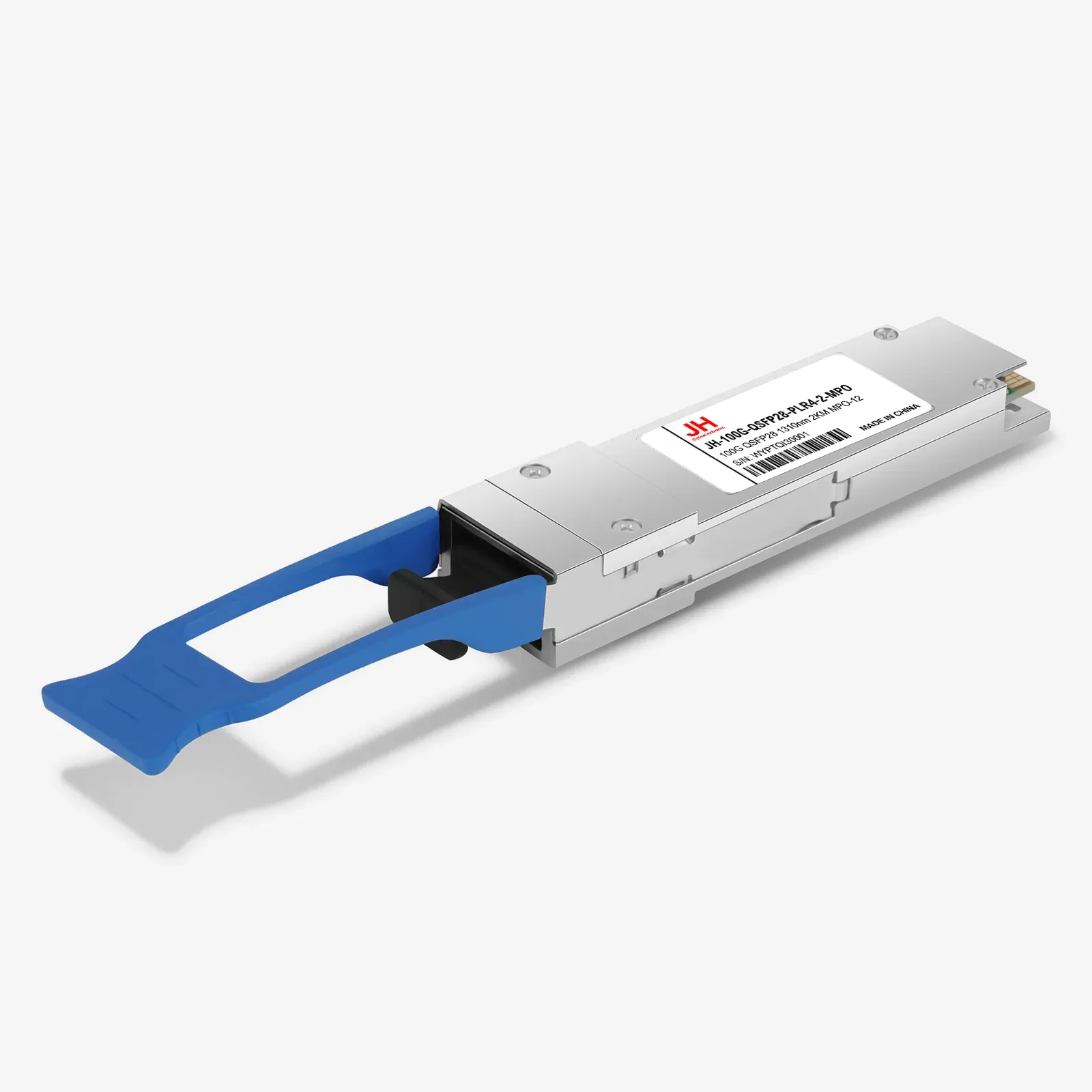

JH-100G-QSFP28-PLR4-2-MPO

型号：100G QSFP28 1310nm 2KM MPO-12

JH-100G-QSFP28-PLR4-2-MPO Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 2km over single mode fiber (SMF) using a wavelength of 1310nm via a MTP/MPO-12 connector. This transceiver is compliant with IEEE 802.3bm 100G-PLR4L MSA standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, high-performance computing networks, enterprise core and distribution layer applications.

联系我们

产品特性

Hot-pluggable QSFP28 form factor
Supports 100Gbps data rate (4x25G NRZ), compliant with IEEE 802.3ba 100G Ethernet standard
Maximum power consumption < 3.5W
Commercial operating temperature range: 0~70
Single +3.3V power supply
Supports DDM/DOM digital diagnostic monitoring, LAN-WDM wavelength multiplexing, 25G NRZ, hot-swappable
Class 1 laser safety certified, compliant with EN 60825-1 standard
Compliant with RoHS 2.0 environmental protection standard, lead-free design
Data Center Aggregation, Campus Backbone

规格参数

Data Rate	100G
Distance	2KM
Wavelength	1310nm
Form Factor	QSFP28

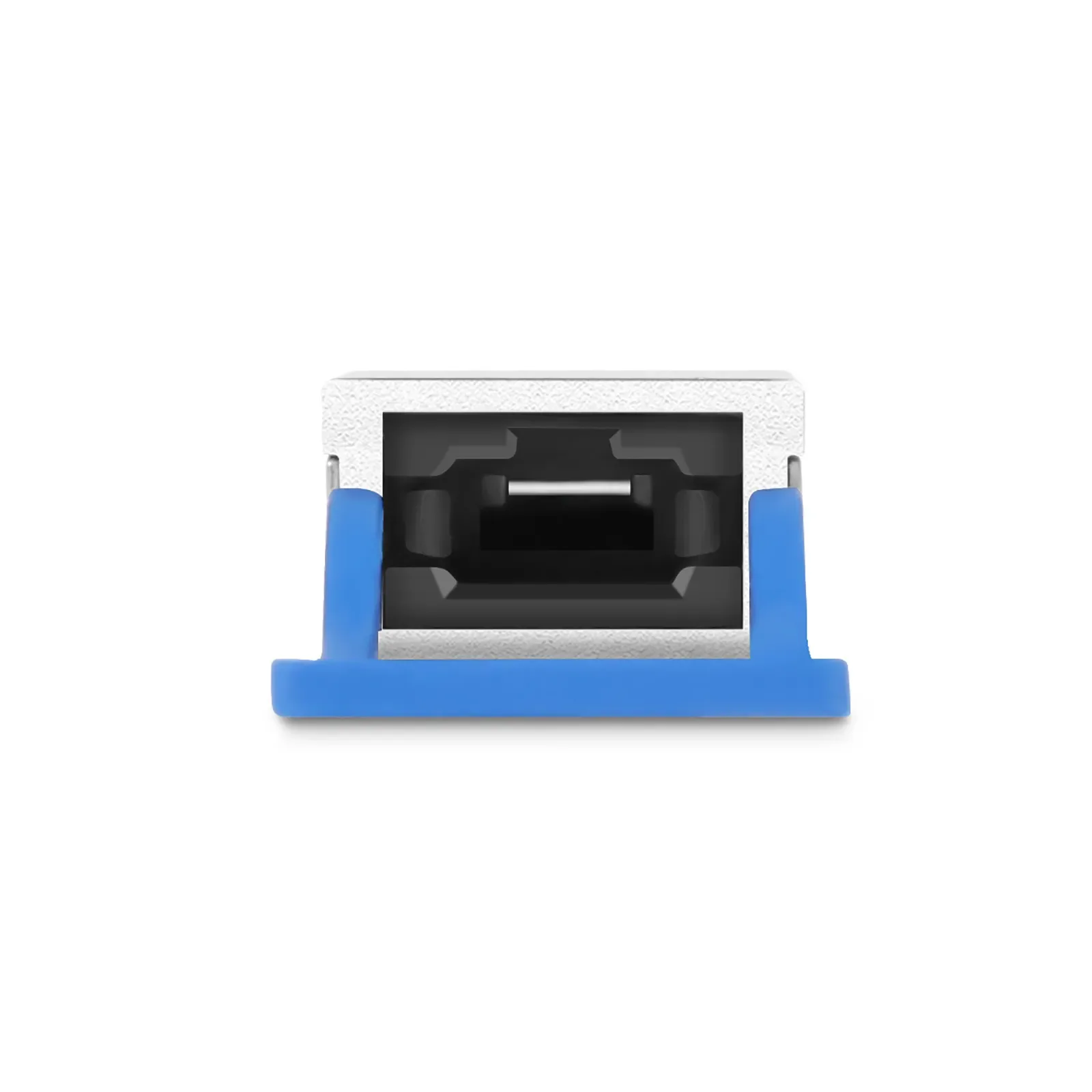

Connector	MPO-12
Case Temperature	0~70
Voltage Supply	3.3V
Transmitter	DFB
Receiver	PIN
TX Power	-6~2
Receiver Sensitivity	-11
Power consumption（Max）	3.5W

规格书

规格书下载

Datasheet
