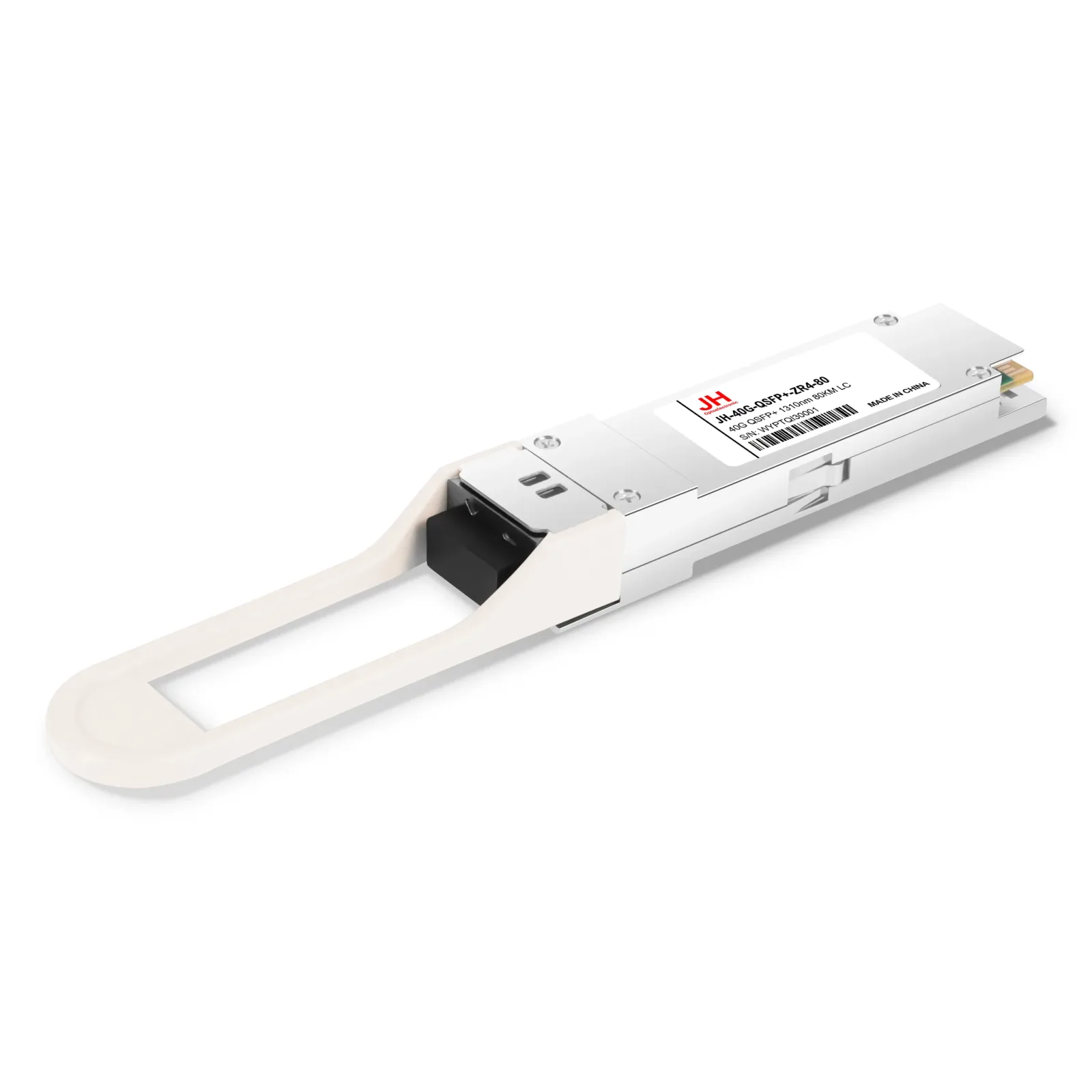

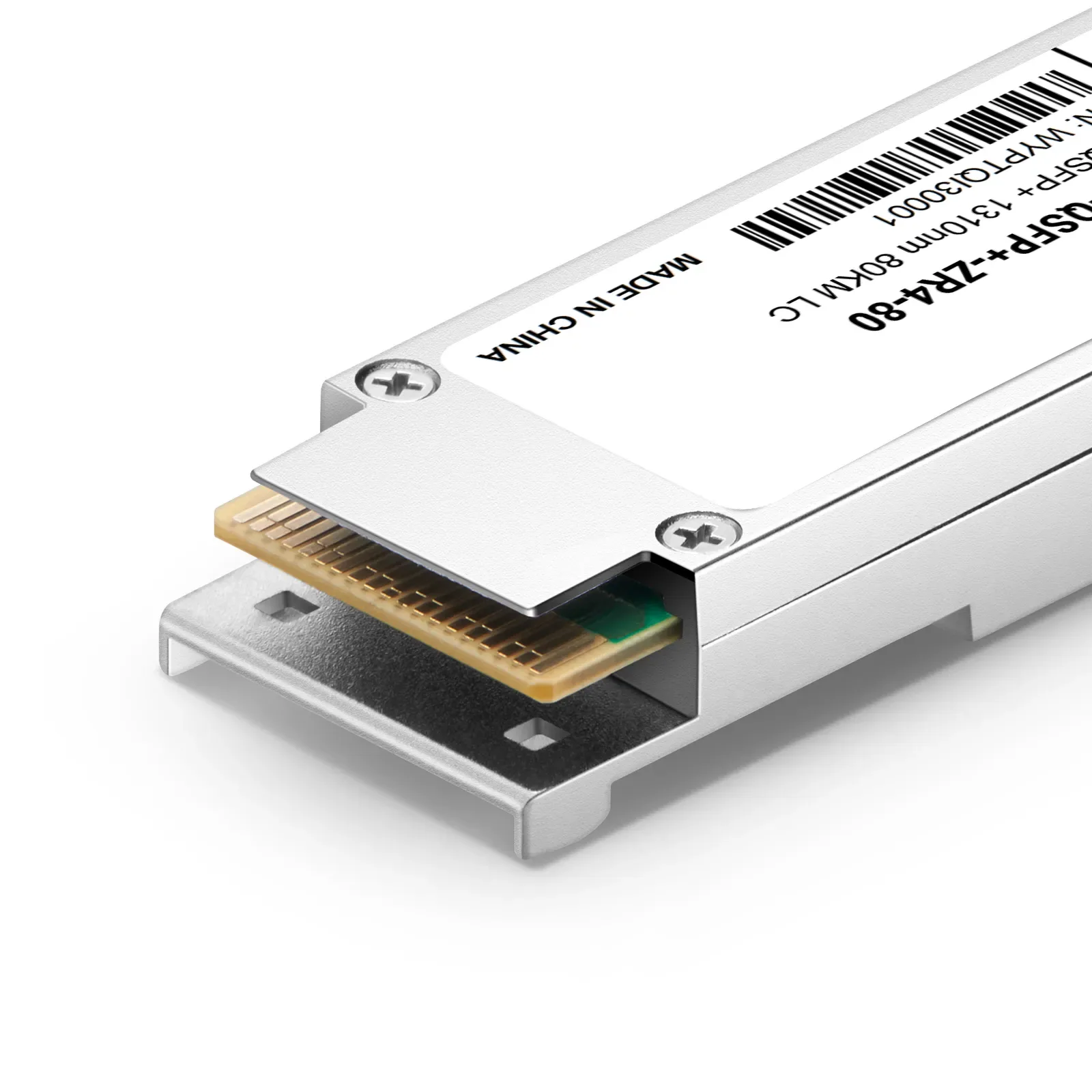

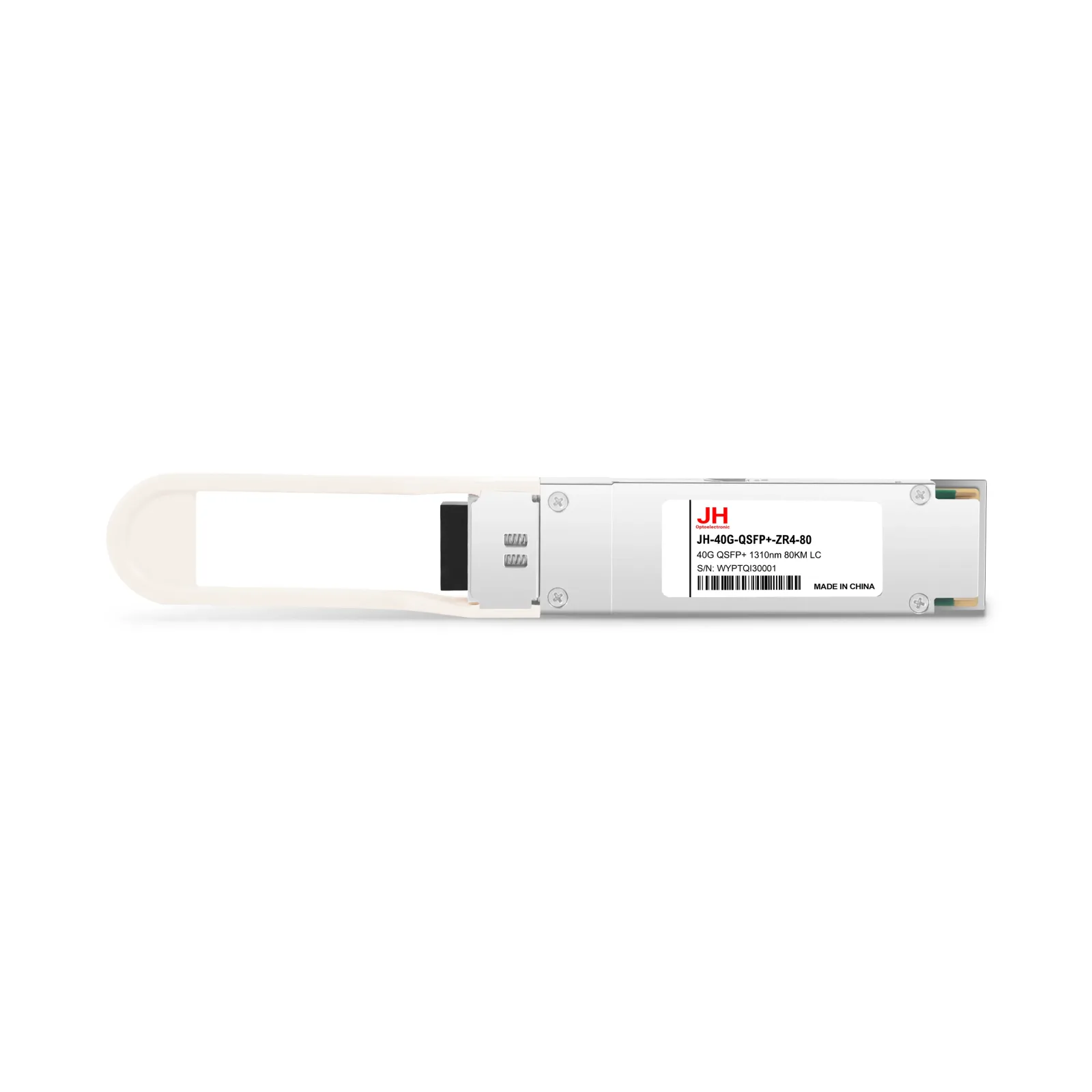

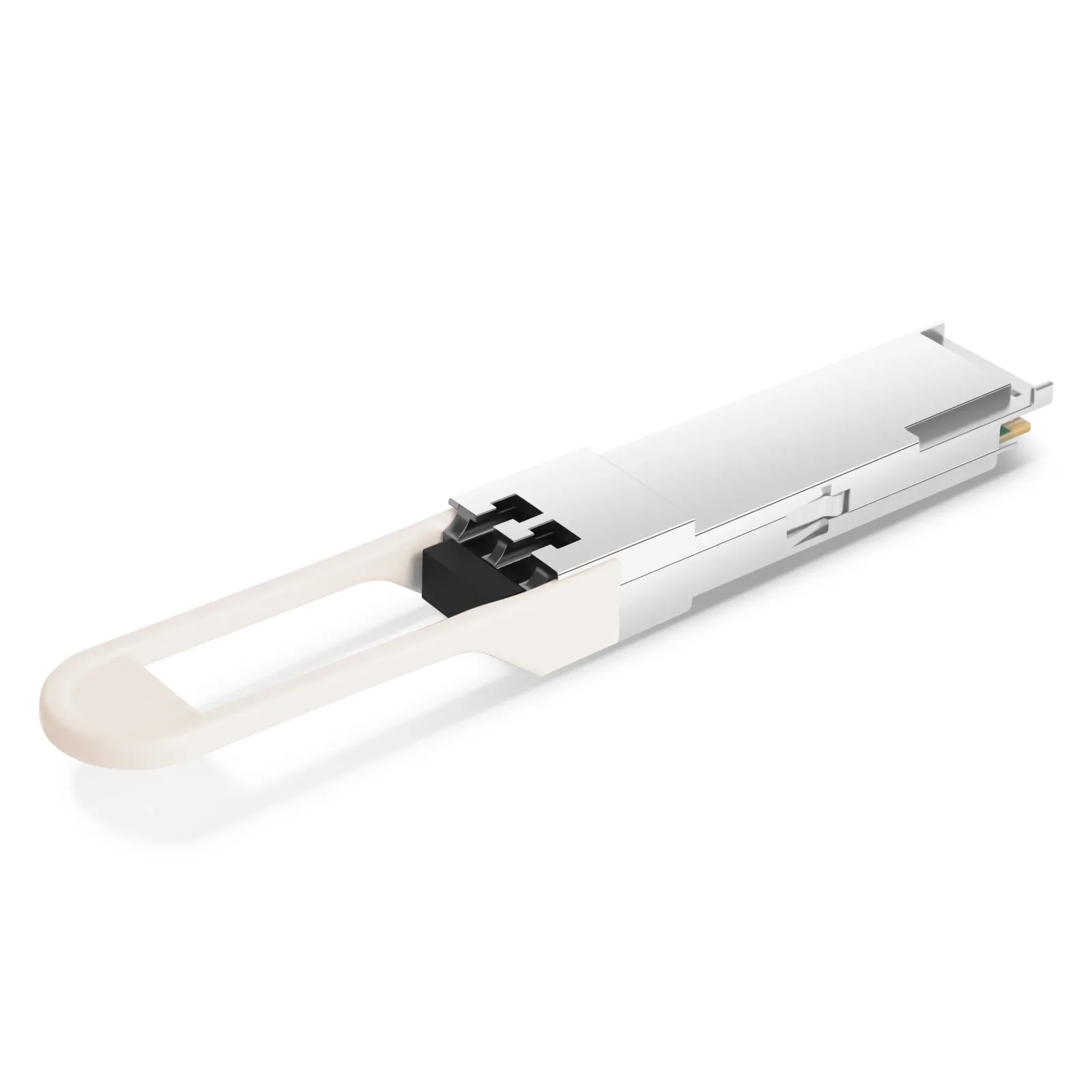

JH-40G-QSFP+-ZR4-80

型号：40G QSFP+ 1310nm 80KM LC

JH-40G-QSFP+-ZR4-80 is designed for use in 40GBASE Ethernet throughput up to 80km over single mode fiber (SMF) using a wavelength of 1310nm via duplex LC connectors. This transceiver is compliant with QSFP+ MSA and RoHS standards. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP+ MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, high-performance computing networks, enterprise core and distribution layer applications.

联系我们

产品特性

Hot-pluggable QSFP+ form factor
Supports 40Gbps data transmission rate, compliant with IEEE 802.3ba 40G Ethernet standard
Maximum power consumption < 5W
Commercial operating temperature range: 0~70
Single +3.3V power supply
Supports DDM/DOM digital diagnostic monitoring function, low power consumption design, hot-swappable
Class 1 laser safety certified, compliant with EN 60825-1 standard
Compliant with RoHS 2.0 environmental protection standard, lead-free design
Metro Core, ISP Backhaul

规格参数

Data Rate	40G
Distance	80KM
Wavelength	1310nm
Form Factor	QSFP+

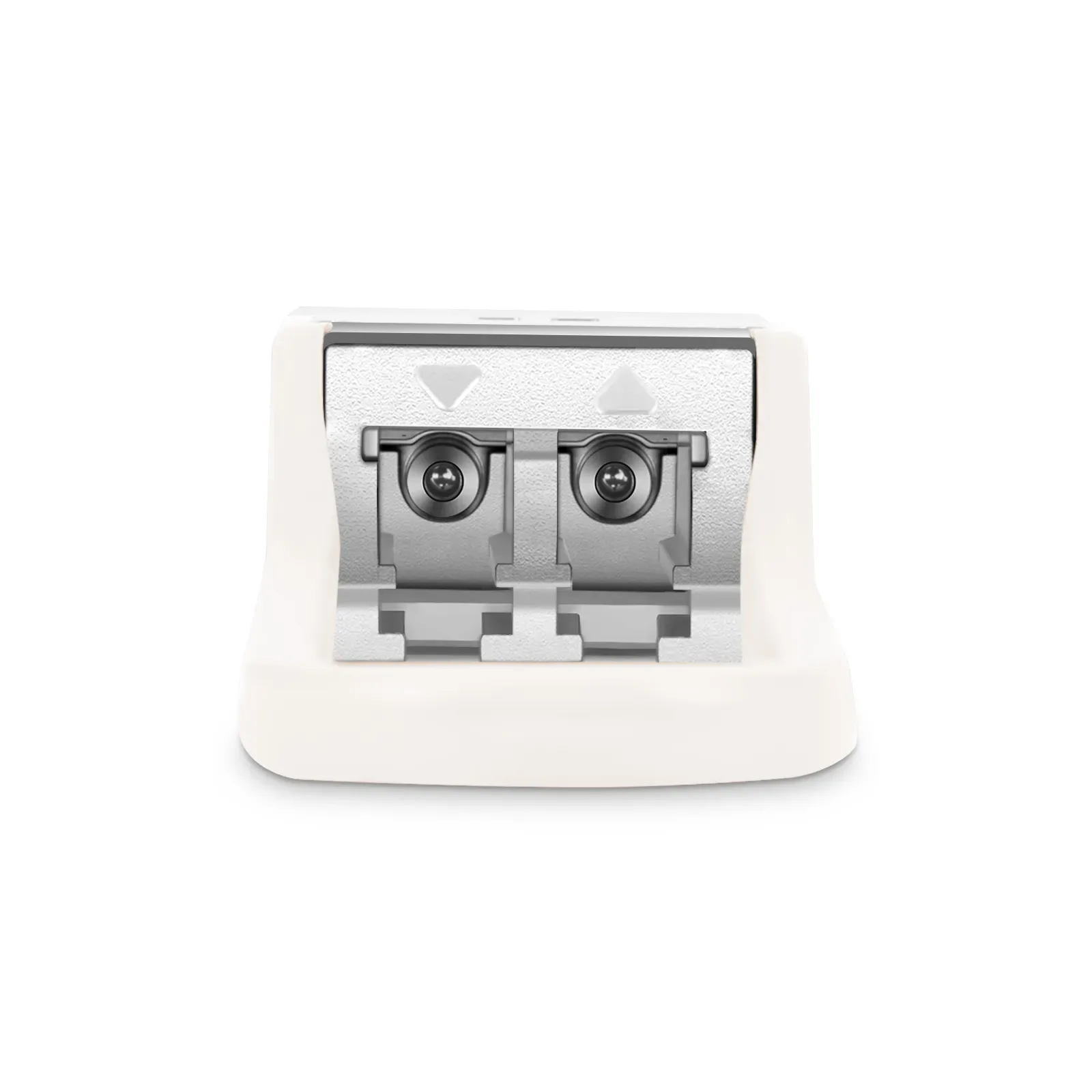

Connector	LC
Case Temperature	0~70
Voltage Supply	3.3V
Transmitter	EML
Receiver	APD
TX Power	2~7
Receiver Sensitivity	-24
Power consumption（Max）	5W
