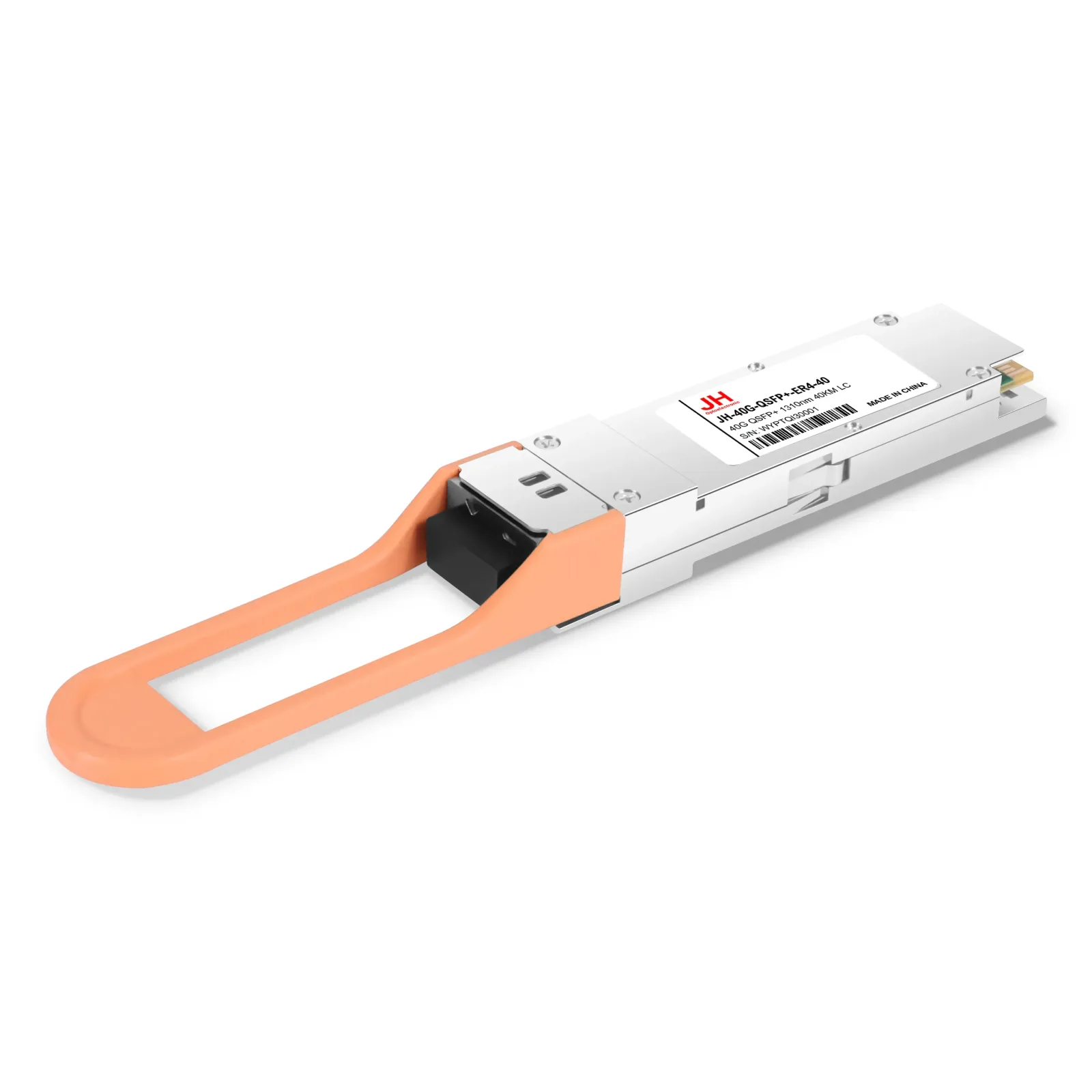

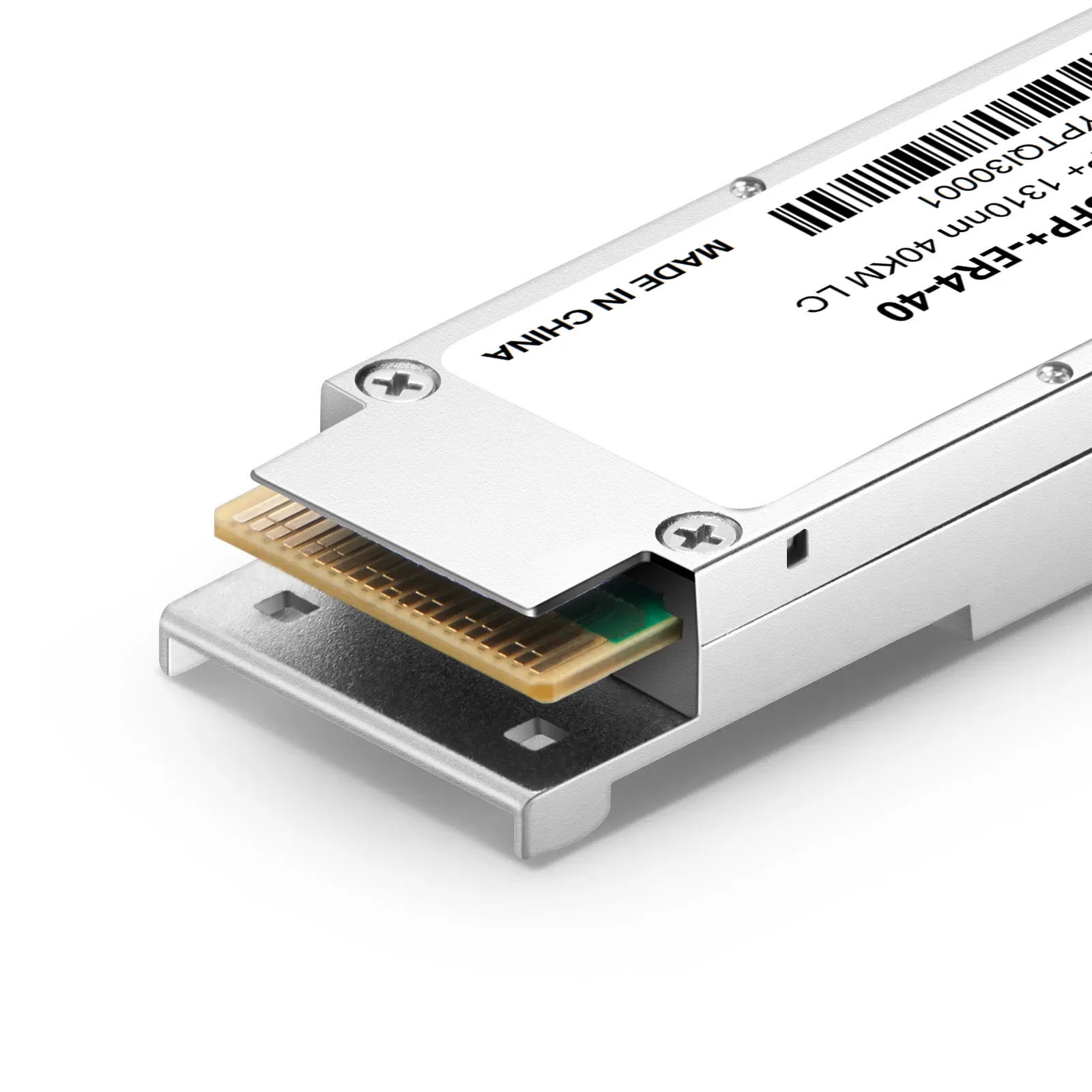

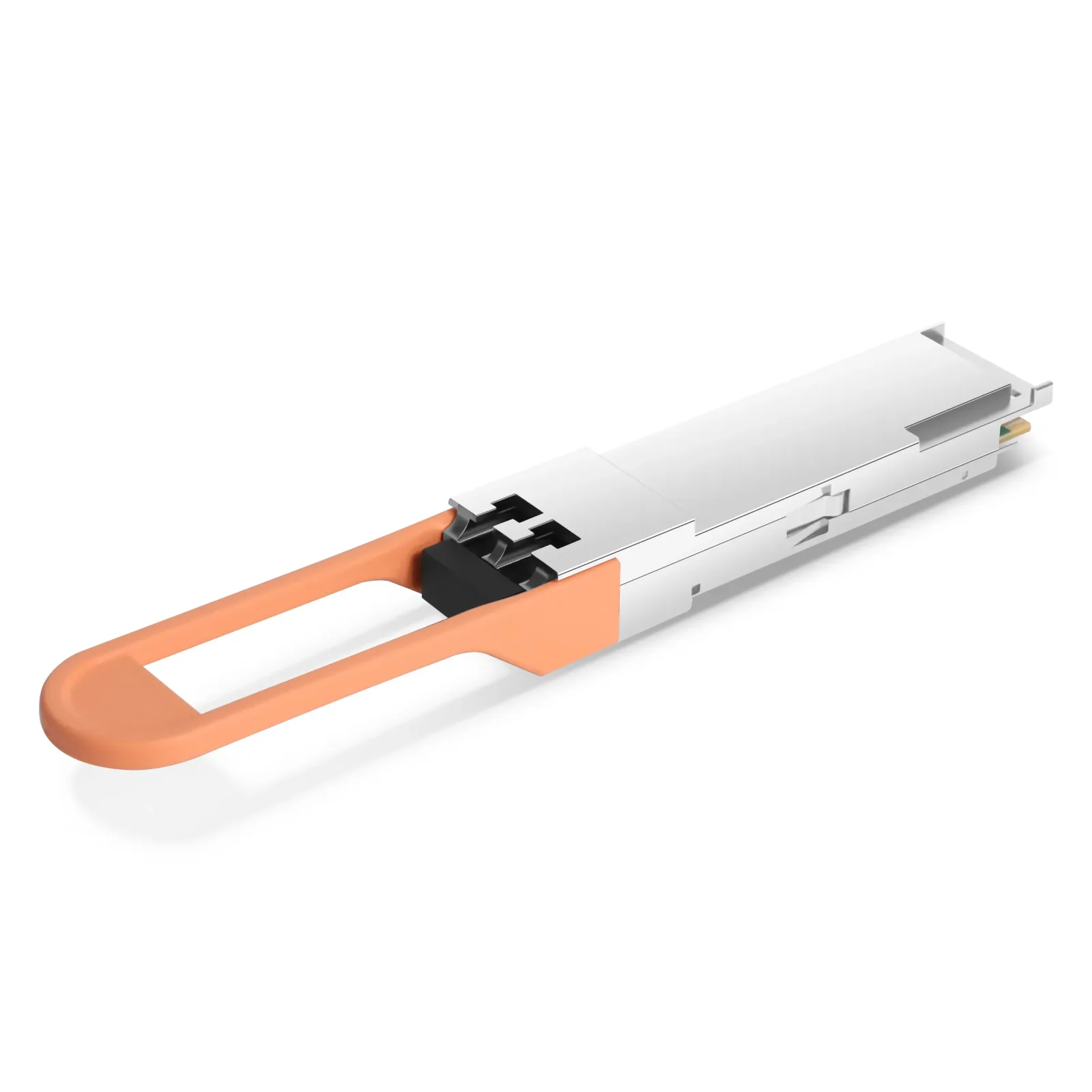

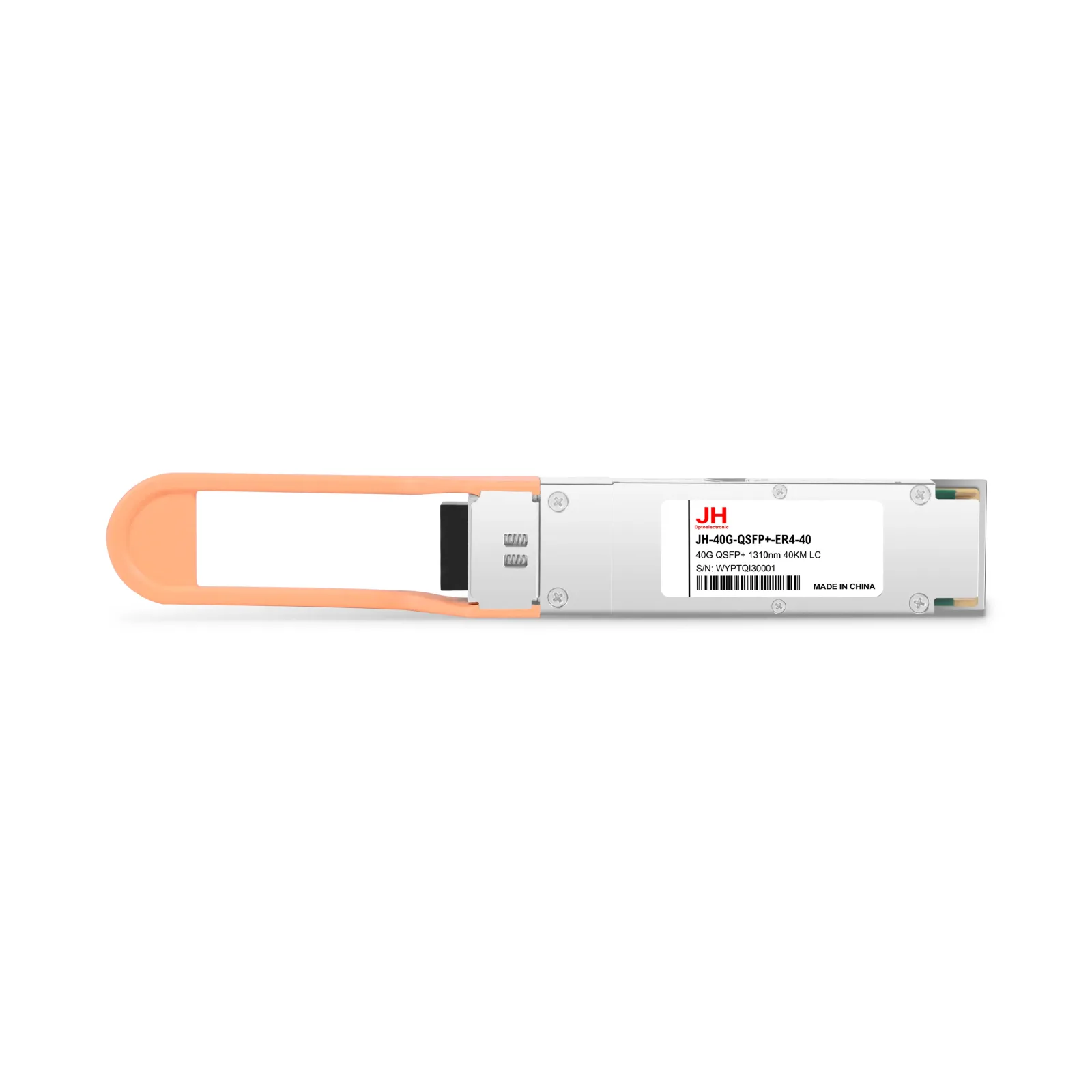

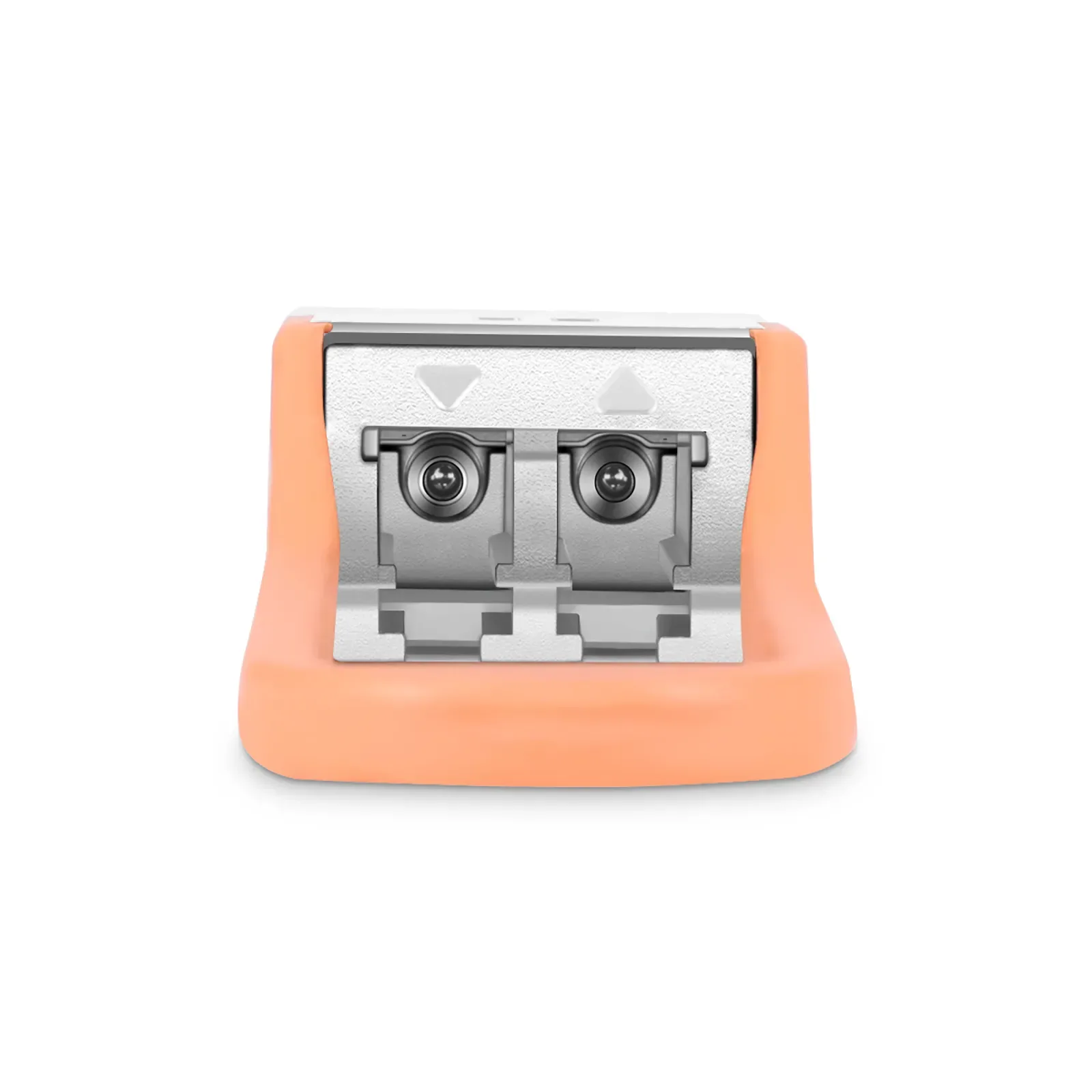

JH-40G-QSFP+-ER4-40

型号：40G QSFP+ 1310nm 40KM LC

JH-40G-QSFP+-ER4-40 is designed for use in 40GBASE Ethernet throughput up to 40km over single mode fiber (SMF) using a wavelength of 1310nm via duplex LC connectors. This transceiver is compliant with QSFP+ MSA, IEEE 802.3bm 40GBASE-ER4 and OTU3 standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP+ MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, high-performance computing networks, enterprise core and distribution layer applications.

联系我们

产品特性

Hot-pluggable QSFP+ form factor
Supports 40Gbps data transmission rate, compliant with IEEE 802.3ba 40G Ethernet standard
Maximum power consumption < 3.5W
Commercial operating temperature range: 0~70
Single +3.3V power supply
Supports DDM/DOM digital diagnostic monitoring, CWDM, EML laser, APD receiver, hot-swappable
Class 1 laser safety certified, compliant with EN 60825-1 standard
Compliant with RoHS 2.0 environmental protection standard, lead-free design
Metro Access, ISP Distribution

规格参数

Data Rate	40G
Distance	40KM
Wavelength	1310nm
Form Factor	QSFP+
Connector	LC
Case Temperature	0~70
Voltage Supply	3.3V
Transmitter	DFB
Receiver	PIN
TX Power	0~5
Receiver Sensitivity	-21
Power consumption（Max）	3.5W

规格书

规格书下载

Datasheet
