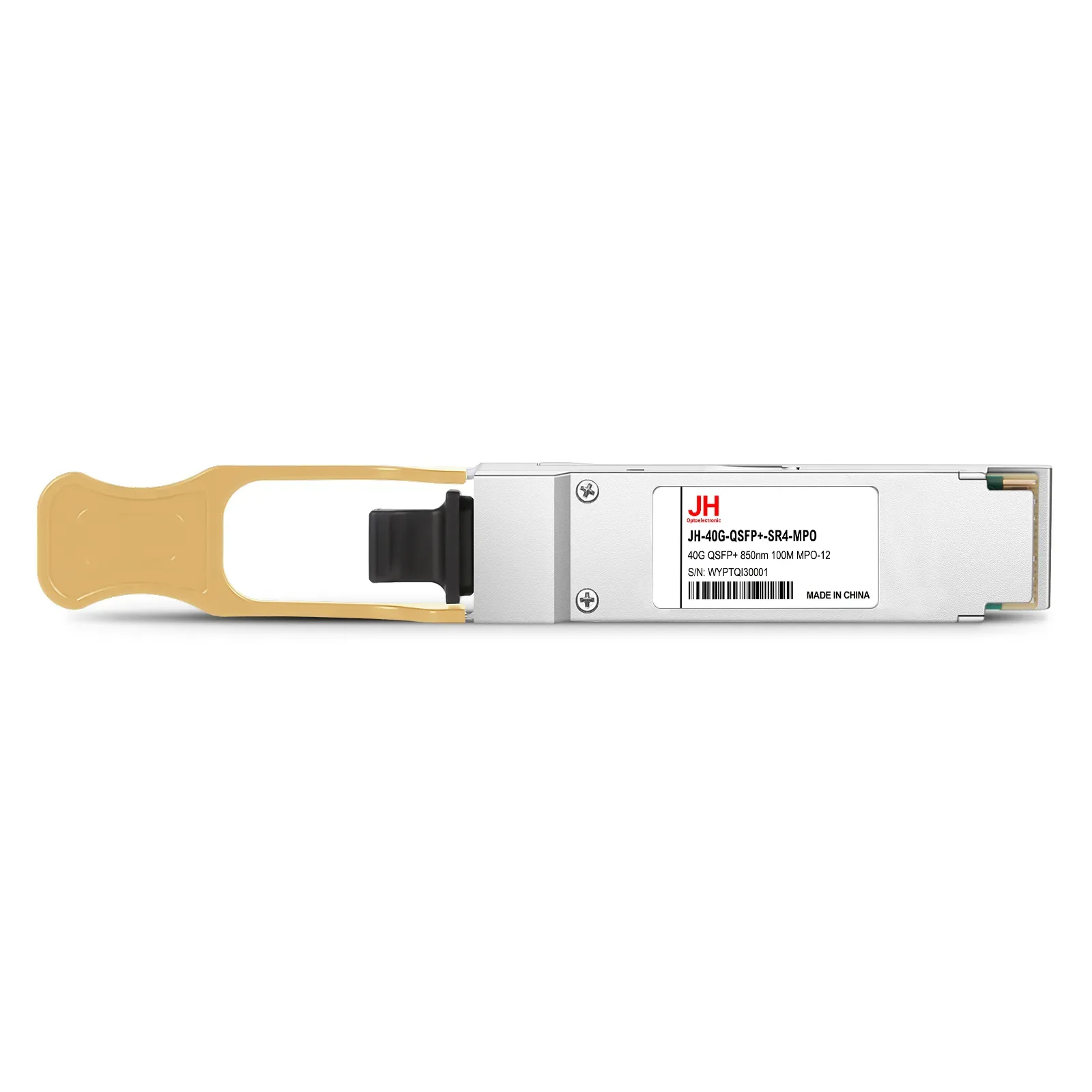

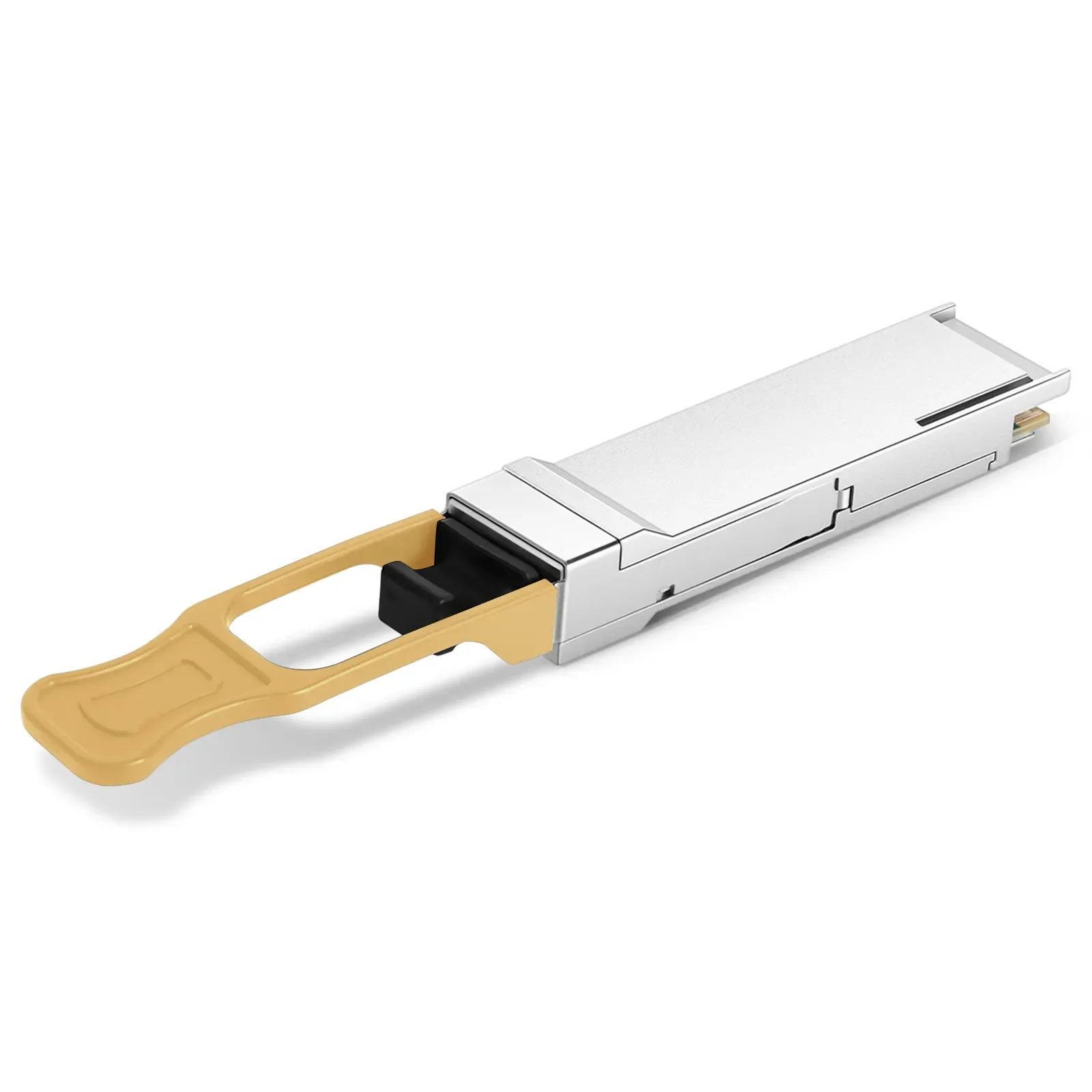

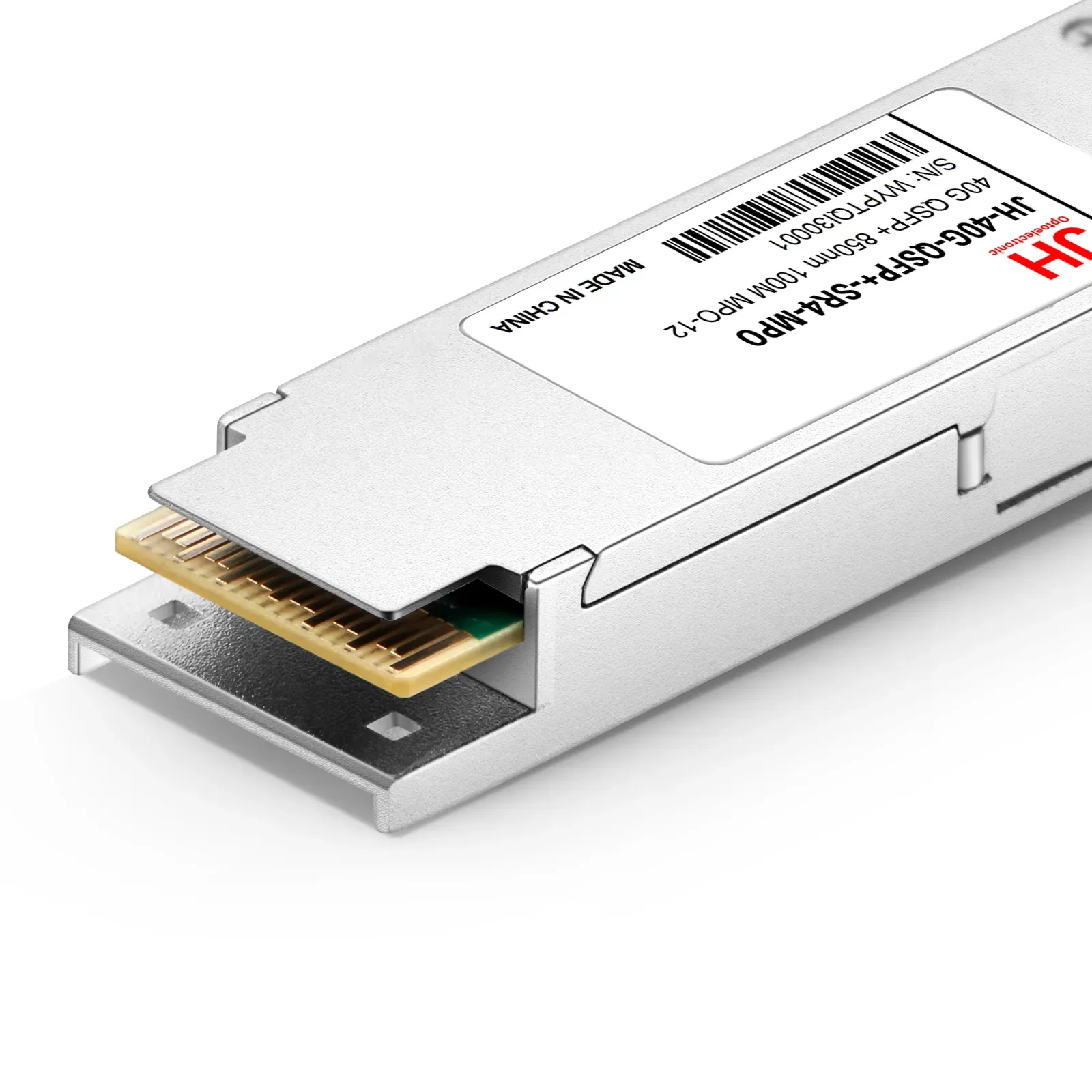

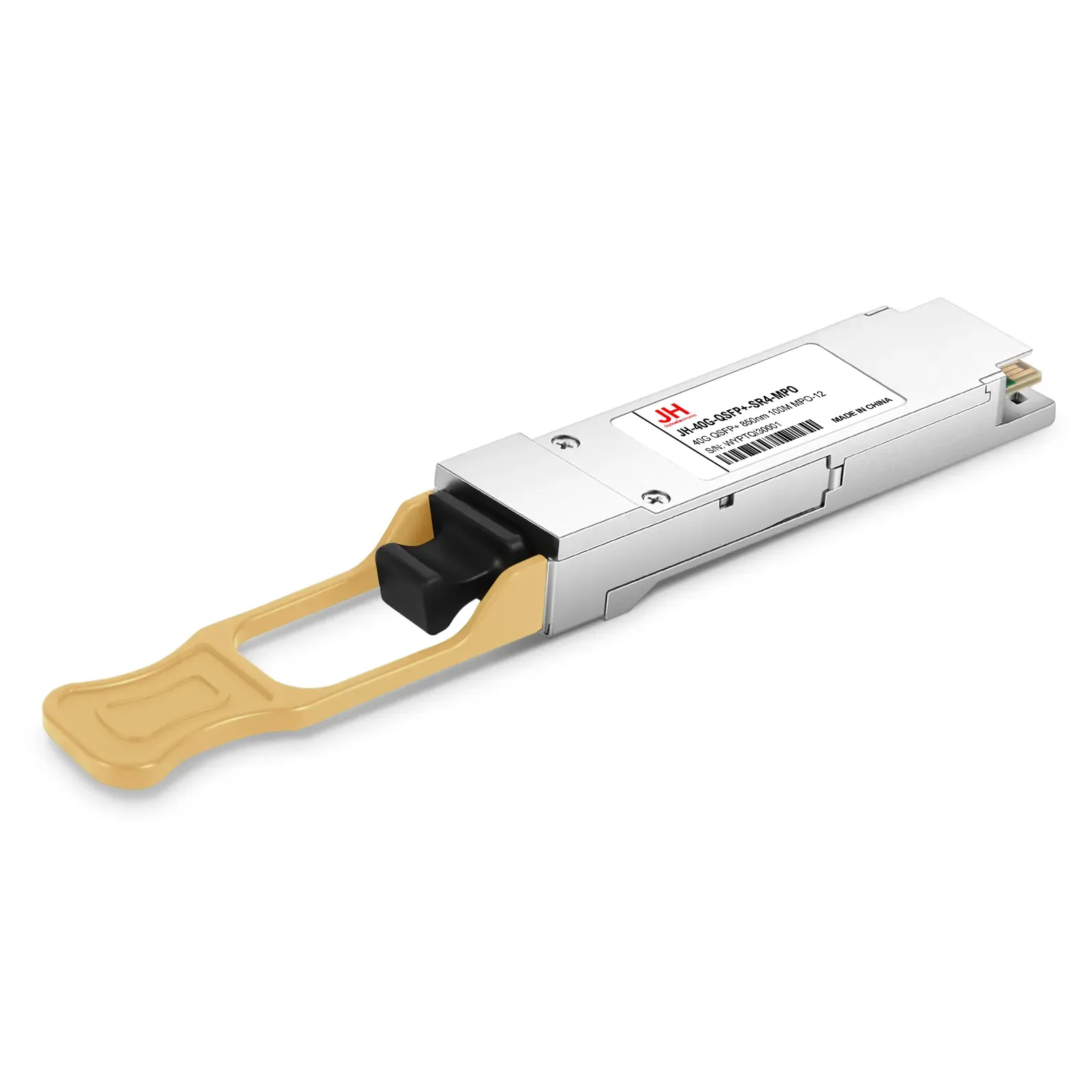

JH-40G-QSFP+-SR4-MPO

型号：40G QSFP+ 850nm 100M MPO-12

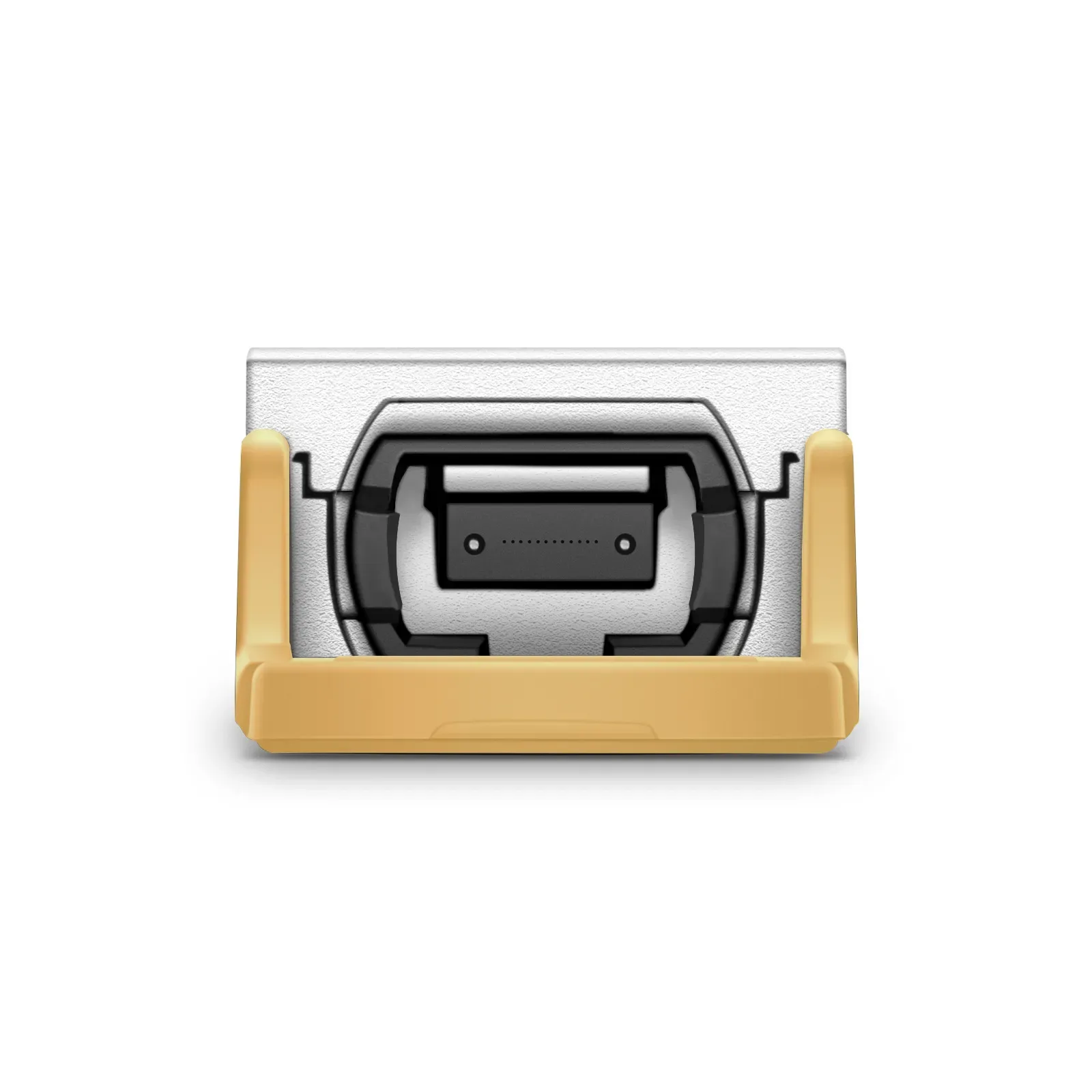

JH-40G-QSFP+-SR4-MPO adopts 12 Fibers MTP/MPO Male connectors, reaching a link up to 150m over OM4 MMF (100m over OM3). This transceiver is compliant with IEEE 802.3 40GBASE-SR4 standard. At the same time, it is completely interoperable with all standard 40GBASE-SR4 interfaces. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP+ MSA, to allow access to real-time operating parameters. With its easy installation and hot-swappable design, this transceiver is ideal for various applications, including campus, data center, cloud deployments, high-performance computing environments, and interconnections between switches, routers, servers, and transport equipment.

联系我们

产品特性

Hot-pluggable QSFP+ form factor
Supports 40Gbps data rate (4x10Gbps), compliant with IEEE 802.3ba 40G Ethernet standard
Maximum power consumption < 0.7W
Commercial operating temperature range: 0~70
Single +3.3V power supply
Supports DDM/DOM digital diagnostic monitoring, 4x10G parallel optics, hot-swappable
Class 1 laser safety certified, compliant with EN 60825-1 standard
Compliant with RoHS 2.0 environmental protection standard, lead-free design
Data Center Spine-Leaf, Enterprise Backbone

规格参数

Data Rate	40G
Distance	100M
Wavelength	850nm
Form Factor	QSFP+
Connector	MPO-12
Case Temperature	0~70
Voltage Supply	3.3V
Transmitter	VCSEL
Receiver	PIN
TX Power	-7.5~2
Receiver Sensitivity	-10.3
Power consumption（Max）	0.7W
