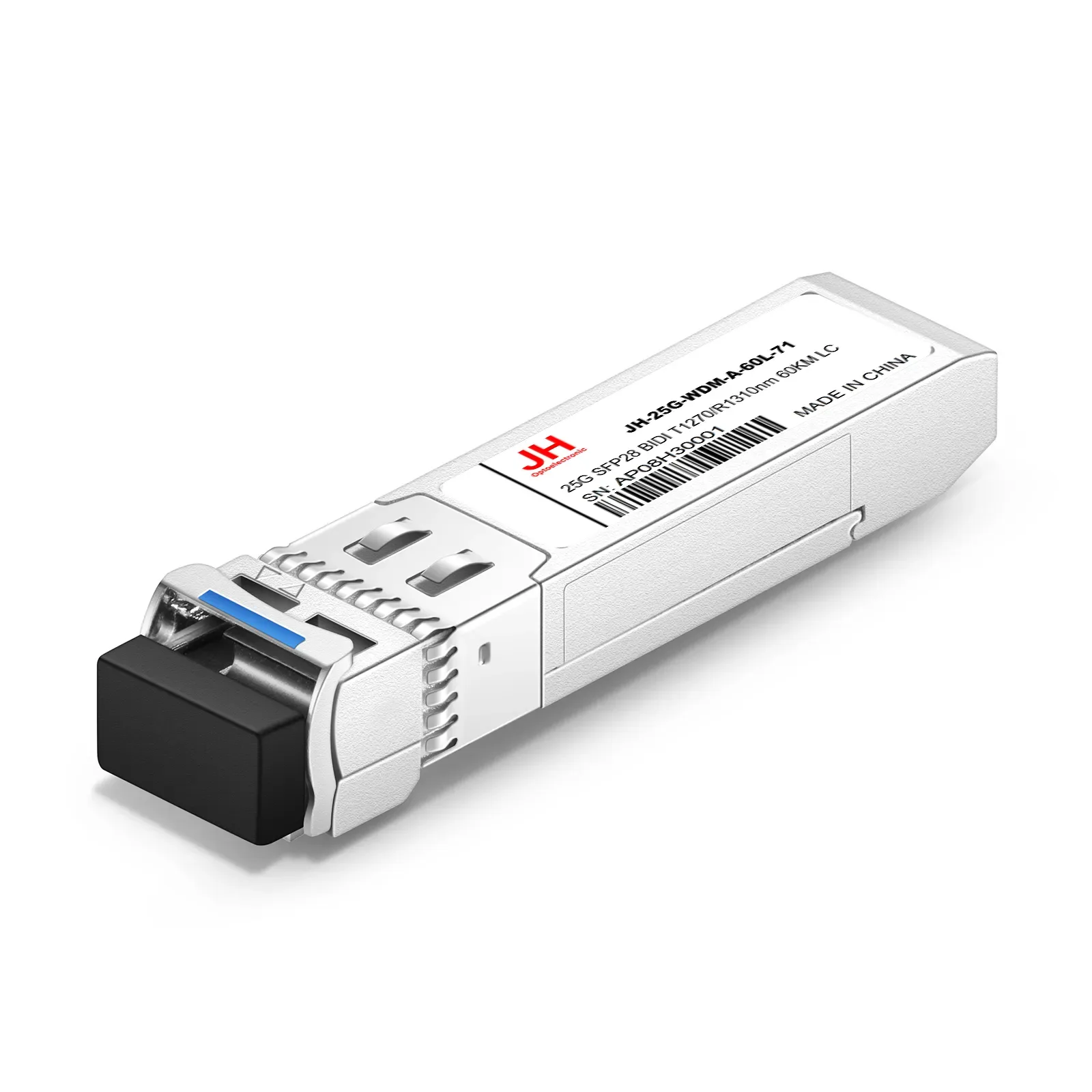

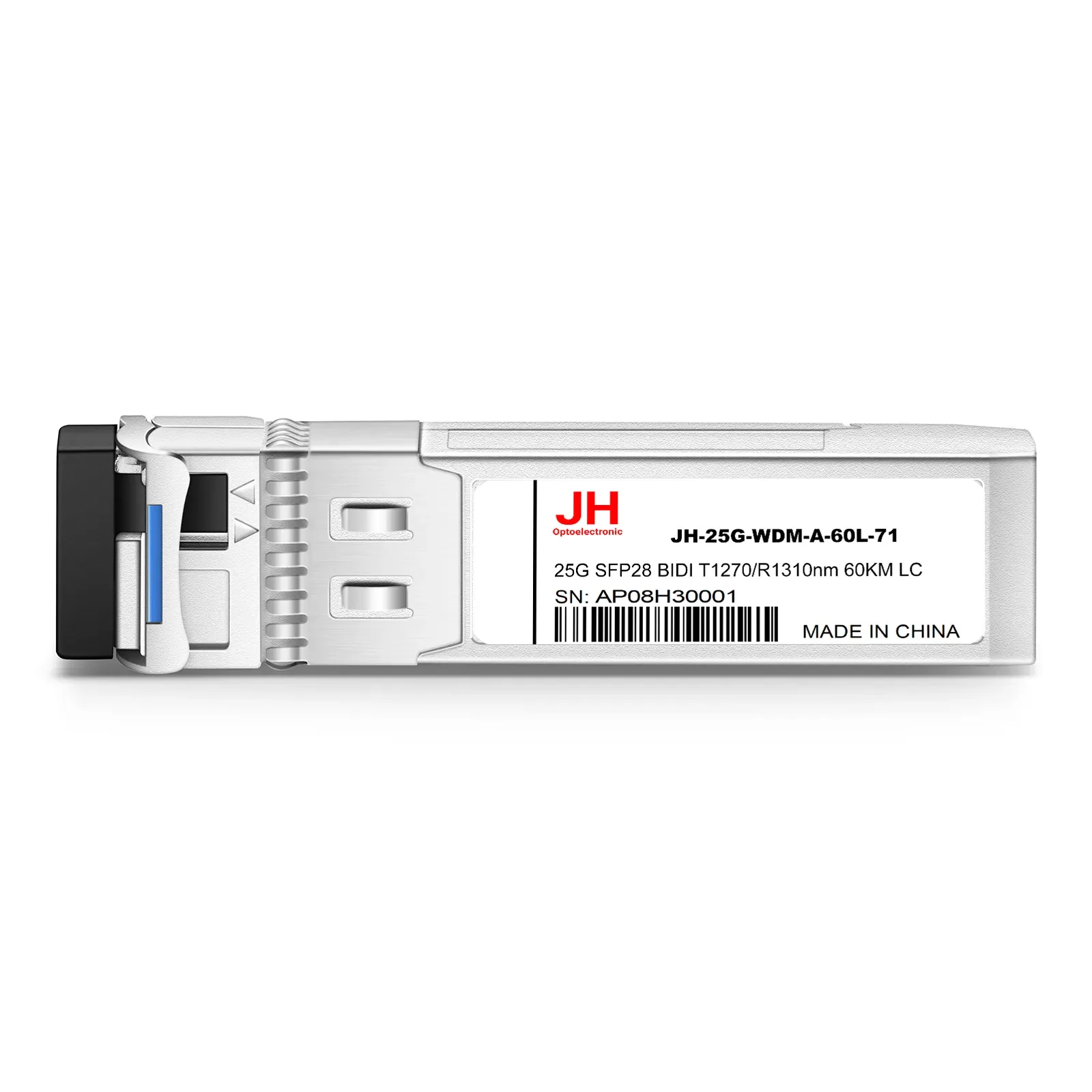

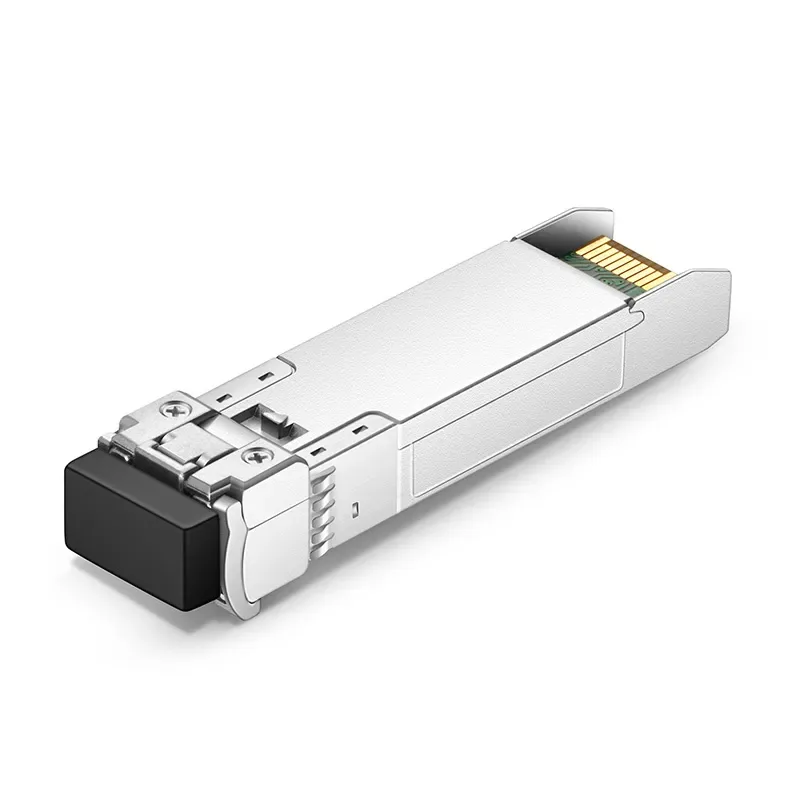

型号：25G SFP28 BIDI T1270/R1310nm 60KM LC

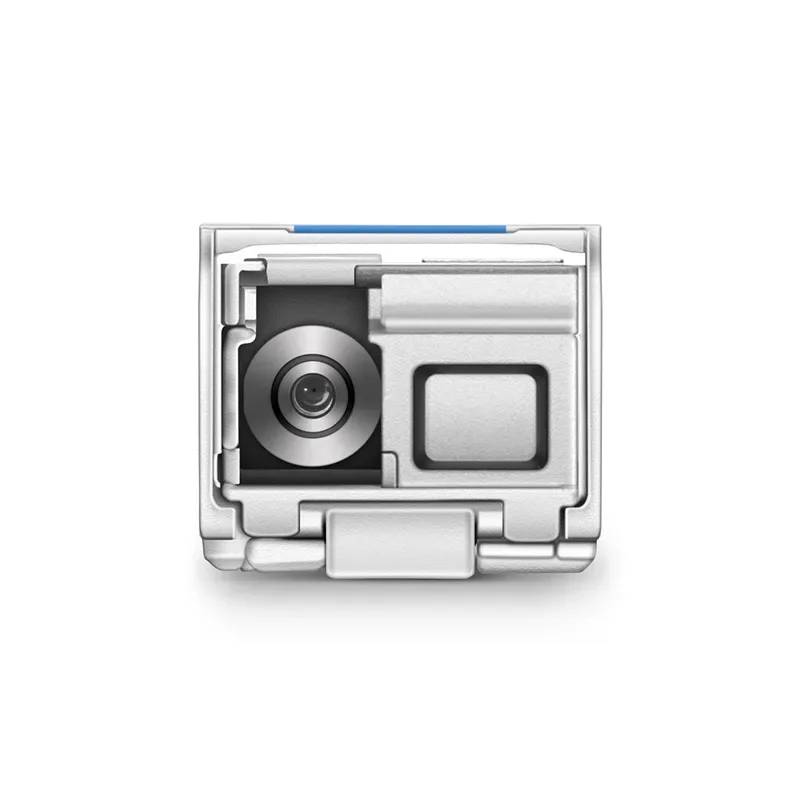

JH-25G-WDM-A-60L-71 provides 25GBase-BX throughput up to 60km over single mode fiber (SMF) using a wavelength of 1270nm-TX/1310nm-RX via an LC simplex connector.This bidirectional unit must be used with another transceiver or network appliance of complimenting wavelengths. It provides 25GBASE Ethernet connectivity option for 25G Ethernet, telecom and data center. It is fully compliant with the SFP28 MSA, CPRI and eCPRI standard.
| Data Rate | 25G |
| Distance | 60KM |
| Wavelength | BIDI |
| Form Factor | SFP28 |
| Connector | LC |
| Case Temperature | 0~70 |
| Voltage Supply | 3.3V |
| Transmitter | EML |
| Receiver | SOA&PIN |
| TX Power | 2~7 |
| Receiver Sensitivity | -21 |
| Power consumption（Max） | 2.5W |
