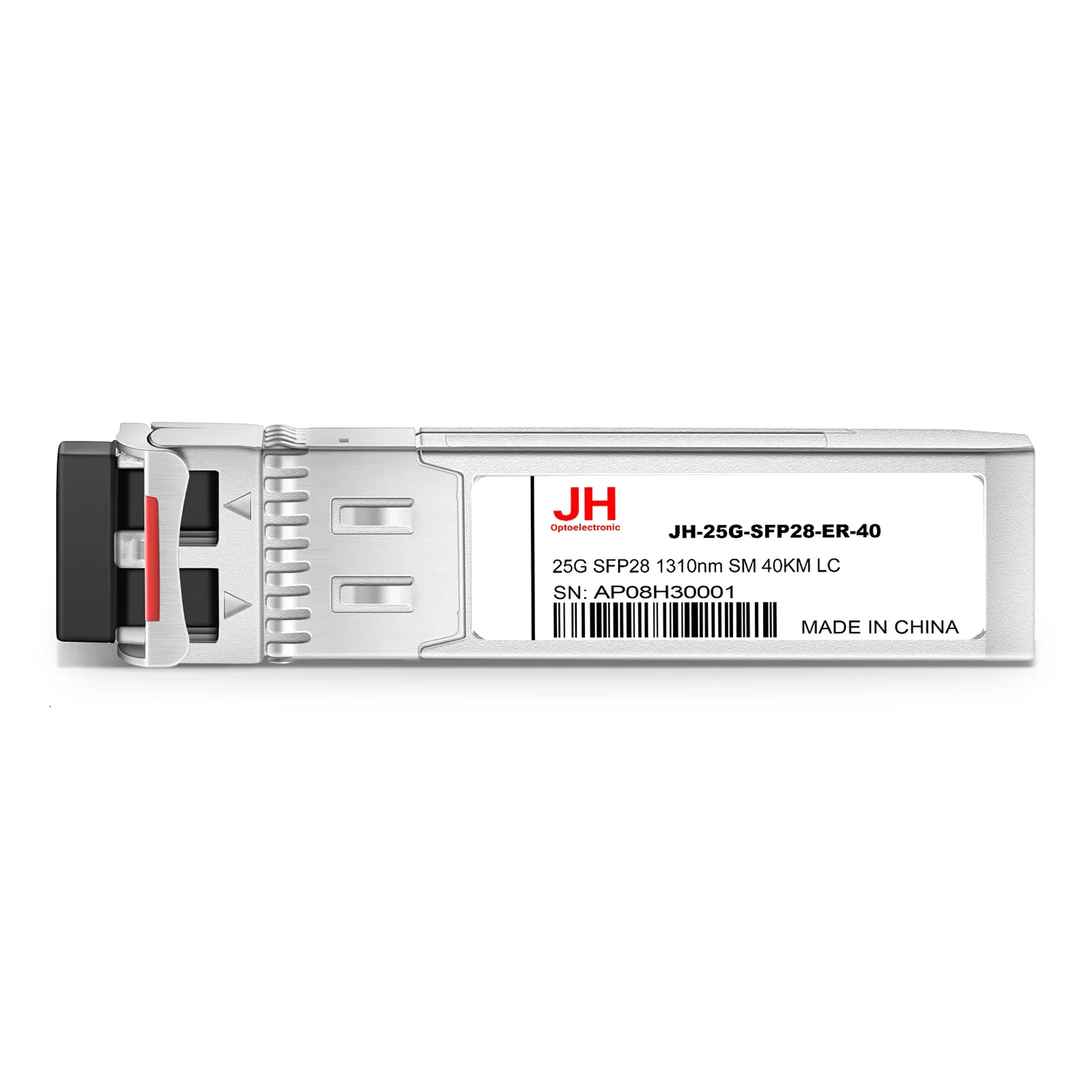

型号：25G SFP28 1310nm SM 40KM LC
JH-25G-SFP28-ER-40 provides 25GBase-ER throughput up to 40km over single mode fiber (SMF) using a wavelength of 1310nm via an LC duplex connector. It provides 25GBASE Ethernet connectivity option for 25G Ethernet, telecom and data center. Besides, this module offers interoperability, laying a foundation for the next-generation network upgrade. It is fully compliant with the SFP28 MSA, CPRI and eCPRI standard.
| Data Rate | 25G |
| Distance | 40KM |
| Wavelength | 1310nm |
| Form Factor | SFP28 |
| Connector | LC |
| Case Temperature | 0~70 |
| Voltage Supply | 3.3V |
| Transmitter | EML |
| Receiver | APD |
| TX Power | 0~6 |
| Receiver Sensitivity | -19 |
| Power consumption（Max） | 2W |
