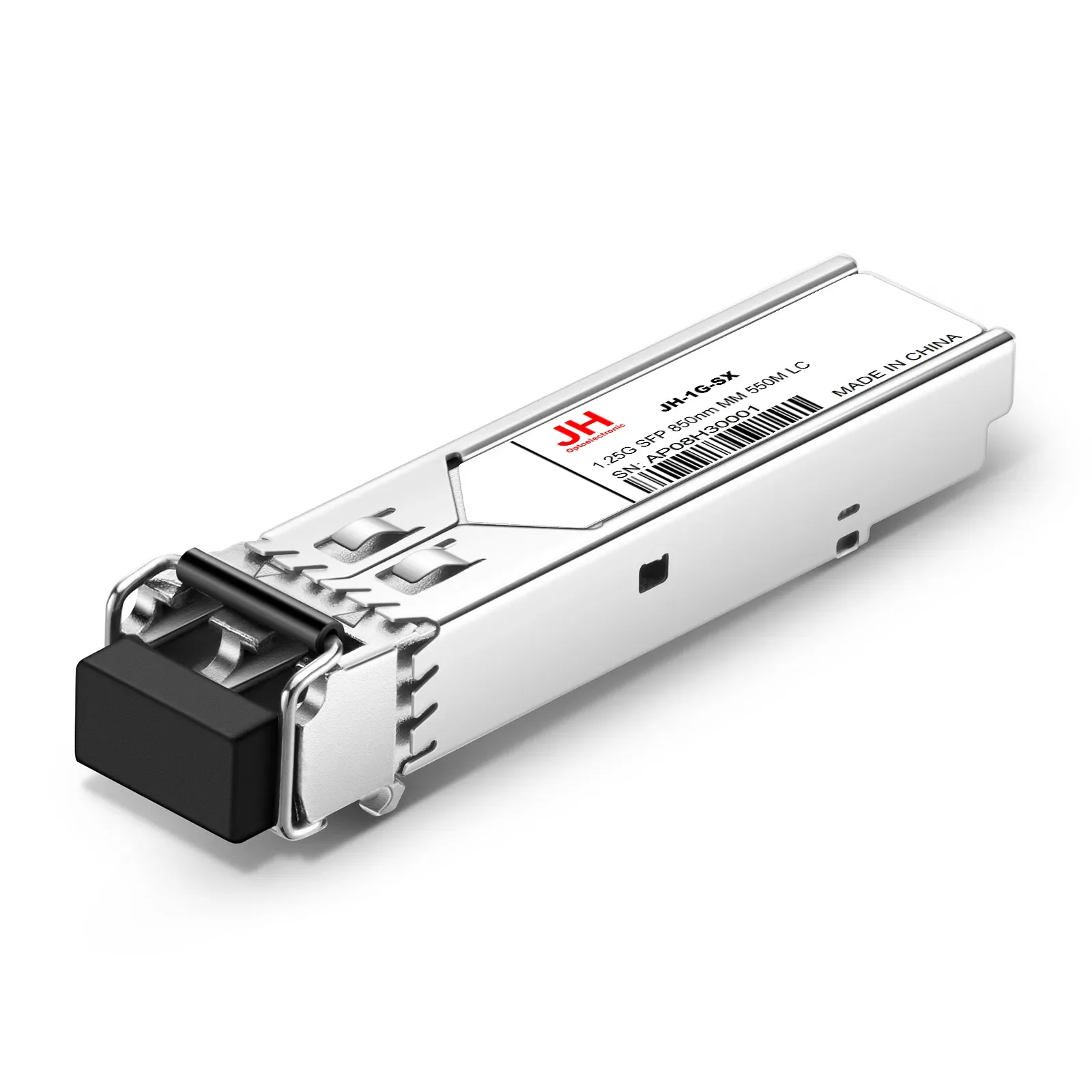

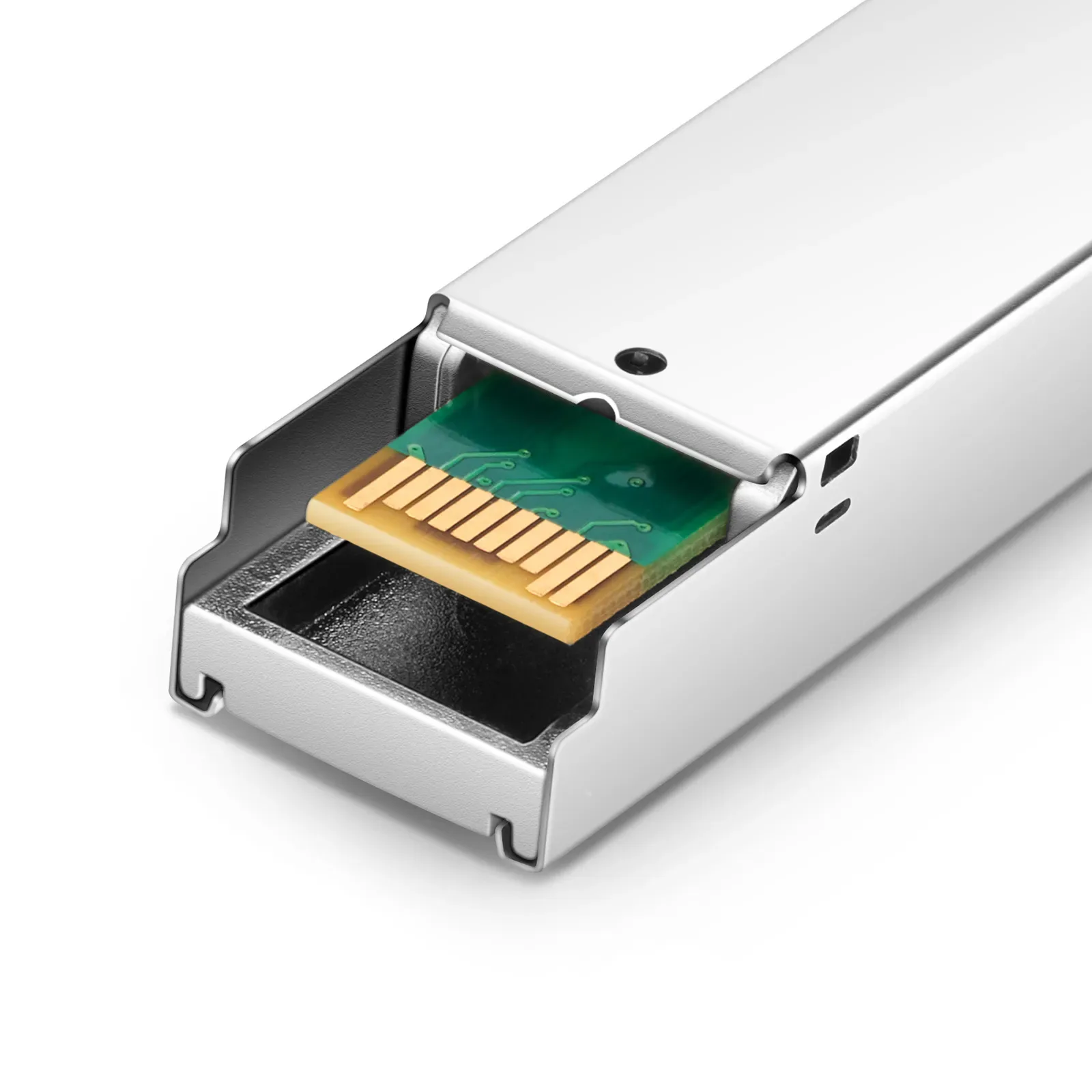

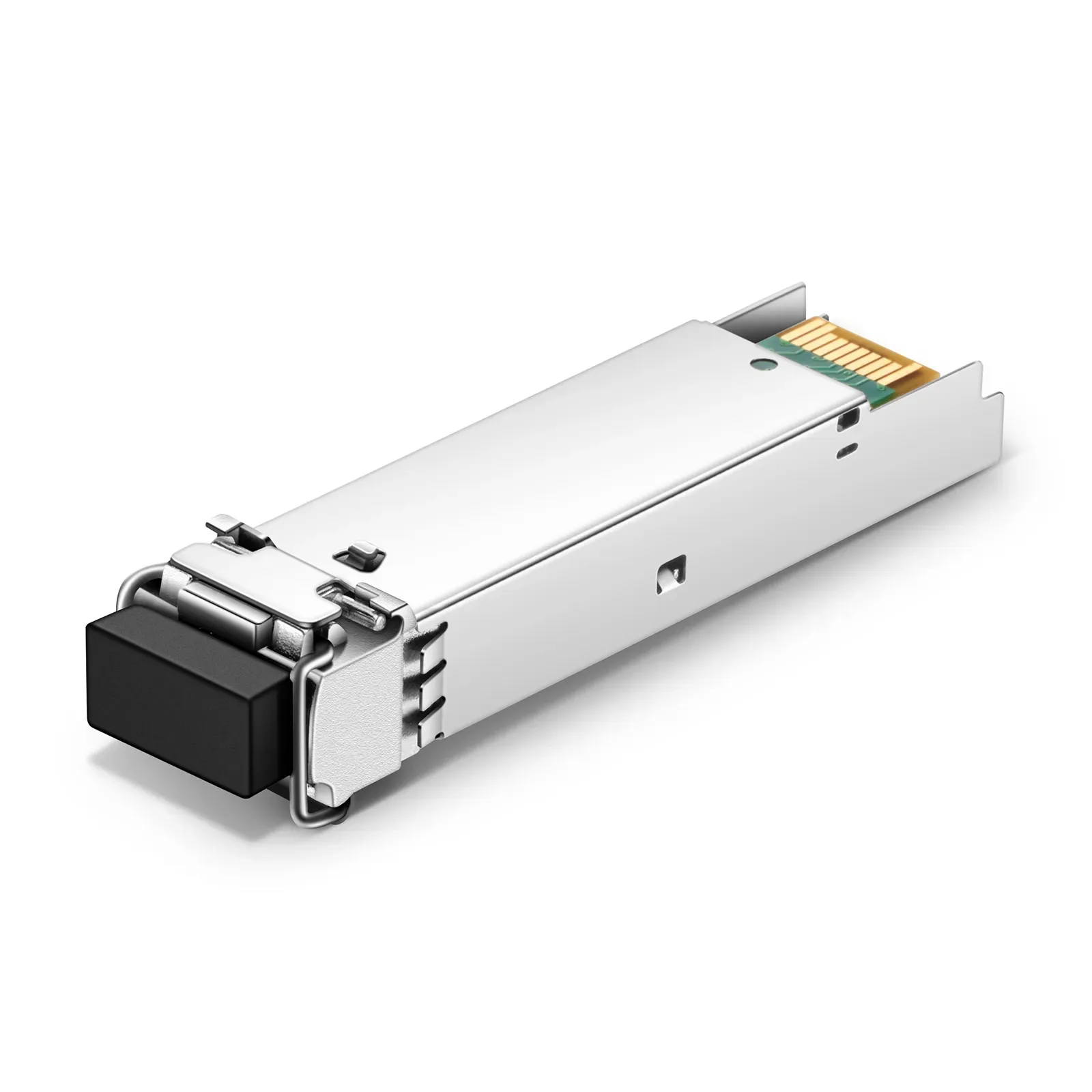

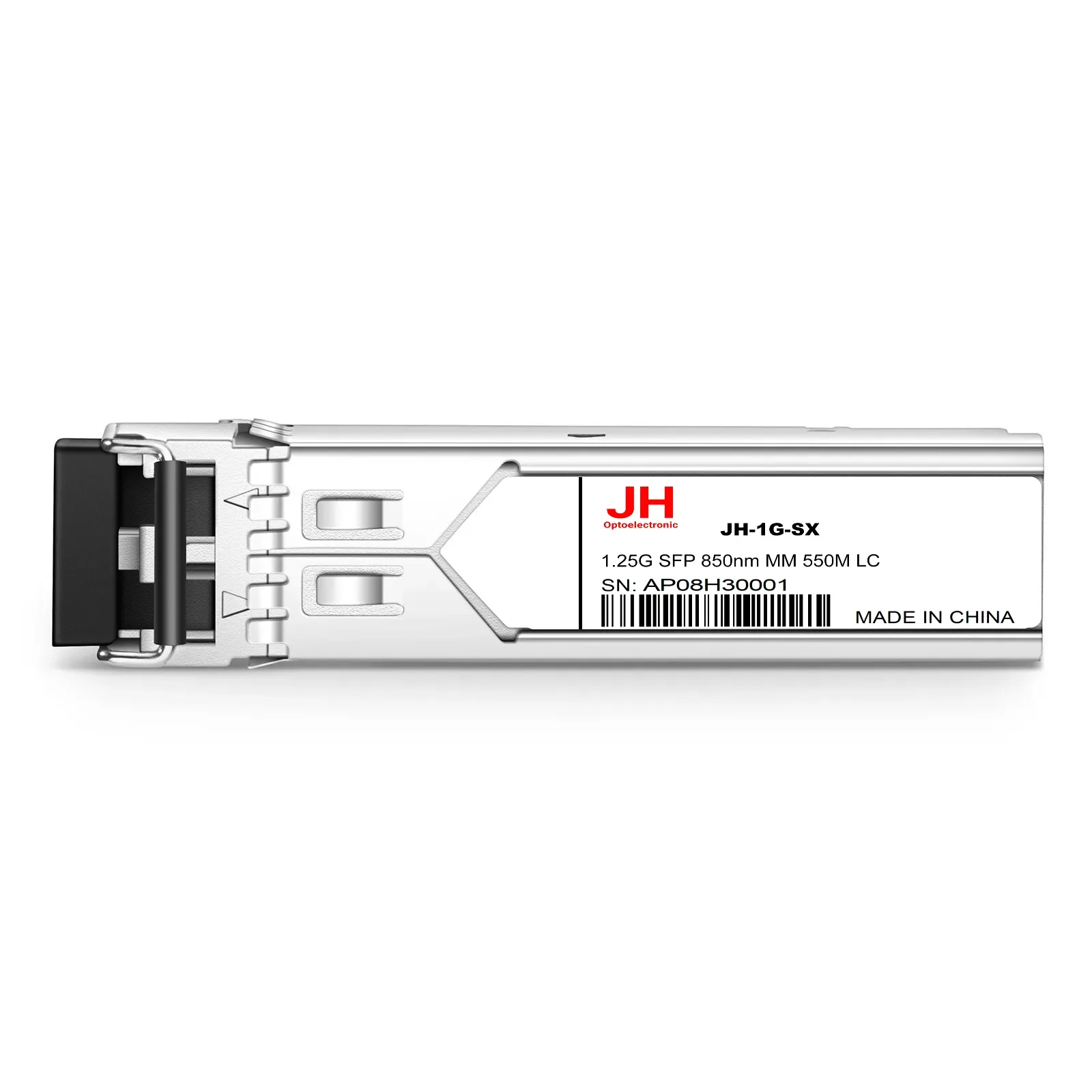

JH-1G-SX

型号：1.25G SFP 850nm MM 550M LC

JH-1G-SX supports up to 550m link lengths over multi-mode fiber (MMF) using a wavelength of 850nm via an LC connector. Each SFP transceiver module is individually tested to be used on a series of switches, routers, servers, network interface card (NICs) etc. Featuring low power consumption, the hot swappable 1G SFP transceiver is ideal for Internet Service Provider (ISP) Gigabit Ethernet communication links, Enterprise LAN & SAN Networks, Data Center LAN & SAN Networks and other optical links.

联系我们

产品特性

Hot-pluggable SFP form factor
Supports 1.25Gbps data transmission rate, compliant with IEEE 802.3z Gigabit Ethernet standard
Maximum power consumption < 0.8W
Commercial operating temperature range: 0~70/-40~85
Single +3.3V power supply
Supports DDM/DOM digital diagnostic monitoring function, low power consumption design, hot-swappable
Class 1 laser safety certified, compliant with EN 60825-1 standard
Compliant with RoHS 2.0 environmental protection standard, lead-free design
Enterprise LAN, Campus Network Access

规格参数

Data Rate	1.25G
Distance	550M
Wavelength	850nm
Form Factor	SFP

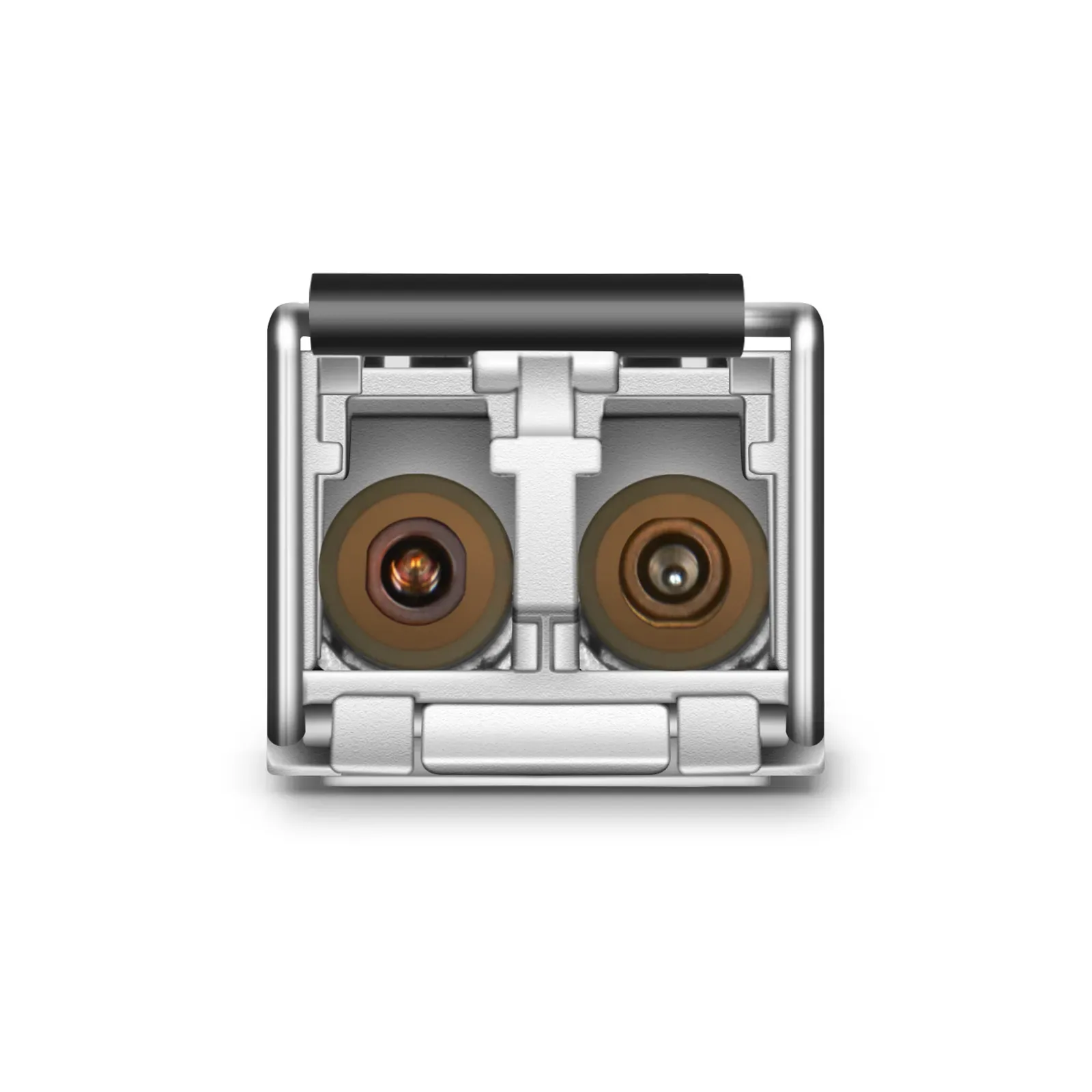

Connector	LC
Case Temperature	0~70/-40~85
Voltage Supply	3.3V
Transmitter	VCSEL
Receiver	PIN
TX Power	-10~-4
Receiver Sensitivity	-18
Power consumption（Max）	0.8W
